Phantom推出可記錄1080P/每秒1540fps 12-bit RAW的Miro M320S

2012-4-17 04:31 AM| 發佈者: west| 查看: 3281| 評論: 6|原作者: west

摘要: M320S Records 12-bit Raw Files to On-Board CIneFlash Drive Vision Research has just announced the Phantom Miro M320S digital high-speed camera, which captures super-slow-motion footage at full HD re ...
M320S
Records 12-bit Raw Files to On-Board CIneFlash Drive

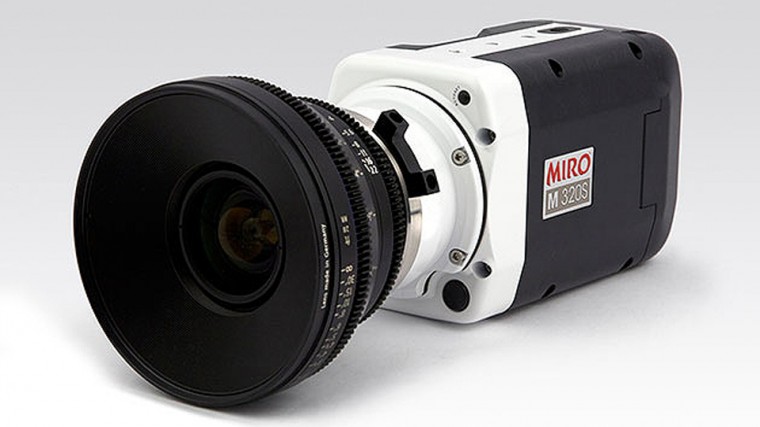

Vision Research has just announced the Phantom Miro M320S digital high-speed camera, which captures super-slow-motion footage at full HD resolution (1,540 fps at 1920×1080) or even a little bit higher (1,380 fps at 1920×1200).
The M320S has a 12-bit CMOS sensor with throughput of 3.2 gigapixels/second; the fewer pixels you need in each frame, the more frames you can push through in a second. That means the camera can shoot 3,280 fps at a very respectable (and easily upscalable) 1280×720. It tops out by delivering a 128×8 image at a massive 325,000 fps.
The M320S has an HD-SDI monitor output, but on-board recording takes place in internal RAM memory, which is configurable at 3, 6 or 12 GB. A camera with 12 GB of RAM can record 2.5 seconds of 1.540 fps material at full 1920×1080 resolution. An optional Phantom remote-control unit with a five-inch TFT touch-screen allows users to frame and focus a shot, review it, and save the raw file to an on-board Phantom CineFlash drive (with up to 240 GB of non-volatile flash storage) or external device.
The sensor has 35mm depth-of-field characteristics, and the camera is available with a variety of lens mounts, including Canon EOS, 35mm PL-mount, and Nikon F-mount and C-mount. When using the EOS (EF) mount, aperture and focus can be remote-controlled.
Along with the M320S, the Miro M-Series includes the M310, which shoots up to 3600 fps at a max resolution of 720p, the M120, which shoots 800 fps at 1080p, and the M110, which shoots 1500fps at 720p. Of the four cameras in the M-series line, the M320S is the only one with HD-SDI output.
Want to add one to your kit? The Phantom's North American dealer, AbelCine, says the cheapest M-Series camera, the M110, starts at $24,900, including a 60 GB CineFlash drive and dock. The M310 follows at $30,900, and then the M120 at $33,900. The M320S can be had for as little as $43,900, with a well-equipped model topping out around $60,000. That's a good deal for a Phantom — AbelCine quotes other Phantoms as running anywhere from $50,000 and $150,000, depending on models and features.

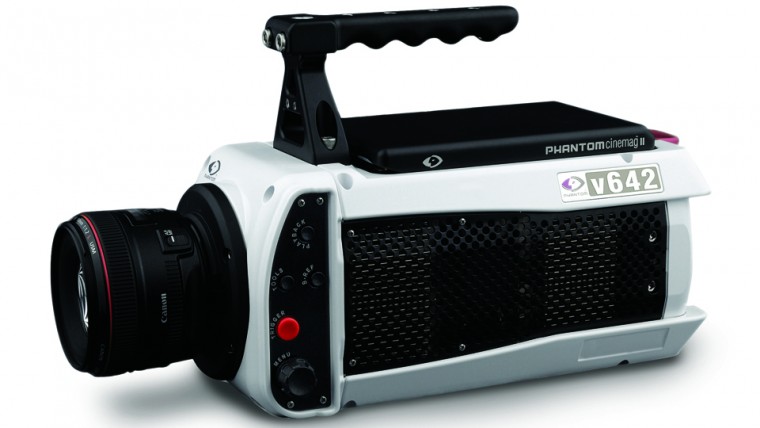

v642
http://sportsvideo.org/main/blog/2012/03/29/vision-research-intros-phantom-v642/
發表評論

最新評論

引用 west 2012-4-17 04:40 AM
Phantom 以往的高速攝影機,畫質總覺得有很濃的電子味像是ENG拍攝。
這次推出可記錄1080P/每秒1540fps 12-bit RAW,加上價格又下降到台幣100萬以下!!
這真的是幾年前作夢都很難想像的。

ps:目前為止在台灣租高速攝影機的價格為一天15萬。

The Phantom HD GOLD High Speed Digital Cinema Camera
[youtubehd]osUUoSOOiE0[/youtubehd]

引用 htjmartin 2012-4-17 12:46 PM
第一次看到phantom的攝影機價錢降這麼多…而且還可以接Canon Nikon的鏡頭,這個是也要打入市場跟Sony比
引用 MythPlayer 2012-4-17 02:48 PM
htjmartin 發表於 2012-4-17 12:46
第一次看到phantom的攝影機價錢降這麼多…而且還可以接Canon Nikon的鏡頭,這個是也要打入市場跟Sony比 ...

這種機器要能用還得買一大堆accessories......
引用 pinkzoids 2012-4-22 07:57 PM
1540fps = =" 要接近人眼的視覺感受嗎...
引用 west 2012-4-26 11:01 AM
今天補上First Look at the Ultra-Compact Phantom Miro M320S影片
實機比想像中還小很多。
引用 joewang2003 2012-4-27 01:57 AM
看是平凡瞬間閃過的一幕, 在super slo-mo下卻變的那麼有fu, 真有趣
