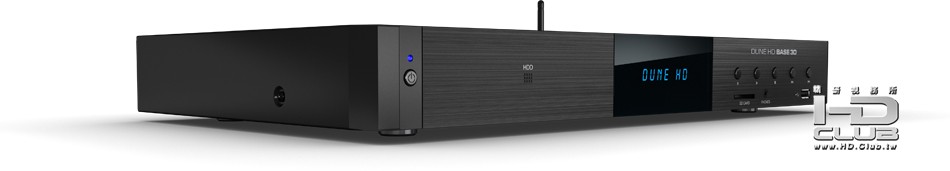

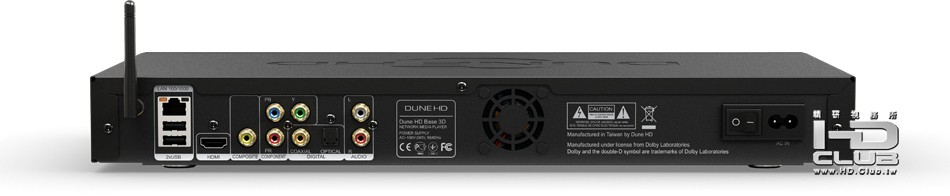

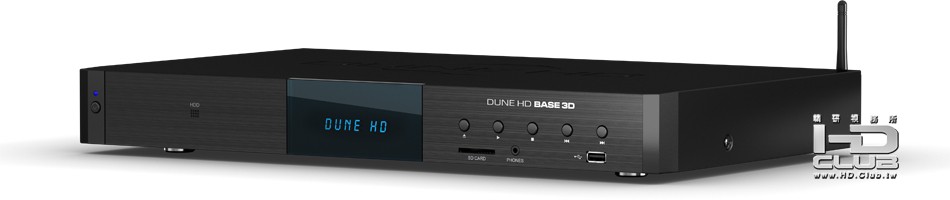

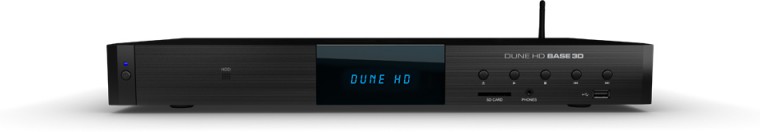

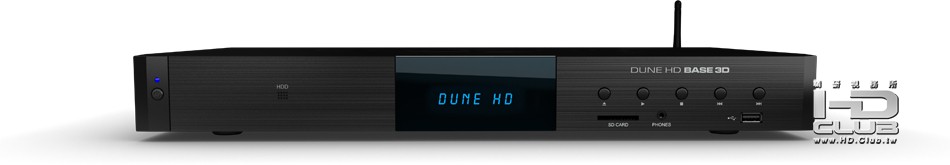

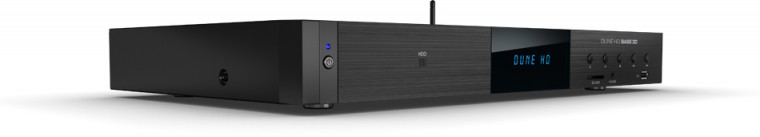

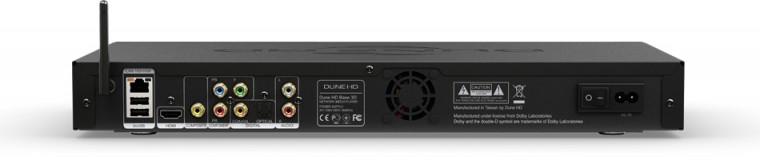

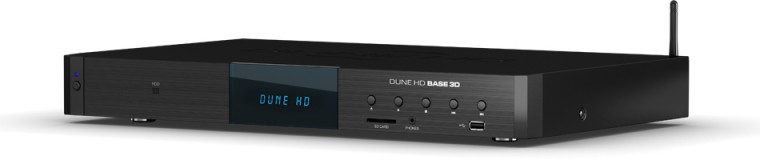

Dune HD 發表2013年第1季全新機種 - Dune HD Base 3D 高畫質3D多媒體硬碟播放機

[複製連結]

發表於 2013-4-23 02:26:29 | 顯示全部樓層 |閱讀模式

馬上註冊,結交更多好友,享用更多功能,讓你輕鬆玩轉社區。

您需要 登錄 才可以下載或查看,沒有賬號?註冊

x
本文章最後由 neuHD 於 2013-4-23 02:31 編輯

(2013/4/23 中文化編輯中)

Dune HD Base 3D is the most affordable universal solution for Full HD video and audio playback as well as IPTV and VOD streams via the new Dune HD Portal. Supporting most all digital audio and video formats, codecs and file containers, including all modern 3D video standards such as MVC, SBS and Top/Bottom, audiophile uncompressed HD audio with high resolutions up to 24 bit /192 kHz, the Dune HD Base 3D sets an entirely new standard. Like previous models in the Dune HD Base range, the all new Base 3D is equipped with an internal 3.5” SATA HDD bay with hot swap function.








Key Features

  • 3D Video Format Support: Decodes wide variety of 3D Video formats, including MVC, SBS, Top/Bottom.
  • HDD Player: Plays content from any HDD (internal, NAS or USB)
  • Network Player: Connect Dune HD player to a local network and play content directly from PC or NAS via UPnP, SMB, or NFS.
  • MKV Player: Playback HD and SD video in MKV containers and other modern video file formats, including top quality HD video with very high bit-rates > 50Mbp/s.
  • HD audio: enjoy top-quality audio tracks.
  • USB Ports: Conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices without a USB hub.
  • HDD Rack Option with Hot Swap Function: Easily and quickly insert and exchange internal 3.5’’ SATA HDDs for nearly unlimited storage capacity expansion.
  • HDMI 1.4: Ensures broad compatibility to the very latest 3D TV’s, displays and projectors.
  • Full Range of A/V Connectors: S/PDIF Optical and Coaxial Audio outputs, Analog Stereo Audio output, HDMI output, Component and Composite Video outputs.
  • Extended support for HD Audio: output bitstream (up to 7.1 channels) or decode to LPCM (up to 7.1 channels) for maximum flexibility when connecting audio equipment.
  • High-Quality Music Playback: Plays very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc).
  • Playlist Support: Build playlists from folders, use your own play lists with repeat and shuffle functions.
  • Video Output Flexibility: Output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
  • Video Up-Scaling: High quality up-scaling of DVD and any other SD video content to Full HD (1080p) or other HD resolutions.
  • File Browser: Convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).


Extra Functions

  • External NAS Support: Access files on any external storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).
  • Customizable User Interface: Work with media collections using cover art and icon browsing (supports Full HD graphics).
  • Flash Applications: Extend player functionality with FlashLite applications.
  • Internet Radio: Playback and record various Internet radio stations.
  • IPTV: Playback and record IPTV streams
  • Internet Browsing: View Internet web sites on your TV using the built-in web browser.


Specification

  • Processor: Sigma Designs 8672/8673
  • RAM: 512 MB
  • Flash memory: 256 MB
  • Connectors: HDMI 1.4, 3x USB 2.0 (2x rear, 1x front), composite, component, analog stereo outputs, optical S/PDIF, coaxial SPDIF, Ethernet 10/100/1000 Mb/s, SD card slot (front), power input, power switch (back), LED indicator (front)
  • Internal storage: Internal HDD rack with hot swap function for SATA HDD 3.5".
  • Media sources: external HDD (USB), external optical drive (USB), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local network media sources (HTTP, multicast UDP RTP)
  • Web Browser: Opera, WebKit
  • DLNA: DLNA (1.5 or 2.0) client support
  • Adobe Flash: 3.1 (Lite, standalone) supported
  • DRM options: PlayReady, Verimatrix, Secure Media. Other DRM can be added by request
  • Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264; support for very high bitrate video (up to 50 MBit/s and higher)
  • Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, BDMV, DVD-ISO, VIDEO_TS
  • 3D Video Support: MVC, Side-by-side, Top/Bottom
  • Video output modes: wide range of supported output resolutions (up to 1080p) and framerates (including 23.976p, 24p, PAL, NTSC)
  • Video output framerate: automatic (according to the played content) and manual
  • Audio codecs: AC3 (Dolby Digital), DTS, MPEG, AAC, LPCM, WMA, WMAPro, FLAC, multichannel FLAC, Ogg/Vorbis; support for very high quality audio (up to 192 kHz / 24-bit)
  • Audio file formats: MP3, MPA, M4A, WMA, FLAC, APE (Monkey’s Audio), WV Pack, Ogg/Vorbis, WAV, AC3, AAC
  • HD audio support: pass-through (up to 7.1 channels) and decoding (up to 7.1 channels) of Dolby TrueHD and DTS HD MA audiotracks (Blu-ray, TS, MKV), pass-through (up to 7.1 channels) of multichannel LPCM audiotracks (Blu-ray, TS, MKV), decoding (up to 7.1 channels) of FLAC audiotracks (MKV, external)
  • Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (Blu-ray, TS, MKV)
  • Hardware 3D Graphics Acceleration: OpenGL support
  • Picture file formats: JPEG, PNG, BMP, GIF
  • Playlist file formats: M3U, PLS
  • Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle
  • Audio playback functions: browse playlist, repeat, shuffle, ID3 tags, plasma TV burn-in prevention
  • Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write)
  • Ethernet: 10/100/1000 Mb/s
  • Wi-Fi: Internal Wi-Fi (b/g/n) module
  • Dune Network Playback Accelerator: special optimizations ensuring best-in-class network playback performance for the Sigma Designs 864x-865x-867x platform and enabling smooth playback of any supported kind of media content via any network protocol (including NFS and SMB) even in 100 Mbit/s Ethernet networks.



 樓主| 發表於 2013-4-23 02:28:16 | 顯示全部樓層
本文章最後由 neuHD 於 2013-4-23 02:29 編輯

以下為官方原文資料:

Dune HD Base 3D is the most affordable universal solution for Full HD video and audio playback as well as IPTV and VOD streams via the new Dune HD Portal. Supporting most all digital audio and video formats, codecs and file containers, including all modern 3D video standards such as MVC, SBS and Top/Bottom, audiophile uncompressed HD audio with high resolutions up to 24 bit /192 kHz, the Dune HD Base 3D sets an entirely new standard. Like previous models in the Dune HD Base range, the all new Base 3D is equipped with an internal 3.5” SATA HDD bay with hot swap function.






Key Features

  • 3D Video Format Support: Decodes wide variety of 3D Video formats, including MVC, SBS, Top/Bottom.
  • HDD Player: Plays content from any HDD (internal, NAS or USB)
  • Network Player: Connect Dune HD player to a local network and play content directly from PC or NAS via UPnP, SMB, or NFS.
  • MKV Player: Playback HD and SD video in MKV containers and other modern video file formats, including top quality HD video with very high bit-rates > 50Mbp/s.
  • HD audio: enjoy top-quality audio tracks.
  • USB Ports: Conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices without a USB hub.
  • HDD Rack Option with Hot Swap Function: Easily and quickly insert and exchange internal 3.5’’ SATA HDDs for nearly unlimited storage capacity expansion.
  • HDMI 1.4: Ensures broad compatibility to the very latest 3D TV’s, displays and projectors.
  • Full Range of A/V Connectors: S/PDIF Optical and Coaxial Audio outputs, Analog Stereo Audio output, HDMI output, Component and Composite Video outputs.
  • Extended support for HD Audio: output bitstream (up to 7.1 channels) or decode to LPCM (up to 7.1 channels) for maximum flexibility when connecting audio equipment.
  • High-Quality Music Playback: Plays very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc).
  • Playlist Support: Build playlists from folders, use your own play lists with repeat and shuffle functions.
  • Video Output Flexibility: Output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
  • Video Up-Scaling: High quality up-scaling of DVD and any other SD video content to Full HD (1080p) or other HD resolutions.
  • File Browser: Convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).


Extra Functions

  • External NAS Support: Access files on any external storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).
  • Customizable User Interface: Work with media collections using cover art and icon browsing (supports Full HD graphics).
  • Flash Applications: Extend player functionality with FlashLite applications.
  • Internet Radio: Playback and record various Internet radio stations.
  • IPTV: Playback and record IPTV streams
  • Internet Browsing: View Internet web sites on your TV using the built-in web browser.


Specification

  • Processor: Sigma Designs 8672/8673
  • RAM: 512 MB
  • Flash memory: 256 MB
  • Connectors: HDMI 1.4, 3x USB 2.0 (2x rear, 1x front), composite, component, analog stereo outputs, optical S/PDIF, coaxial SPDIF, Ethernet 10/100/1000 Mb/s, SD card slot (front), power input, power switch (back), LED indicator (front)
  • Internal storage: Internal HDD rack with hot swap function for SATA HDD 3.5".
  • Media sources: external HDD (USB), external optical drive (USB), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local network media sources (HTTP, multicast UDP RTP)
  • Web Browser: Opera, WebKit
  • DLNA: DLNA (1.5 or 2.0) client support
  • Adobe Flash: 3.1 (Lite, standalone) supported
  • DRM options: PlayReady, Verimatrix, Secure Media. Other DRM can be added by request
  • Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264; support for very high bitrate video (up to 50 MBit/s and higher)
  • Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, BDMV, DVD-ISO, VIDEO_TS
  • 3D Video Support: MVC, Side-by-side, Top/Bottom
  • Video output modes: wide range of supported output resolutions (up to 1080p) and framerates (including 23.976p, 24p, PAL, NTSC)
  • Video output framerate: automatic (according to the played content) and manual
  • Audio codecs: AC3 (Dolby Digital), DTS, MPEG, AAC, LPCM, WMA, WMAPro, FLAC, multichannel FLAC, Ogg/Vorbis; support for very high quality audio (up to 192 kHz / 24-bit)
  • Audio file formats: MP3, MPA, M4A, WMA, FLAC, APE (Monkey’s Audio), WV Pack, Ogg/Vorbis, WAV, AC3, AAC
  • HD audio support: pass-through (up to 7.1 channels) and decoding (up to 7.1 channels) of Dolby TrueHD and DTS HD MA audiotracks (Blu-ray, TS, MKV), pass-through (up to 7.1 channels) of multichannel LPCM audiotracks (Blu-ray, TS, MKV), decoding (up to 7.1 channels) of FLAC audiotracks (MKV, external)
  • Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (Blu-ray, TS, MKV)
  • Hardware 3D Graphics Acceleration: OpenGL support
  • Picture file formats: JPEG, PNG, BMP, GIF
  • Playlist file formats: M3U, PLS
  • Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle
  • Audio playback functions: browse playlist, repeat, shuffle, ID3 tags, plasma TV burn-in prevention
  • Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write)
  • Ethernet: 10/100/1000 Mb/s
  • Wi-Fi: Internal Wi-Fi (b/g/n) module
  • Dune Network Playback Accelerator: special optimizations ensuring best-in-class network playback performance for the Sigma Designs 864x-865x-867x platform and enabling smooth playback of any supported kind of media content via any network protocol (including NFS and SMB) even in 100 Mbit/s Ethernet networks.


回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2013-4-23 02:30:15 | 顯示全部樓層
Youtube上的外觀資料:

回覆 支持 反對

使用道具 舉報


發表於 2013-4-23 06:31:53 | 顯示全部樓層
請問這台 Dune HD Base 3D 是否買了這組一變二的HDMI分配器
看3D就不用更換舊款1.3版的AV前級 (DTC 9.8)

例 : 只有一組1.4版HDMI輸出的Dune HD Base 3D
一變二以後 一條直入投影機 另一條到AV前級 (DTC 9.8)

http://www.in-akustik.com/en/KuZ ... 7012_KuZ&mobil=
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2013-4-23 17:33:27 | 顯示全部樓層
toshinko 發表於 2013-4-23 06:31
請問這台 Dune HD Base 3D 是否買了這組一變二的HDMI分配器
看3D就不用更換舊款1.3版的AV前級 (DTC 9.8)

理論上應該要可以用的
怕只怕過了一個分配器  3D上不去會變2D ><

可是in-akustik原廠網頁的規格  弟看不太懂
硬體規格上寫 hdmi v1.3
可是後面又寫支援3D (3D 應該是 HDMI v1.4)

所以接上去過不過的去  可能要實際試看看了

小弟有朋友有這一台in-akustik的hdmi分配器
再來去問問他看3D O不OK了

回覆 支持 反對

使用道具 舉報


發表於 2013-4-23 17:56:00 | 顯示全部樓層
有支援藍光完整選單嗎?
回覆 支持 反對

使用道具 舉報


發表於 2013-4-23 18:40:12 | 顯示全部樓層
一開始看到這個規格, 終於有一台在網路傳輸速度上下功夫的player了, 可是看到不支援藍光完整選單.......
回覆 支持 反對

使用道具 舉報


發表於 2013-4-23 19:49:51 | 顯示全部樓層
neuHD 發表於 2013-4-23 17:33
理論上應該要可以用的
怕只怕過了一個分配器  3D上不去會變2D ><

問過 ups 兄

他說可以的
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2013-4-23 19:53:38 | 顯示全部樓層
toshinko 發表於 2013-4-23 19:49
問過 ups 兄

他說可以的

那不錯耶
小弟說的友人也是從ups處購得
他那邊in-akustik的東西蠻多的

如果可以不換擴大機就升級3D
對一些hi-end玩家如興大您
使用高階的環繞前級或高階的hdmi v1.3擴大機
絕對是一大好事來的



回覆 支持 反對

使用道具 舉報


發表於 2013-4-29 21:31:58 | 顯示全部樓層
不升级原版导航,坚决不升级
回覆 支持 反對

使用道具 舉報


發表於 2013-4-30 14:39:15 | 顯示全部樓層
原版導航?? 什麼意思
可以正常播放正版 但不支援完整播放選單
回覆 支持 反對

使用道具 舉報


發表於 2013-7-23 13:07:30 | 顯示全部樓層
有支援 10 bit 壓縮格式的影片了嗎??
回覆 支持 反對

使用道具 舉報


發表於 2013-7-23 15:21:56 | 顯示全部樓層
tonycow 發表於 2013-7-23 13:07
有支援 10 bit 壓縮格式的影片了嗎??

沒有
目前不暁得哪台機器會有支援
回覆 支持 反對

使用道具 舉報


發表於 2013-7-23 16:43:04 | 顯示全部樓層
看來,只好用軟體轉了!!那天轉了一片!效果還可以!!只是多了一到程序哈哈哈!!
回覆 支持 反對

使用道具 舉報
