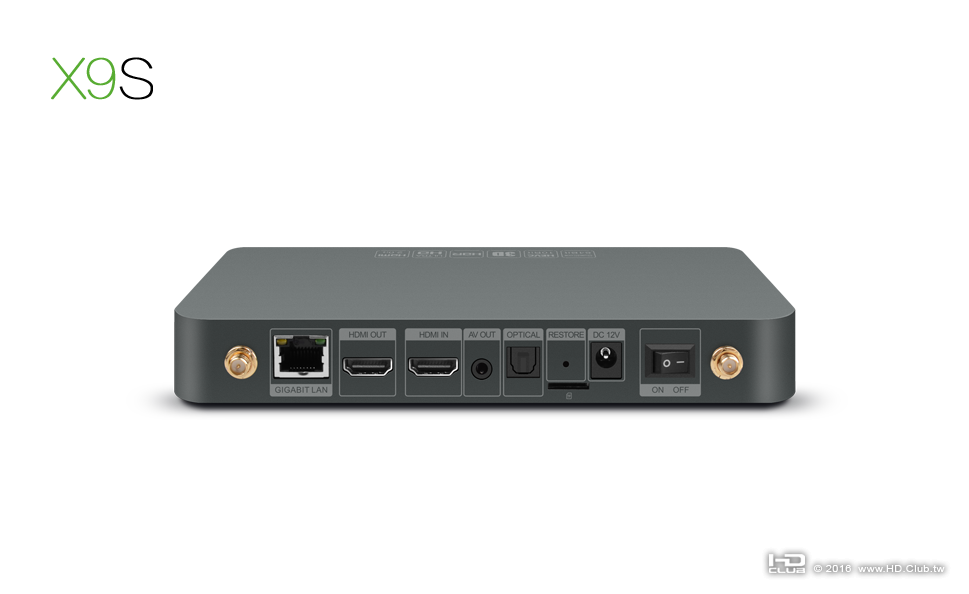

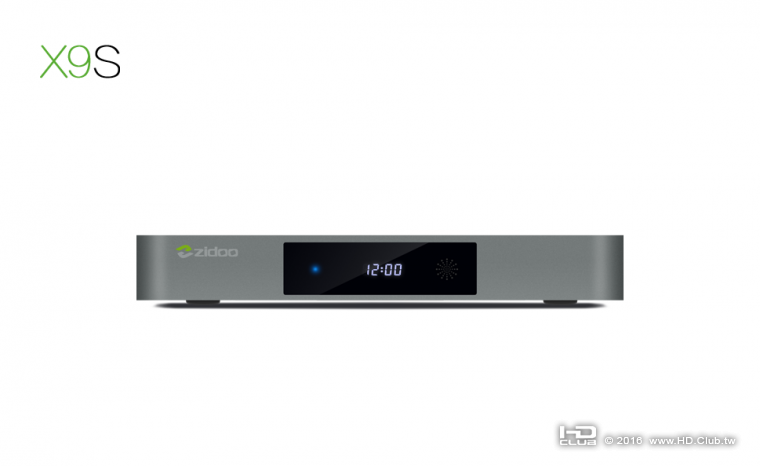

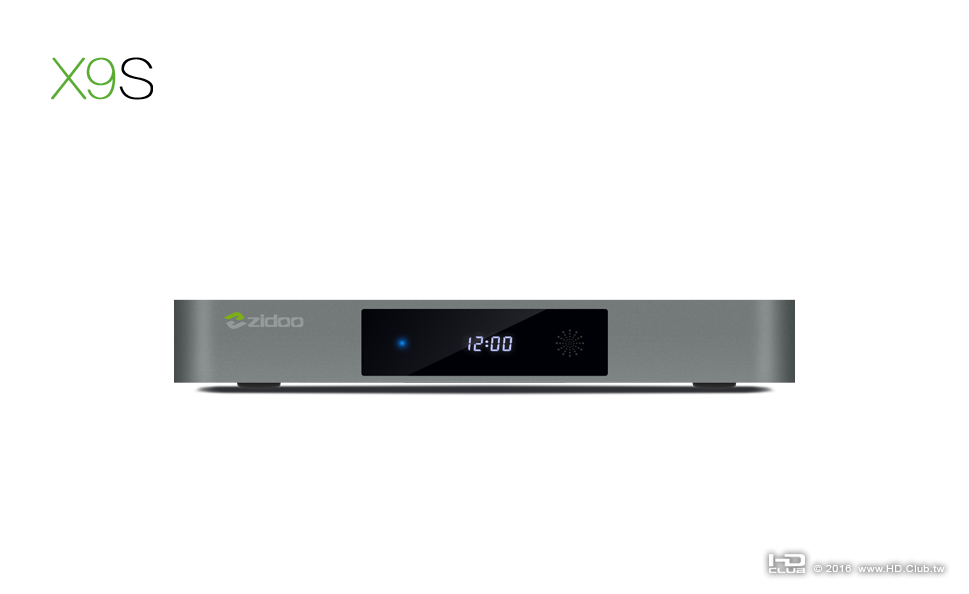

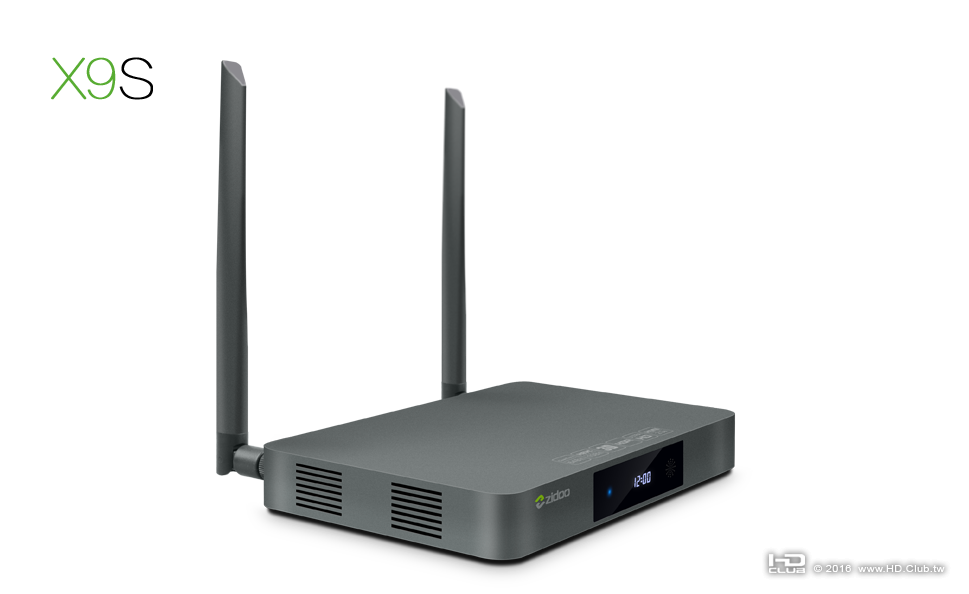

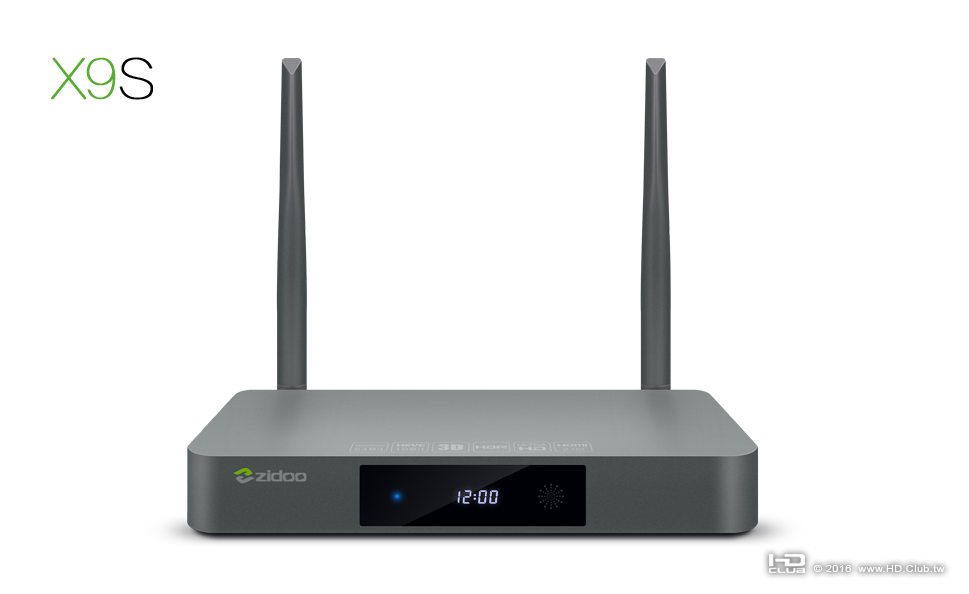

zidoo搭載RTD1295的新旗艦X9S，歷經大半年的研發時間終於要跟大家見面了。

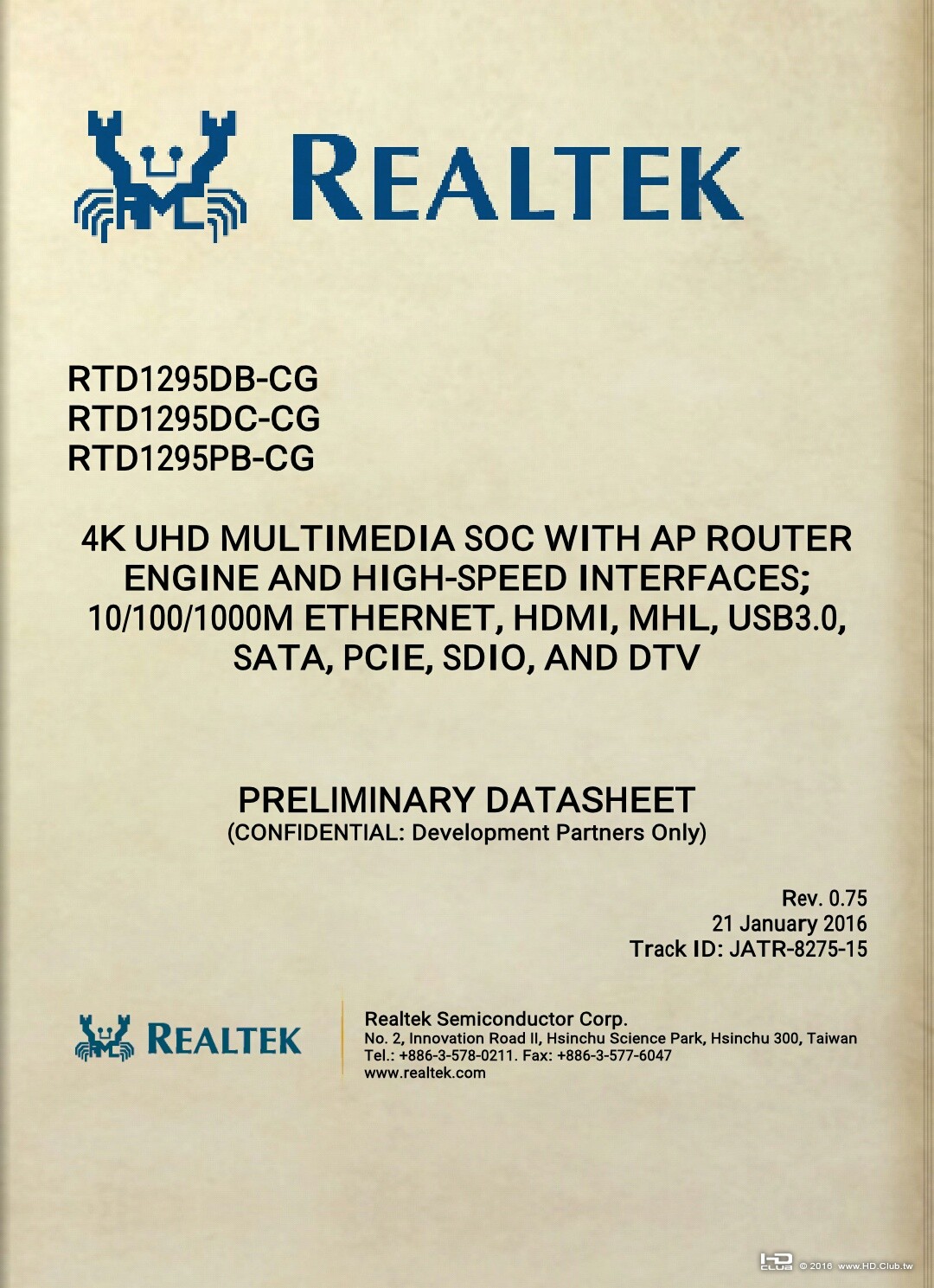

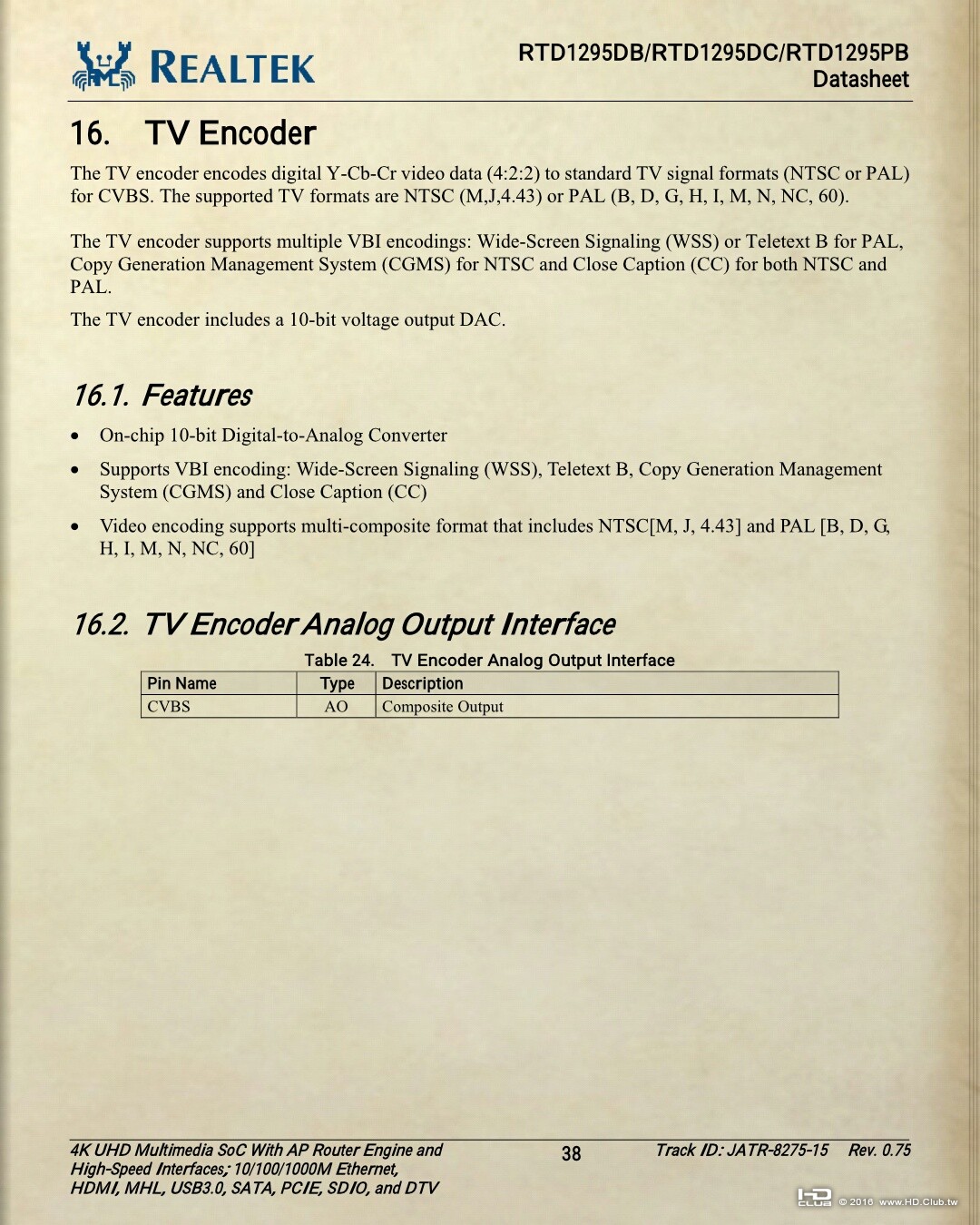

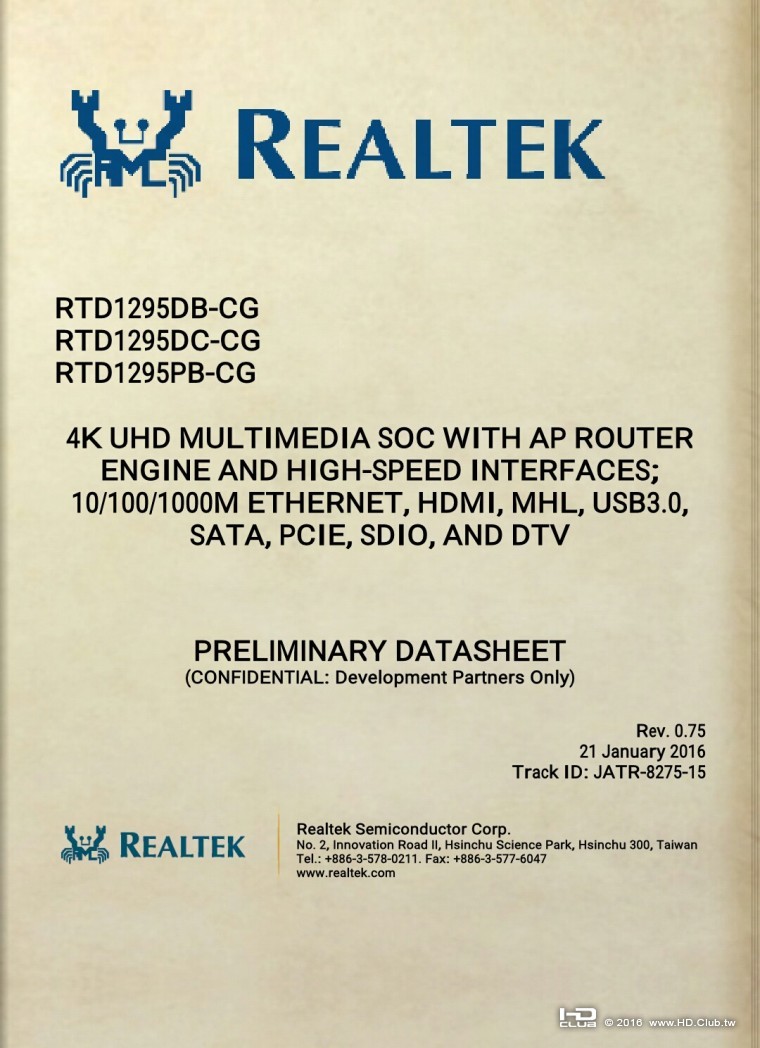

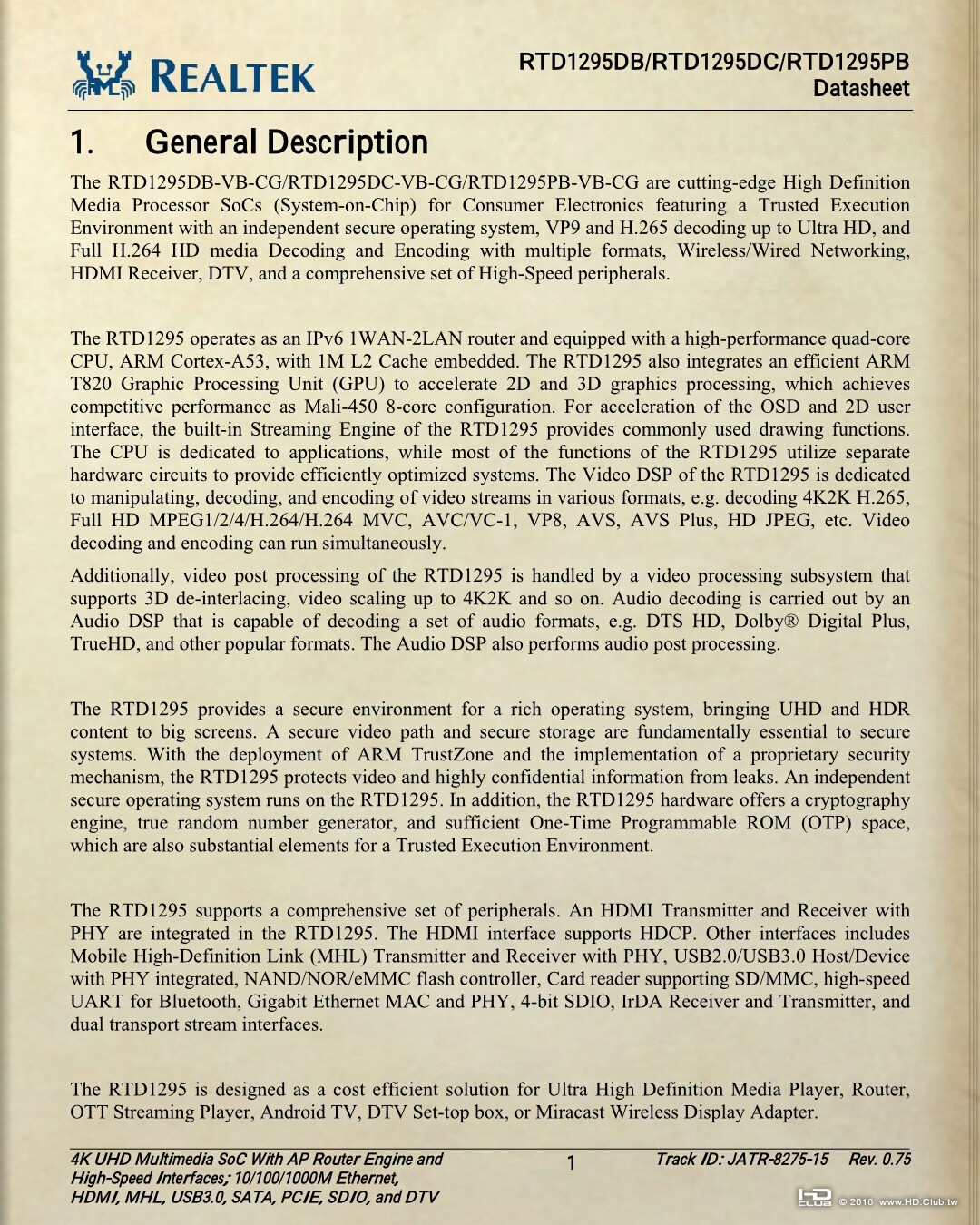

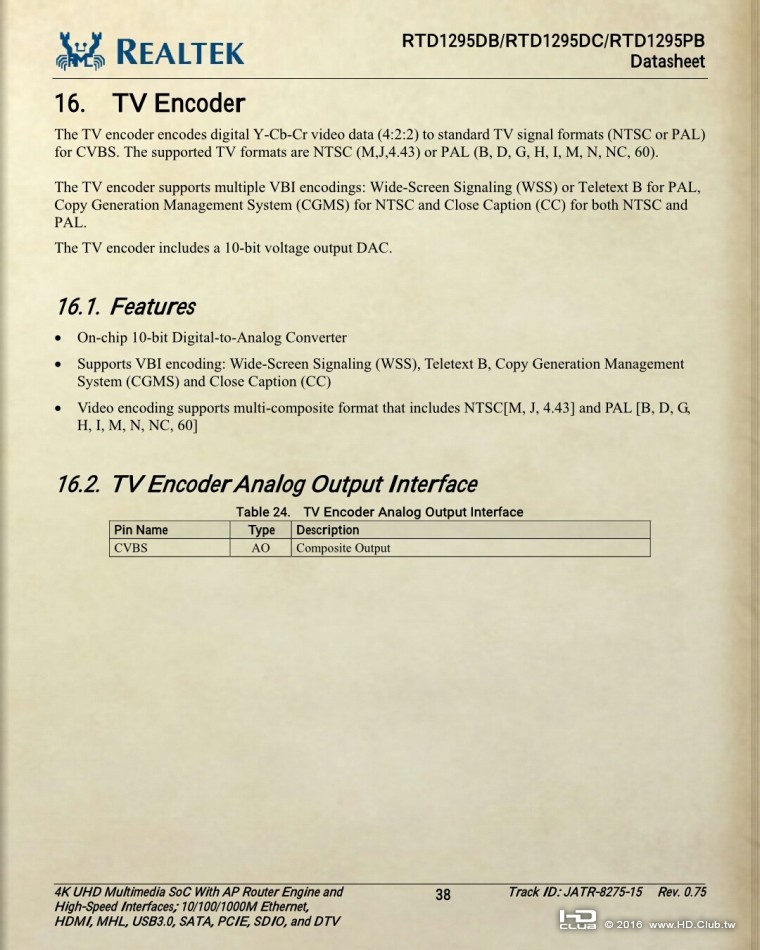

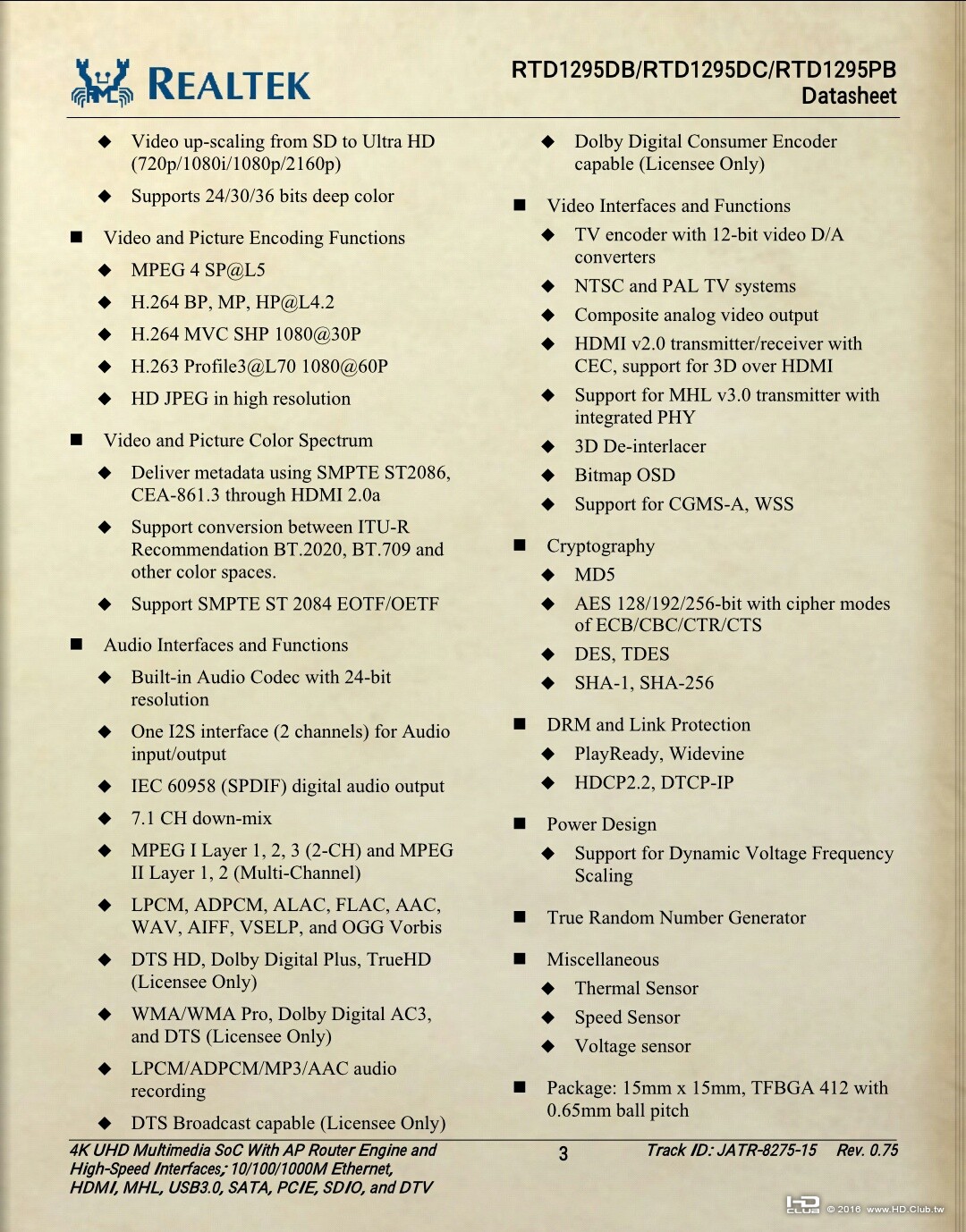

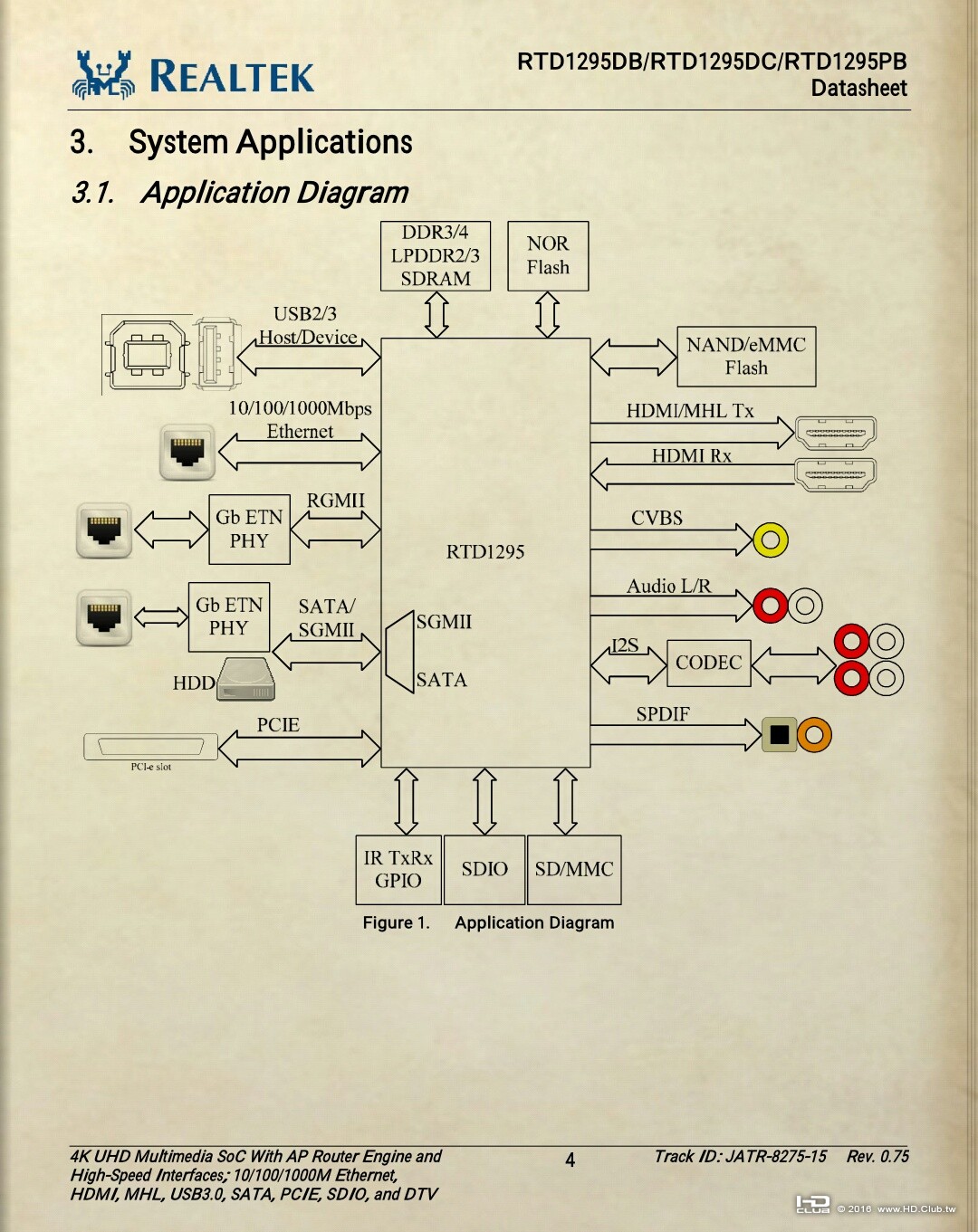

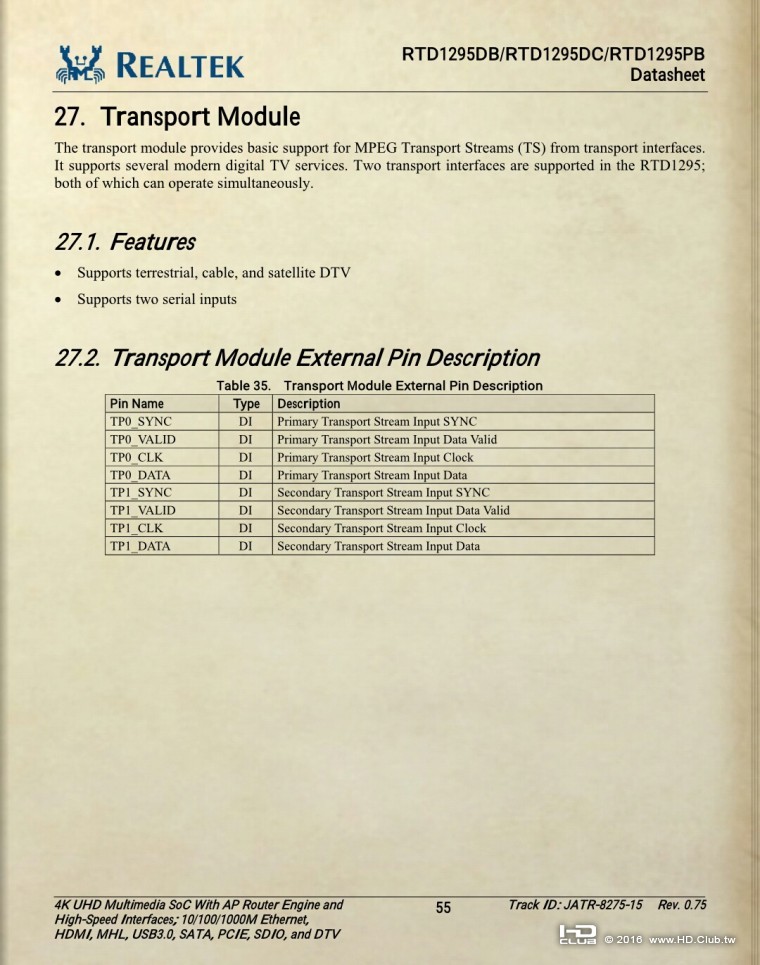

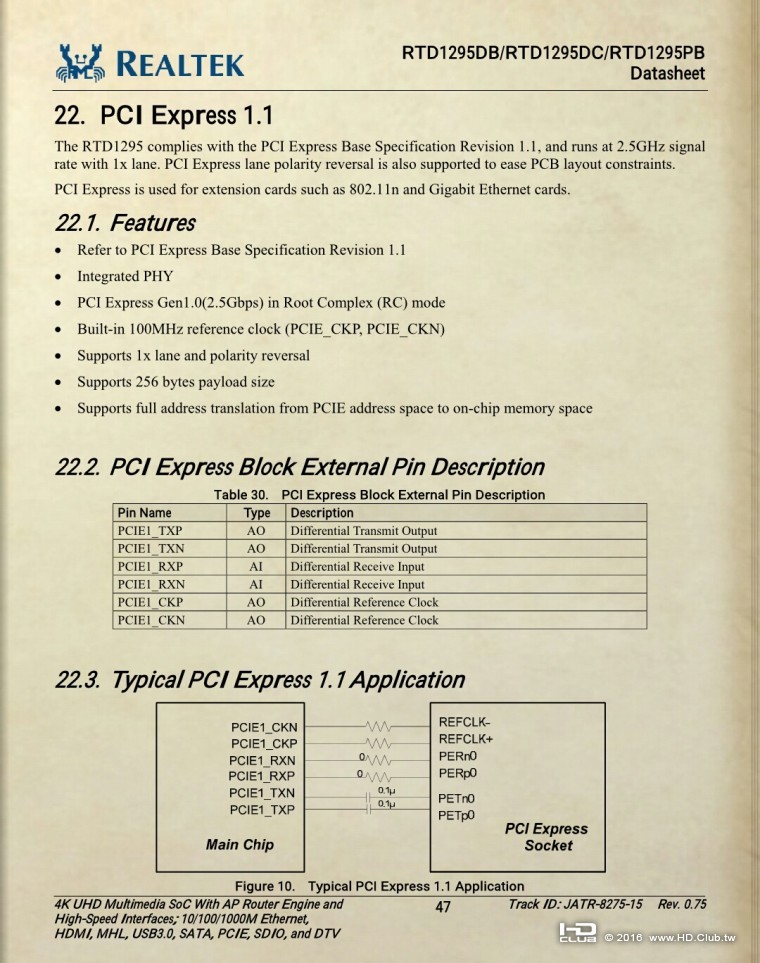

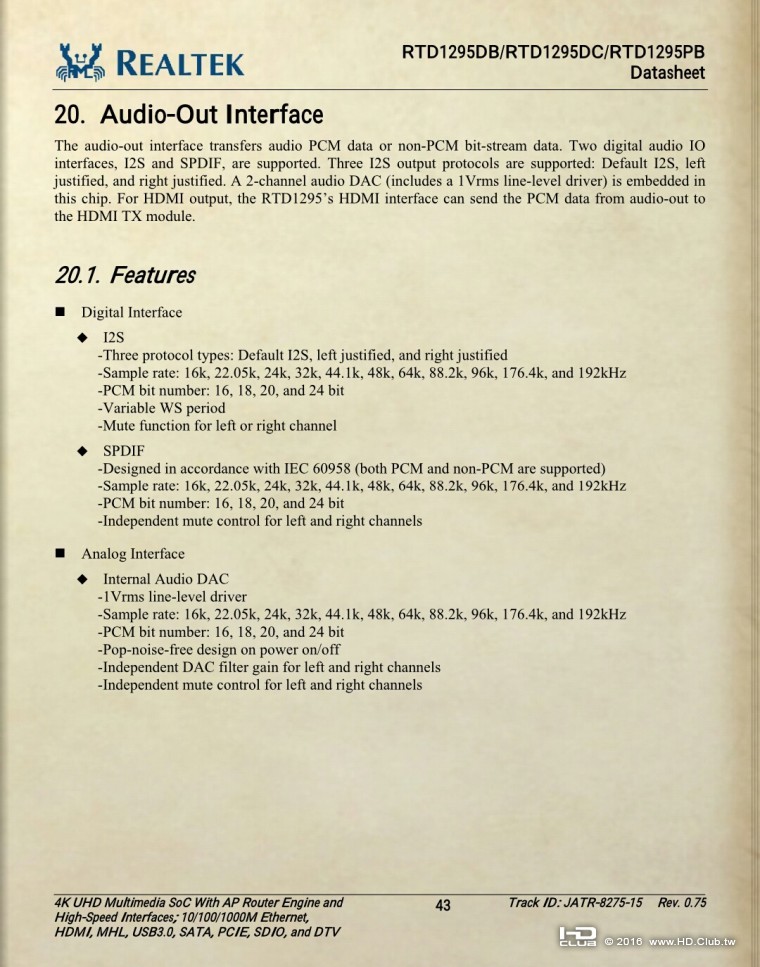

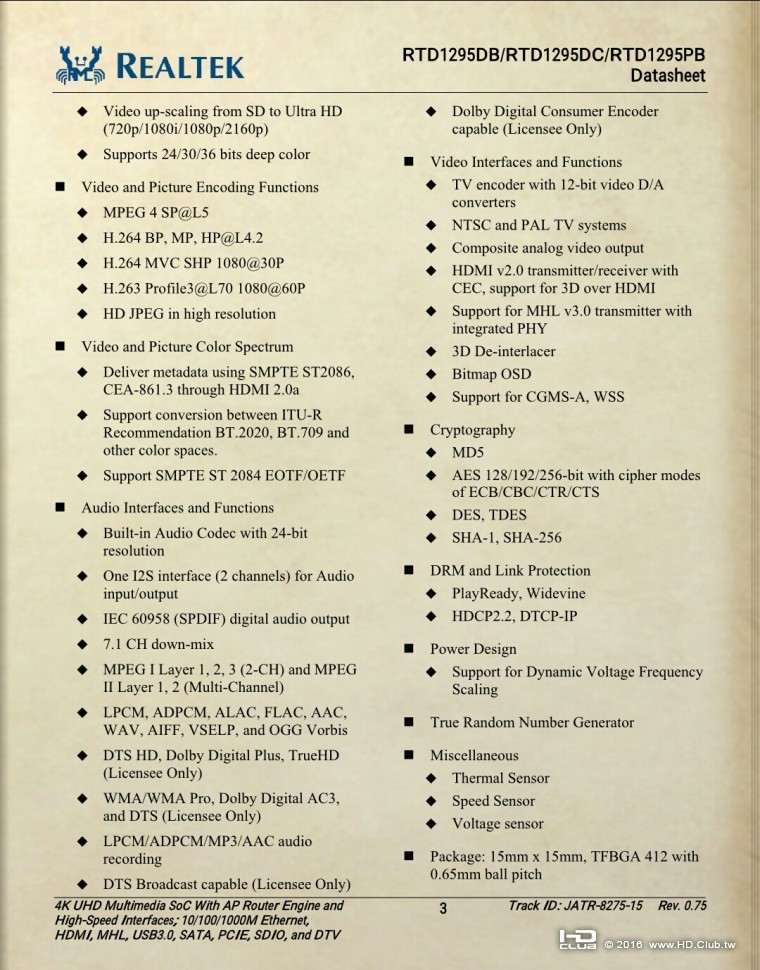

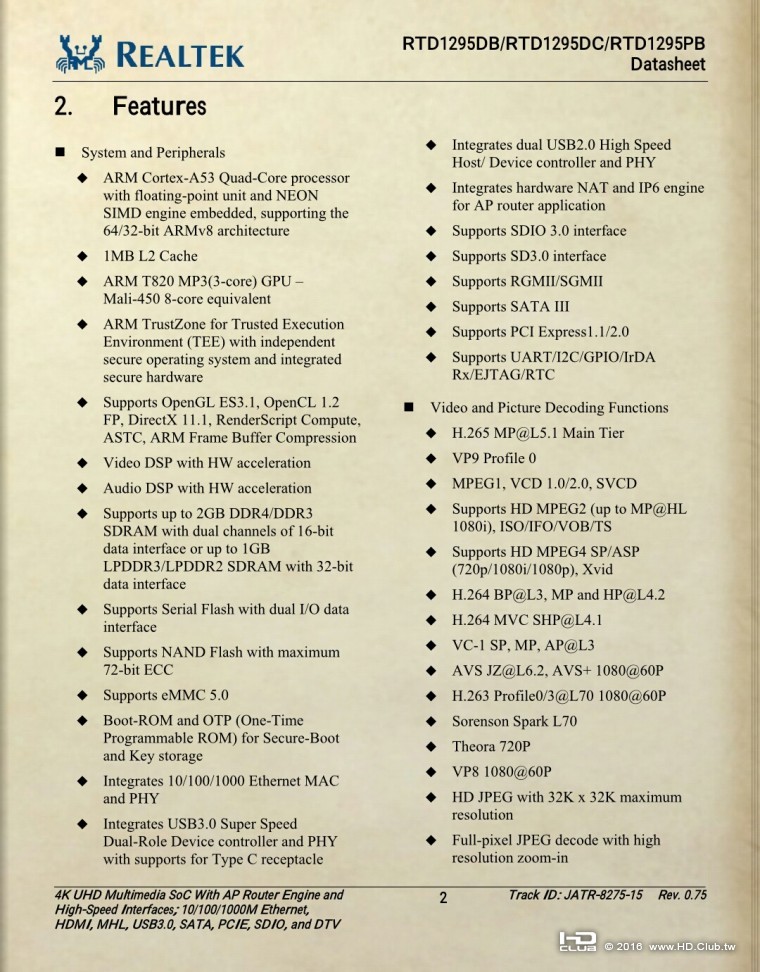

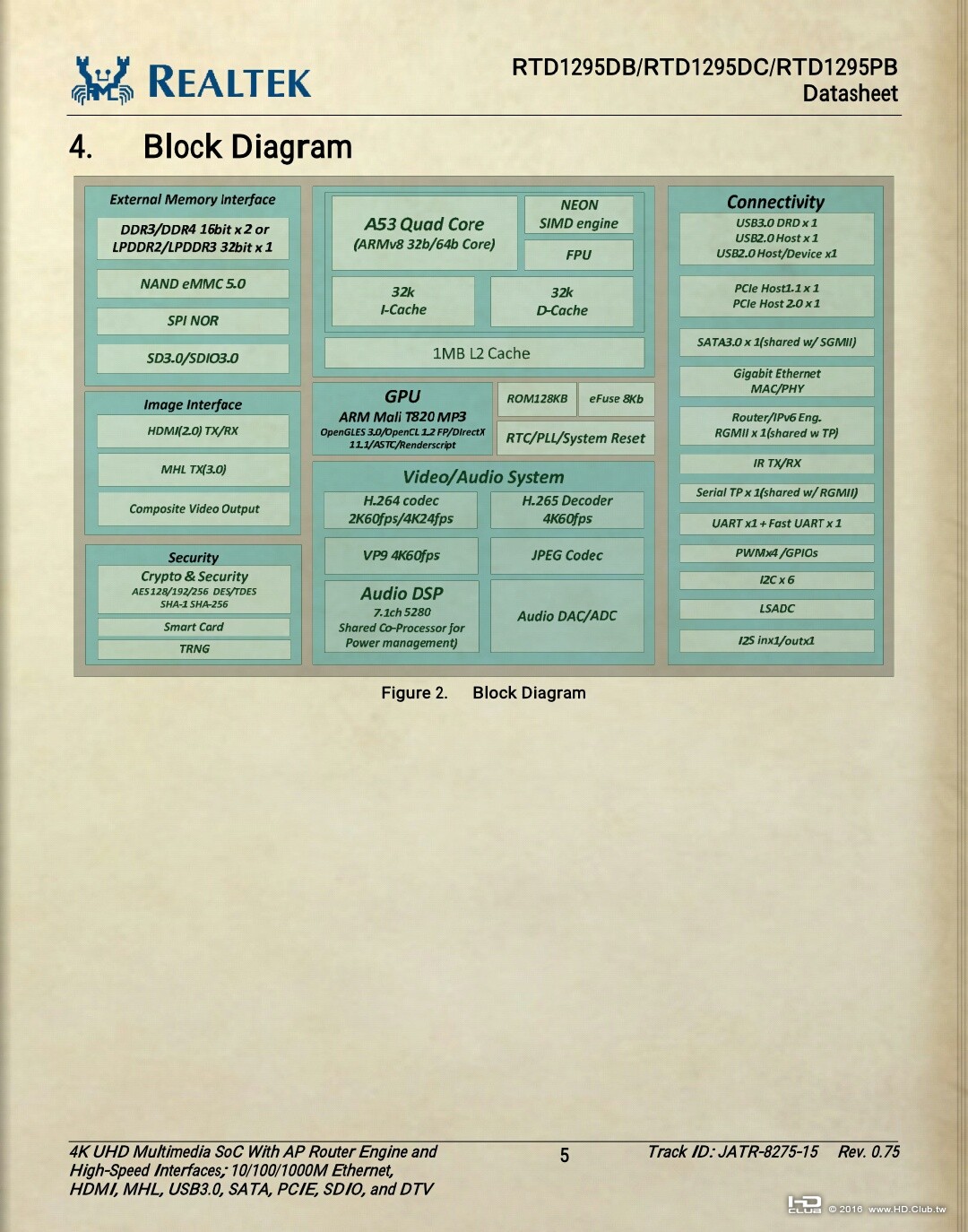

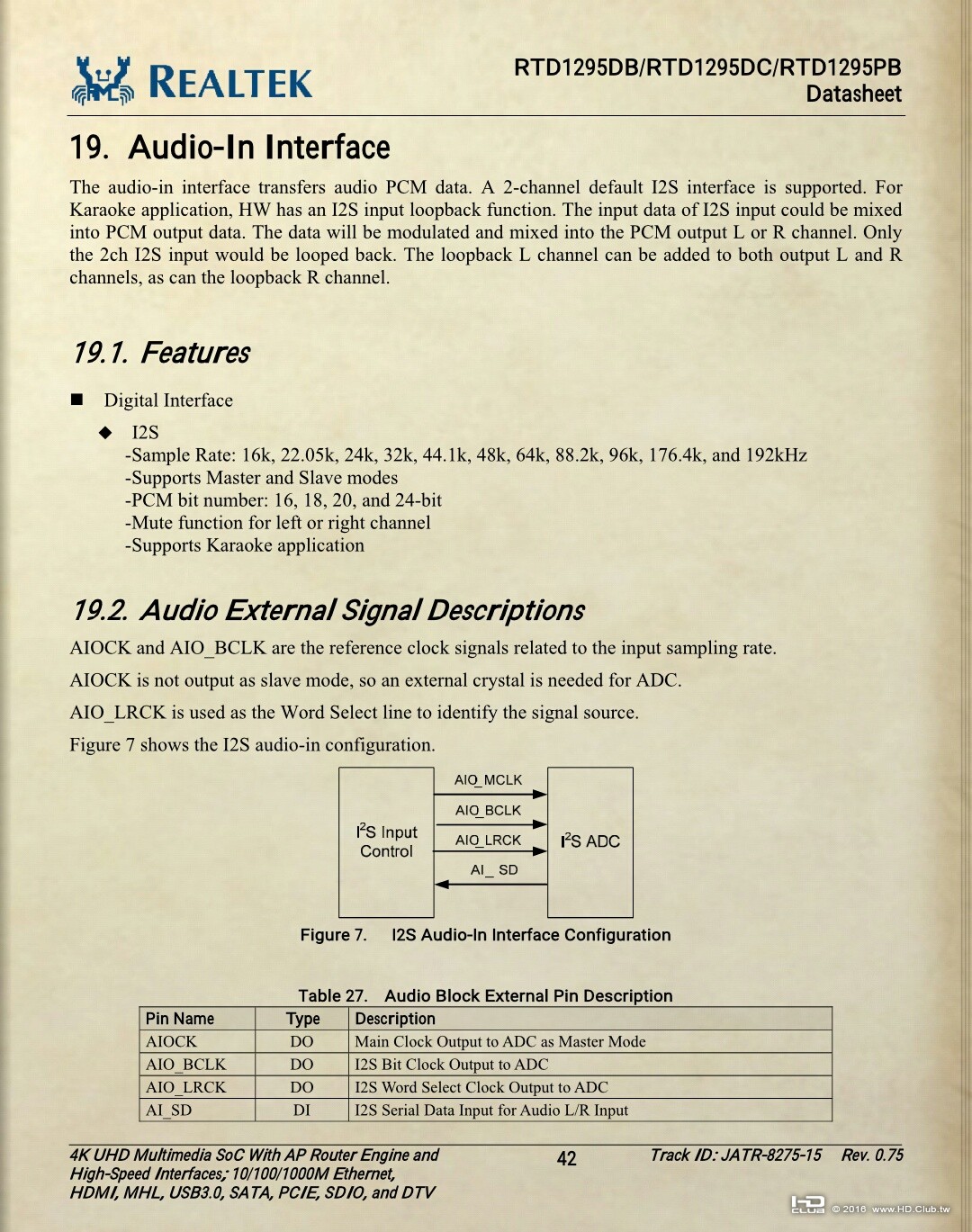

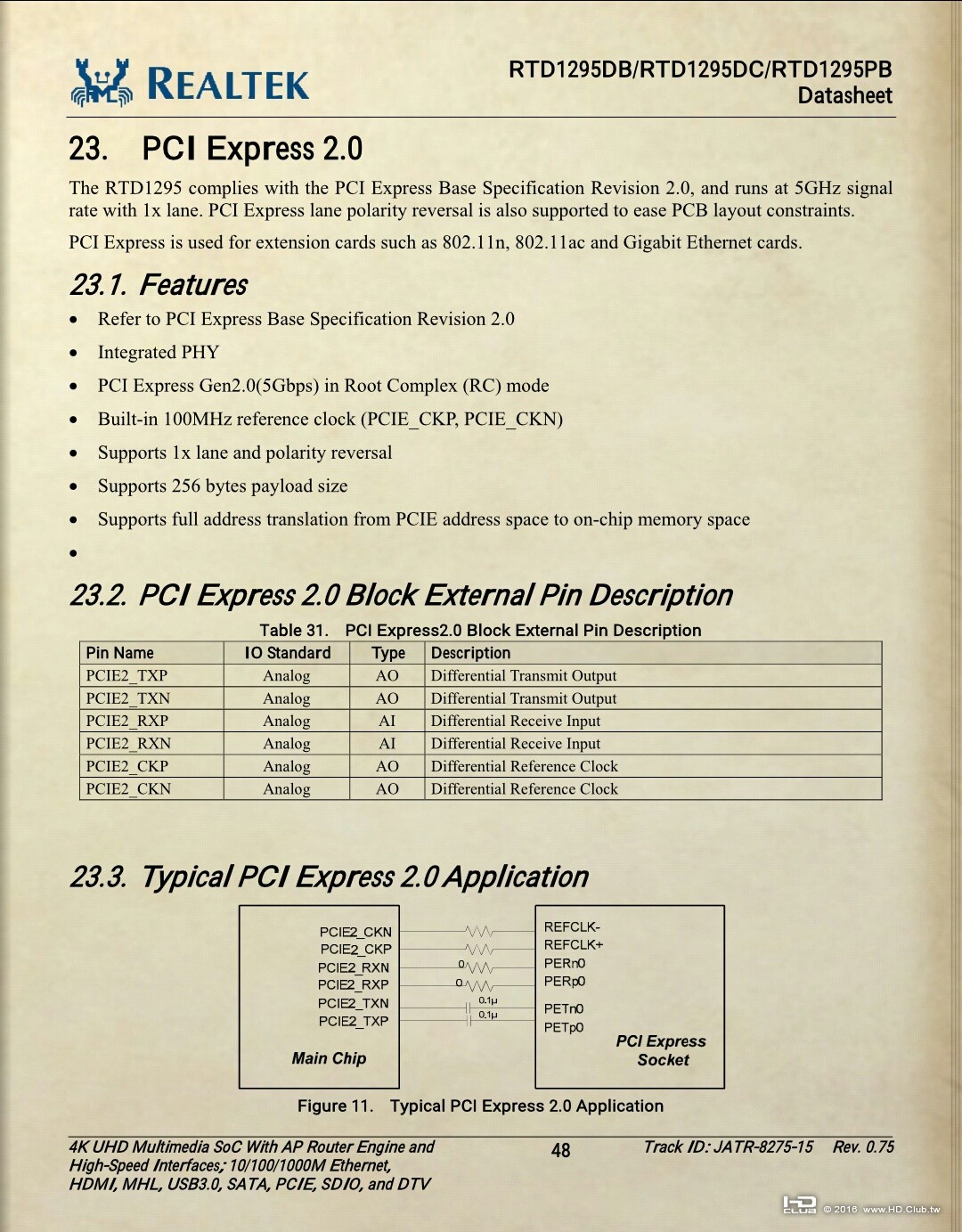

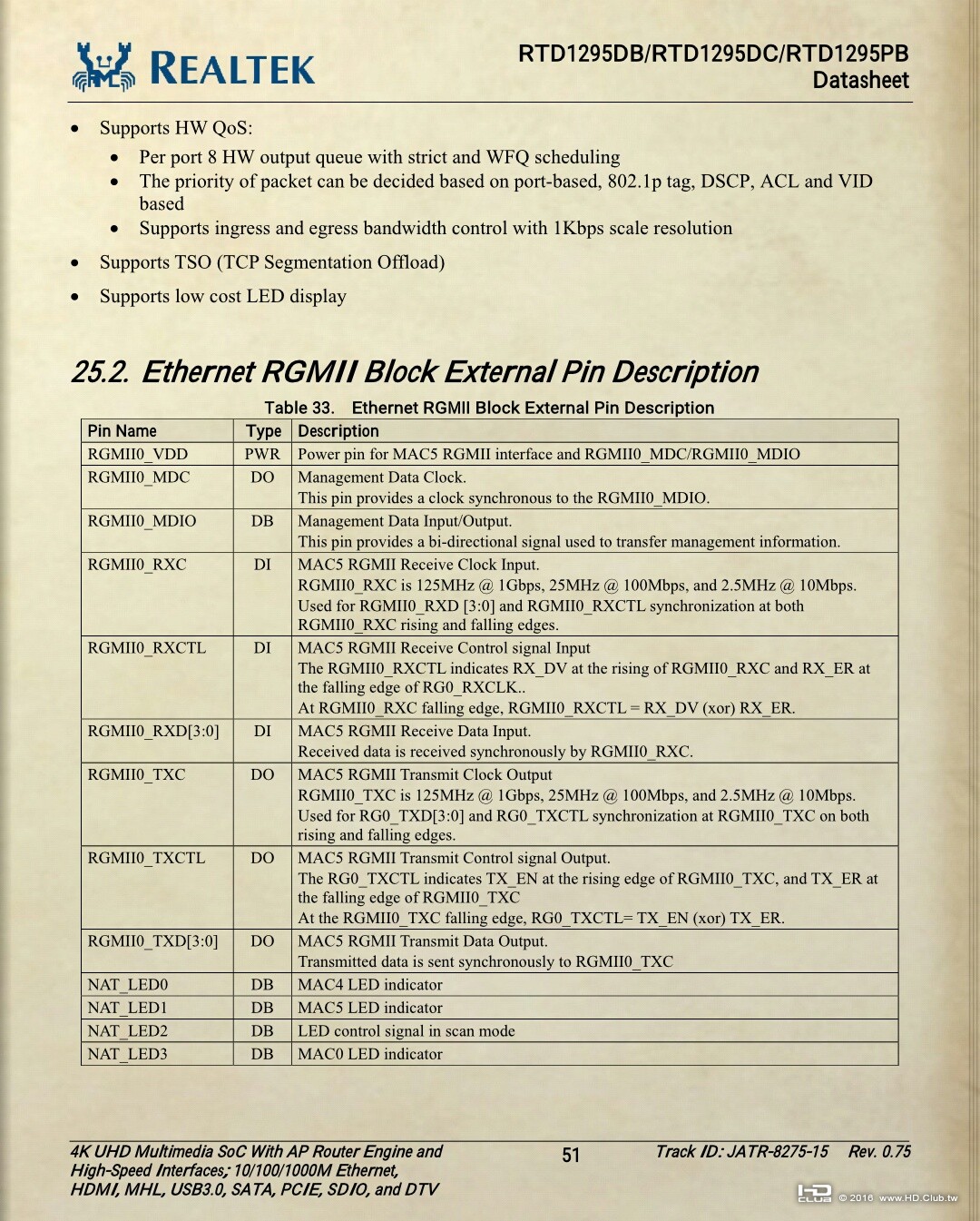

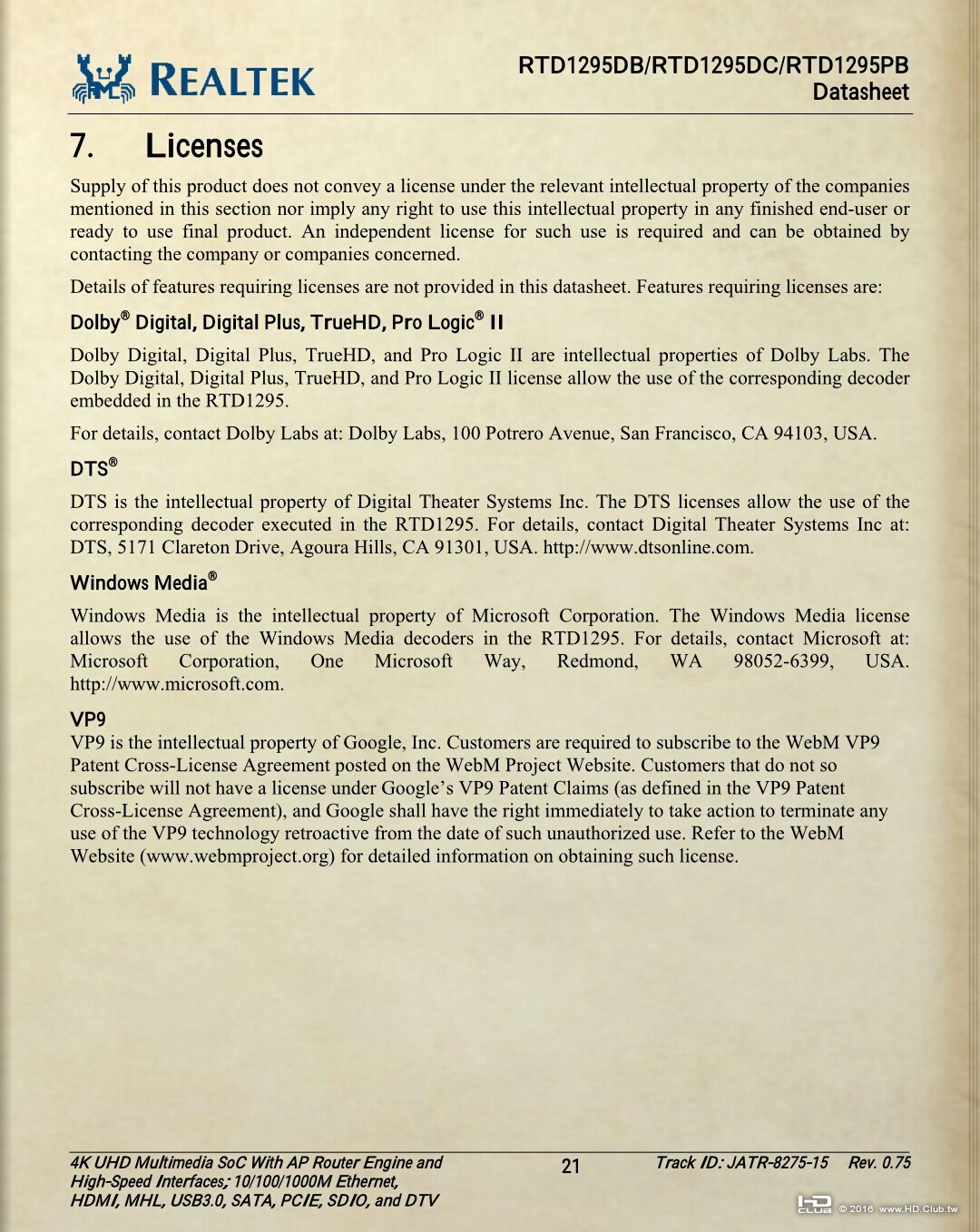

RTD1295究竟是顆怎樣的晶片呢？爲何會如此看重它？我們先來了解一下。
Realtek RTD1295 will find it’s why not only on TV boxes but also on OpenWRT routers and next generation NAS devices. That makes sense, as NAS devices evolved as well to become full-fledget media centers and might benefit from Realtek 1295’s video encoding and decoding power. Don’t be surprised if you will see Western Digital, Buffalo or Qnap NAS devices powered by Realtek RTD1295 one year from now.
目前官方公開的資訊：
SoC – Realtek RTD1295 quad core Cortex A53 processor with ARM Mali-T820 MP3 GPU
System Memory – 2GB DDR3

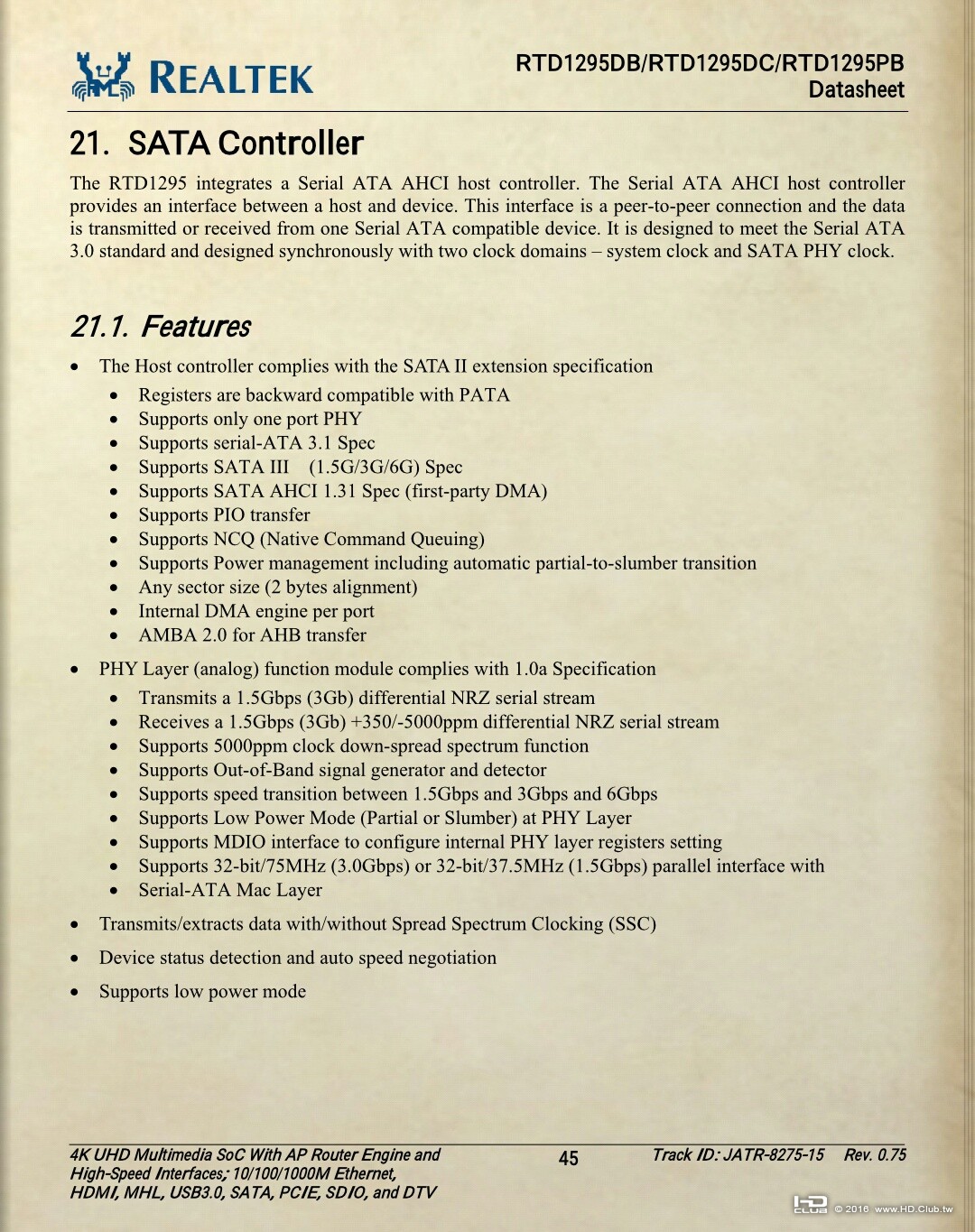

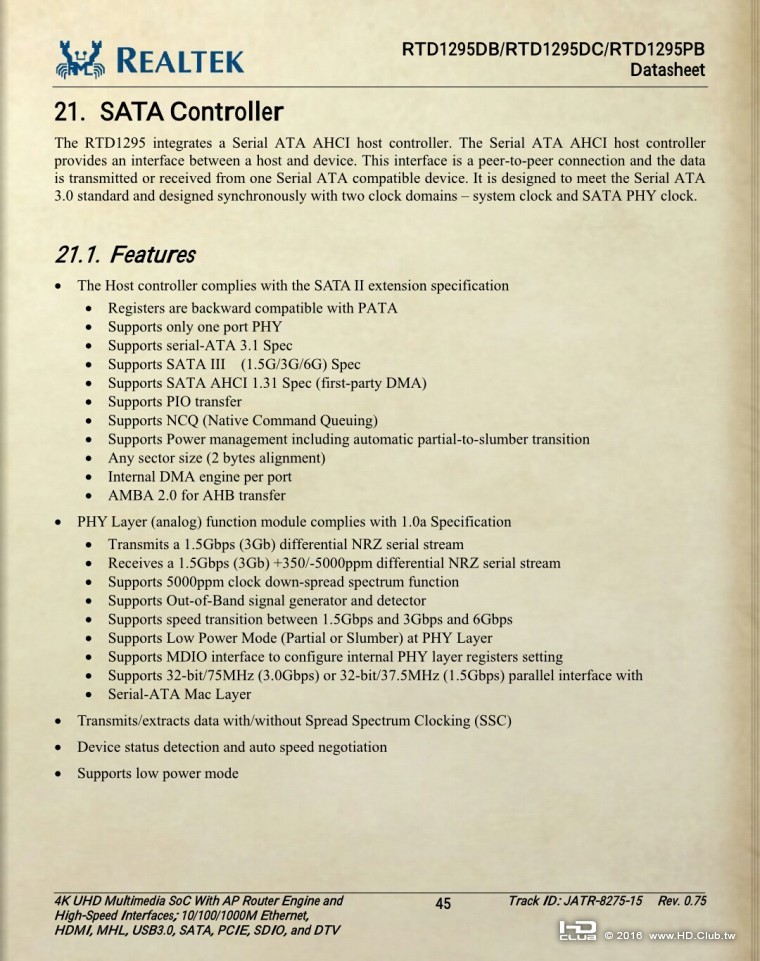

Storage – 16GB eMMC + SATA 3.0 external interface + micro SD card slot up to 32GB

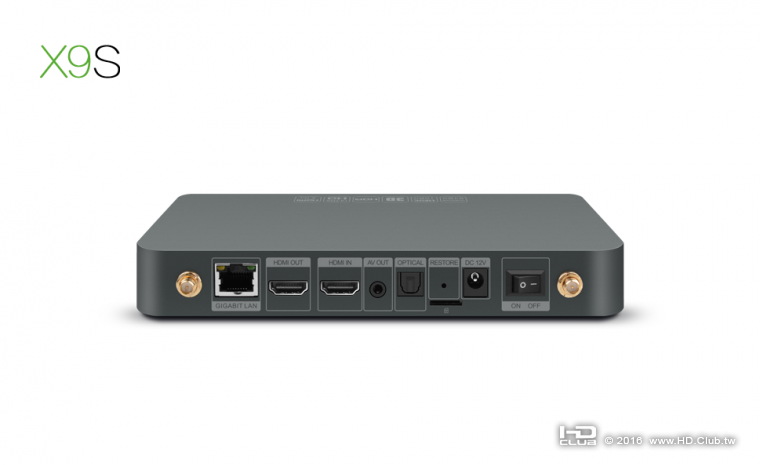

Video I/O

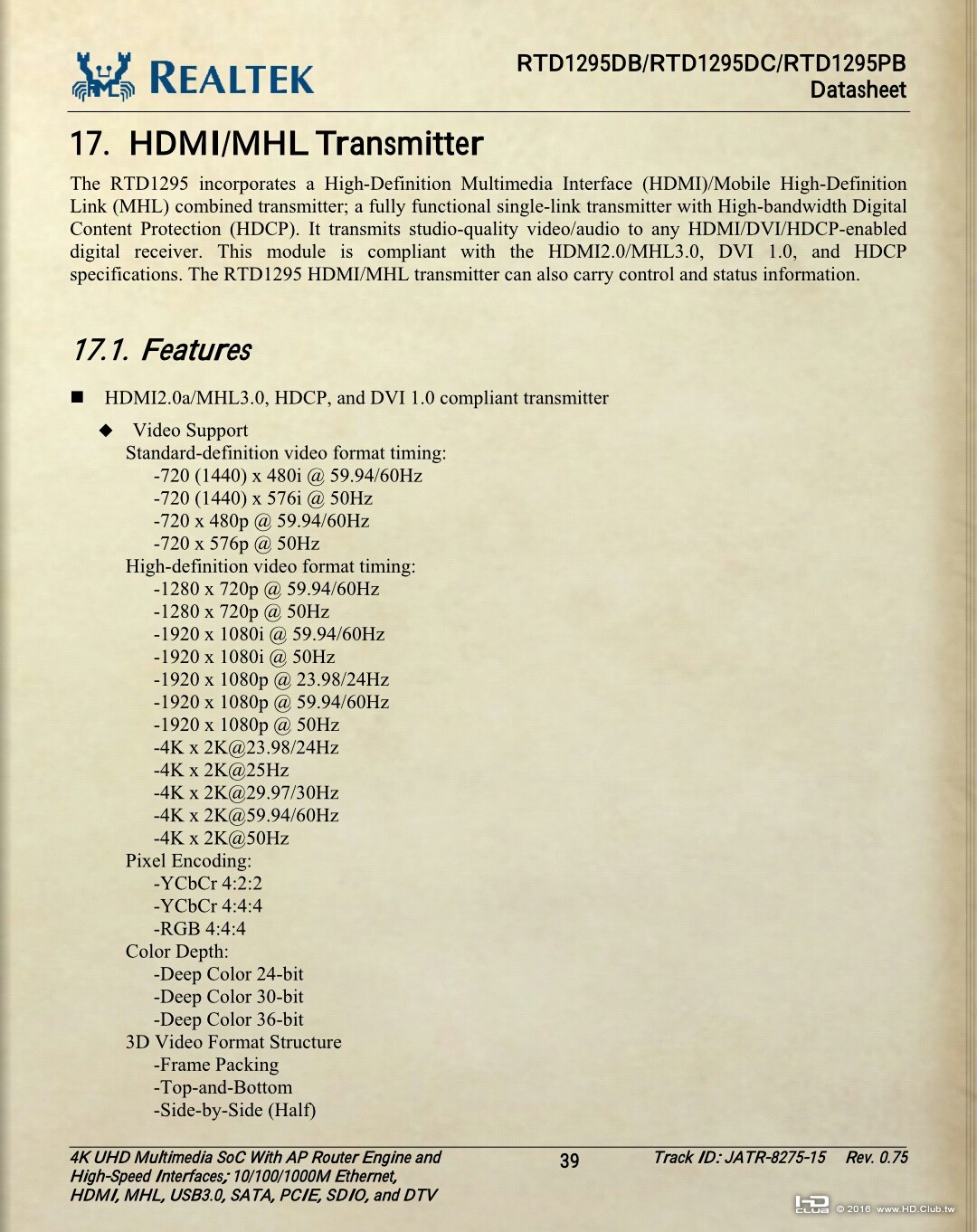

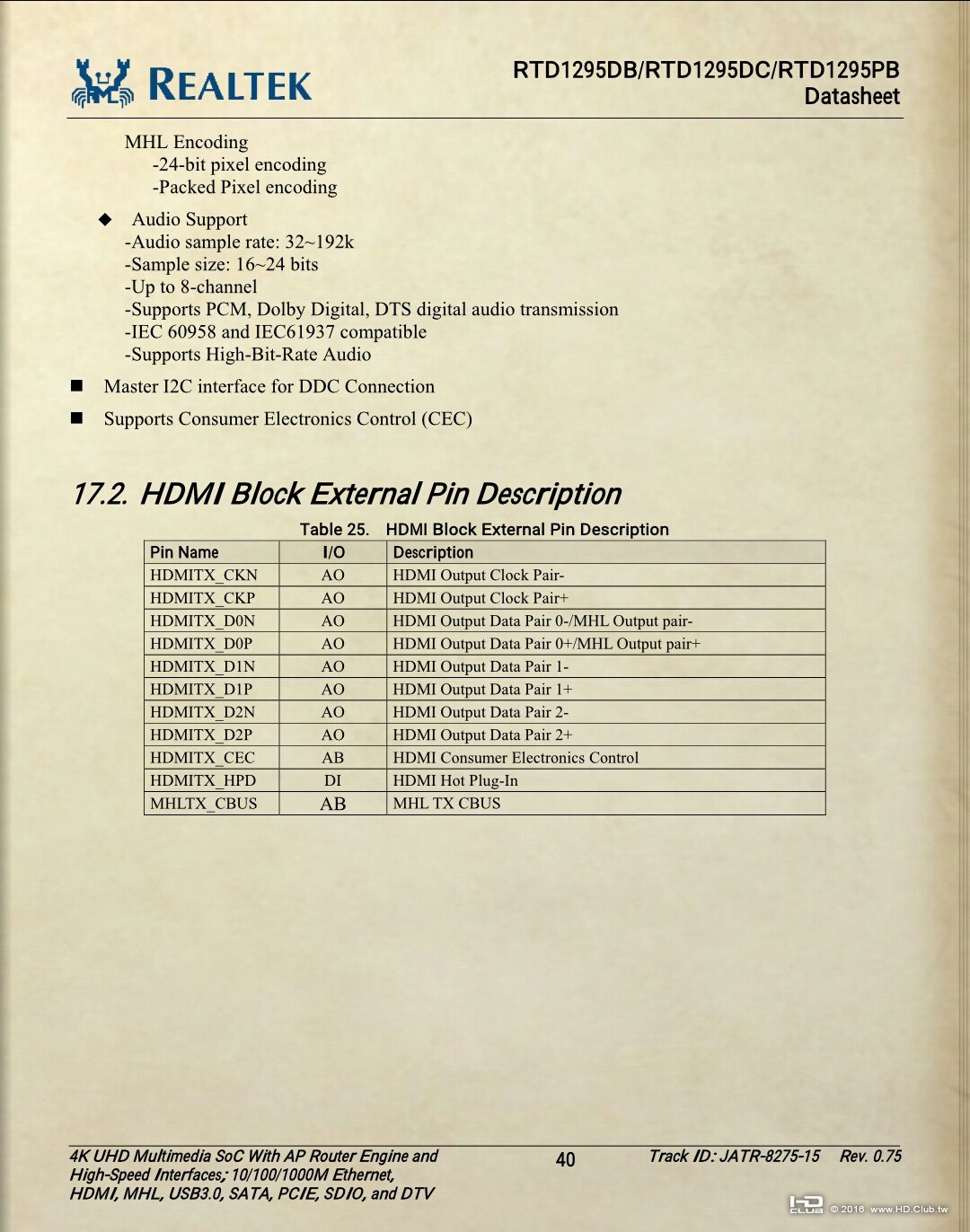

HDMI 2.0a output up to 4K@60Hz; supports 23.976 and 29.94 Hz outputs

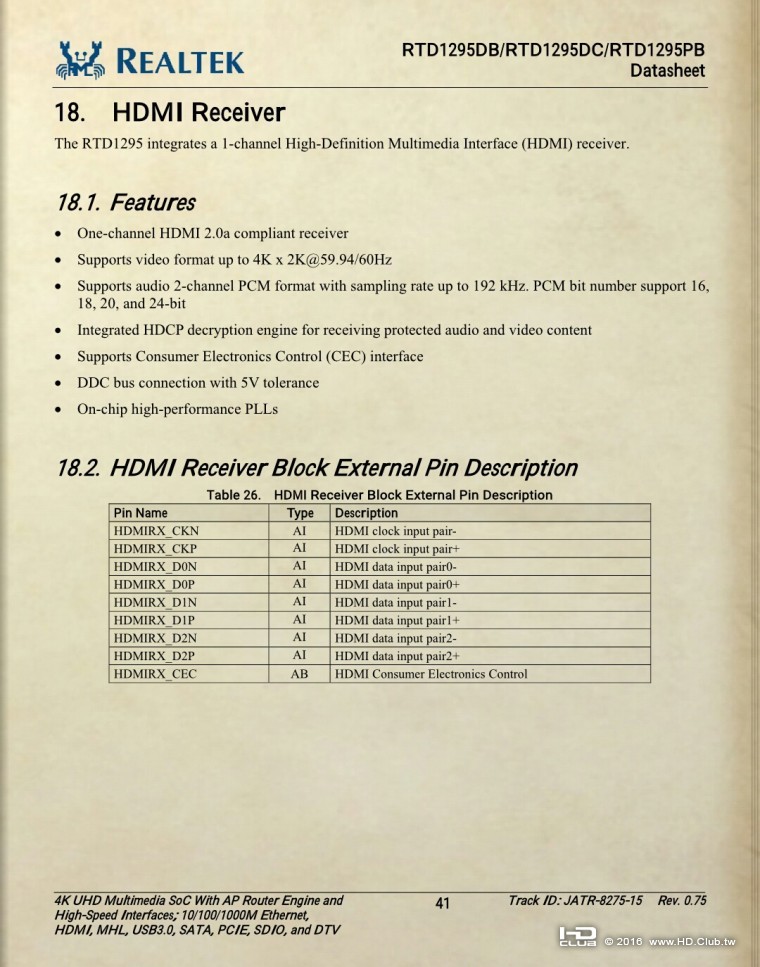

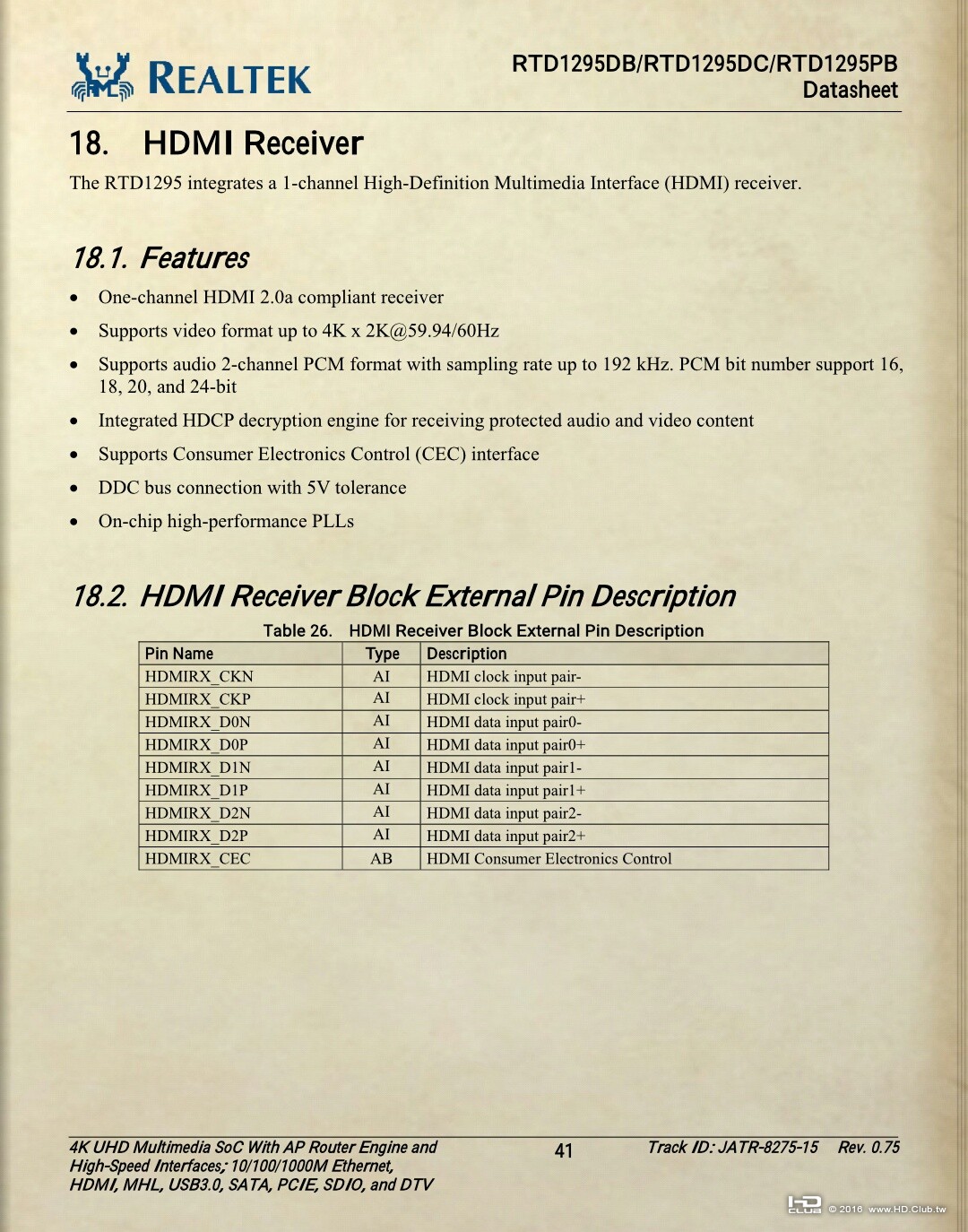

HDMI 2.0 input for recording, UDP streaming, and picture-in-picture
AV output (composite)

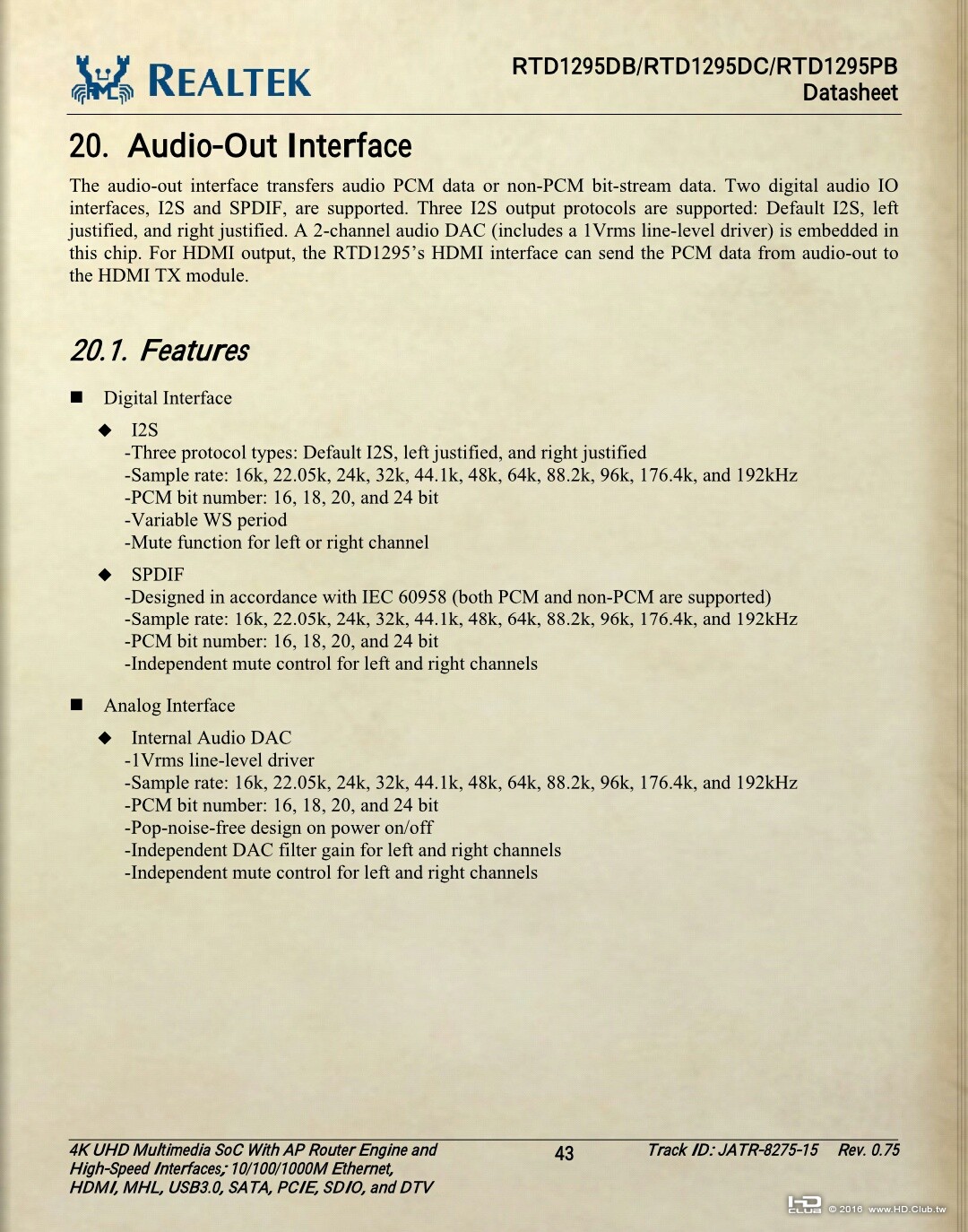

Audio I/O – HDMI out with 7.1 ch pass-through support, HDMI input, AV (stereo audio), 1x S/PDIF output
Video Playback – HDR, 10-bit HEVC/H.265 up to 4K @ 60fps, H.264 up to 4K @ 24 fps, VP9 up to 4K @ 60 fps, BDISO/MKV, etc… automatic frame rate switching

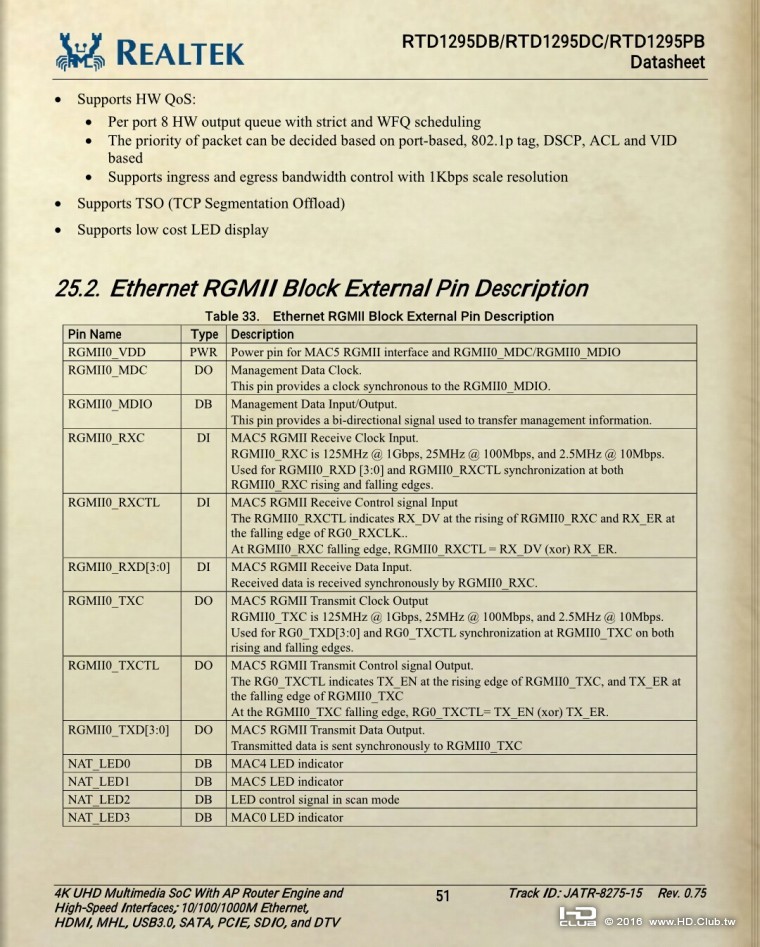

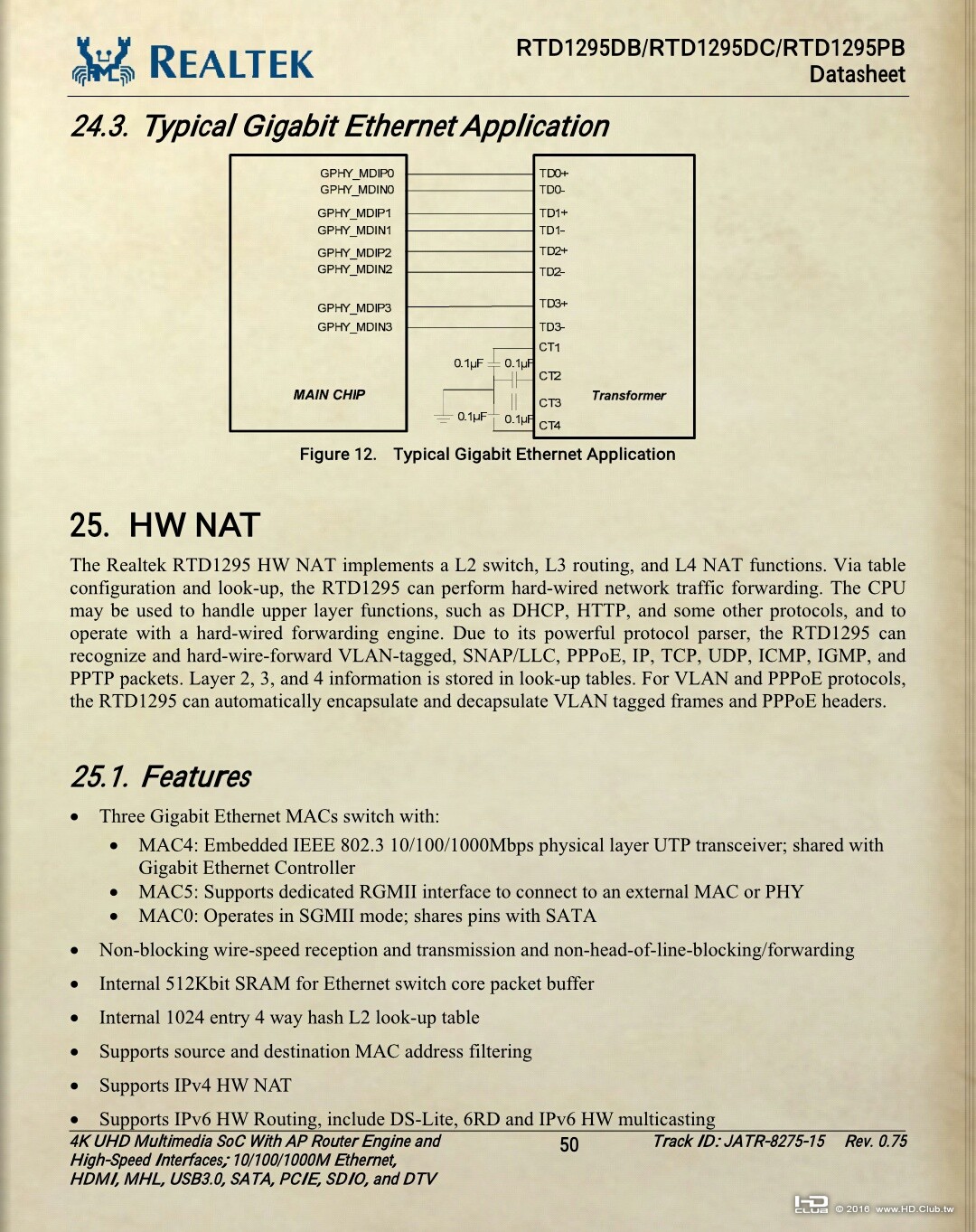

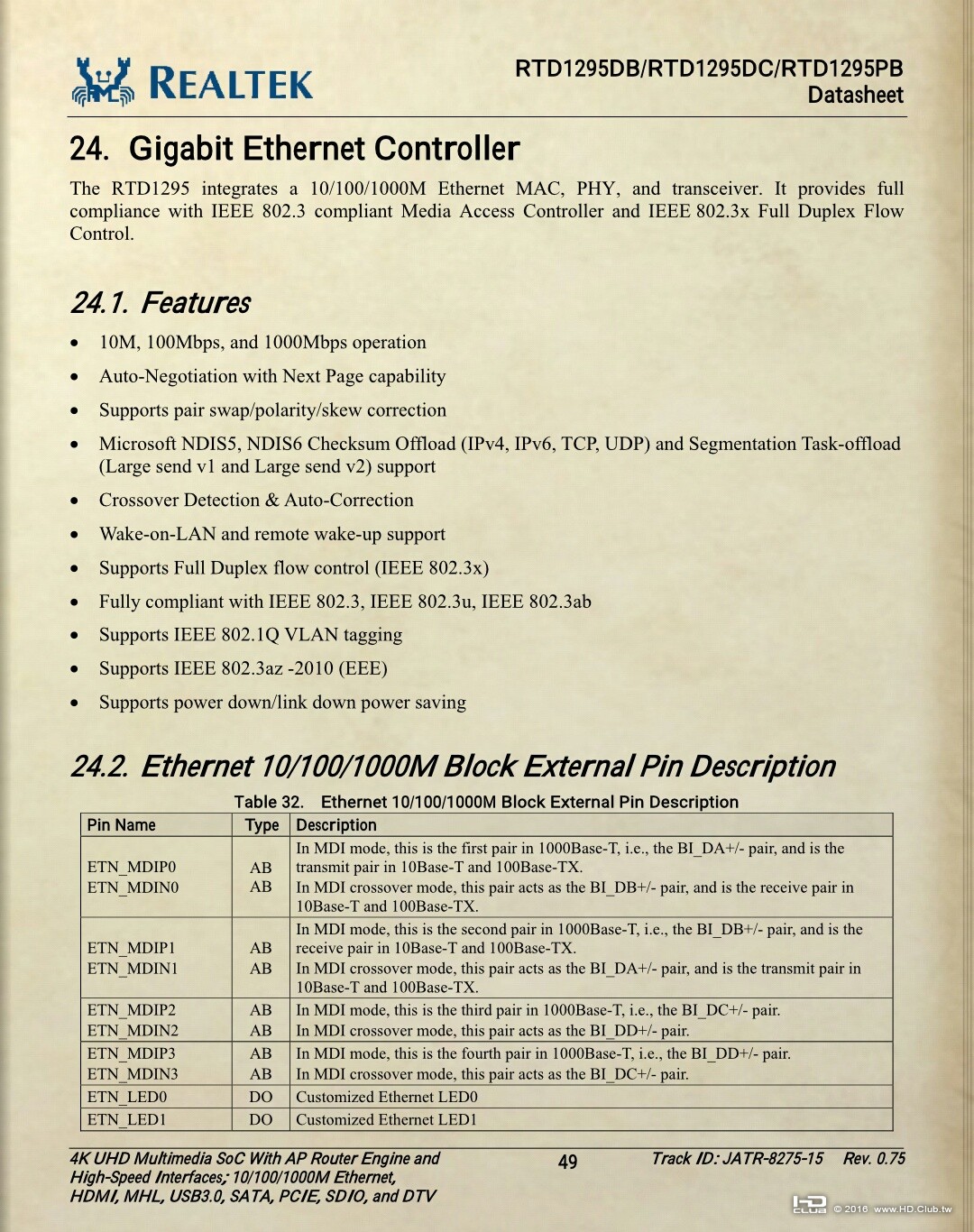

Connectivity – Gigabit Ethernet, dual band 802.11 b/g/n/ac WiFi and Bluetooth 4.0 (RTK8821 module) with two external antennas

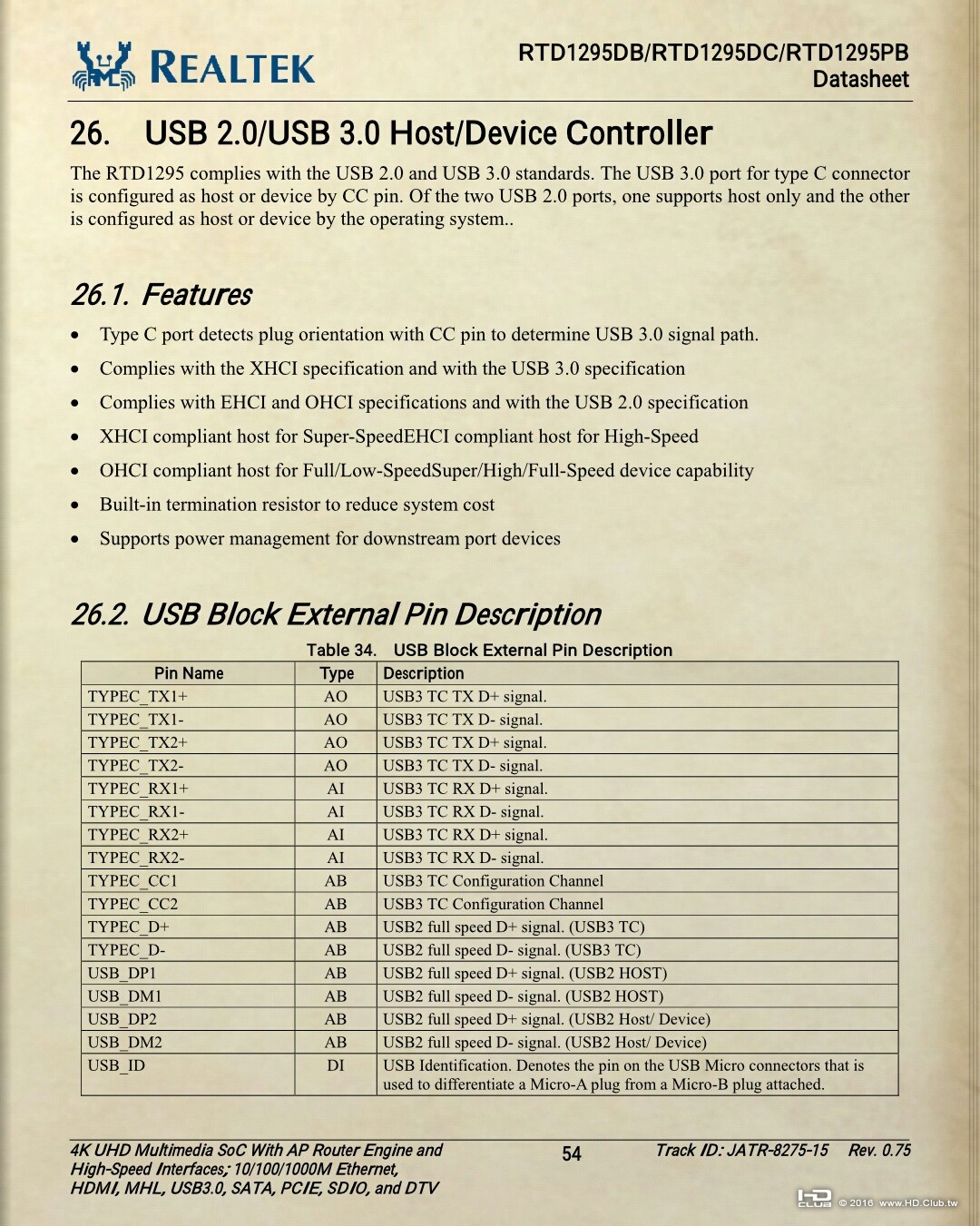

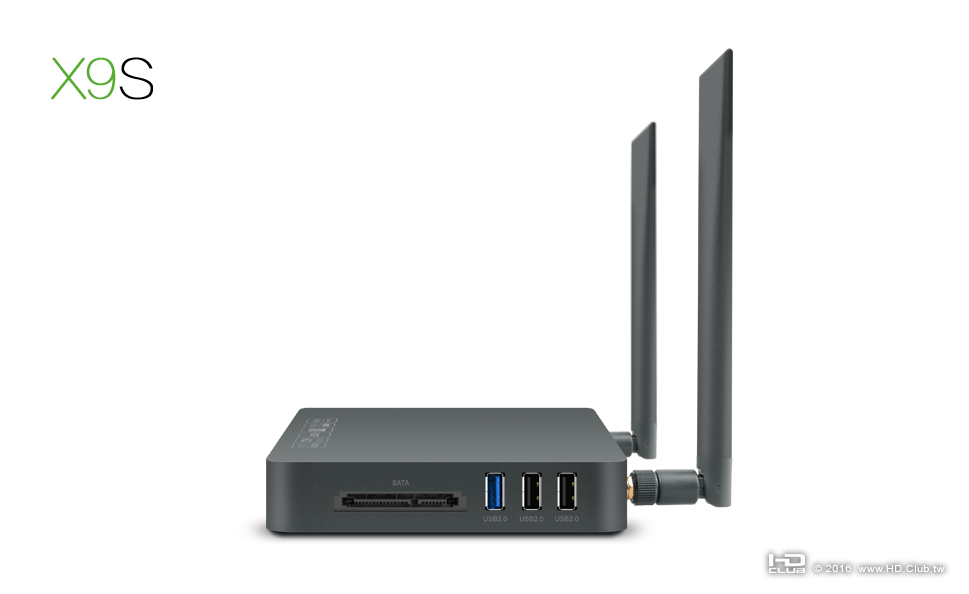

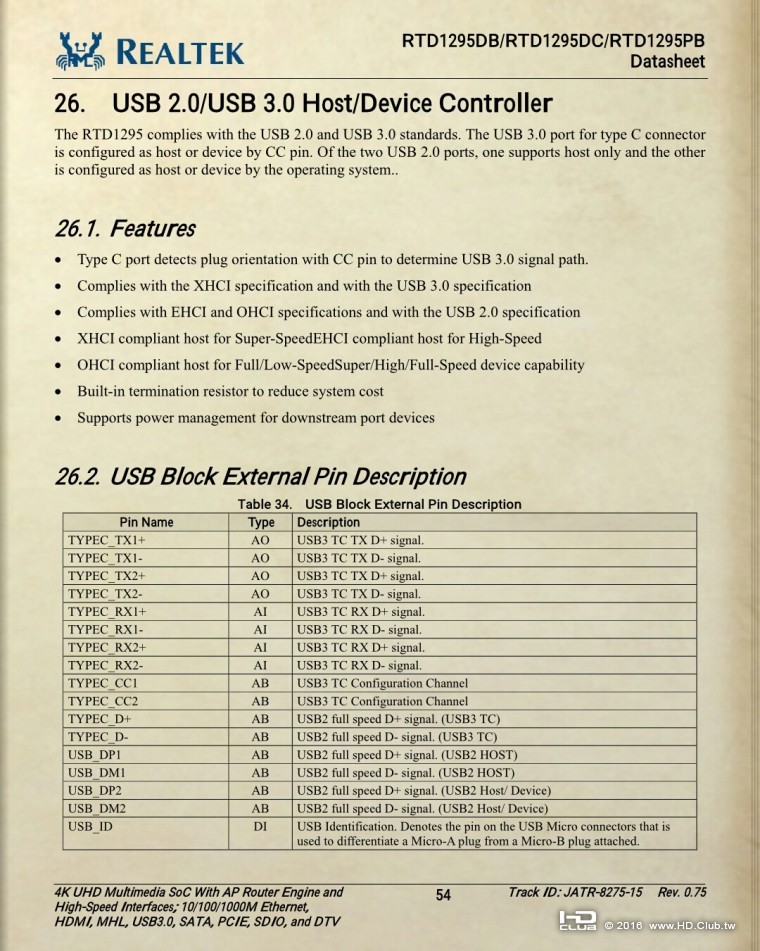

USB – 1x USB 3.0, 2x USB 2.0 ports

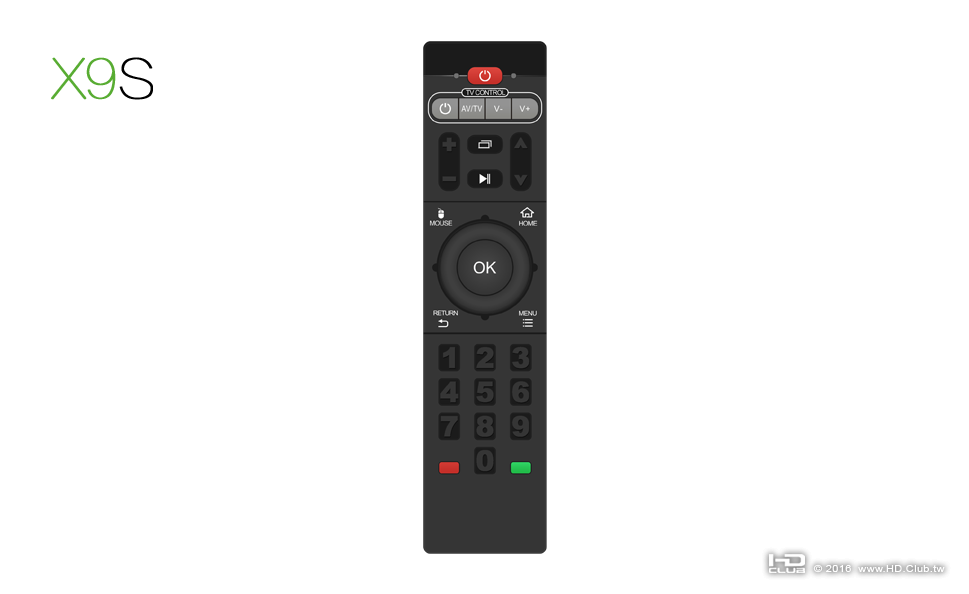

Misc – IR receiver, VFD display on front panel, mechanical power switch, restore pin hole for firmware recovery/update, RTC with replaceable battery
Power Supply – 12V/3A
Dimensions – 187 x 127 x 27 mm (aluminum alloy enclosure)
官方網站詳情：http://www.zidoo.tv/Product/inde ... VViAFMcQ%3D%3D.html
另外，從公司高層了解到的一些獨家內部資訊：

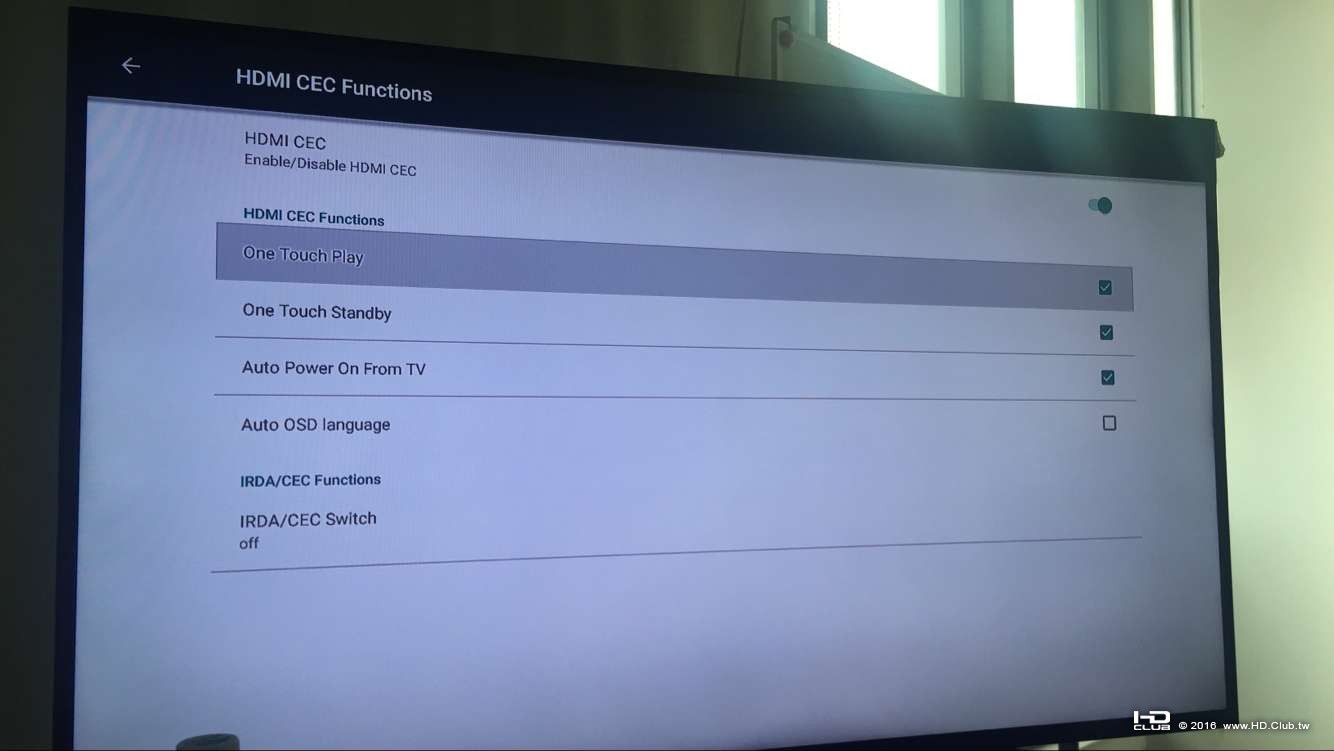

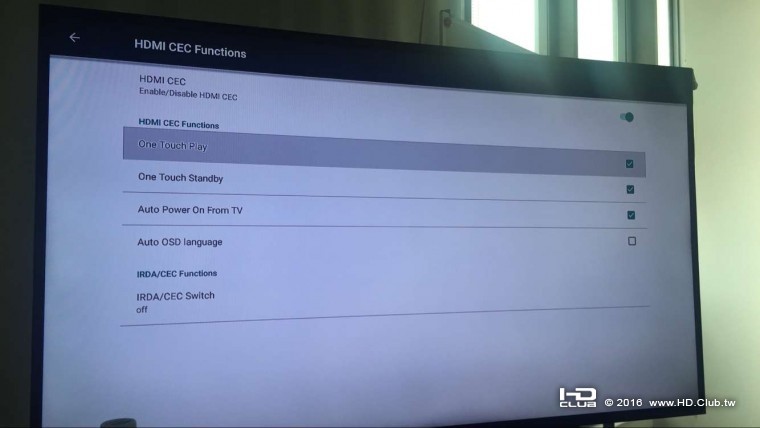

完善的HDMI CEC

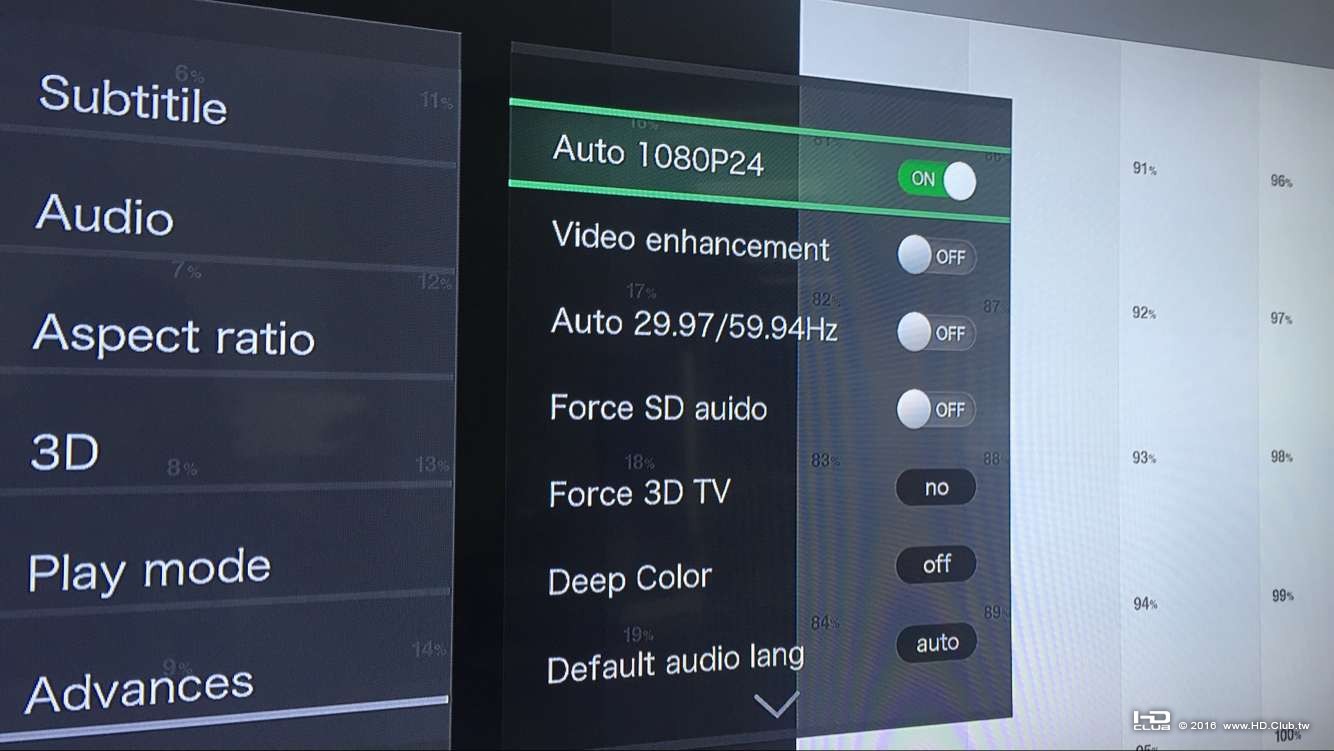

各種帧率自動識別轉換

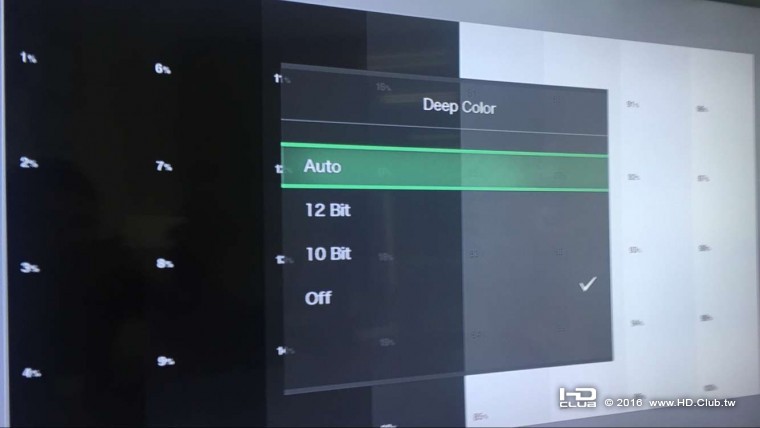

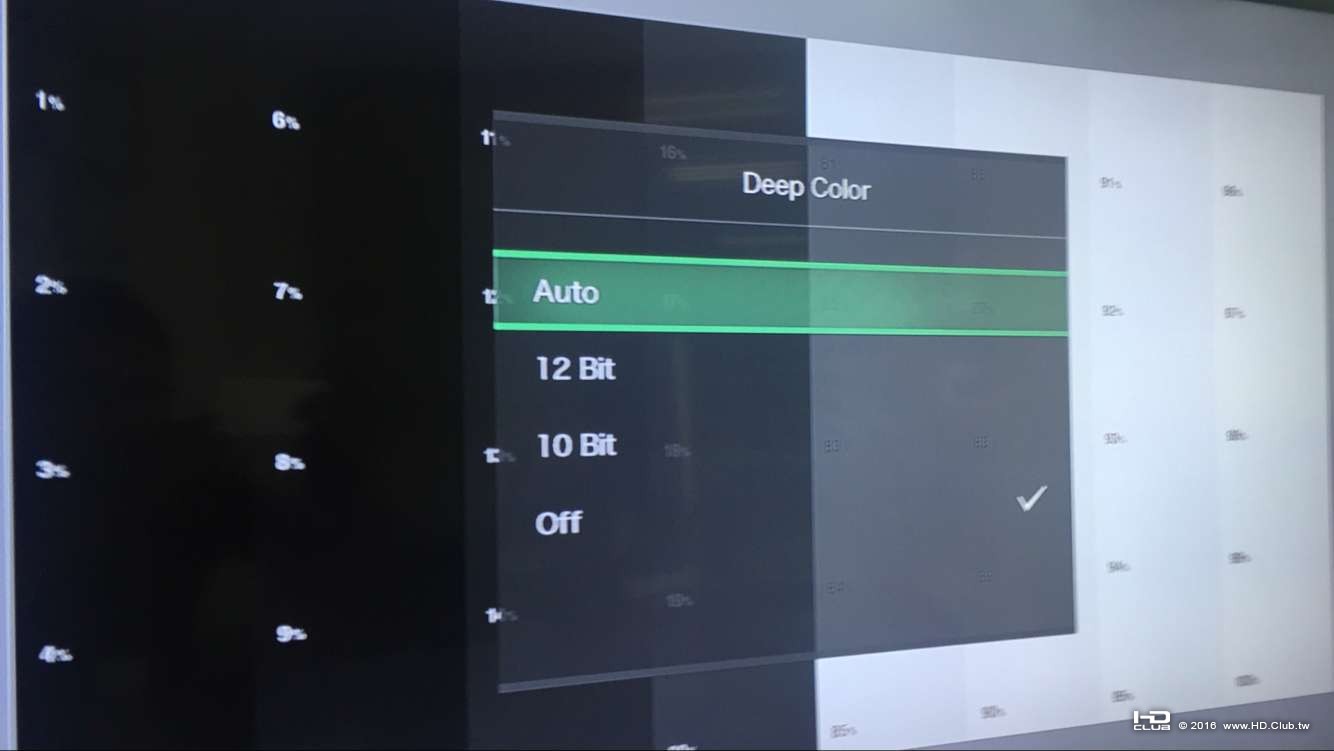

色深輸出選擇

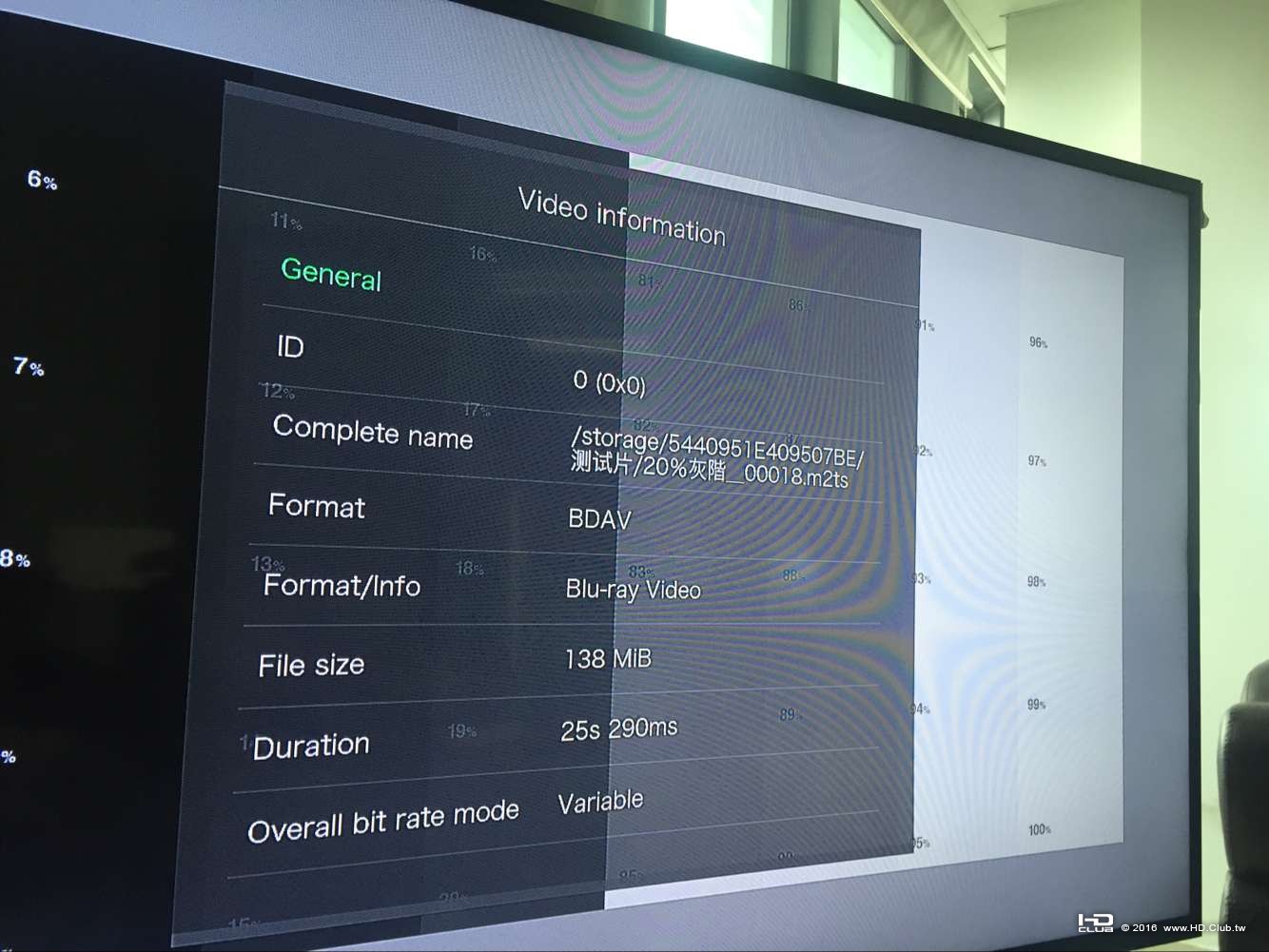

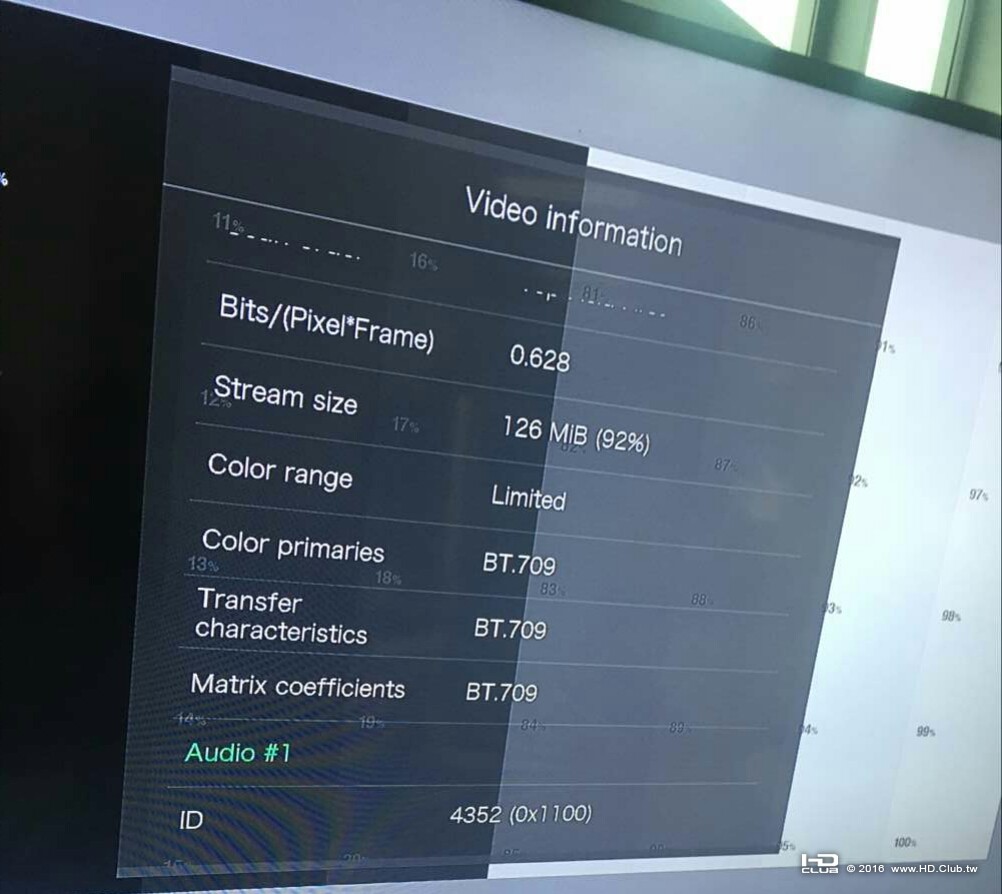

詳細的視頻信息顯示

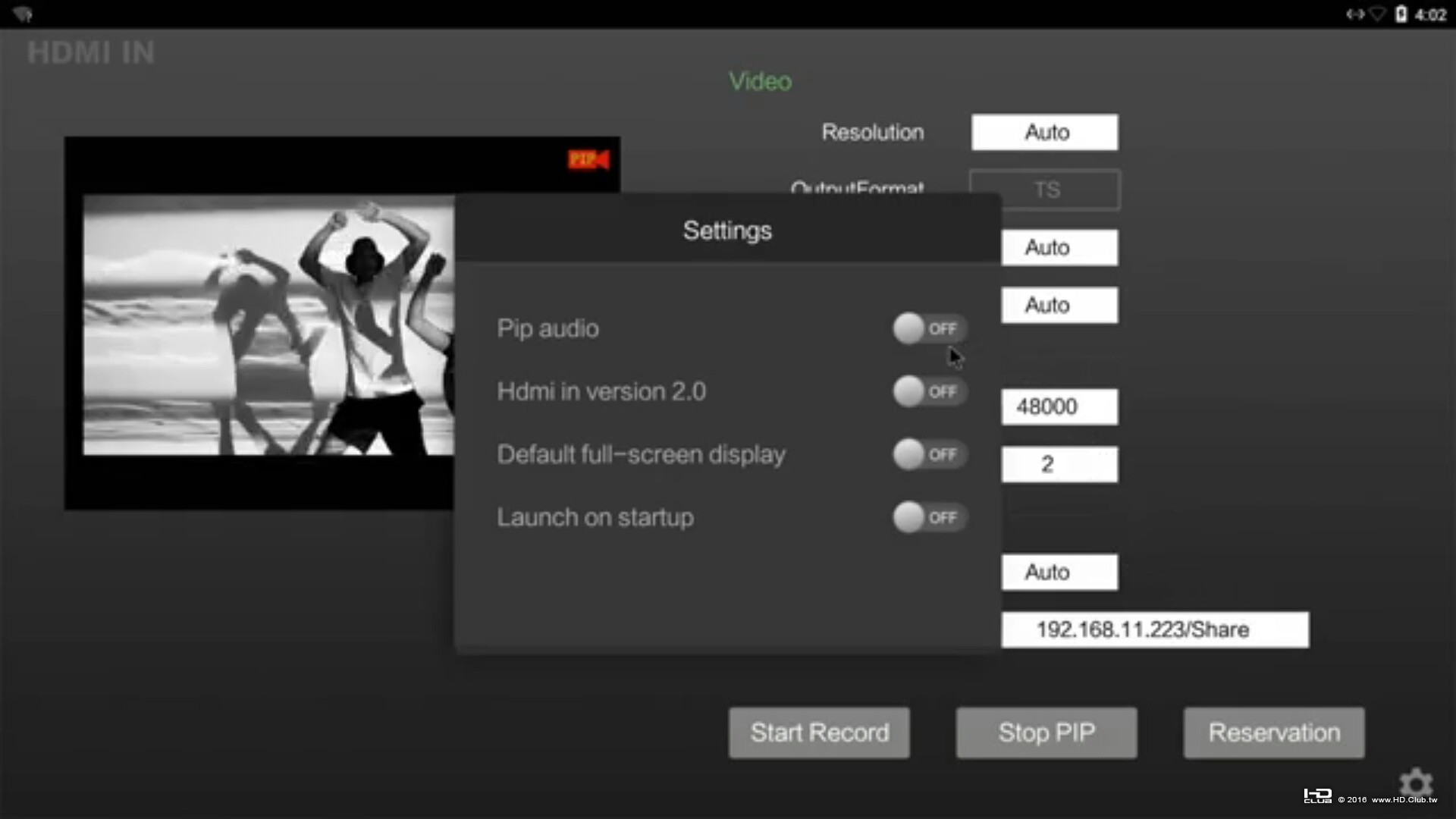

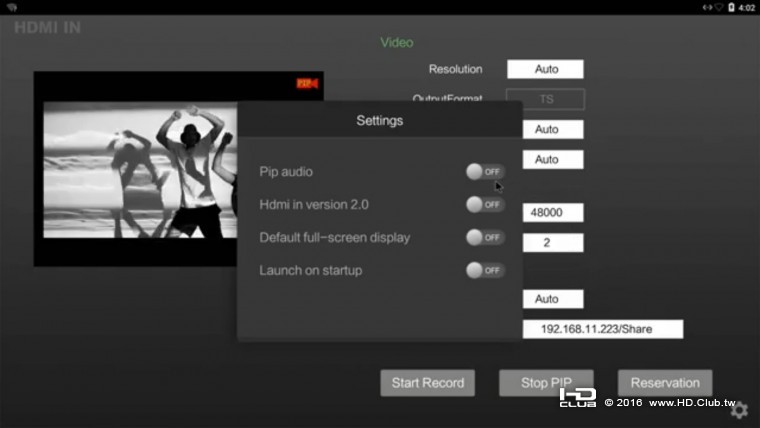

強大的HDMI IN PVR功能

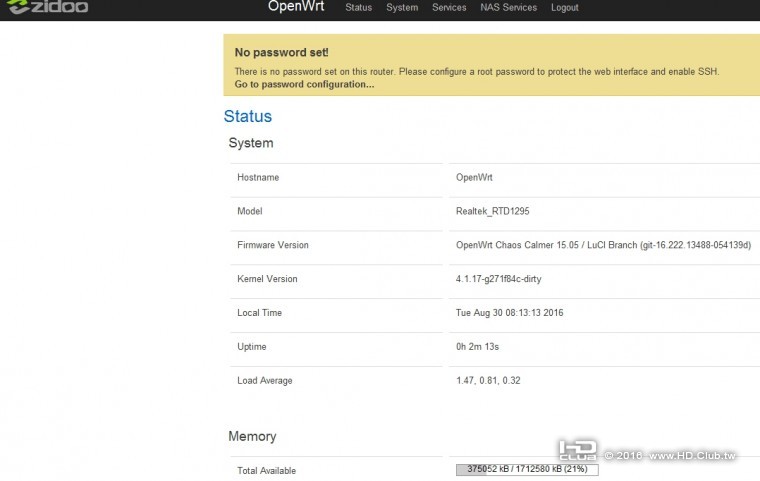

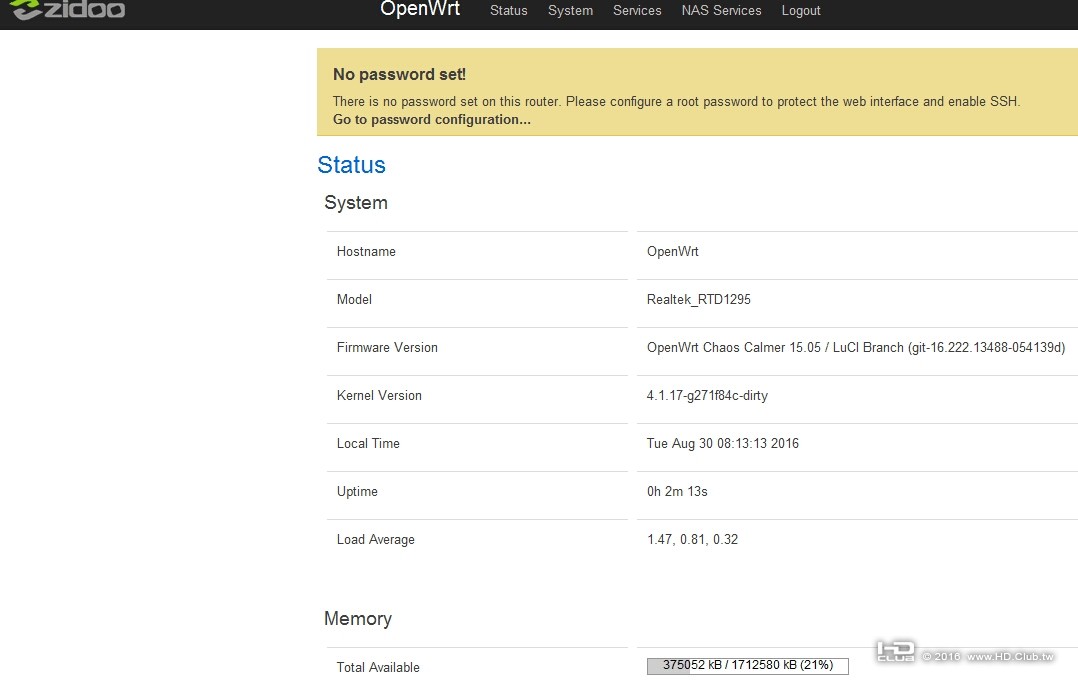

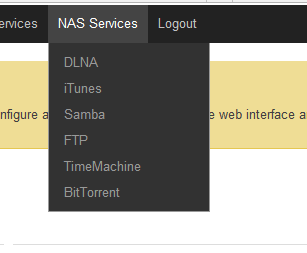

OpenWrt相關信息
首次採用了收費的paragon NTFS文件系統，而沒有採用傳統免費的NTFS-3g。大大提升NTFS速率和穩定性!

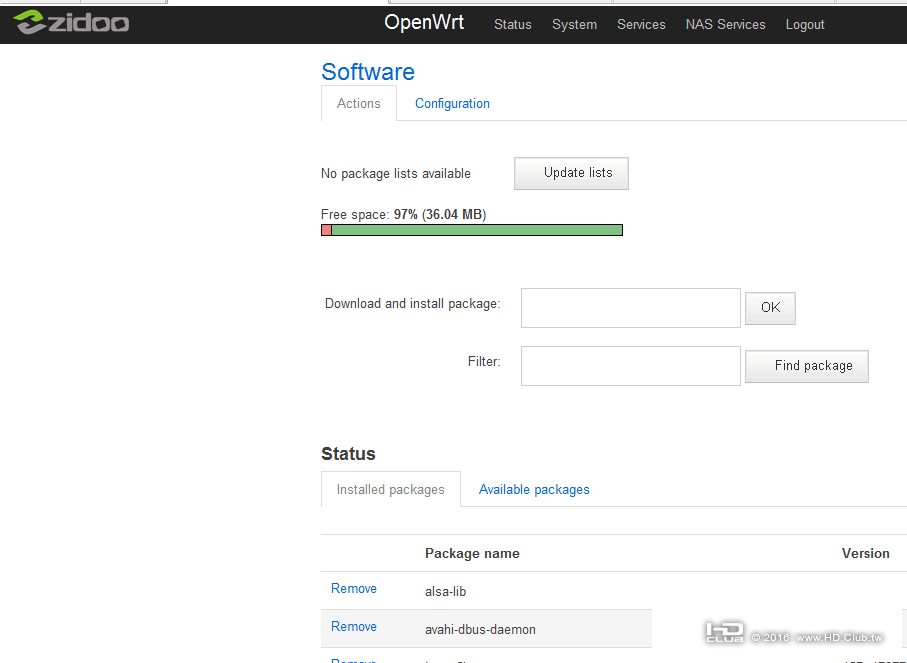

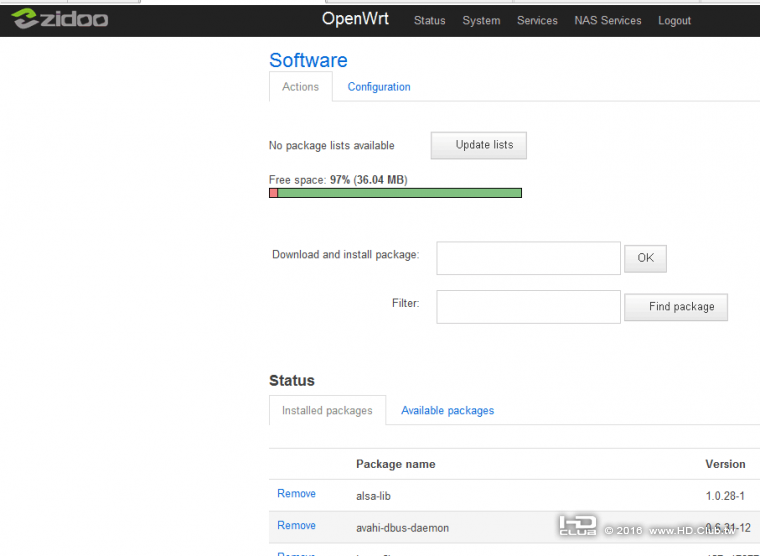

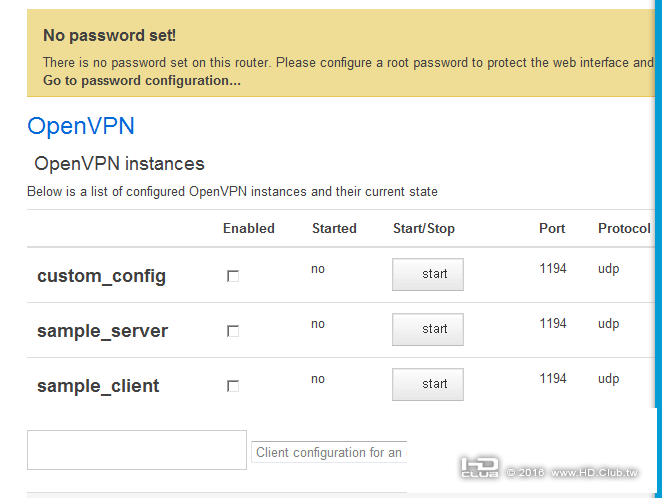

獨立的OpenWrt系統在啓動機器後就在後臺運行了，而且用戶可以自己去安裝軟件包。
自從海思3798C v200開4k HDR播放機之先河，此次zidoo新旗艦 X9S搭載RTD1295集萬千寵愛於一身，必將重新定義4K HDR播放機市場，一場好戲即將上演。
|
|
