Amlogic S905 64Bit 4K 10Bit 60FPS TV BOX

6hzzz · 發表於 2015-6-6 21:10:13

馬上註冊，結交更多好友，享用更多功能，讓你輕鬆玩轉社區。

您需要登錄才可以下載或查看，沒有賬號？註冊

x

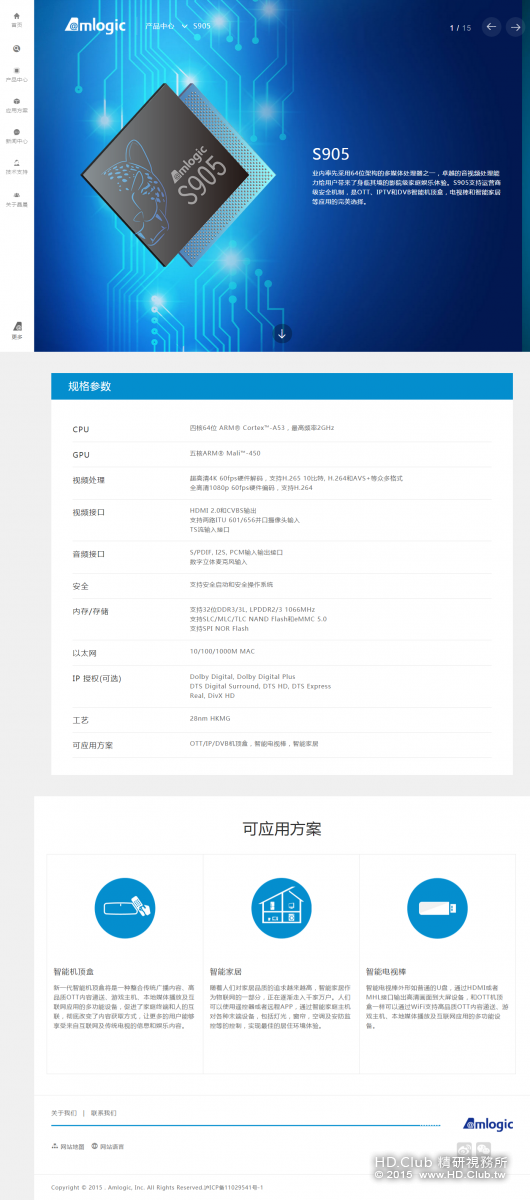

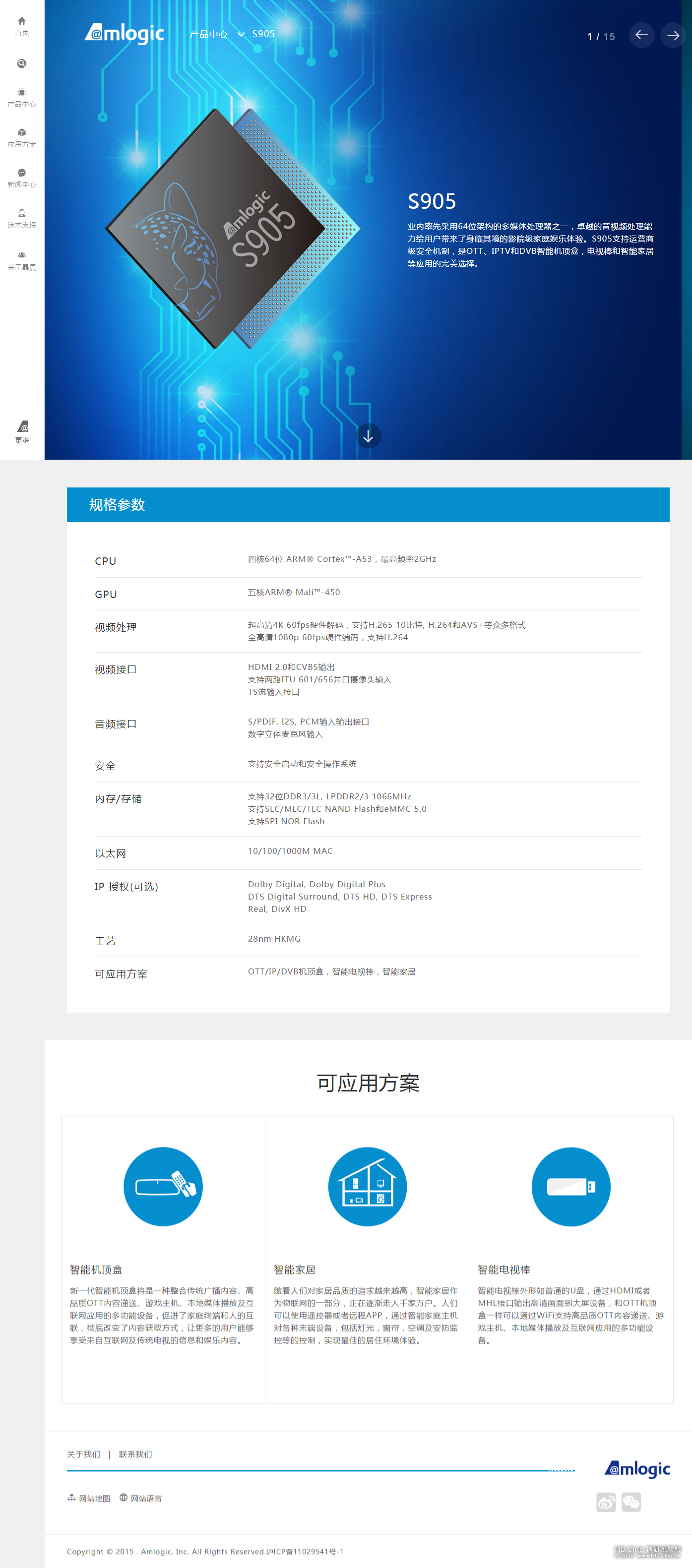

www.amlogic.cn screen capture 2015-10-27_12-23-02.png

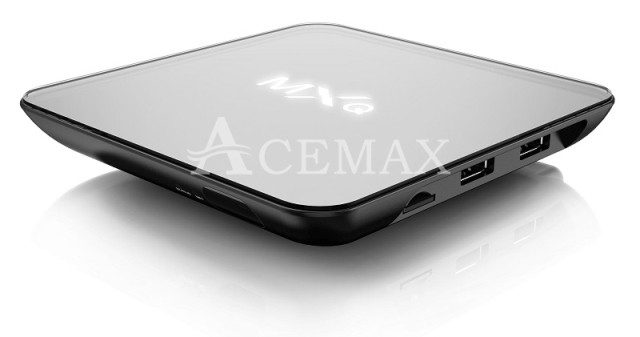

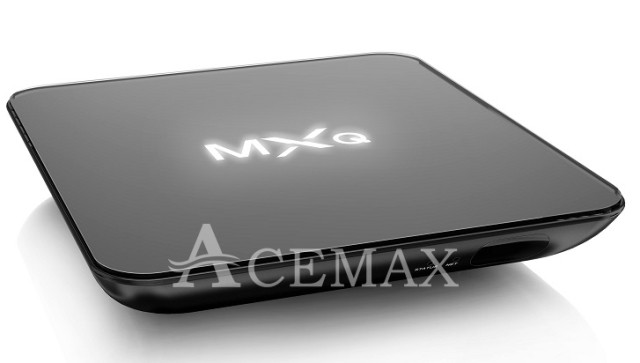

The main novelty of ACEMAX G9C TV Box is a SoC S905 Quad Coremanufactured in 28nm by TSMC that includes ARM Cortex-A53 able to reach the 2.0Ghz and Mali GPU-450mp5 with a frequency of up to 750MHz processors. The G9C also comes with 2GB of RAM, 8GB of storage memory NAND in its basic version, WiFi b/g/n and Bluetooth 4.0. A level of connectivity seems to be integrated MicroSD card reader, 10/100 network port, digital audio output, two USB 2.0 connectors, output A / V and HDMI 2.0 port. ACEMAX G9C supports H.265 and 4K2K.

6hzzz · 發表於 2015-6-6 21:23:18

【方案介绍】
Amlogic 产品S905是64 bit高性价比的芯片，能满足目前已视频播放为主的OTT应用，高性能、高集成度、低功耗、低成本，不仅能满足4K高清播放，更有丰富的接口，适合更多的外设链接，高性能的GPU，更完美的展示游戏等复杂应用的良好用户体验。

【方案特色】

64位：64位高性能四核Cortex A53 CPU
真4K：4K@60fps视频硬件解碼和点对点显示
H.265：H.265 10-bit和AVS+等众多格式回放
28nm：采用台积电28nm工艺和低功耗优化设计

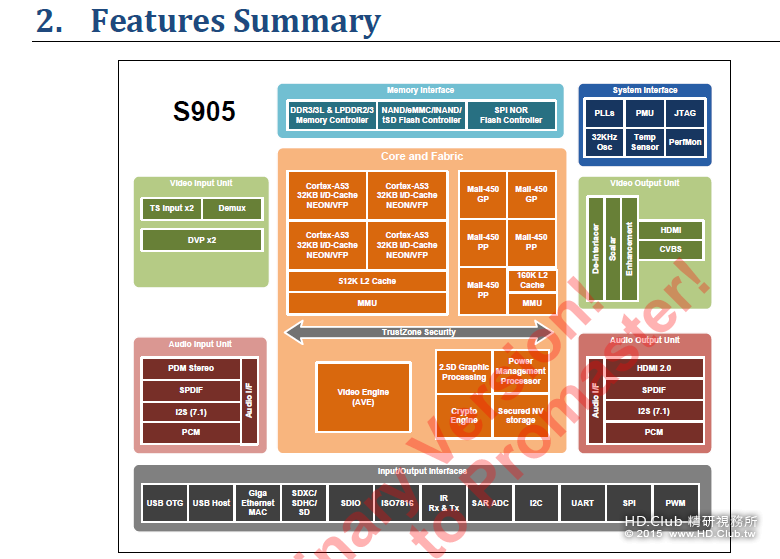

【产品规格】

Quad-Core 64-bit Cortex-A53
Penta-Core Mali-450
4Kp60 HEVC Main-10 Decoding
4Kp30 MPEG/H.265 Decoding
1080p60 H.264 encoding
DVB TS interfaces
SDIO 3.0,USB2.0,10/100/1000
eMMC5.0
HDMI2.0,HDCP2.2
Enhanced Security Cores
DDR3/LPDDR3 up to 2GBytes
Google Android L/Linux

用心去做 · 發表於 2015-6-29 13:22:46

造福大众

6hzzz · 發表於 2015-6-29 14:11:22

用心去做發表於 2015-6-29 13:22
造福大众

得到消息,S905實機已經在評測了,電視棒和電視盒都有.

Minibad · 發表於 2015-7-1 11:27:08

趕快出完整的性能測試報告吧!

用心去做 · 發表於 2015-7-1 14:10:26

下一步就看国内机顶盒厂家和播放器厂家是否跟进了。泰捷目前用的是812

Minibad · 發表於 2015-7-1 20:07:27

只要功能強, 價格低, 用五年不會壞,
會有很多人買

william456 · 發表於 2015-7-2 12:09:03

沒有giga port

6hzzz · 發表於 2015-7-14 20:55:14

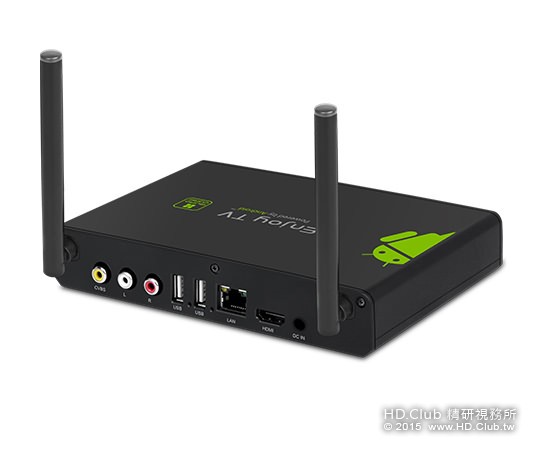

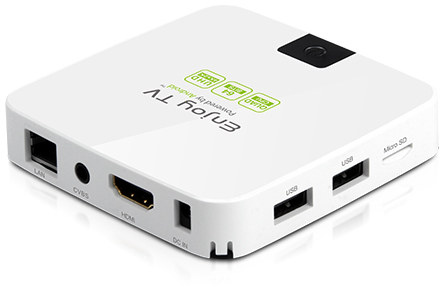

Eny EM95 specifications:

SoC – Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with quad core Mali-450MP GPU up to 750MHz
System Memory – 1GB DDR3 (Option: 2GB)
Storage – 8GB NAND flash (Option: 16GB) + SD card slot
Video Output – HDMI 2.0 up to 4K @ 60Hz with support for CEC and HDCP 2.2 , AV output
Video Codecs – H.264, H.265, HD AVC/VC-1, HD MPEG1/2/4, RM/RMVB, Xvid/DivX 3/4/5/6, RealVideo 8/9/10 up to 4K resolutions
Audio – HDMI, AV, optical S/PDIF
Connectivity – 10/100M Ethernet (Optional Gigabit Ethernet), Wi-Fi @ 2.4GHz, Bluetooth 4.0
USB – 3x USB 2.0 host ports
Misc- Power LED, LED display on front panel
Power Supply – DC 5V/2A
Dimensions – N/A

彩虹奇機_Lantic · 發表於 2015-7-15 17:04:47

版大先進好,
S905是個很不錯的方案..
雖然我們也有發行RockChip 3288,
但Amlogic 在影音支援方面蠻不錯的,S905方案也很令人期待~

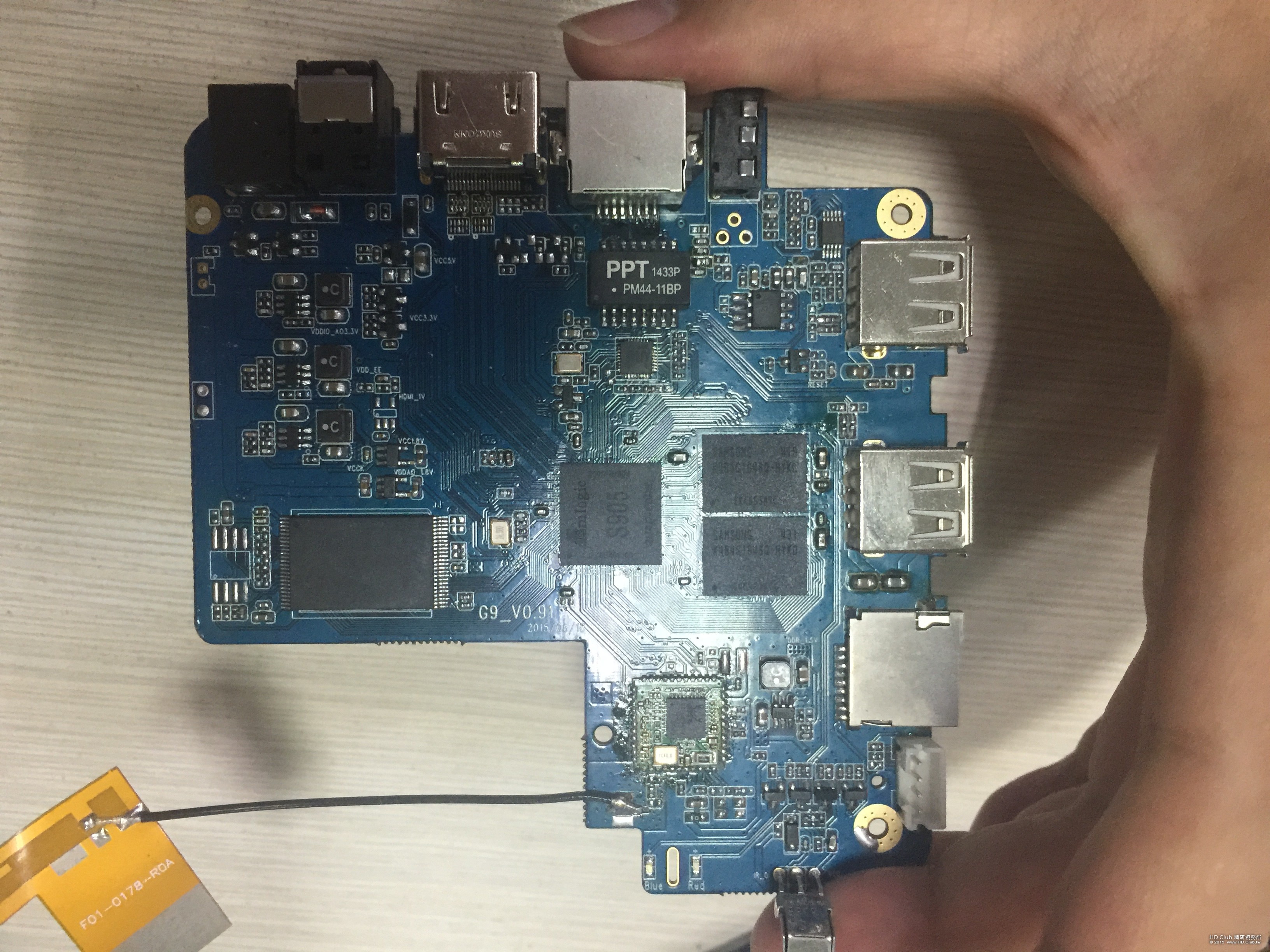

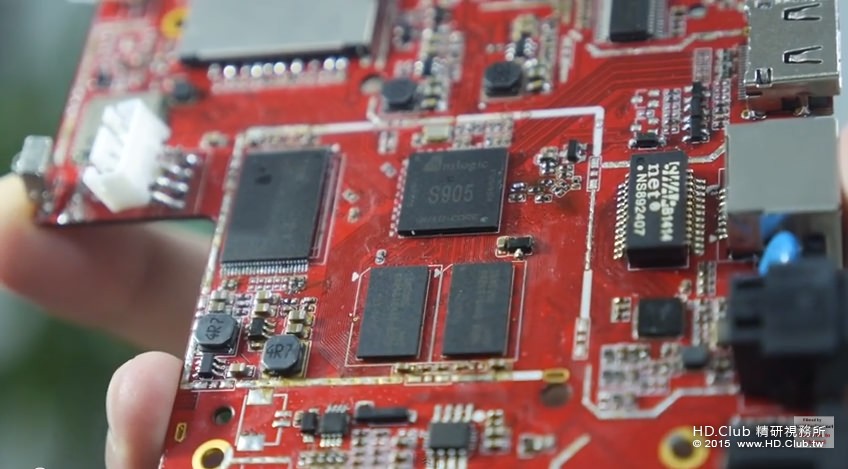

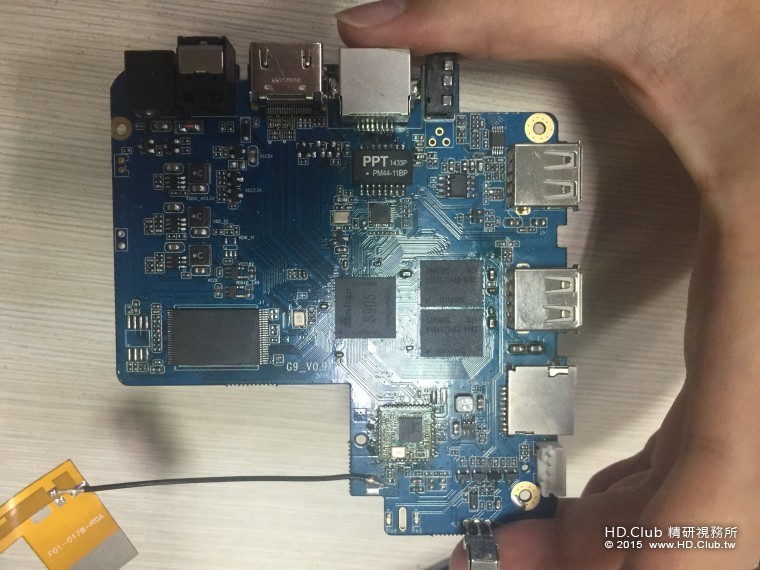

圖中應該算是Amlogic 官方公版的Layout,在CN並不會把Giga-Lan 加入必需品,而且也會縮減不少東西,
規格圖給版大看就知道,它還能加不少東西哦!!

我們也會努力加油!!
目前第一版也跟著官方在測試階段囉!!
而我們發行的版本一定會把好東西加上去,
期望論壇前輩能多提供建議,
(P.s以上若有逾越之處還請版大告知,Tks.)

6hzzz · 發表於 2015-7-16 21:36:46

彩虹奇機_Lantic 發表於 2015-7-15 17:04
版大先進好,
S905是個很不錯的方案..
雖然我們也有發行RockChip 3288,

看來S905已經整裝待發了,不知道對大陸音頻編碼DRA格式支持否?沒看到相關信息.期待S905的大爆發.引領新一波64位4K 10BIT盒子刷新市場.

6hzzz · 發表於 2015-7-22 12:02:11

本文章最後由 6hzzz 於 2015-7-23 11:00 編輯

Geniatech ATV495

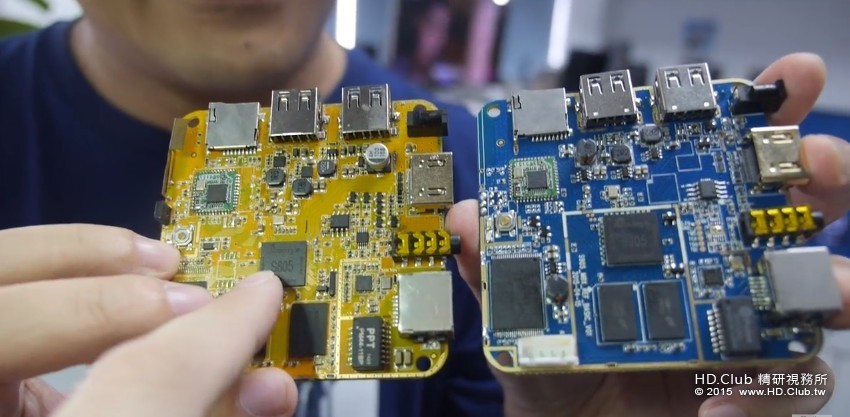

S805 VS S905

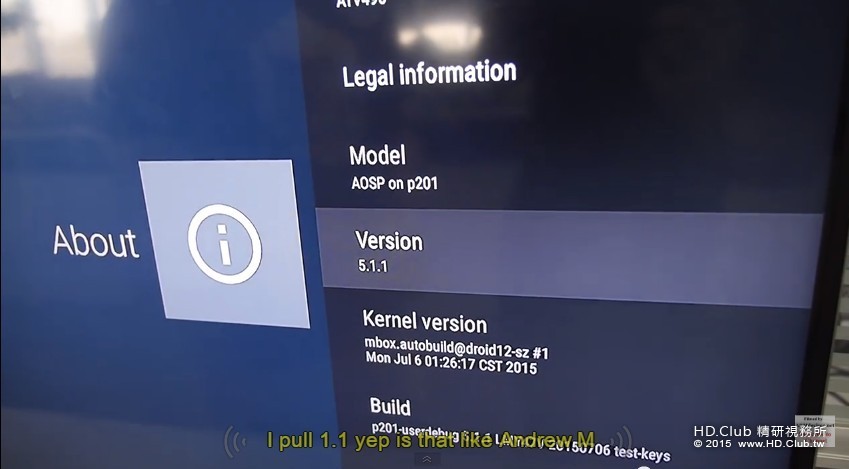

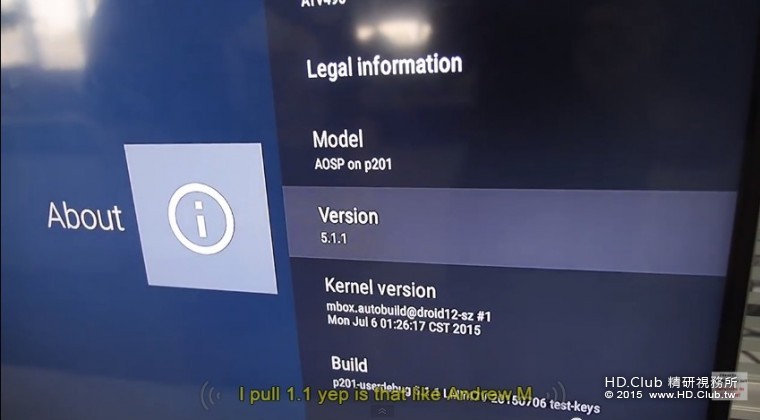

OS

6hzzz · 發表於 2015-7-23 10:49:36

本文章最後由 6hzzz 於 2015-7-23 10:55 編輯

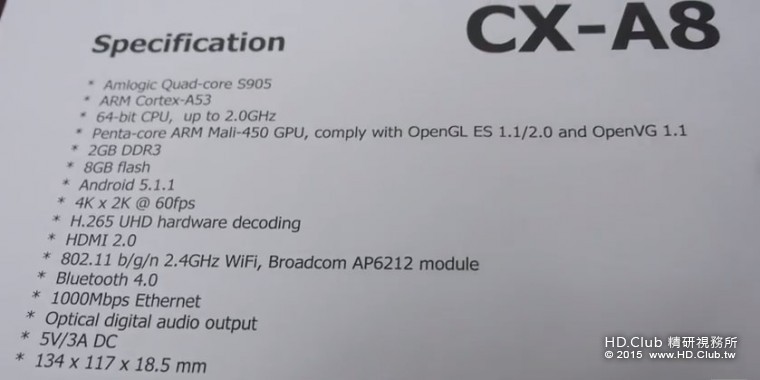

Sunchip CX-A8

64bit AmLogic quad-core ARM Cortex-A53 with five-core Mali-450 GPU, it runs Android 5.1.1, decodes 4K at 60fps to the HDMI 2.0 output, comes with Gigabit Ethernet, 2GB RAM and 8GB Flash.

Sunchip CX-A8.JPG

54abc · 發表於 2015-8-3 11:37:36

好迷人的機子,期待上市......

6hzzz · 發表於 2015-8-24 10:31:25

S905跑分出爐

http://www.hd.club.tw/forum.php?mod=viewthread&tid=199011&fromuid=2263955

6hzzz · 發表於 2015-9-15 20:36:44

Geniatech ATV495 TV Box

ATV495 specifications:

SoC – Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with a quad core Mali-450MP GPU up to 750MHz
System Memory – 2GB RAM
Storage – 8GB flash + micro SD card slot
Video & Audio Output – HDMI 2.0 up to 4K @ 60Hz with support for HDCP 2.2 , AV output (CVBS)
Connectivity – 10/100M Ethernet, Wi-Fi 802.11 b/g/n
USB – 2x USB 2.0 host ports
Misc- Power button, IR receiver
Power Supply – DC 5V/2A
Dimensions – N/A

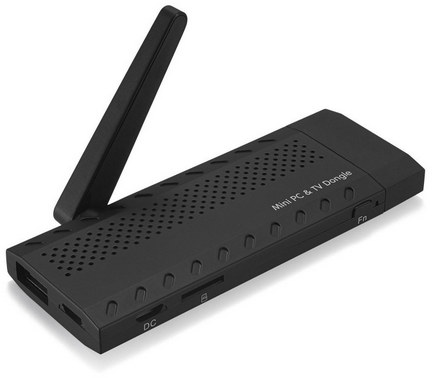

Guleek A8 Android TV Stick

Guleek A8 specifications:

SoC – Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with quad core Mali-450MP GPU up to 750MHz
System Memory – 2GB DDR3
Storage – 8GB eMMC flash + micro SD card slot
Video Output – HDMI 2.0 up to 4K @ 60Hz with HDCP 2.2
Audio – HDMI, AV, optical S/PDIF
Connectivity – WiFi 802.11 b/g/n (AP6212 by default, with RTL8189,AP6330,AP6335 supported for dual band or/and 802.11ac)
USB – 1x USB 2.0 host port, 2x micro USB port (one OTG, one for power only)
Misc – FN key
Power Supply – 5V/2A via micro USB port
Dimensions – N/A

Geniatech ATV1950 TV Box with Dual Tuner

ATV1950 “Quad Core Gold” preliminary specifications:

SoC – Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with a quad core Mali-450MP GPU up to 750MHz
System Memory – 2GB RAM
Storage – 16GB flash + micro SD card slot
Video & Audio Output – HDMI 2.0 up to 4K @ 60Hz with support for HDCP 2.2
Connectivity – Ethernet, Wi-Fi 802.11 b/g/n/ac
Dual Digital TV Tuner built-in (ATSC/DVB-T/DVB-T2/ISDBT) for simultaneous watching and recording
USB – 4x USB 2.0 host ports
Misc- Power button, IR receiver
Power Supply – DC 5V/2A
Dimensions – 160x110x33 mm
