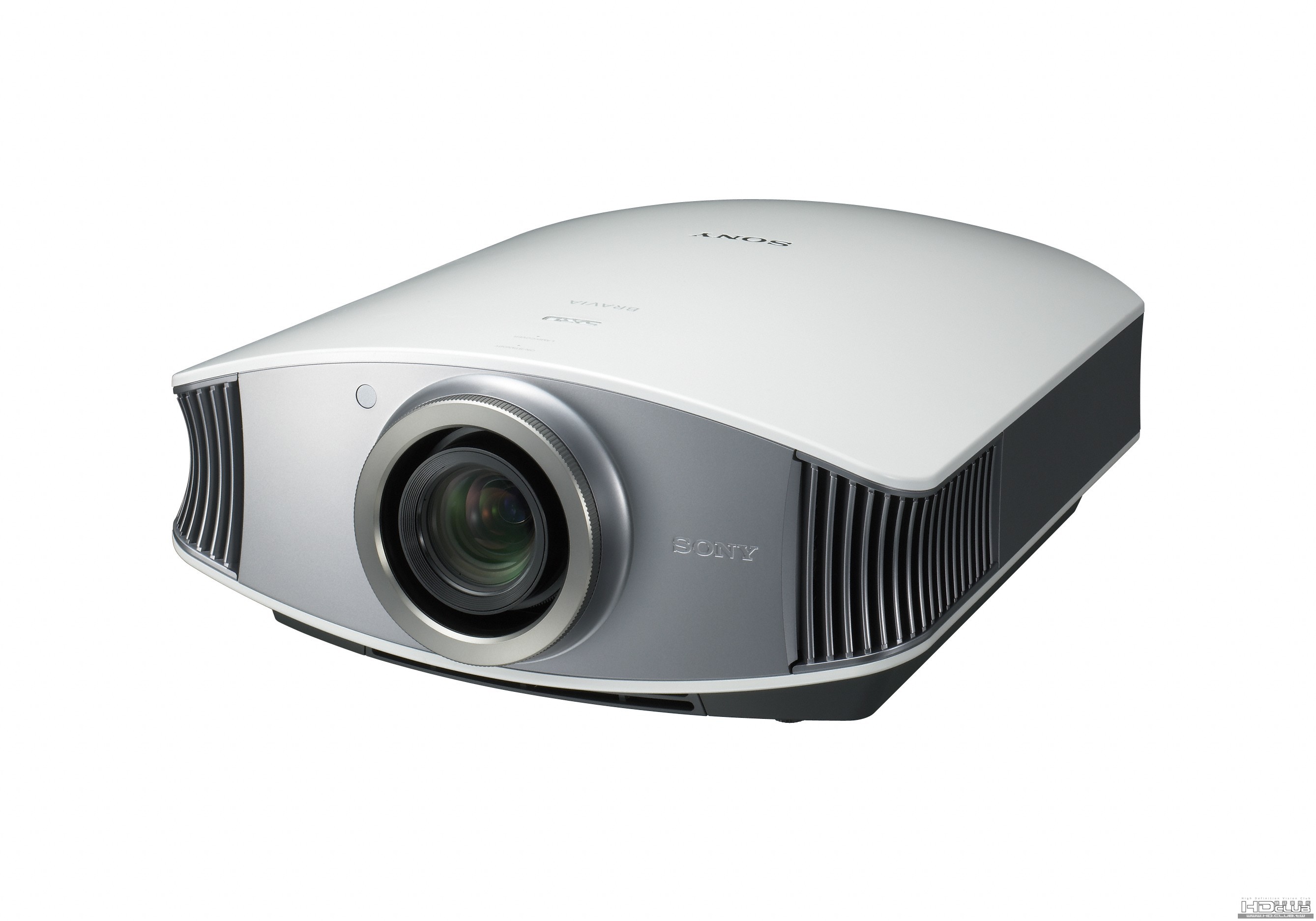

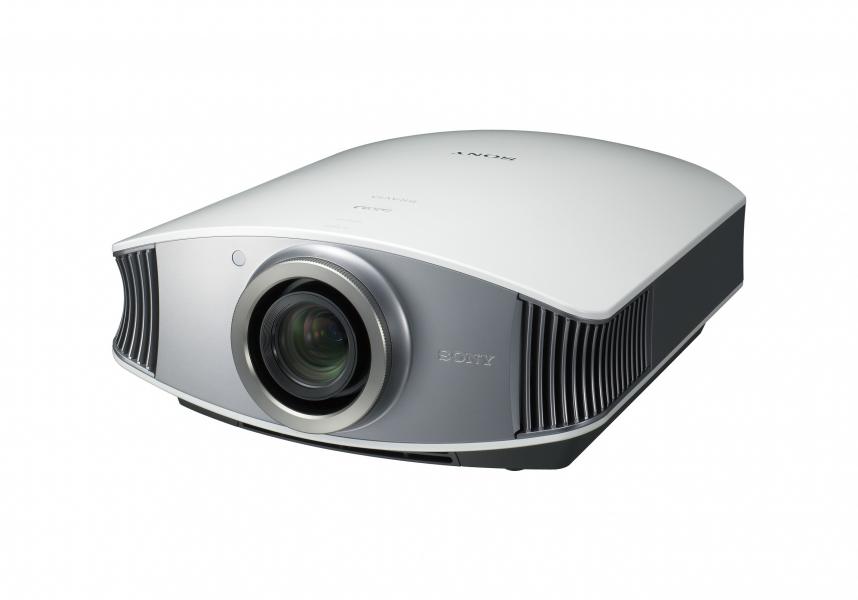

sony 1080p投影機低價新機器-vpl-vw40

asa00322

http://b2b.sony.com/Solutions/product-detail.do?&prodId=50737&catId=44220
原始文章出處
Inputs and Outputs

Component/Progressive

:

DTV (480/60i, 575/50i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i), 1080/60p (DVI and HDMI channel only), Composite video, Y/X video

Convenience Features

Multiple Language Display	:	15 languages (including English, French, Spanish, German and Chinese)
Power Save Mode	:	On, Off
Auto Input Search	:	Yes
Test Pattern	:	Yes
Image Flip	:	HV, H, V, Off
IR Receiver	:	Front & Rear, Front, Rear
Illumination	:	Off, On

General

Aspect Ratio	:	16:9
Lens	:	fl 8.7 to 33.7 mm/F2.54 to 3.53 mm
Projection Picture Size	:	40" to 300" measured diagonally
Television Type	:	Front Projection

General Features

Vertical Keystone	:	Yes
Standby Mode	:	Yes
Lens Control	:	Off, On
High Altitude Mode	:	Off, On
Information Menu	:	Horizontal and Vertical frequency display
Acceptable Computer Signals	:	fH: 19 to 72 kHz, fV: 48 to 92 Hz, fV: 60 Hz
Input A	:	Auto, Computer, Component, Video GBR

Inputs and Outputs

Component Video (Y/Pb/Pr ) Input(s)	:	1 (Side)
Composite Video Input(s)	:	1 (Side) Vp-p+/-2 dB sync negative (75 ohms terminated)
S-Video Input(s)	:	Y/C mini DIN 4-pin type, Y (luminance): 1 Vp-p+/-2 dB sync negative (75 ohms terminated) C (chrominance): burst 0.286 1 Vp-p+/-2 dB (NTSC) sync negative (75 ohms terminated) burst 0.3 1 Vp-p+/-2 dB (PAL) sync negative (75 ohms terminated)
PC Video Input(s)	:	D-Sub15 and HDMI2 (Side) fH: 19 to 72kHz / fV: 48 to 92 Hz / Maximum resolution (HDMI only): 1920 x 1080 fV: 60Hz
HDMI™ Connection(s)	:	2 (Side) Digital RGB/Y/Cb(Pb)Cr(Pr) with PC timing support1
Remote Network Connection(s)	:	1 (Side) RS-232C: D-sub 9-pin (female) RJ-45 10 BASE-T/100BASE-TX (For gamma adjustment using included ImageDirector3 software.)
RS232 Control	:	Remote Connector
12V Trigger Input(s)	:	1 (1 Side) Mini Jack - Power On: DC 12V, output impedance: 4/7 kilohms Power Off: 0V

Operating Conditions

Operating Temperature	:	5°C to 35°C (41°F to 95°F)
Operating Humidity	:	35% to 85% (no condensation)

Power

Power Consumption (in Operation)	:	300W
Power Consumption (in Standby)	:	8W
Power Requirements	:	AC 100-240V, 1.3-3A, 50/60Hz

Service and Warranty Information

Limited Warranty

:

Product Warranty - 1 Years Parts and Labor except the lamp. Lamp Warranty - 90 Days from date of purchase.

Video

Native Resolution	:	1080p
Contrast Ratio	:	Up to 15000:1 (with Advanced Iris Auto ON)
Display Resolution	:	1920 x 1080
Overscan	:	Yes

Video Features

Video Processing	:	10-bit processing
Comb Filter	:	Yes (3DY)
DRC® Palette Presets	:	Mode 1, Mode 2
Color System	:	Auto, NTSC, PAL, SECAM
Vertical Position	:	Yes
Wide Mode	:	Wide Zoom/ Normal/ Full/ Zoom
Display Technology	:	SXRD™ Technology
High Definition	:	Yes (Full HD 1080)
Horizontal Size	:	Yes
Dot Phase	:	Yes
Picture Shift Function	:	Yes
Title Area Control	:	Yes
Film Mode	:	Yes
Acceptable Video Signals	:	Composite video, Y/C video, 15 kHz (RGB/Component) 50/60Hz, Progressive Component 50/60 Hz, 480/60i, 480/60p, 575/50i, 575/50p, 720/50p, 720/60p, 1080/50i, 1080/50p, 1080/60i, 1080/60p
Micro Display Type	:	0.61” chip (2,073,600 pixels per chip. 6,220,800 total pixels)

Weights and Measurements

Dimensions (Approx) Width	:	15.55" (395mm)
Dimensions (Approx) Height	:	6.83" (173.5mm)
Dimensions (Approx) Depth	:	18.56" (471.4mm)
Weight (Approx.)	:	24.25 lbs (11kg)
Dimensions (Approx.)	:	15.55 x 6.83 x 18.56" (395 x 173.5 x 471.4mm)

Key Technologies

SXRD™ 1920 x 1080p Full HD Panels	:	SXRD is a display technology developed by the legendary television engineers at Sony to meet and exceed the demands of a High Definition image at its full 1080 line resolution. It is a 1920 x 1080p panel characterized by several key benefits -- full HD resolution, smooth film-like image with minimal screen door effects, high response times (2.5ms rise and fall), high contrast ratios and accurate color rendition.
BRAVIA Engine™ Video Processing System	:	The VPL-VW40 BRAVIA® Home Cinema Projector uses Sony's BRAVIA Engine™ full digital video processor for crisp and clear images. Several special picture enhancement technologies are integrated into the processor to create better gradations with more detail, enhance contrast, and dynamically improve color performance. - Digital Noise Reduction Circuits: Reduces block noise and mosquito noise by using pixel-level filtering to reproduce a clean and clear picture. And Motion Vector Noise Reduction reduces just the noise in the video signal for video further reducing unwanted noise and blur artifacts. - Digital Contrast Enhancer circuit: Improves contrast by enhancing all areas from dark to bright in parallel with texture control providing a three dimensional picture. - Color Reality signal processing enables the expression of all the colors of life in vivid detail for dark and bright scenes. Details in dark areas of the picture are there, just like they are supposed to be.
Advanced Iris 2	:	The latest evolution of Sony’s own Advanced Iris function uses algorithms designed to analyze the histogram of each picture along with nonlinear amplification to dynamically adjust the iris for its optimum opening. The result is a stunningly high contrast ratio of up to 15,000:1. Images in bright scenes are crisp and clear and black levels in dark scenes are deep and detailed. A manual adjustment option is also available to fix the iris opening for specific image conditions.
Ultra Quiet Fan	:	An exclusive Sony-designed fan efficiently removes heat at a barely noticeable noise spec of 22dB. Obtrusive fan noise is virtually eliminated to allow for flexibility in room placement.
ARC-F (All Range Crisp Focus) Lens	:	A specially developed crisp focus lens was developed to take full advantage of the full 1920 x 1080 HD resolution that the SXRD panel device offers. It offers superior resolution and focus.
RCP (Real Color Processing)	:	Real Color Processing allows the user to target specific colors on the picture and fine adjust their color and hue without changing the overall picture's color and hue. For instance, the color of a strawberry can be fine adjusted without impacting the skin tones. Or the blue in a sky can be adjusted without affecting the color of water. And green grass can be adjusted without influencing the other colors in the picture.

應該是vw50和60的綜合體
實際售價預估應該會低於9萬台幣

Jett

這台應該是低階的"VW-50"
好像功能都跟VW-50一樣
唯一不一樣的好像就是沒支援"1080/24p"
