SONY PXW-FS7 4K XDCAM Super 35mm 又一款可換鏡頭4K攝影機

asa00322

索尼推出新PXW-FS7緊湊型4K的XDCAM攝像機具有超強的35 CMOS傳感器索尼專業團隊2014年9月12日

優化長形與XAVC-L記錄，原生的E-mount鏡頭的靈活性，高速XQD媒體和舒適，穩健設計

公園里奇，新澤西州，2014年9月12日-索尼最新的除了它的大尺寸傳感器線是一個完整的相機系統，可提供長格式錄製功能，在一個緊湊的手持式設計，4K分辨率。新PXW-FS7的XDCAM超35攝錄一體機結合了原生E卡口技術，XAVC-L編解碼器的效率記錄的靈活性; 傳輸速度和XQD存儲卡情報;舒適，人體工程學的手持式，包括一個新的“智能握。”

新的攝錄一體機是專為各種長篇的拍攝和製作應用，從“真實電影”式的紀錄片和現實電視雜誌節目，商業和企業應用。

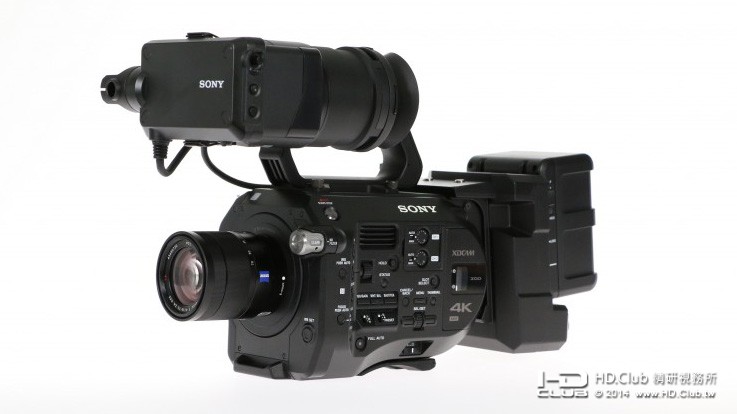

索尼PXW-FS7是XDCAM超35攝像機

本機E卡口; A卡口鏡頭的兼容性

該PXW-FS7是土生土長的E卡口攝像機設計能夠給予用戶最大的鏡頭選擇和靈活性，平滑安靜光圈，聚焦和變焦控制，具有自動曝光和防抖穩定。一個非常淺的，有18 mm法蘭回距離允許使用的範圍為35mm鏡頭。Sony選購的LA-EA4 A卡口鏡頭適配器可以與多種高品質的A卡口鏡頭的兼容性。

新相機將有兩個版本：身體只，而PXW-FS7K版採用了新的伺服變焦E卡口鏡頭FE PZ 28-135mm F4ğOSS（SELP28135G）。

新的E-mount鏡頭是世界上第一個35mm全畫幅可更換電動變焦鏡頭。它具有F4恆定值，不響鈴光圈，變焦和聚焦控制，並且是防塵和防潮。該SELP28135G具有防抖穩定，最小焦距呼吸和啟用了索尼新音速小子波動馬達（SSM），以減少噪音變焦拍攝時。

該PXW-FS7是Sony's新XAVC內部和XAVC長GOP格式兼容，每個支持10位4：2：2的記錄（XAVC-I，180fps; XAVC-L 120FPS）。在錄製UHD（3840×2160）分辨率，慢動作可達60fps和全高清（1920×1080）與60/50逐行幀是可能的。在2015年年初進行固件更新將使本土高清錄製，在蘋果的ProRes 422 HQ編解碼器，使用可選的擴展單元（XDCA-FS7）時。

通過XDCA-FS7的FS-RAW界面，PXW-FS7能夠4K / 2K RAW記錄與索尼HXR-IFR5和AXS-R5，或兼容的第三方外置刻錄機。

該PXW-FS7擁有2個支持同步錄音，並自動繼續記錄XQD卡插槽。為了支持FS7的慢動作和快動作和內部4Krecording，一個新的128GB的XQD G系列的超高速傳輸可達440MB /秒（讀取）及350MB /秒（寫入）已經研製成功。XQD卡也是64和32GB容量可供選擇。

攝像機包括一個低通濾波器的視頻，逐行像素讀取和先進的攝像頭處理，給用戶的創新療法和選項的範圍廣泛，如高速記錄，高分辨率和高靈敏度，用更少的失真少捲閘。

相機的4內置ND濾鏡允許的範圍內光照條件下完全曝光控制，無需外部ND濾鏡設備。S-Gamut3 / SLog3＆S-Gamut3.Cine / SLog3是為後期製作選擇的靈活性支持。

相機的1160萬像素的Exmor Super35 CMOS傳感器，提供了增強的靈敏度，淺景深，高信號噪聲比的夢幻般的低照度性能。

新的相機設計，提供了一系列創造性的拍攝選項。它可用於手持，並且還設計了平衡的肩扛式使用，而不需要額外的鑽機。靈活的取景器安裝系統，可以讓用戶輕鬆地重新定位它改變拍攝位置。

所提供的智能手柄可以方便地前往主要的拍照功能，包括對焦放大倍率; 用戶菜單; REC START / STOP; 和縮放。其分配的車輪使光圈，焦距，音頻電平和增益控制。

相機的圖像傳感器和信號處理器都包含在一個環境密封腔。熱量被引導到一個外部散熱器與主動冷卻風扇。

索尼還推出了一個可選的附件，對VCT-FS7重量輕桿支撐系統，具有15毫米桿和可調節的肩墊。這讓射手使用額外的外圍設備，輕鬆地連接跟踪對焦系統或外部錄像機。

該PXW-FS7提供了許多鏡頭的選擇和靈活性

在PXW-FS7的主要特點

• 索尼的Super 35 Exmor CMOS傳感器
• 本機E卡口; 兼容A卡口鏡頭（需LA-EA4 A卡口鏡頭轉接器），18 mm法蘭回距離
• 板載UHD 4K（3840×2160）和全高清（1920×1080）記錄
• 記錄系統的多種選擇
• XAVC（內部/長GOP）
• MPEG HD，4：2：2，50 Mbps的（HD只）
• 蘋果公司的ProRes編解碼器（未來的升級和擴展單元，單獨出售）
• RAW記錄（擴展單元和外置刻錄機，單獨出售）
• 慢動作和快動作的過度和不足的起動
• 雙XQD卡插槽
• 16位模擬 - 數字轉換器
• ISO 2000
• 支持S-Gamut3Cine / S-LOG 3編碼
• 壓鑄鎂合金框架
• 環境密封電子
• 無線操作的CBK-WA100，單獨銷售
• 全球定位系統


以下是計劃的有效性，並建議清單計價的PXW-FS7及配件：

• PXW-FS7 4K超XDCAM攝錄一體機35毫米（僅機身） - 2014年10月，建議售價不到1萬美元。
• PXW-FS7K 4K超XDCAM攝錄一體機35毫米（與FE PZ 28-135mm F4摹OSS鏡頭） - 2014年12月，建議零售價不到1.3萬美元。
• XDCA-FS7擴展單元- 2014年12月，建議零售價低於2,500元。
• SELP28135G FE PZ 28-135mm F4摹OSS鏡頭- 2014年12月，建議2500美元標價。
• VCT-FS7輕型桿支撐系統 - 2014年12月，建議零售價低於$ 1,200元。


Sony Unveils New PXW-FS7 Compact 4K XDCAM Camera with a Super 35 CMOS sensorby Sony Pro Team 09/12/2014

Optimized for Long-form with XAVC-L Recording, Native E-Mount Lens Flexibility, High Speed XQD Media and a Comfortable, Robust Design

Park Ridge, N.J., Sep. 12, 2014 – Sony’s newest addition to its large sensor line is a complete camera system that delivers long-form recording capabilities with 4K resolution in a compact, hand-held design. The new PXW-FS7 XDCAM Super 35 camcorder combines the flexibility of native E-mount technology, the recording efficiency of the XAVC-L codec; the transfer speed and intelligence of XQD memory cards; and comfortable, handheld ergonomics, including a new “Smart Grip.”

The new camcorder is designed for a range of long-form shooting and production applications, from “cinéma vérité”-style documentaries and reality TV to magazine shows, commercial and corporate applications.

Sony’s PXW-FS7 is an XDCAM Super 35 camcorder

Native E-Mount; A-Mount Lens Compatibility

The PXW-FS7 is a native E-mount camcorder designed to give users maximum lens options and flexibility, smooth and silent iris, focus and zoom control, with auto exposure and SteadyShot stabilization. An extremely shallow, 18 mm flange-back distance enables the use of a range of 35mm lenses. Sony’s optional LA-EA4 A-mount lens adaptor allows compatibility with a wide range of high-quality A-mount lenses.

The new camera will be available in two versions: body-only, and the PXW-FS7K version with a new servo zoom E-Mount lens FE PZ 28-135mm F4 G OSS (SELP28135G).

The new E-mount lens is the world’s first 35mm full-frame interchangeable power zoom lens. It features constant F4 value, independent rings for iris, zoom and focus control, and is dust- and moisture-resistant. The SELP28135G has SteadyShot stabilization, minimum focus breathing and is enabled with Sony’s new Super Sonic wave Motor (SSM) to reduce zoom noise while shooting.

The PXW-FS7 is compatible with Sony´s new XAVC Intra and XAVC Long GOP formats, each supporting 10-bit 4:2:2 recording (XAVC-I, 180fps; XAVC-L, 120fps). Recording in UHD (3840 x 2160) resolution, slow motion up to 60fps and Full High Definition (1920×1080) with 60/50 progressive frames is possible. A firmware update in early 2015 will enable native HD recording in the Apple ProRes HQ 422 codec, when using an optional extension unit (XDCA-FS7).

Through the XDCA-FS7’s FS-RAW interface, the PXW-FS7 is capable of 4K/2K RAW recording with Sony’s HXR-IFR5 and AXS-R5, or with a compatible third-party external recorder.

The PXW-FS7 features 2 XQD card slots that support simultaneous recording and relay recording. To support the FS7’s Slow and Quick motion and internal 4Krecording, a new 128 GB XQD G series with ultra-high speed transfer up to 440MB/s (read) and 350MB/s (write) has been developed. XQD cards are also available in 64 and 32GB capacities.

The camera includes a low-pass video filter, progressive pixel reading and advanced camera processing to give users a broad span of creative treatments and options such as high speed recording, high resolution and high sensitivity, with less aliasing and less rolling shutter.

The camera’s 4 built-in ND filters allow full exposure control in a range of lighting conditions, without requiring external ND filter equipment. S-Gamut3/SLog3 & S-Gamut3.Cine/SLog3 are supported for flexibility of post-production options.

The camera’s 11.6 million-pixel Super35 Exmor CMOS sensor delivers enhanced sensitivity, shallow depth of field, a high signal-to-noise ratio for fantastic low light performance.

The new camera is designed to provide a range of creative shot options. It can be used hand-held, and is also designed for balanced shoulder-mount use without the need for additional rigs. The flexible viewfinder mounting system lets users easily relocate it for changing shooting positions.

The supplied Smart Grip provides easy access to key camera functions including focus magnification; the user menu; REC start/ stop; and zoom. Its assignable wheel allows control of Iris, Focus, Audio Level and Gain.

The camera’s image sensor and signal processor are contained in an environmentally sealed chamber. Heat is directed to an external radiator with a fan for active cooling.

Sony is also introducing an optional accessory, the VCT-FS7 light-weight rod support system featuring 15mm rods and an adjustable shoulder pad. This lets shooters use additional peripherals and easily attach follow focus systems or an external recorder.

The PXW-FS7 offers many lens options and flexibility

Key features of the PXW-FS7

• Sony’s Super 35 Exmor CMOS Sensor
• Native E-Mount; Compatible with A-Mount lenses (LA-EA4 A-mount lens adaptor required), 18 mm flange back distance
• On-board UHD 4K (3840 x 2160) and Full HD (1920 x 1080) recording
• Wide choice of recording systems
• XAVC (Intra/Long GOP)
• MPEG HD, 4:2:2, 50 Mbps (HD only)
• Apple ProRes codec (with future upgrade and extension unit, sold separately)
• RAW recording (with extension unit and outboard recorder, sold separately)
• Slow & Quick Motion for over-and under-cranking
• Dual XQD card slots
• 16-bit analog-to-digital converter
• ISO 2000
• Supports S-Gamut3Cine/S-Log 3 encoding
• Die-cast magnesium frame
• Environmentally sealed electronics
• Wireless operation with CBK-WA100, sold separately
• GPS


The following are planned availability and suggested list pricing for the PXW-FS7 and accessories:

• PXW-FS7 4K XDCAM Super 35mm Camcorder (body only) – October 2014, suggested list price less than $10,000.
• PXW-FS7K 4K XDCAM Super 35mm Camcorder (with FE PZ 28-135mm F4 G OSS lens) – December 2014, suggested list price less than $13,000.
• XDCA-FS7 Extension Unit – December 2014, suggested list price less than $2,500.
• SELP28135G FE PZ 28-135mm F4 G OSS lens – December 2014, suggested list price of $2,500.
• VCT-FS7 Light-weight rod support system – December 2014, suggested list price less than $1,200.


For More Information on PXW-FS7:

www.sony.com/fs7          #SonyFS7          http://blog.sony.com/?p=29019
