Nanoflash Recorder on EX3

roynan

Nanoflash 錄製50/100/120/140/160 Mbps 4:2:2 Long-GOP HDCAM Code,和Flash XDR差異在輕巧方便隨身攜帶,
詳細資料可參考官網: http://www.convergent-design.com/CD_Products_nanoFlash.htm<;/FONT>
我使用EX3接SDI 以100Mbps錄片段,流程為
nanoflash mov. -->丟FCP -->color corrector 3 Way僅調明暗-->Compressor轉成AVC 23M/s 檔案


截圖如附件,檔案分享 http://webhd.xuite.net/_oops/roynan/9vb


使用心得:好東西

west

<P><STRONG><FONT size=6>Introducing nanoFlash</FONT></STRONG></P>
<P><IMG src="http://www.convergent-design.com/Images/nanoFlash_in_Hand_s.jpg"></P>
<P> </P>
<P></P>
<P><IMG src="http://www.convergent-design.com/Images/nanoFlash_Side_Front.jpg"></P>
<P> </P>
<P></P>
<P><IMG src="http://www.convergent-design.com/Images/Nano6796_Web.jpg"></P>
<P> </P>
<P> </P>
<P></P>
<P class=style84 align=left><SPAN class=style89><FONT size=4>The World Smallest, Most Versatile, Professional HD/SD Recorder/Player</FONT></SPAN></P>
<P class=style89 align=left>US $2995</P>
<P class=style89 align=left>Available June 2009</P>
<P class=style103 align=left><EMBED style="WIDTH: 544px; HEIGHT: 344px" src=http://www.youtube.com/v/vg9T-ROoVmg&hl=en&fs=1&rel=0 width=544 height=344 type=application/x-shockwave-flash allowfullscreen="true" allowscriptaccess="always"></P></EMBED>
<P class=style97 align=left>Highlights</P>
<UL>
<LI class=style99>
<DIV align=left>Ultra-compact, camcorder mountable, 7.5W active / 0.2 W Standby </DIV>
<LI class=style99>
<DIV align=left>Comprehensive Digital I/O: HD/SD-SDI and HDMI: 1080i, 1080p, 1080psf, 720p, 480/576i </DIV>
<LI class=style99>
<DIV align=left>Utilizes Affordable Compact Flash Media(32GB = $150 US) </DIV>
<LI class=style99>
<DIV align=left>Optional ASI Encode/Decode </DIV>
<LI class=style99>
<DIV align=left>*** Now with Analog Audio Input (3.5 mm Unbalanced Stereo or Balanced Mono), Analog Output (3.5 mm Headphone) </DIV></LI></UL>
<P class=style97 align=left><STRONG>Selectable Quality / Record Rates</STRONG> </P>
<UL>
<LI class=style99>
<DIV align=left>Master Quality - I-Frame Only : 160 Mbps 4:2:2 I-Frame Full-Raster; 1.24 GB/Min </DIV>
<LI class=style99>
<DIV align=left>Master Quality - Long GOP : 100 Mbps 4:2:2 Long-GOP Full-Raster; 0.8 GB/Min </DIV>
<LI class=style99>
<DIV align=left>Broadcast TV Mode: 50 Mbps 4:2:2 Long-GOP Full-Raster; 0.4 GB/Min </DIV>
<LI class=style99>
<DIV align=left>Proxy Mode: 19 Mbps 4:2:0 Long-GOP 1440x1080; 0.15 GB/Min </DIV></LI></UL>
<P class=style97 align=left><STRONG>Near Universal NLE Support </STRONG></P>
<UL>
<LI class=style99>
<DIV align=left>Final Cut Pro: All Formats </DIV>
<LI class=style99>
<DIV align=left>Avid Media Composer: All Formats </DIV>
<LI class=style99>
<DIV align=left>Edius: All Formats </DIV>
<LI class=style99>
<DIV align=left>Matrox Axio: All Formats </DIV>
<LI class=style99>
<DIV align=left>Vegas: Long-GOP Formats only </DIV>
<LI class=style99>
<DIV align=left>Premiere: 35 Mbps 4:2:0 only </DIV></LI></UL>
<P class=style97 align=left><STRONG>Easy Workflow </STRONG></P>
<UL>
<LI class=style99>
<DIV align=left>Play / Edit directly from the Compact Flash Card </SPAN></DIV>
<LI class=style99>
<DIV align=left>No transcode or data re-wrap required </DIV>
<LI class=style99>
<DIV align=left>Tapeless workflow: no ingest, metadata support </DIV></LI></UL>
<P class=style97 align=left><STRONG>Applications </STRONG></P>
<UL>
<LI class=style99>
<DIV align=left>Upgrade the built-in recording capability of your existing camera </DIV>
<UL>
<LI class=style99>
<DIV align=left>4:2:0 to 4:2:2 </DIV>
<LI class=style99>
<DIV align=left>1440 x 1080 to 1920 x 1080 raster </DIV>
<LI class=style99>
<DIV align=left>25/35 Mbps to 100/160 Mbps </DIV>
<LI class=style99>
<DIV align=left>Long-GOP and I-Frame </DIV></LI></UL>
<LI class=style99>
<DIV align=left>Upgrade to tapeless workflow, Video Assist </DIV>
<LI class=style99>
<DIV align=left>Medical, Military, Airplanes, Racecars, Helicopters, Helmet Cameras </DIV>
<LI class=style99>
<DIV align=left>Museums, 3-D, Theaters, Amusement Parks, Client Review </DIV>
<LI class=style99>
<DIV align=left>Cinematography, Documentaries, Drama, Episodic TV, Commercials </DIV>
<LI class=style99>
<DIV align=left>POV cameras, DSLRs, SDI Switchers, ASI Encoder, Live News Broadcast, Satellite Uplink </DIV></LI></UL>
<UL>
<LI class=style101>
<DIV align=left><A href="http://www.dvinfo.net/conf/forumdisplay.php?f=166"><FONT color=#f26522>dvinfo's nanoFlash forums</FONT></A> </DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash_intro.pdf"><FONT color=#f26522>nanoFlash Introduction </FONT></A></DIV></LI></UL>
<P align=left><SPAN class=style85><STRONG><FONT color=#265193 size=3>More Downloads: Adobe Reader 8 or better recommended </FONT></STRONG></SPAN></P>
<UL>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash_Order_Form.pdf"><FONT color=#f26522>nanoFlash Orderform</FONT></A> <SPAN class=style103><FONT face=Arial color=#265193>(234KB, 19 May 2009) </FONT></SPAN></DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash_Brochure.pdf"><FONT color=#f26522>nanoFlash Brochure</FONT></A> <SPAN class=style103><FONT face=Arial color=#265193>(1.12MB, 10 June 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash%20FAQs.pdf"><FONT color=#f26522>nanoFlash Comprehensive FAQs</FONT></A> <SPAN class=style103><FONT face=Arial color=#265193>(136KB, 6 March 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash_Mounting_Dimensions.pdf"><FONT color=#f26522>nanoFlash Dimensions</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (46KB, 19 May 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/Tapeless%20Workflow%20Advantages.pdf"><FONT color=#f26522>Advantages of Tapeless Workflow</FONT></A> <SPAN class=style103><FONT face=Arial color=#265193>(24KB, 24 March 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash_HiRez_Photos.zip"><FONT color=#f26522>nanoFlash High quality pics</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (2.6MB, 8 May 2009)</FONT></SPAN> </DIV></LI></UL>
<UL>
<LI class=style101>
<DIV align=left><A href="http://www.convergent-design.com/downloads/nanoFlash/nanoFlash_Manual.pdf"><FONT color=#f26522>nanoFlash User Manual </FONT></A><SPAN class=style103><FONT face=Arial color=#265193>(1MB, 15 July 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left><A href="http://69.15.88.17/downloads/nanoFlash/nanoFlash_Current_Capabilities.pdf"><FONT color=#f26522>nanoFlash Current Capabilities </FONT></A><SPAN class=style103><FONT face=Arial color=#265193>(500 KB, 12 July 2009)</FONT></SPAN> </DIV></LI></UL>
<UL>
<LI class=style101>
<DIV align=left><A href="http://www.convergent-design.com/rental.htm"><FONT color=#f26522>Rental Houses</FONT></A> </DIV></LI></UL>
<P class=style97 align=left>Sample Video: All of these videos were recorded on the Flash XDR / nanoFlash </P>
<P class=style103 align=left>You will need Final Cut Pro 6.04 or better to play the Quicktime files on a MAC.</P>
<P class=style103 align=left>You will need the <A href="https://servicesplus.us.sony.biz/sony-software-model-PDZVX10.aspx"><FONT color=#f26522>Sony MXF Player</FONT></A> to play the MXF files on a PC. </P>
<BLOCKQUOTE>
<P class=style103 align=left>1080i59.94 (100Mbit Long-Gop) (with an Iconix camera) </P></BLOCKQUOTE>
<UL>
<LI class=style101>
<DIV align=left>Motorcycle1 <A href="http://69.15.88.17/downloads/mxf_web/moto1.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/moto1.mov.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (89MB, 18 April 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left>Motorcycle2 <A href="http://69.15.88.17/downloads/mxf_web/moto2.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/moto2.mov.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (200MB, 18 April 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left>Motorcycle3 <A href="http://69.15.88.17/downloads/mxf_web/moto3.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/moto3.mov.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (400MB, 18 April 2009)</FONT></SPAN> </DIV>
<P class=style103 align=left>1080p23.98 (100Mbit Long-Gop) (with a Sony EX1) </P>
<LI class=style101>
<DIV align=left>Moody-Phone <A href="http://69.15.88.17/downloads/mxf_web/CG_MOODY_PHONE.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/CG_MOODY_PHONE.MOV.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (299MB, 18 April 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left>Garden of the Gods 1 <A href="http://69.15.88.17/downloads/mxf_web/GardenOfGods_01.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/GardenOfGods_01.MOV.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (132MB, 18 April 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left>Garden of the Gods 2 <A href="http://69.15.88.17/downloads/mxf_web/GardenOfGods_03.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/GardenOfGods_03.MOV.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (131MB, 18 April 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left>Green-Screen <A href="http://69.15.88.17/downloads/mxf_web/GREENSCREEN_CORGI.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/GREENSCREEN_CORGI.MOV.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (366MB, 18 April 2009)</FONT></SPAN> </DIV>
<P class=style103 align=left>1080p25 (100Mbit Long-Gop) (with a Sony EX3) </P>
<LI class=style101>
<DIV align=left>Nature Australia <A href="http://69.15.88.17/downloads/mxf_web/nature_australia.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/nature_australia.mov.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (299MB, 18 April 2009) (Copyright © 2009 Ofer Levy, not for commercial use) </FONT></SPAN></DIV></LI></UL>
<UL>
<P class=style103 align=left>720p59.94 (100Mbit Long-Gop) (with a JVC 250)</P>
<LI class=style101>
<DIV align=left>Buffalo 1 <A href="http://69.15.88.17/downloads/mxf_web/buffalo1.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/buffalo1.mov.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (60MB, 27 May 2009)</FONT></SPAN> </DIV>
<LI class=style101>
<DIV align=left>Buffalo 2 <A href="http://69.15.88.17/downloads/mxf_web/buffalo2.mxf.zip"><FONT color=#f26522>MXF</FONT></A>, <A href="http://69.15.88.17/downloads/qt_web/buffalo2.mov.zip"><FONT color=#f26522>Quicktime</FONT></A><SPAN class=style103><FONT face=Arial color=#265193> (200MB, 27 May 2009)</FONT></SPAN> </DIV></LI></UL>

west

<P>看來果然是好東西! </P>
<P>動態部分明顯 細微破損的情況都減低了! </P>
<P>roynan 兄如果能拍一段水流畫面，更能驗證高流量的優勢喔。</P>

asa00322

真的很厲害 單價也很厲害

yukijack

roynan大大
請問您的NANOFLASH的電池是如何解決的?
我最近也可能想弄一台來看看
但是目前只看到大陸製的電池...
不知您的電池是在哪買的?

PHD270

有水喔
價格也不錯11萬台幣

roynan

<P>這個電池很難搞, 你可以上官網看他的Solution買專用接頭,一定要買他專用的端子轉換,因它用4pin的+-極和一般使用Pin腳不同,還要再買電池轉換座,恩~超麻煩的因工作之便所以就自己DIY了,光華商廠買Hirose端子頭(被坑,建議去yahoo拍賣場買),比對Adapter出電的Pin腳(兩正/兩負),用三用電表量後接上NB電池,一棵電池約可使用5小時,是夠用了,弄了兩棵在用.</P><BR>
<P>這台相關可以直接到專屬論壇看看,還不少人使用這台都偏向正面評價 </P><BR>
<P><A href="http://www.dvinfo.net/forum/convergent-design-flash-xdr/" target=_blank><A href="http://www.dvinfo.net/forum/convergent-design-flash-xdr/" target=_blank>http://www.dvinfo.net/forum/convergent-design-flash-xdr</A></P><BR>
<P></P><BR>
<P>價錢的話我是在B&amp;H買的,還算能接受,畢竟目前可隨身攜帶422的Recorder難阿</P>

ma51025

<P><FONT style="BACKGROUND-COLOR: #dcdfe1">Nanoflash 可以錄製50/100/120/140/160/220 Mbps 4:2:2 Long-GOP HDCAM Code,和Flash XDR差異在輕巧方便隨身攜帶,</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">主機及外接電池台灣也有廠商生產制式固定座(Nanoflash&Flash XDR)都有使用也很方便,所以不需要再花錢及時間DIY</P></FONT><FONT style="BACKGROUND-COLOR: #dcdfe1">
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">Flash XDR</FONT></P>
<P>我們使用有一年多的經驗感覺很棒,只是體積比較大當然功能有差異</P>

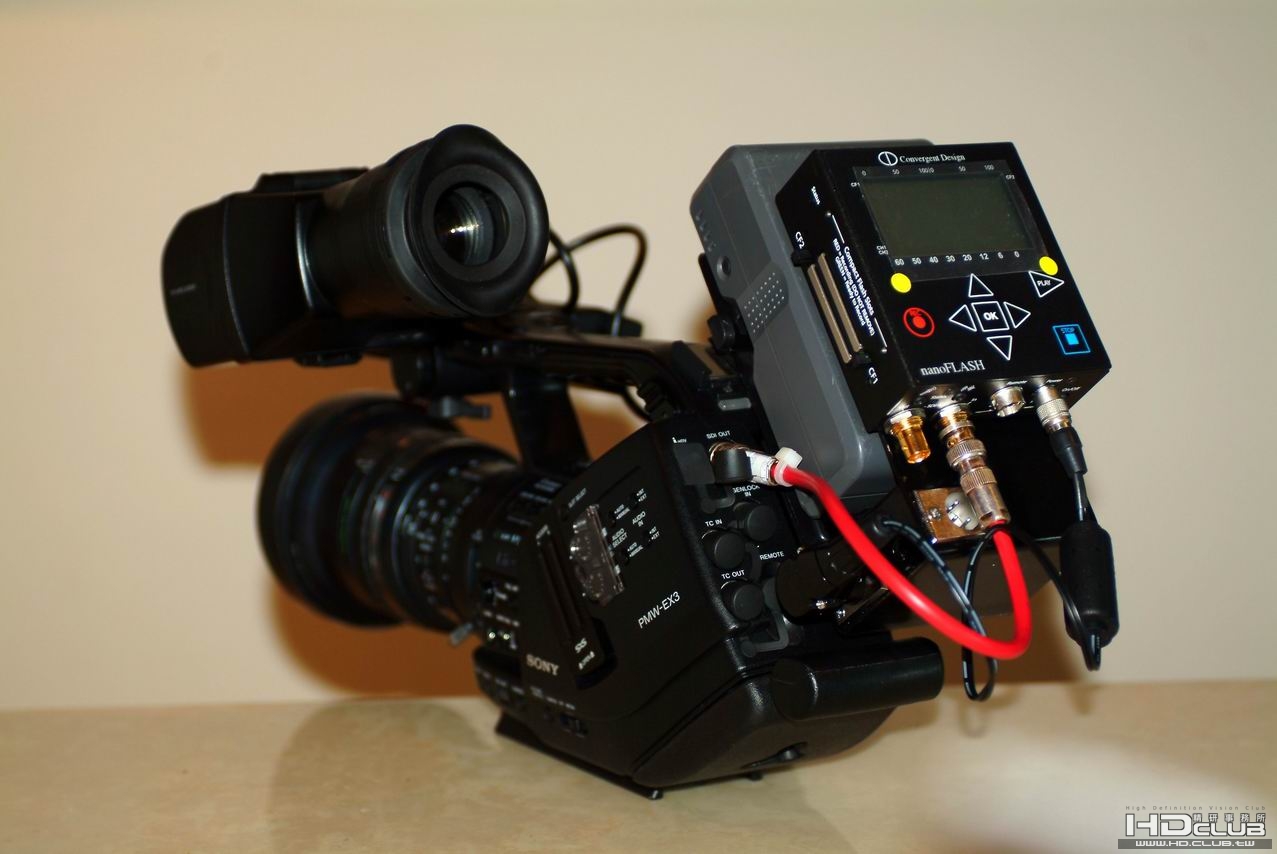

<P><FONT style="BACKGROUND-COLOR: #dcdfe1">Nanoflash 輕巧方便隨身攜帶,附圖提供各位前輩參考</FONT></P></FONT>

inhd.tw

<P>Nanoflash 使用心得:果然是好東西</P>
<P>我們也是再台灣買的</P>

dabu2008

5d2或者7d可以用吗？如何使用？录制的时候是用摄像机的按键还是nanoflash上的录制键

gescal

不知道7d能不能使用
尤其是如果要超過 1小時的話 7d本身不知道ok不ok

ma51025

有人試過7D可以,細節我不清楚可以問台灣代理商
台灣總代理商問他們比較清楚

Kit@era

很多看不见了...

C_HING

台灣有代理都不及 B&H 價錢吸引。

west

原帖由 C_HING 於 2010-1-15 07:41 發表
台灣有代理都不及 B&H 價錢吸引。

價差很多嗎??

Kit@era

422... 关注中...

ma51025

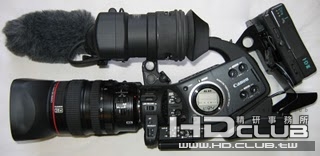

<P><FONT style="BACKGROUND-COLOR: #dcdfe1">最近閒來無事拿canon h1來跟接Nano Flash測試,太優了完全沒有問題可以連動拍攝.</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">雖然H1的HD SDI輸出本身沒有音軌跟TC.</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">但是都不是問題,nanoflash已經都設計進去,只要設定就可以使用直接有攝影機控制拍攝儲存.</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">太優秀了,原本只能吃帶子的舊機器,居然也可以大復活直接無帶化.</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">不只可以無帶化,而且可以直接選用.MOV/ MXF /MPG任何一個格式來直接記錄.</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">而且不需轉檔,直接可以支援各剪接軟體使用.</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1">它可以直接使用 CF 卡 儲存HD 4.2.2 1920X1080 檔案</FONT></P>
<P><FONT style="BACKGROUND-COLOR: #dcdfe1"></FONT><FONT style="BACKGROUND-COLOR: #dcdfe1">&nbsp;</P></FONT>

roynan

<P>

原帖由 <I>west</I> 於 2010-1-15 09:20 發表 <A href="http://www.hd.club.tw/redirect.php?goto=findpost&amp;pid=376952&amp;ptid=27489" target=_blank><IMG alt="" src="http://www.hd.club.tw/images/common/back.gif" border=0></A> 價差很多嗎??

</P>
<P>&nbsp;</P>
<P>國外直接買含郵及關稅10萬元內,不知代理商是否超過11萬</P>
<P>如果有朋友住美國代買的話,9萬左右</P>
<P>目前使用上尚未出問題</P>
