Computex 2010 NVIDIA 3D EXPERIENCE

[複製連結]

匿名
匿名  發表於 2010-6-2 22:06:58 |閱讀模式

馬上註冊,結交更多好友,享用更多功能,讓你輕鬆玩轉社區。

您需要 登錄 才可以下載或查看,沒有賬號?註冊

x
本文章最後由 匿名 於 2010-7-16 21:40 編輯

官網:
http://www.nvidia.asia/content/a ... putex2010-asia.html

今天帶著 3D 眼鏡去逛 NV 家的 3D 體驗館, 發現展場竟然有一台主機展示 CUDA 即時運算輸出 3D 影像耶!

雖沒有仔細研究 CPU & RAM 到底是什麼等級, 但是可以看到的是工作站上插了一張 Quadro 做雙螢幕顯示. 在主要畫面顯示的是最新的 Adobe Premiere CS5, 旁邊的延伸畫面就是一台 Full HD 120Hz 的 3D 顯示器做即時 "3D" 畫面的輸出預覽.

Premiere 本來就是我的主力, 所以就不管旁邊的解說人員異樣的眼光, 直接玩了起來...
結果令我相當滿意. 旁邊的輸出畫面並不是假的, 3D 效果真的按照設定變化著, 只是...
即時運算 3D 畫面輸出, 如果加了動態效果, 竟然... 會頓...

有興趣的人, 建議這幾天可以去 NV 的展場 (NEO19 對面停車場) 看看.
有 NV 家 3D 眼鏡的人, 記得戴眼鏡去喔! 可以避免跟其他人搶眼鏡的窘境發生...


NV展場還同時擺了數台 3D 電視, 已上市的 Samsung 3D LED TV 以及 Panasonic 3D 電漿當然不會缺席, 但是連還沒上市 SONY 3D BRAVIA 都借來了, 面對 "廢米" 煮成熟飯 的黃老闆, 這次展覽的大手筆可真是難得一見啊...
想要對這幾台 3D 電視深入比較的朋友, 也趕快去看看吧...


順便提一個有趣的發現...
SONY / Panasonic / Samsung 三家的 3D 眼鏡....  竟然完全不相容其他廠牌電視!!
戴著 S 家的 3D 眼鏡, 看 BRAVIA 就是正常的, 看 VIERA 就是重疊影像.
反之亦然...
並不是 Ir 同步訊號接收不到的問題, 因為展場 P 牌與 S 牌擺放在一起, 只是站左邊看右邊, 或是站右邊看左邊的轉頭角度, 都在眼鏡 Ir 接收範圍之內.
但是看別家的就是沒 3D 效果, 很有趣的現象...

反倒是戴著 NV 的 3D VISION, 看 Panasonic 以及 Samsung 完全沒問題 (Ir 發射器還是要靠 PC 的啦... NV 眼鏡不吃其他廠牌的同步訊號)
但是看 SONY 的 BRAVIA, 就可以發現....   SONY 真的有安插 "黑" 畫面來補強殘影的部分喔!
至於這個說法, 就請有興趣的人自己到展場去看答案囉...

評分

參與人數 1名聲 +10 精幣 +10 收起 理由
west + 10 + 10 熱心分享

查看全部評分


發表於 2010-6-3 01:02:52 | 顯示全部樓層
我也是今天去的耶...
我是先跟廠商拿票進去展場
再過去nVidia體驗館
最近有點想砸錢敗一套3D vision surround

我想帶NV的眼鏡 可以看到P牌跟S牌 會不會是因為本來就在support清單裡面....
回覆 支持 反對

使用道具 舉報


發表於 2010-6-3 13:02:36 | 顯示全部樓層
這週未也打算去看看,但所有的配備都要換了,謝謝大大分享
回覆 支持 反對

使用道具 舉報


匿名
匿名  發表於 2010-6-4 12:05:06
本文章最後由 匿名 於 2010-7-16 21:40 編輯

逛展場第二天的發現...

ATi 也搞出 3D 主動式快門眼鏡了!  而且... 這下對 NV 而言不妙的是, ATi 採用 Bit Cauldron 的 IEEE 802.15.4-2003 (ZigBee radio) 標準, 並且聯合了一票廠商同時出現在 Computex 2010 展場!
MSI 的 Wind Top AE2420 3D 就是採用 ATi 的 solution, 另外... Acer 的 3D 投影機也是採用相同的技術, 將與 NV 的 3D VISION 分庭抗禮.

在此說明一下兩者的眼鏡架構, 雖然都是主動式快門, 但是 Bit Cauldron 是 RF 電波同步訊號, NV 是 IrDA 紅外線同步訊號.

NV 眼鏡必須將同步訊號發射器放置在 眼鏡前面, 或是一定的角度範圍之內, 眼鏡才可以正常顯示 3D 效果.
Bit Cauldron 眼鏡的同步訊號發射器可以收放在任何位置, 無方向及角度限制, 只要在電波距離範圍之內, 眼鏡都可以正常顯示 3D 效果.

另外, Bit Cauldron 與 NV 最大的不同, 就是它不需要 120Hz 的顯示器!!
任何一般 60Hz 的顯示器, 不論是 DVI 還是 HDMI, 只要軟體支援, 就可直接以 左右眼 各 30Hz 的方式達成 3D 效果! 就類似目前 PS3 的方式, 以現有的 HDMI 1.3 規範即可 3D 達成!

只可惜目前 Bit Cauldron 的 3D 眼鏡以及發射器, 台灣還買不到.
不過, 這種不需要升級顯示器的 3D 技術, 如果廠商有心推的話, 應該會比 NV 3D VISION 眼鏡更容易被消費者接受吧...

一想到要看 3D 藍光 Blur-ay Disc, 還要換電視, 播放器, 擴大機, 心就涼一半了...
如果不用換電視, 只要買眼鏡, 我想應該會比較多人願意花錢看 3D 吧?

評分

參與人數 1名聲 +10 收起 理由
alex + 10 我很贊同

查看全部評分

回覆 支持 反對

使用道具 舉報


發表於 2010-6-4 19:17:22 | 顯示全部樓層
逛展場第二天的發現...

ATi 也搞出 3D 主動式快門眼鏡了!  而且... 這下對 NV 而言不妙的是, ATi 採用 Bit Cauldron 的 IEEE 802.15.4-2003 (ZigBee radio) 標準, 並且聯合了一票廠商同時出現在 Computex 2010 展場 ...
KOBSS 發表於 2010-6-4 12:05


大大你說的會不會是在南港展場四樓MSI那塊小房間(暗室??)裡面的那些展示機台阿??
BTW
在微軟的攤位有看到6個銀幕搭配ATI顯卡的展示機,應該是cross fire的加強版
回覆 支持 反對

使用道具 舉報


發表於 2010-6-4 22:39:19 | 顯示全部樓層
本文章最後由 kfclts 於 2010-6-5 11:17 編輯

附上舊聞一則
可以確定的是
ATI應該似乎確定推出3D眼鏡了
而MSI 這款AE2420 all in one的機器應該也是市面上第一台有support multi-touch的3D panel...

另外nVidia推出較低階的 nvidia GTX465

Stereoscopic 3D Related News Coming from Computex 2010May 31st, 2010 · 2 Comments · General 3D News

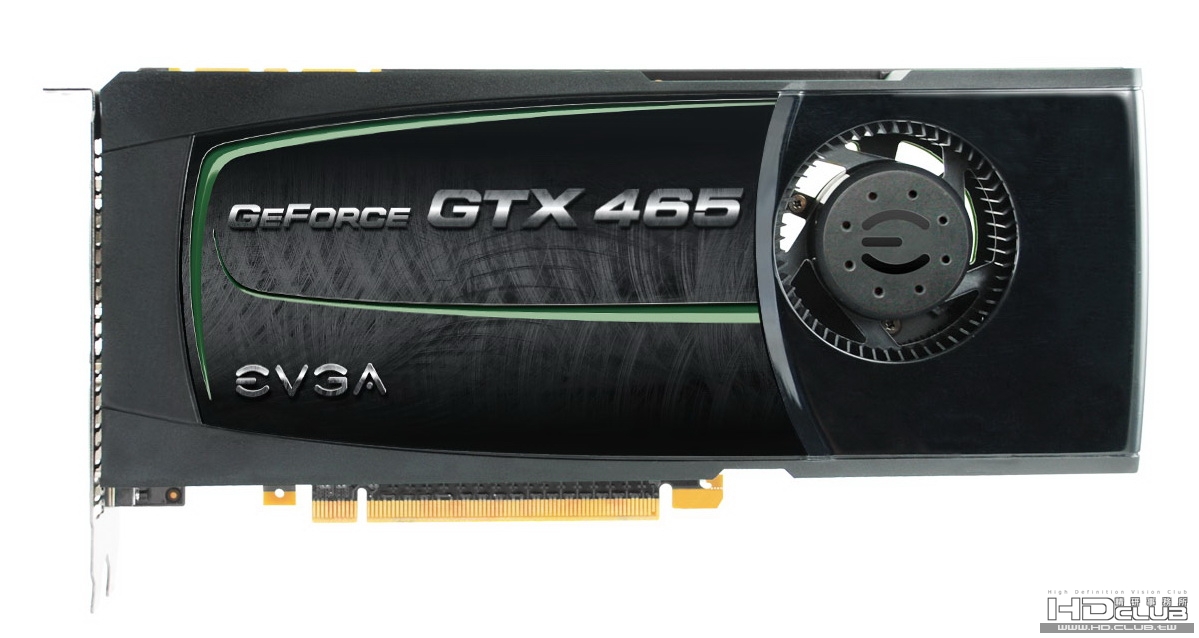

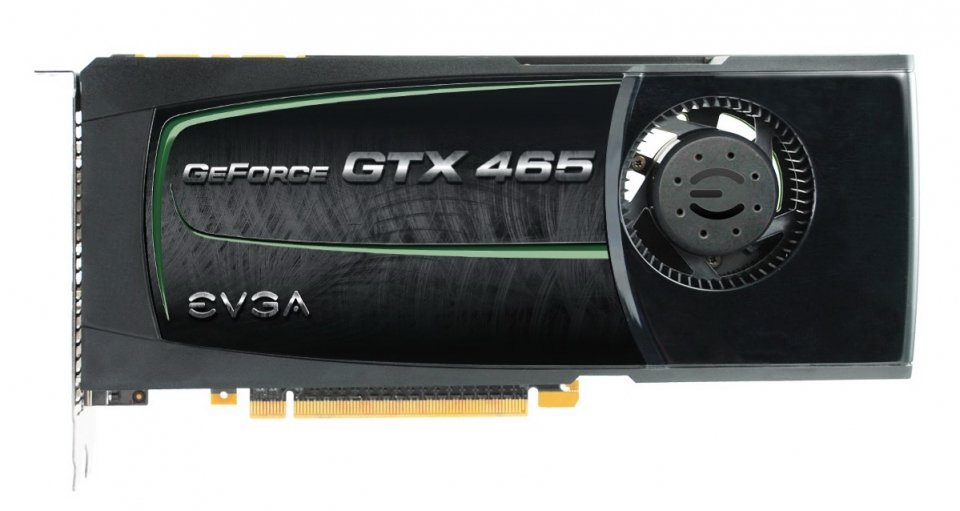

I’m starting with Nvidia as they are are probably going to be very active about 3D during Computex 2010. The first announcement from them is the new GeForce GTX 465 GPU and the availability of cards based on it from ASUS, EVGA, Galaxy, MSI, Palit, PNY, Zotac and others with an estimated retail price of $279 USD. Amazon is already taking pre-orders for GTX 465 from Asus and Evga, but Newegg is a bit ahead with
GeForce GTX 465 available from MSI, PNY, Gigabyte, EVGA, Palit, Zotac and Asus. The new GTX 465 GPUs come with 352 CUDA cores (stream processors), 1024 MB GDDR5 video memory with 256-bit memory bus and they can be a good more affordable alternative to GTX 480 and GTX 470 for stereo 3D gaming as they still pack quite a lot of processing power.


Until now, getting the NVIDIA 3D Vision experience was mostly for the Do-It-Yourself (DIY) enthusiasts who could purchase a 120Hz, 3D Vision-Ready certified display, install a suitable GeForce graphics card, add the 3D Vision shutter glasses kit and install all of the drivers. But today at Computex during his keynote CEO of NVIDIA Jensen Huang announced the creation of the new 3D PC category, so that consumers can buy a completely configured 3D PC and get a 3D experience right out of the box. And this idea seems to be getting a broad industry support from companies like Asus, Acer, Dell, LG, Toshiba, ViewSonic and many system builders. The prices for the 3D PCs will begin at about $1,500 USD and that price will include everything that you need: 120Hz monitor, 3D shutter glasses and pre-installed drivers. This is about half the price of a new 3D HDTV, making it the least expensive way to enjoy 3D content at home, but if you do purchase a 3D TV later (or if you already have one) you’ll be able to connect your 3D PC to it via HDMI 1.4 to enjoy your stereoscopic 3D content on the big screen using the Nvidia 3DTV Play software.

Another very interesting announcement came from Microsoft who announced that their product Silverlight (an alternative to Adobe’s Flash), a web content development platform now supports streaming 3D content over the web to NVIDIA 3D Vision-equipped computers. NVIDIA and Microsoft also demonstrated a high definition stereo 3D music video (We Are The World 3D) streamed over the internet, but we are expecting to get more details about that very soon.

ASUS is demonstrating its new 15.6″ Asus ROG G53 3D gaming laptop (with 120Hz LCD panel) that has full support for 3D gaming and the new HDMI 1.4 output (does not come bundled with 3D Vision glasses), a new 17.3″ Asus ROG G73Jw 3D-ready laptop that may come with the recently announced GTX 480M GPU combined with a 1080p 120Hz LCD panel. As well as the Asus G51Jx-EE 3D-ready laptop that probably has the Nvidia IR transmitter integrated to support the 3D Vision active shutter glasses. The Asus Eee Top ET2400 All-in-One with 3D capabilities was also shown as wells the Asus CD5390 PC said to be the “world’s most powerful gaming solution,” equipped with two GeForce GTX 480 in SLI and ready for a 3D Vision Surround setup. And we’ll probably also see the 23″ Asus VG236H and 27″ Asus PG276H 3D-ready 120Hz monitors too.


MSI is introducing their 24″ Wind Top AE2420 All-in-one PC with 3D support, a built in 120Hz LCD Full HD panel and touchscreen support (with multi-touch functionality). The PC comes bundled with a pair of active shutter glasses for the 3D functionality, but the more interesting thing is that the GPU inside is ATI Mobility Radeon HD5730. And this raised the interesting question if this will be one of the first implementations with the anticipated shutter glasses from BitCauldron and ATI stereo 3D support? According to MSI their Wind Top AE2420 3D comes with MSI’s exclusive 3D Infinity shutter glasses (whatever they are) and there also seems to be a built-in function for converting 2D videos in to stereo 3D.
Cyberlink will be showcasing Blu-ray 3D Movie Playback that is expected to be available very soon (via a free update) in the PowerDVD 10 Ultra 3D software player and the 2D-to-3D DVD Video conversion technology that is already available in the product. Corel WinDVD Pro 2010 with 3D Blu-ray will also be demonstrated at Computex, as the company just announced that its DVD playback software has received Blu-ray 3D certification from the Blu-ray Disc Association. The customers who already own Corel WinDVD Pro 2010 will receive the new 3D capabilities with a free update later this year, so we are still out of luck with no Blu-ray 3D software player actually available on the market yet…
回覆 支持 反對

使用道具 舉報


發表於 2010-6-4 23:29:17 | 顯示全部樓層
對啦  就是Eyefinity.....
我有觀察他銀幕背面上下銜接的是用螺絲釘死.....那這樣如果想要把它拆開....
回覆 支持 反對

使用道具 舉報


發表於 2010-6-5 01:43:35 | 顯示全部樓層
3D TV 要配自家的3D 眼鏡...那不就被TV品牌綁住? 裸眼3D TV就完全和3D眼鏡無關, 也不會被綁住.
回覆 支持 反對

使用道具 舉報


發表於 2010-6-5 06:10:08 | 顯示全部樓層
3D TV 要配自家的3D 眼鏡...那不就被TV品牌綁住? 裸眼3D TV就完全和3D眼鏡無關, 也不會被綁住.
clubpower 發表於 2010-6-5 01:43


話是這樣沒錯,但是目前有哪一家推出裸視3D的顯示設備,

而且效果不錯的嗎?
回覆 支持 反對

使用道具 舉報


發表於 2010-6-7 01:23:04 | 顯示全部樓層
去年N出眼鏡就敗了一套
但到現在還未有MON
回覆 支持 反對

使用道具 舉報


發表於 2010-7-14 21:45:04 | 顯示全部樓層
Bit Cauldron雖然不用換螢幕或電視
但是每一眼只有30Hz 看來只適合看電影吧?
玩遊戲也許還是要到60Hz才順暢
回覆 支持 反對

使用道具 舉報
