[轉貼]

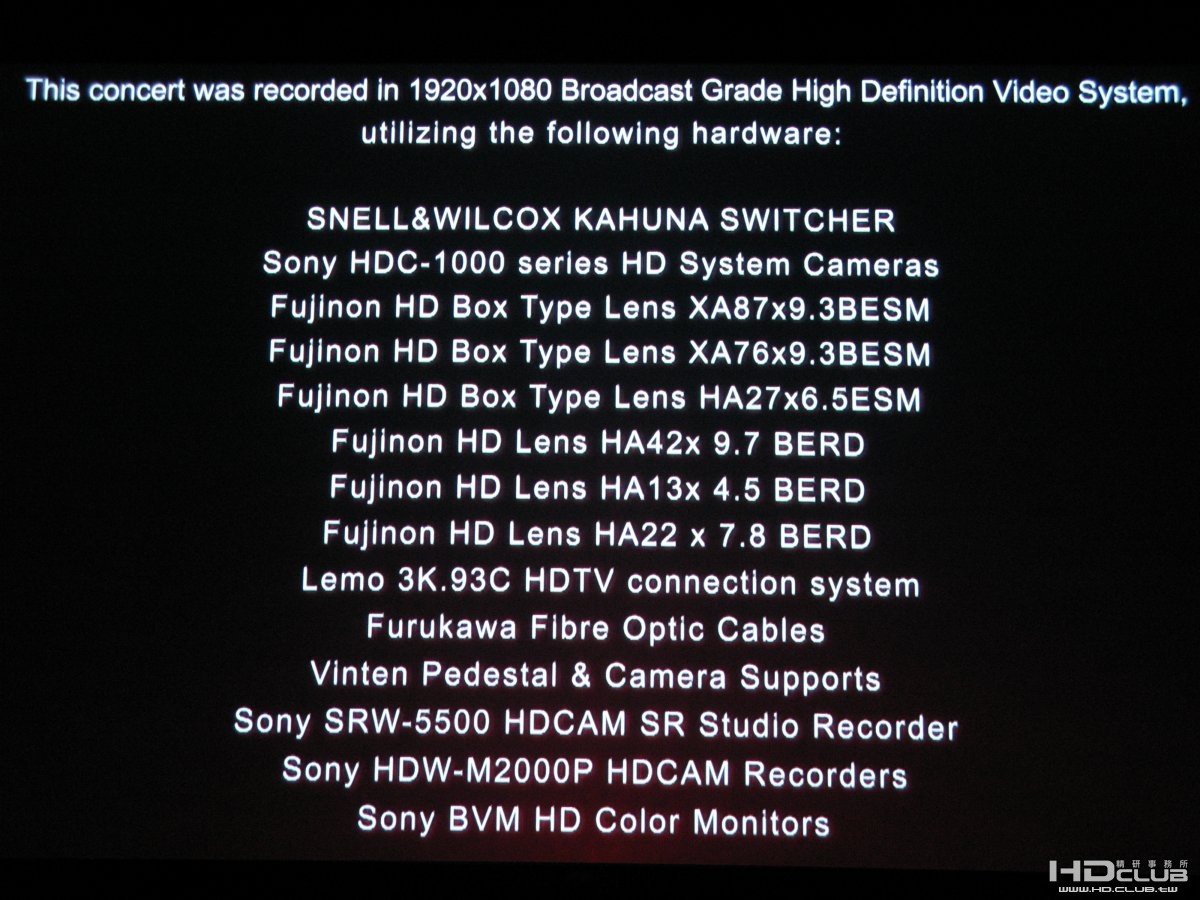

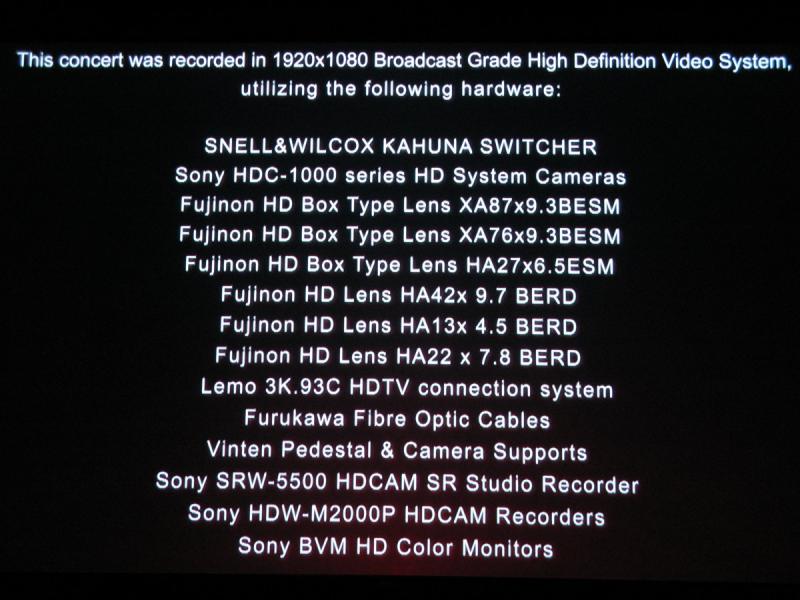

Sony HDC1000 Camera Specifications:
Pickup device
3-CCD 2/3-inch type 16:9
Effective picture elements (H&V)
1920 x 1080
Spectrum system
F1.4 prism system
Built-in filters
1: Clear, 2: 1/4ND, 3: 1/8ND, 4: 1/16ND, 5: 1/64ND A: CROSS, B: 3200K, C: 4300K, D: 6300K, E: 8000K
Servo filter control
Yes
Lens mount
Sony hanger mount
Sensitivity
F10 at 2000 lx (3200K, 89.9% reflectance)
Minimum illumination
10 lx (F1.4, +12 dB gain up)
Signal-to-noise ratio
54dB (typical)
Horizontal resolution
1000 TV lines
Dynamic range (1080/60i mode)
600%
Registration
Within 0.02% (all zones, without lens)
Shutter speed selection
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/60i mode), 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/50i mode)
Modulation deptch
45% or more horizontally (800 TV lines at center, 27.5 MHz, with typical lens)
http://www.expandore.com/product/sony/Proav/model/HD/HD_Cam_1000.htm |
|
