Watching 3D in your old TV - VIP 3D convertor

r32

本文章最後由 r32 於 2011-3-28 23:22 編輯

http://www.avsforum.com/avs-vb/showthread.php?t=1323736

http://www.3d-vip.com/#!products

The Gamer will only work with PS3, 3D Games and DLP 120Hz projectors/televisions.

We will have 3D Theatre/3D-Displayer in stock in the first week of April.

3D-Theatre: $499.00 (Games, Movies, Satellite/Cable & Internet and 60Hz/120Hz TV/projector)

3D-Displayer: $299.00 (Games and Movies & 60Hz/120Hz TV/projector)

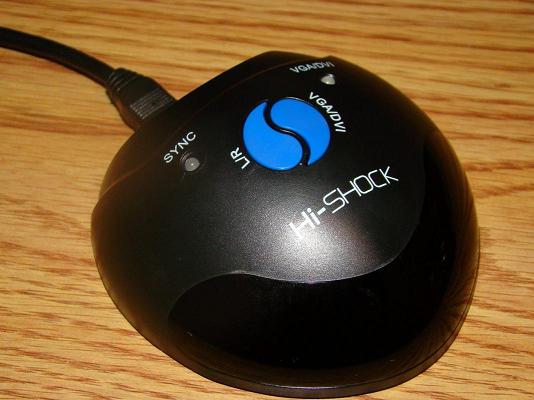

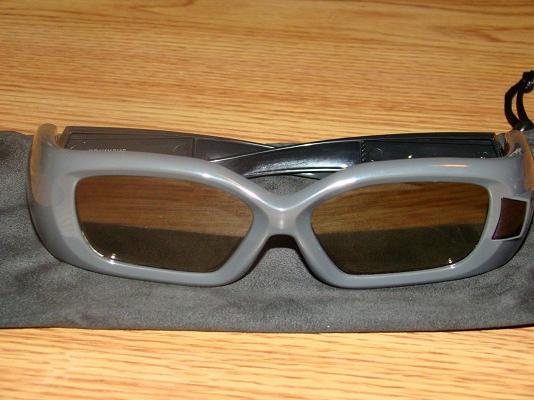

IR emitter glasses with emitter: $129.00

DLP Link glasses: $70.00

Shipping via USPS Priority Mail: $29.99 (International) & $9.99 (Domestic)


跟市場上同類產品(i.e. 3D-XL)不同,聽說這個可以輸出1080@24p! 可使用在2D TV / pj.(效果當然不及120Hz)
IR眼鏡 + emitter set或DLP link眼鏡均可選購, 其他品牌的IR眼鏡和DLP Link眼鏡也可共容, 但因應使用2D TV的用家, 眼鏡和emitter必須能同時對應60Hz / 120Hz.

len1978

看avs上的體驗心得，好像不錯耶!

gump

2D投影機也適用嗎?

謝謝分享~

Abby

這種東西應該最適合有倍速驅動處理的2D投影機吧?
如 Sony VW80/85 或 JVC的HD950之類的前旗艦機種.

r32

本文章最後由 r32 於 2011-4-5 09:03 編輯

Vip 3D Theatre video by Chezbrgr2 @ avsforum


http://www.youtube.com/user/Chezbrgr2?feature=mhum#p/a/u/0/8hk9bQhcwr0

r32

本文章最後由 r32 於 2011-4-19 07:06 編輯

Here is the list of modes that VIP supports under 3D-THEATRE:
3D:
INPUT:
720p60 Frame packing, Side-by-Side, Top-and-Bottom
720p50 Frame packing, Side-by-Side, Top-and-Bottom
720p24 Frame packing, Side-by-Side, Top-and-Bottom
720p25 Frame packing, Side-by-Side, Top-and-Bottom
720p30 Frame packing, Side-by-Side, Top-and-Bottom
1080i60 Side-by-Side
1080i50 Side-by-Side
1080p24 Frame packing, Side-by-Side, Top-and-Bottom
1080p25 Frame packing, Side-by-Side, Top-and-Bottom
1080p30 Frame packing, Side-by-Side, Top-and-Bottom
OUTPUT:
720p 60Hz/120Hz
1080p@24 (firmware upgrade to come soon)

Jonathan Alexender
Video Innovation Products (3D-VIP)


1080p@24 3D輸出, 可以跨過2 : 3 pulldown這個大害, 將訊號交由3D ready DLP倍速處理.

r32

Hi all, we can find the RF glasses kit on Consignia site now. It seems identical to Monster Vision MAX.

r32

The price of Displayer is 20 USD lower on this site, shipping is lower, too :

http://www.curtpalme.com

len1978

原r32大大提供的avs forum討論帖，目前已經蓋到40樓、1仟1百多篇的回覆了。
因為購入了2D投影機，所以也對這個機器感到有點興趣了!!

原作者的文中有提到使用60HZ 的LCD投影機來測試3D畫面的效果。
原文如下：

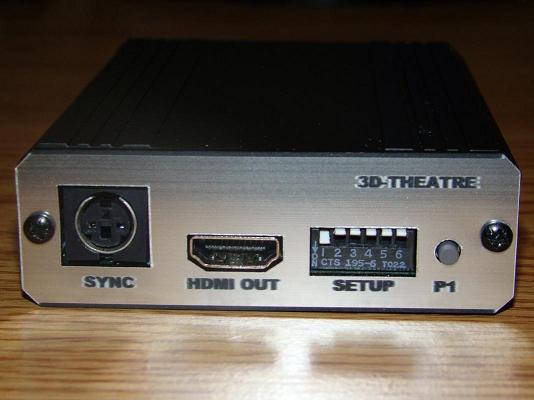

There is also a set of 6 Dip swithces on the rear of the unit,(more on those later). For this test the number 1 dip switch needs to be in the down position as the Epson is a 60hz LCD.

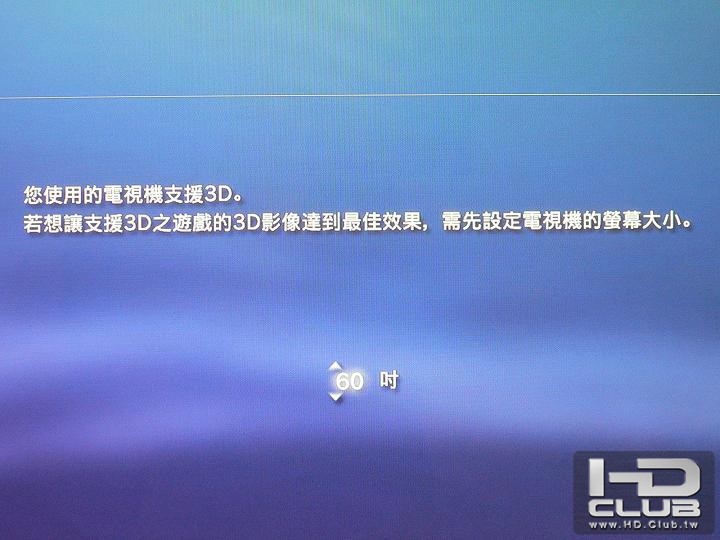

After powering on the PS3 it immeditely recognized that is was connected to a 3D display, YEAH!!! After setting the screen size we were off and running. My first test was Superstardust 3D, and the theatre Unit did its job! After a few clicks I was playing a 3D game on a projector I was never supposed to be playing 3D ANYTHING on! The image is solid with no ghosting, or crosstalk. There is a slight bit of flicker, thats to be expected on a 60hz display, but killing all light sources and pulling the shades, the flicker was unnoticeable in the image. So much for having to buy a brand new projector just to do 3D!

該測試有幾個重點：

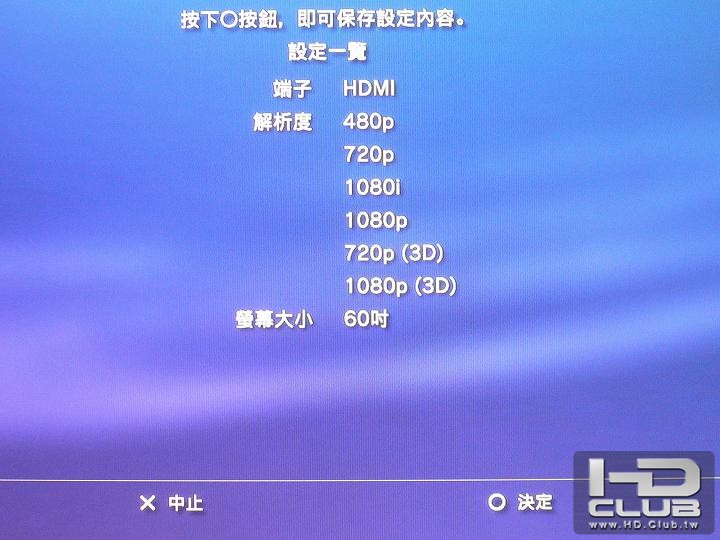

1.連接PS3時成功被辨認為3D顯示器(VIP+EPSON 2D PJ)。
2.3D畫面無明顯的鬼影或重像(CROSSTALK)情況，但有輕微閃爍現象。
3.閃爍現象在60HZ的顯示器是預期會出現的，但是透過視聽環境的加強(全黑+強遮光)後可以得到改善。

-------------------
當然這還是一個3D轉換的新產品，還需要與更多不同機型/不同光學設計的投影機/平面顯示器，作實際測試才知道是不是每一台60HZ/120HZ的顯示器都可以達到像作者形容的那種效果不錯的3D效果。
還是值得關注啦~

JUDAS

好像不錯耶，期待更多測試

r32

找錯處......

nantun236

回覆 11# r32

請問是任何2D投影機都可用嗎?
HD20 or HD806
現在台灣購買的到嗎?還是要請人代購,謝謝!

wlf19801009

這種外掛的3D轉換器價錢還真是划算!!
台灣好像都還看不到....

r32

回覆  r32

請問是任何2D投影機都可用嗎?
HD20 or HD806
現在台灣購買的到嗎?還是要請人代購,謝謝! ...
nantun236 發表於 2011-6-16 14:29

The VIP currently provides sync for 120hz or 60hz displays. That means if your display is 3d-ready (120hz), you will get 60/eye. The HD20, like the HD70, is not 3d-ready, so it will sync at 60hz, or 30/eye.

So it will work, but with some flicker.

You could order directly from curtpalme.com

r32

本文章最後由 r32 於 2011-6-17 16:00 編輯

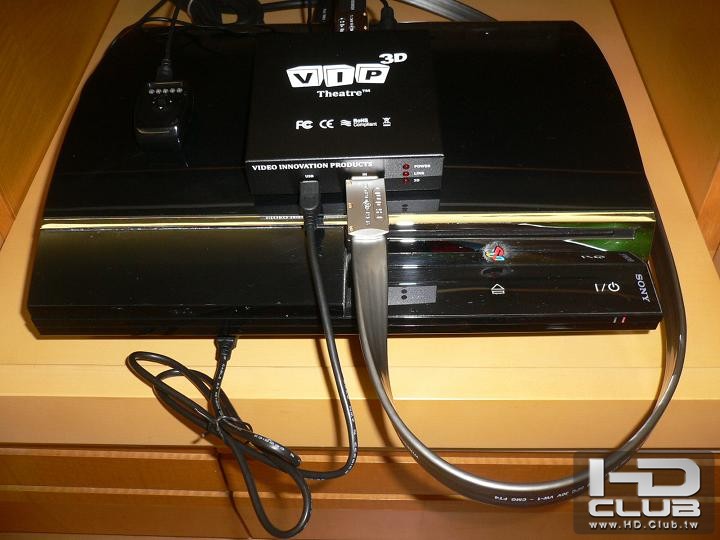

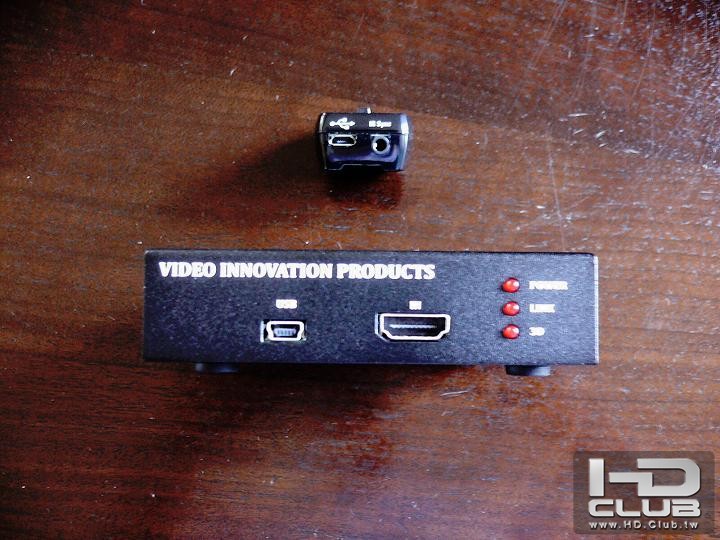

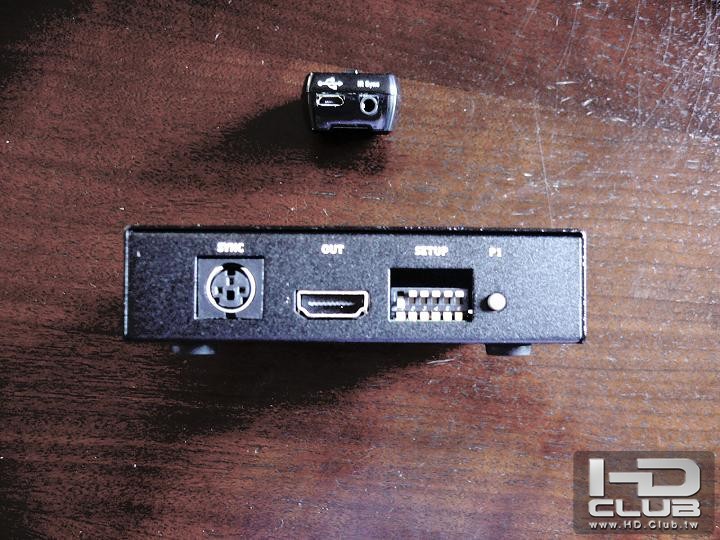

VIP Theatre 3D converter with RF active shutter glasses.

r32

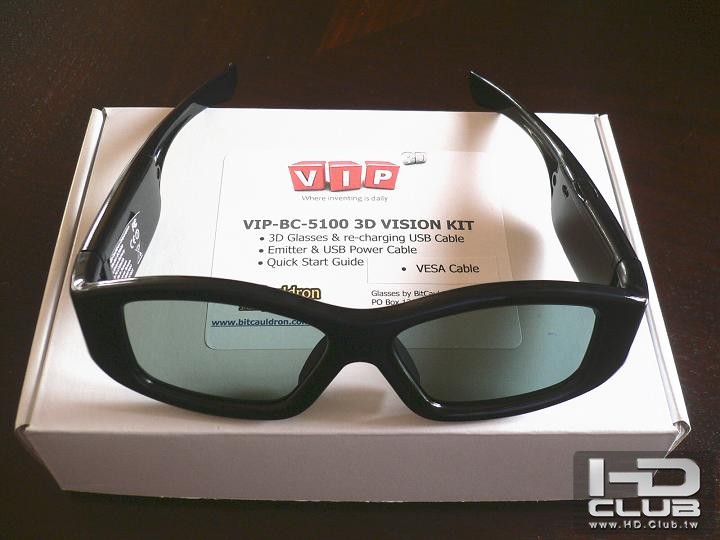

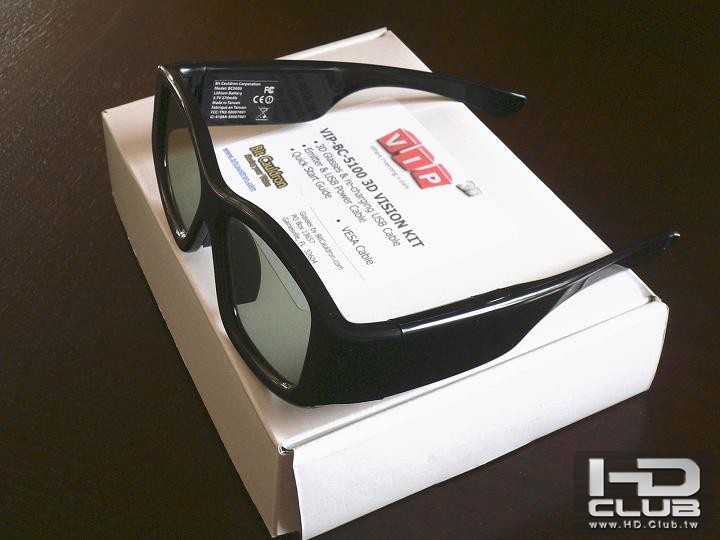

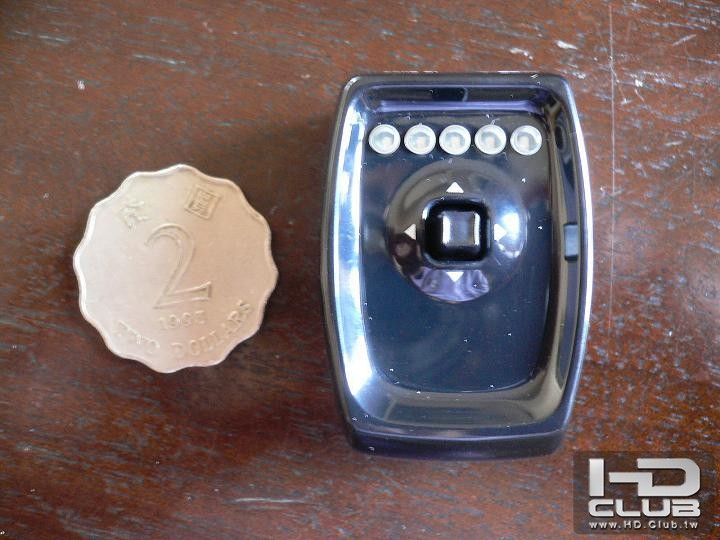

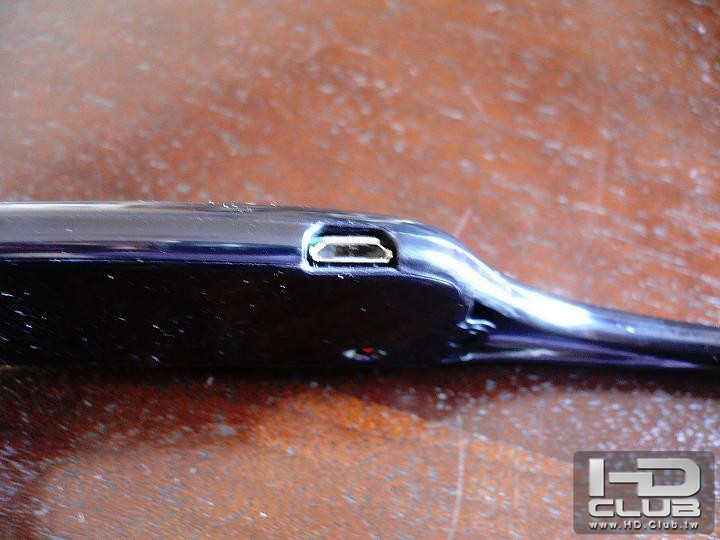

Bit Cauldron BC5000 glasses and BC100 RF Emitter.

r32

r32

Here is the list of modes that VIP supports under 3D-THEATRE:
3D:
INPUT:
720p60 Frame packing, Side-by-Side, Top-and-Bottom
720p50 Frame packing, Side-by-Side, Top-and-Bottom
720p24 Frame packing, Side-by-Side, Top-and-Bottom
720p25 Frame packing, Side-by-Side, Top-and-Bottom
720p30 Frame packing, Side-by-Side, Top-and-Bottom
1080i60 Side-by-Side
1080i50 Side-by-Side
1080p24 Frame packing, Side-by-Side, Top-and-Bottom
1080p25 Frame packing, Side-by-Side, Top-and-Bottom
1080p30 Frame packing, Side-by-Side, Top-and-Bottom
OUTPUT:
720p 60Hz/120Hz
1080p@24 (firmware upgrade to come soon)

Jonathan Alexender
Video Innovation Products (3D-VIP)

r32

VIP Theatre : $499
1 Glasses + emitter : $199
1 glasses : $129
shipping : $30

如果不需要對應side by side或top on bottom, 可選購$299的Displayer.

r32

一般active 3D眼鏡多採用紅外線傳送同步訊號.
AV room太大接收不佳;
眠鏡不對正IR發射器有機會接收不佳;
若投影機置於視聽位遠後方, 可能要加裝IR發射器延長線, 甚至雙IR發射器;
同步訊號有機會被其他訊號干擾.......
Bit Cauldron採用RF傳送, 屬IEEE 802.15.4-2003 (ZigBee radio) 標準, 完全消除以上問題.

Bit Cauldron的特點 :
Eliminate ghosting with multi-microsecond accuracy;
Adjustable duty cycle for multiple display types;
不單對應 120Hz 的顯示器, 它還可以與50Hz, 60Hz, 84Hz, 100Hz, 120Hz同步. AMD HD3D解决方案也支持Bit Cauldron, 這對PC用家是一大喜訊.
