如果說UHD2000是AV進化的里程碑之作,那麼它的最新進化版UHD3000,說它是影音雙絕的AV銘器一點不為過!影像方面,有支援Dolby Vision的RTD1619DR加持,音效方面則有支援MQA硬體解碼的ESS9068加持,再加上環牛線性電源和開關電源,這兩個高品質供電模組,類比與數位電路獨立供電的加持。讓UHD3000的影像及聲音都有更極致的表現!

有關UHD3000產品介紹,請參閱:zidoo 2021旗艦影音巔峰之作-芝杜UHD3000頂級4K Hi-Fi播放機強勢登場

硬體部份

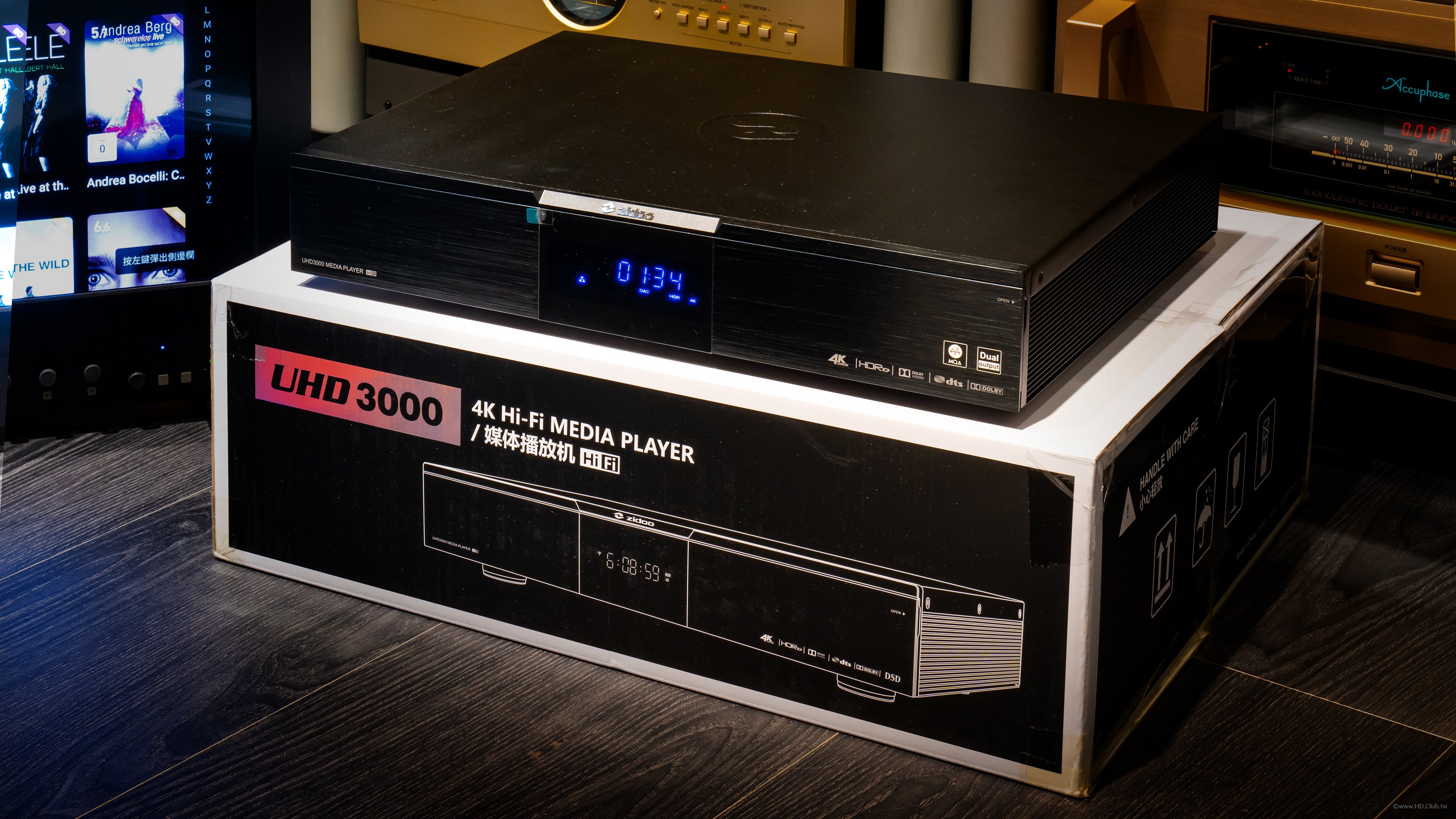

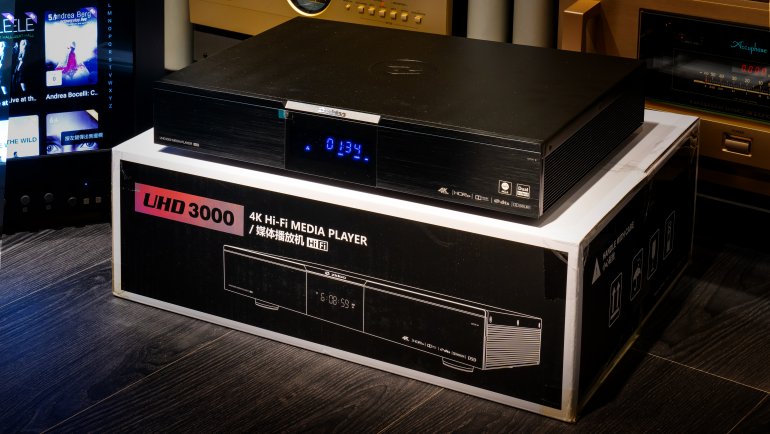

先看實機外觀

1HD01873 - 複製.JPG

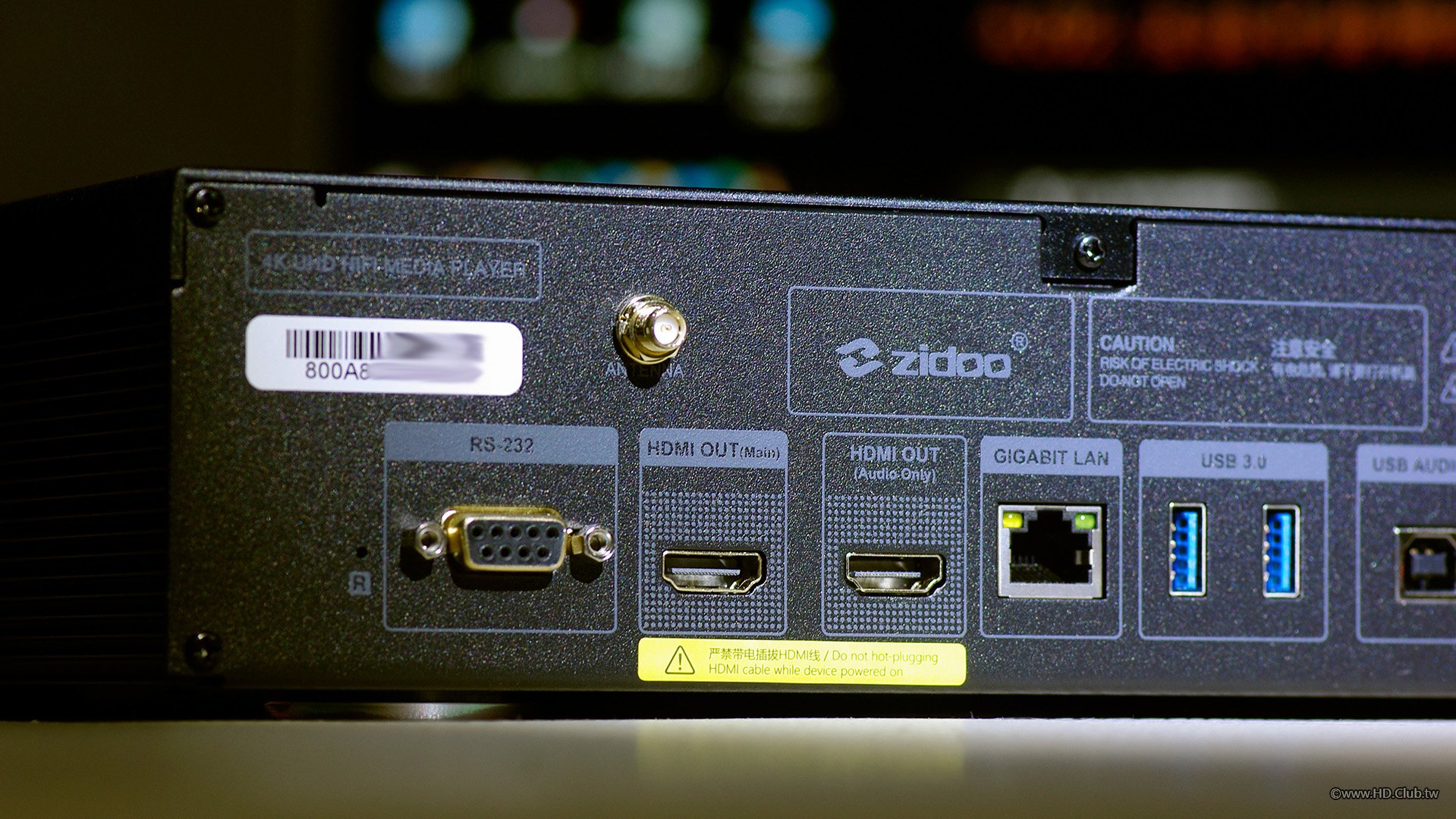

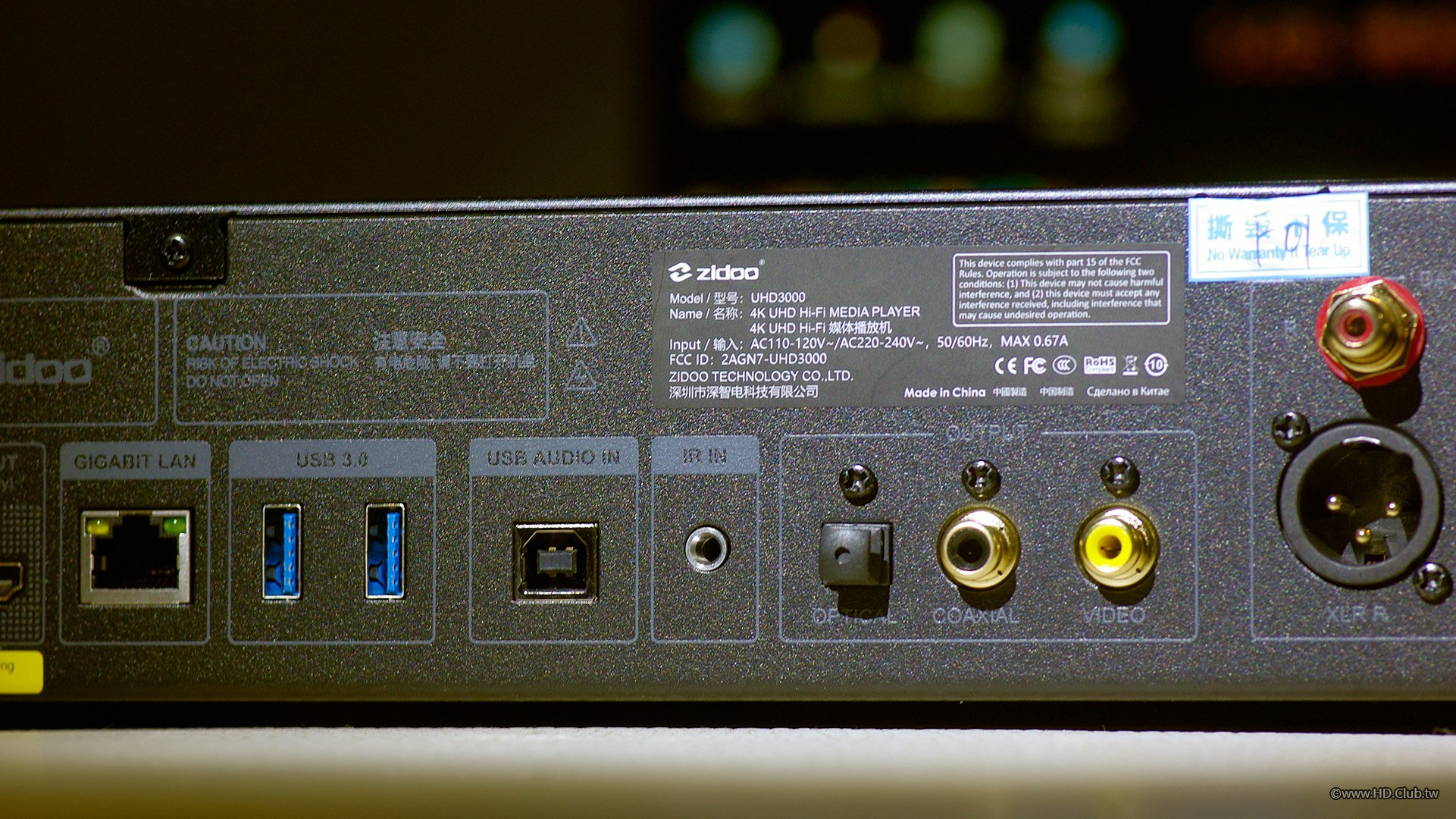

雙HDMI輸出實現影音分離

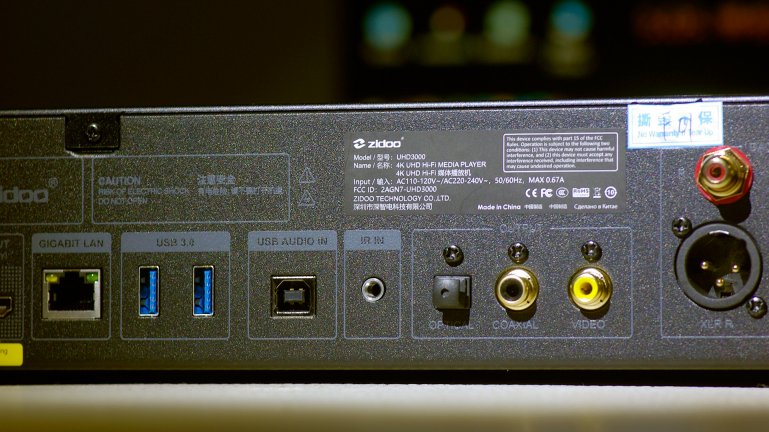

USB音訊輸入(可當做高階純音訊解碼器使用)支援Windows系統(7,10),Mac系統,Android系統。

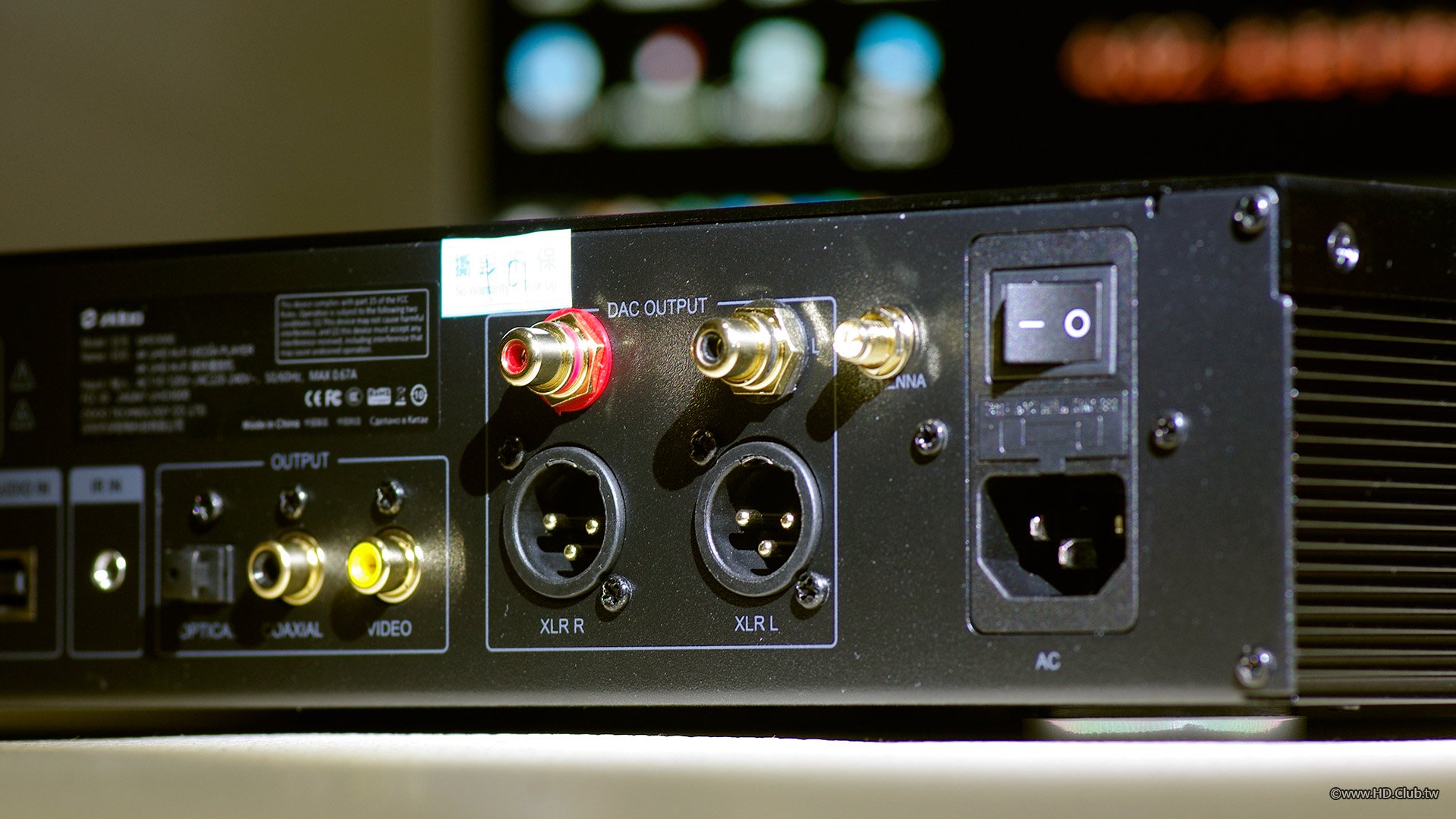

金光閃閃的RCA和XLR平衡輸出端子

類比音訊特性
頻率範圍: 20Hz-20KHz +/-0.35dB
噪訊比(SNR): > 128dBrA
動態範圍(DNR): > 125dB
總諧波失真+噪音(THD+N): < 0.00026%
輸出電平: (XLR) 4.0±0.4Vrms. (RCA) 2.0±0.2Vrms.

機器內部特寫

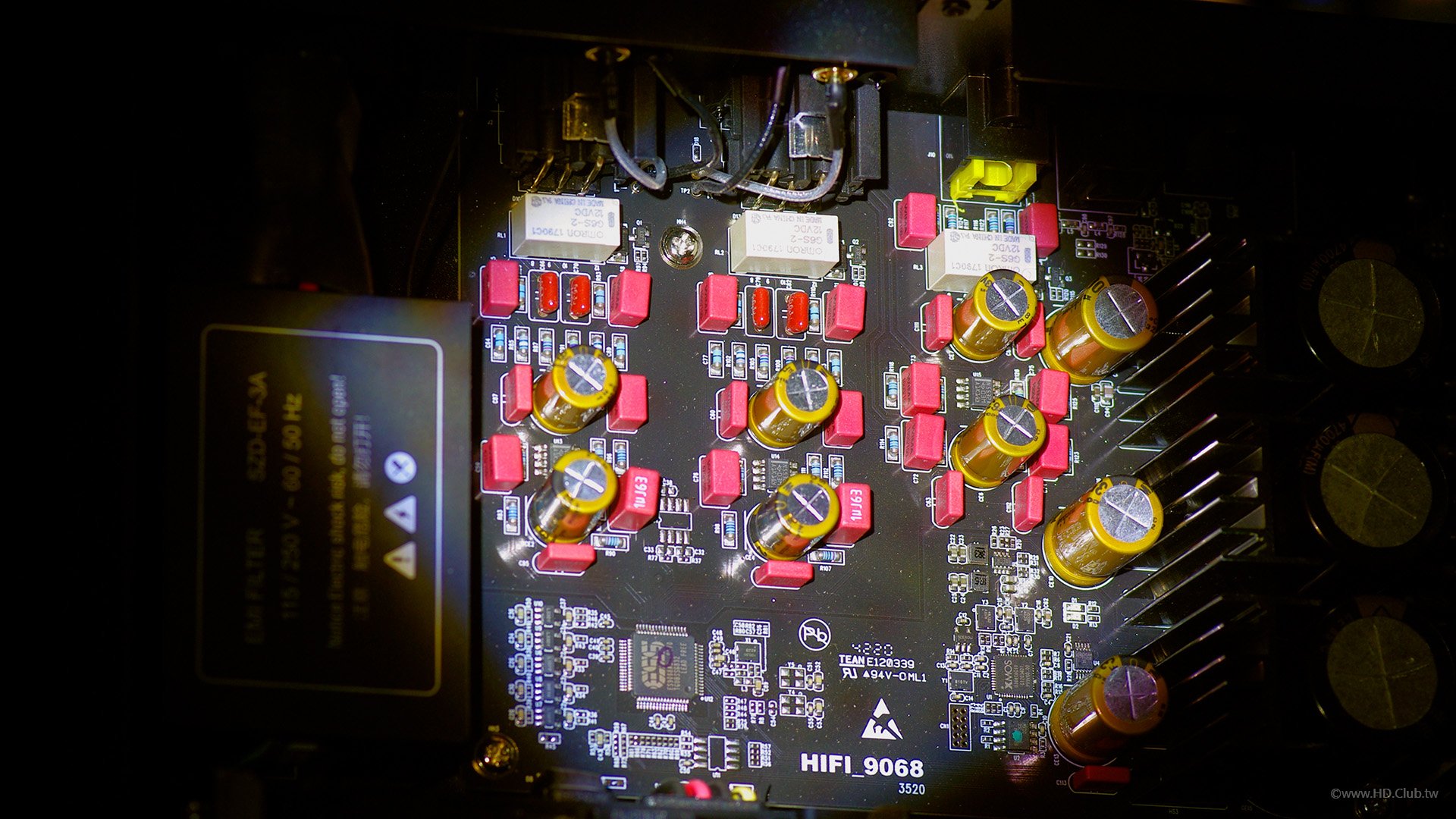

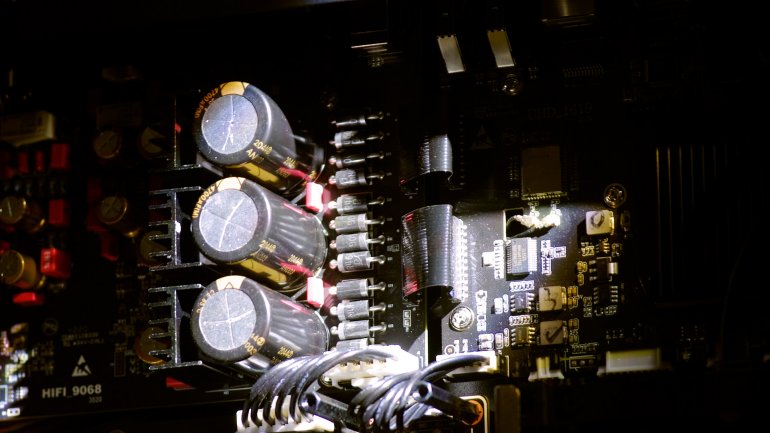

ESS9068 + XMOS 以及補品電容和發燒運放

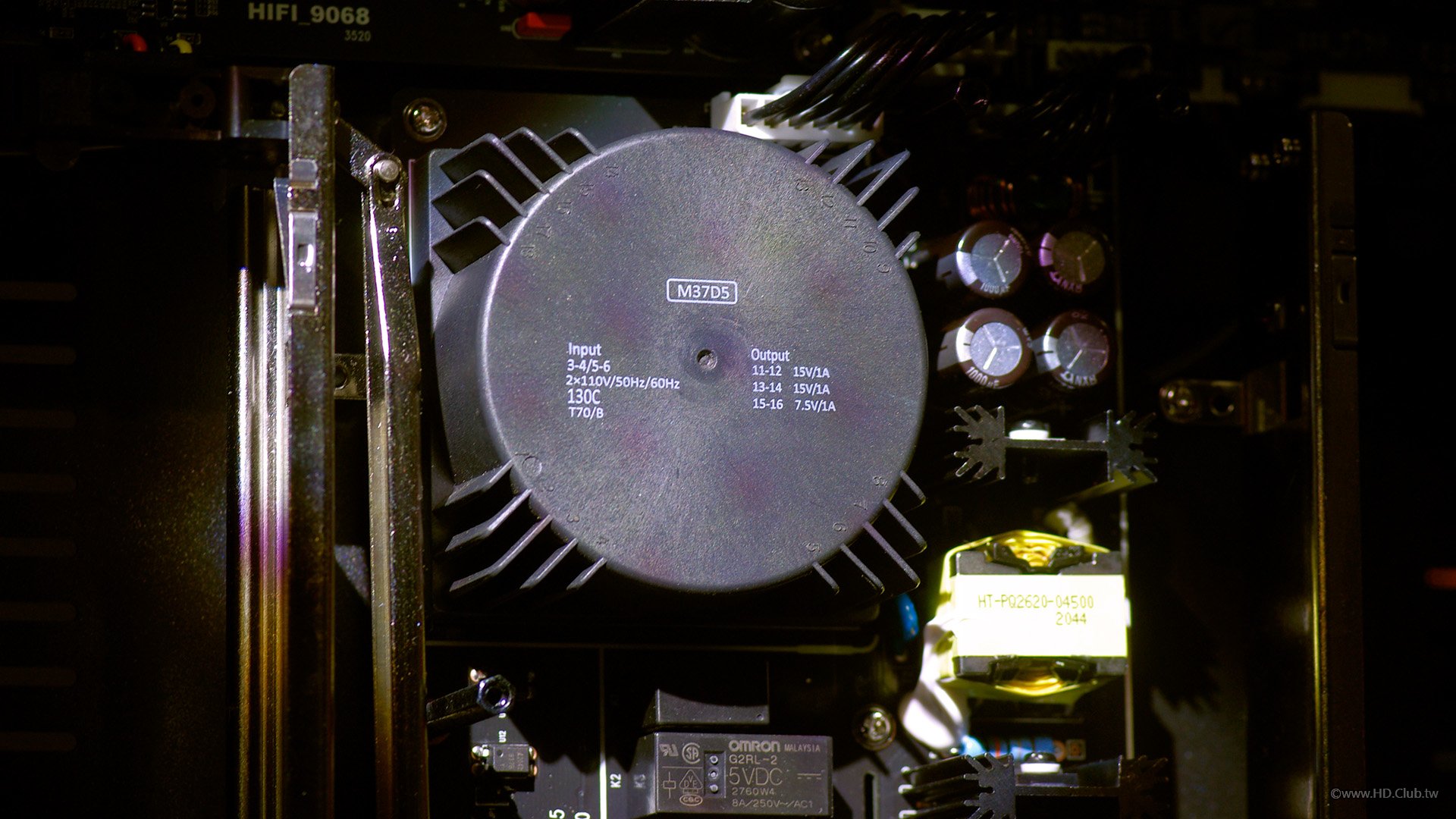

環牛 + 開關電源分別對類比/數位電路獨立供電

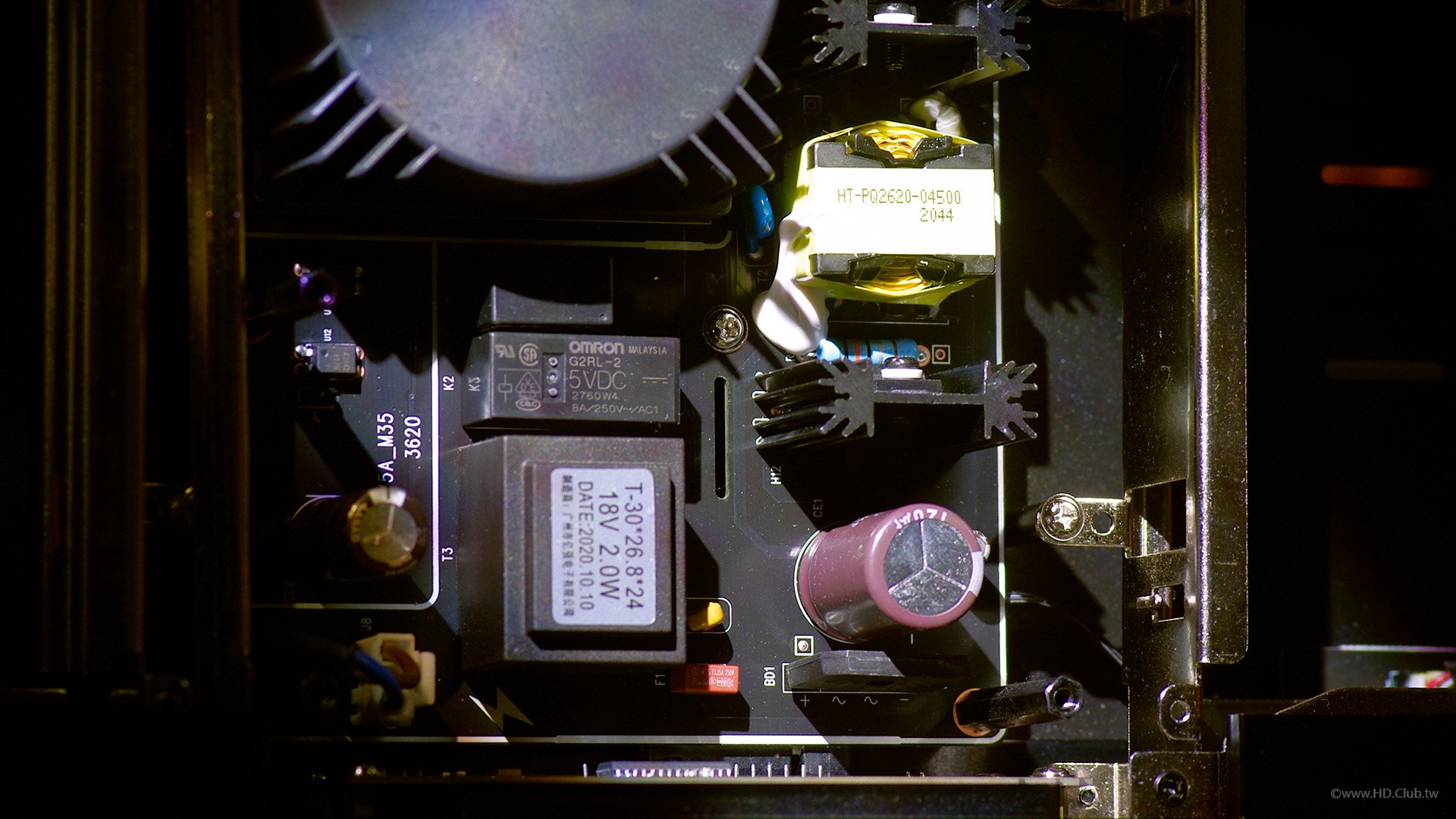

拿掉金屬屏蔽罩的開關電源

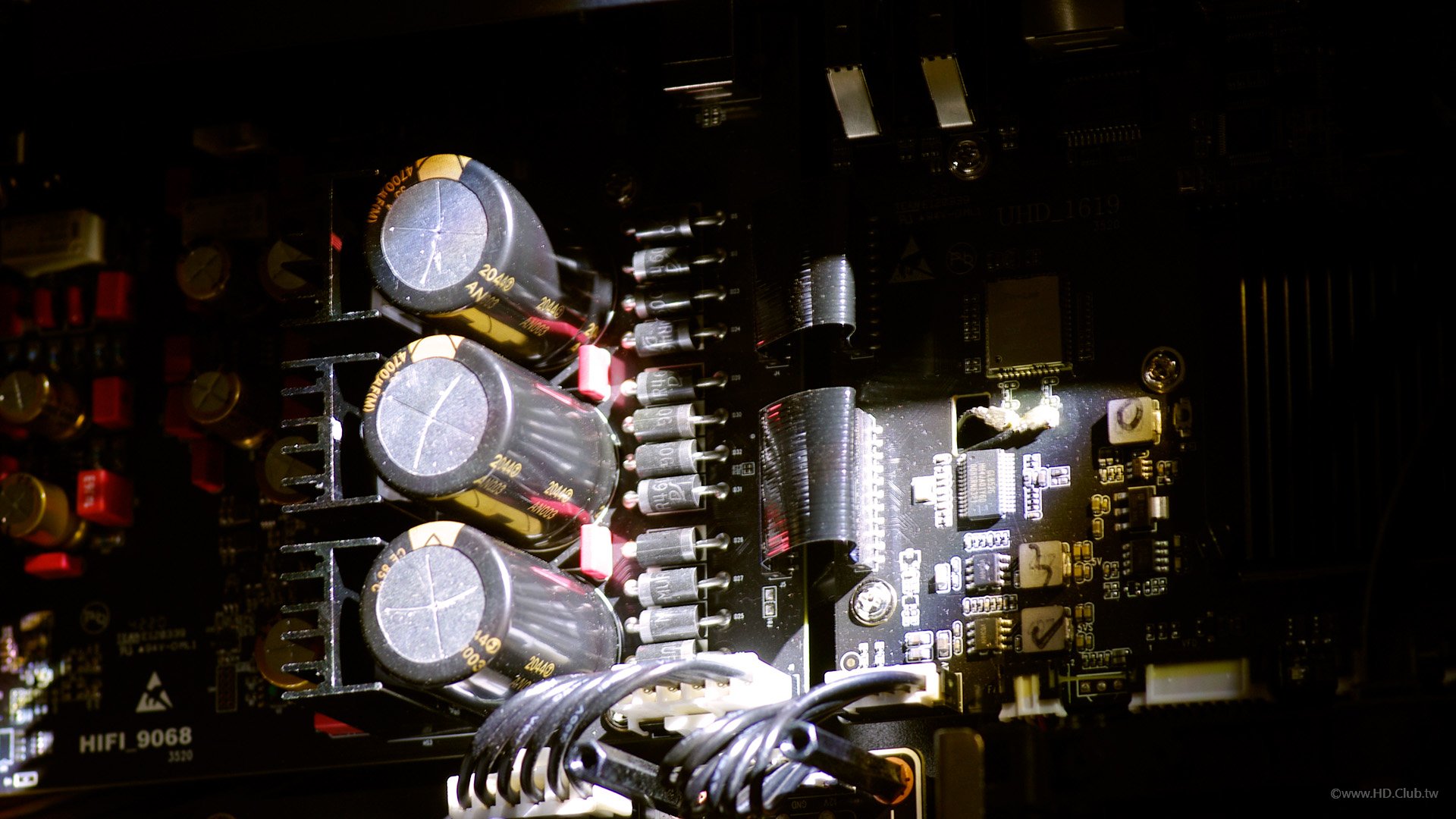

用料紮實的整流濾波電路

主控板
Realtek RTD1619 DR六核64位A55處理器
4GB DDR4 + 32GB eMMC

看了開上蓋的內部結構,可以看出UHD3000相較於上一代UHD2000改動之處相當之大。並非是簡單的晶片升級,而是通過重新設計精心打造的新旗艦機型。


 樓主| 發表於 2021-1-21 00:28:39 | 顯示全部樓層
軟體部份

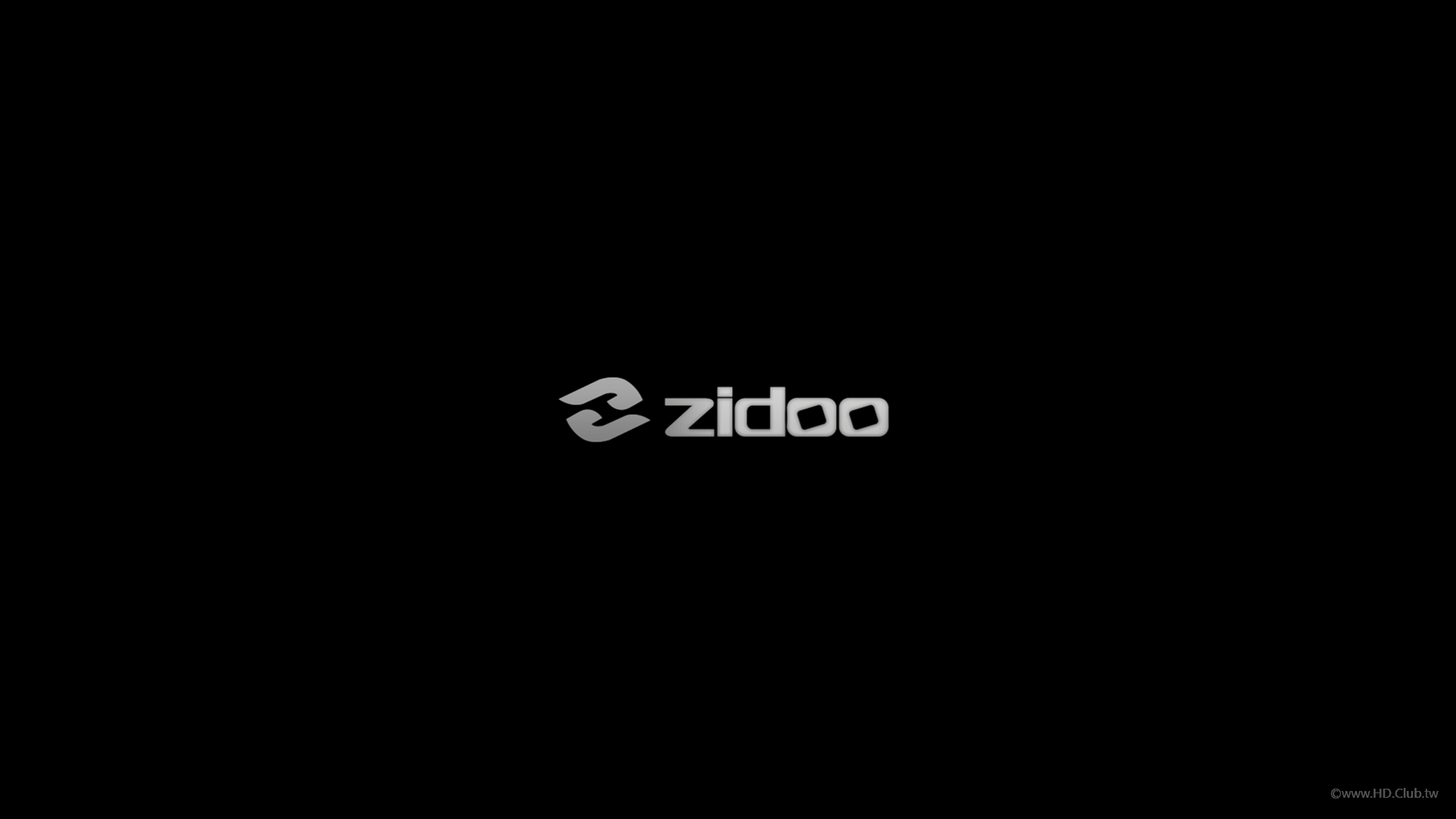

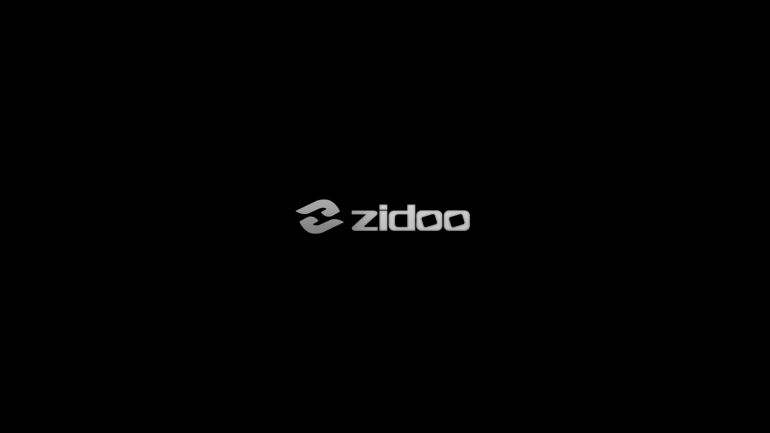

照例開機嚮導先來:

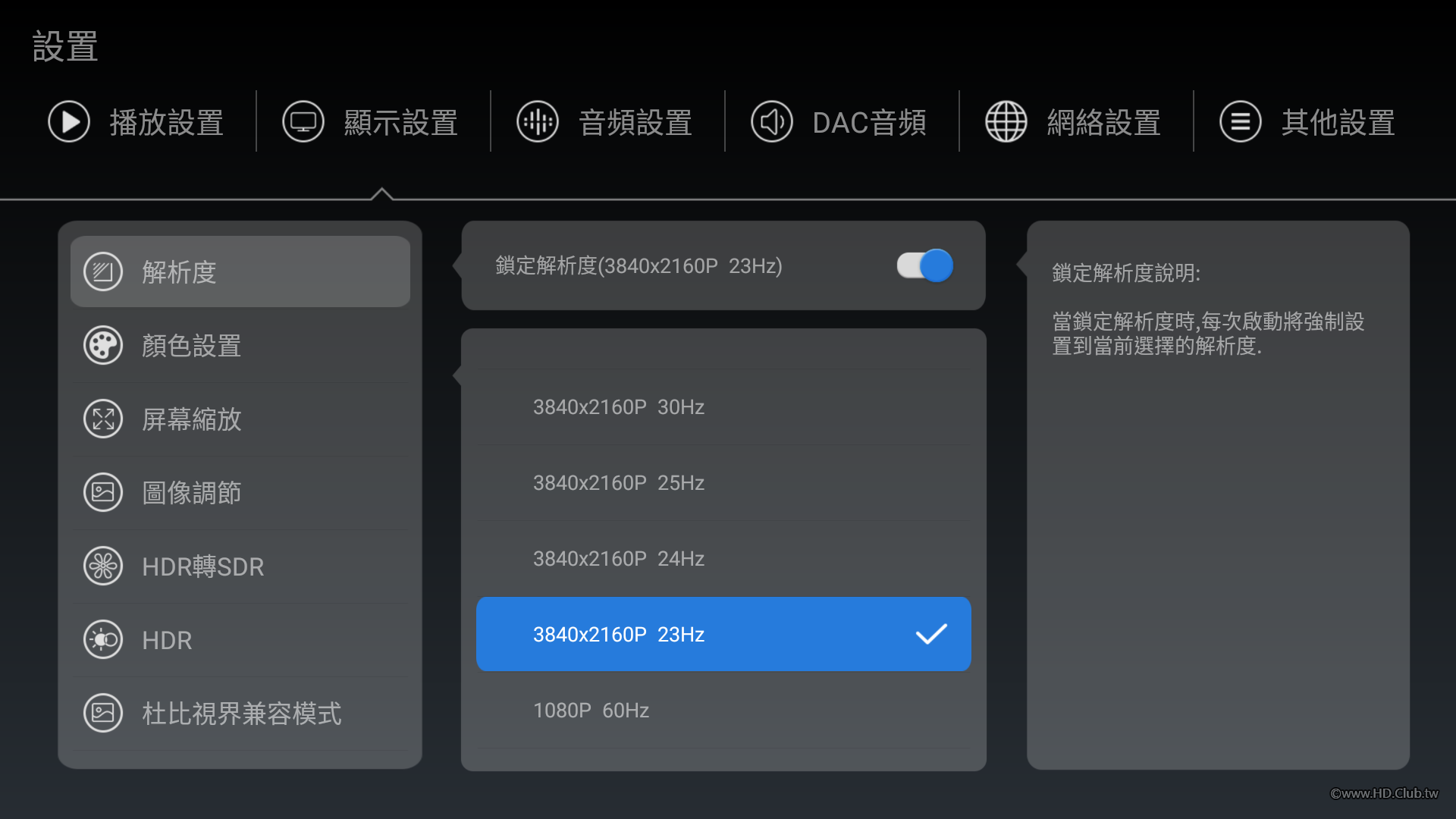

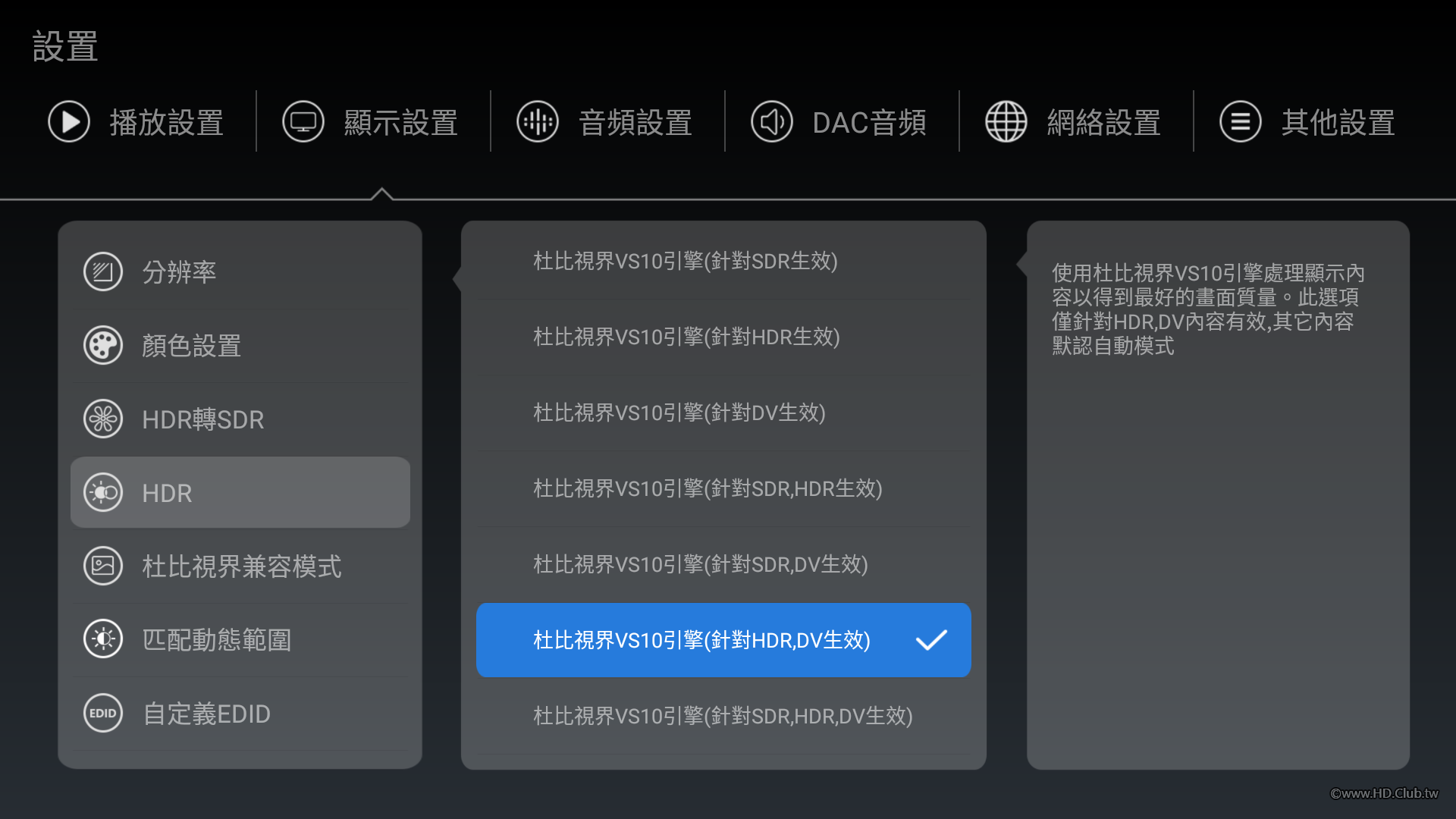

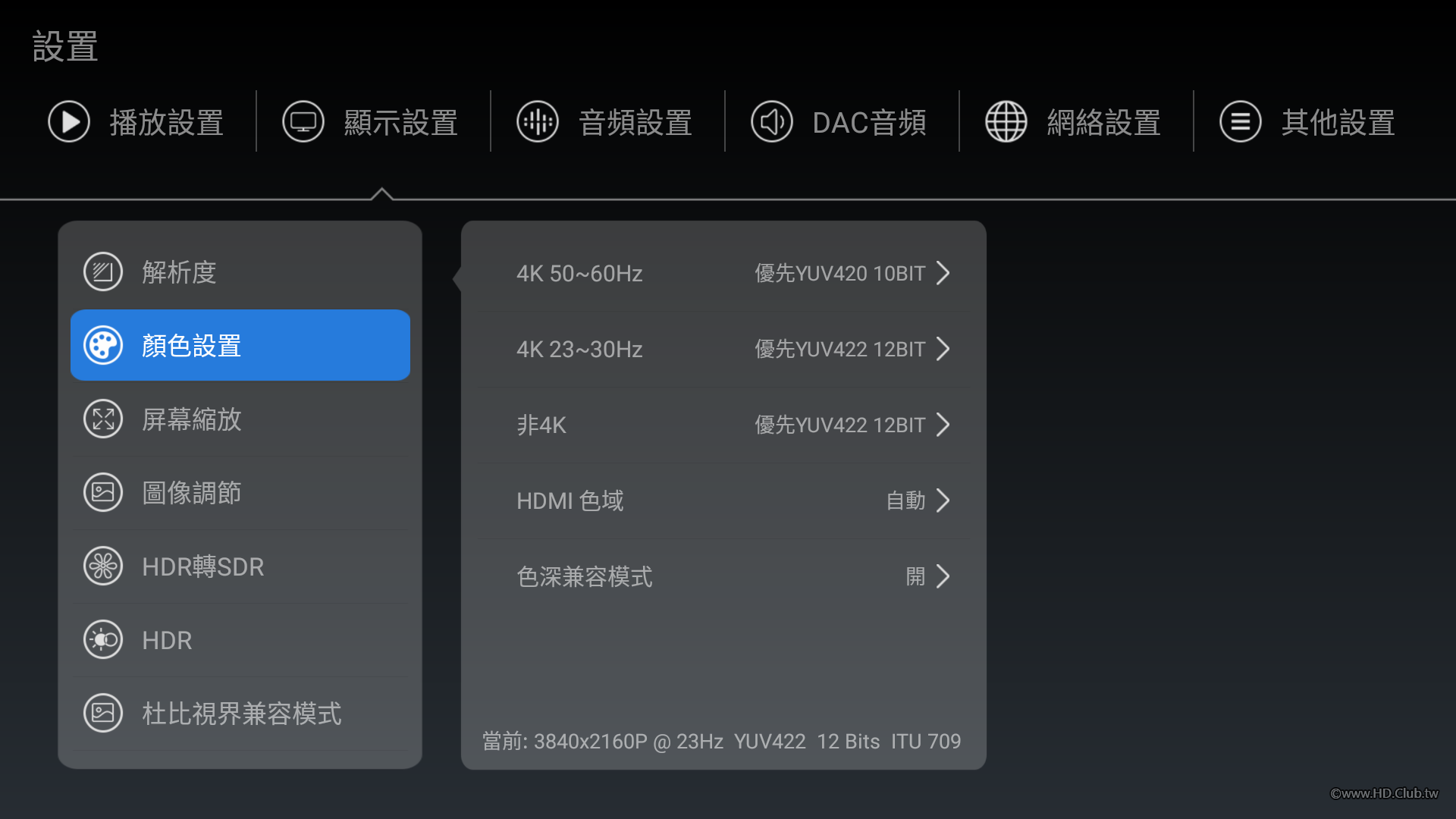

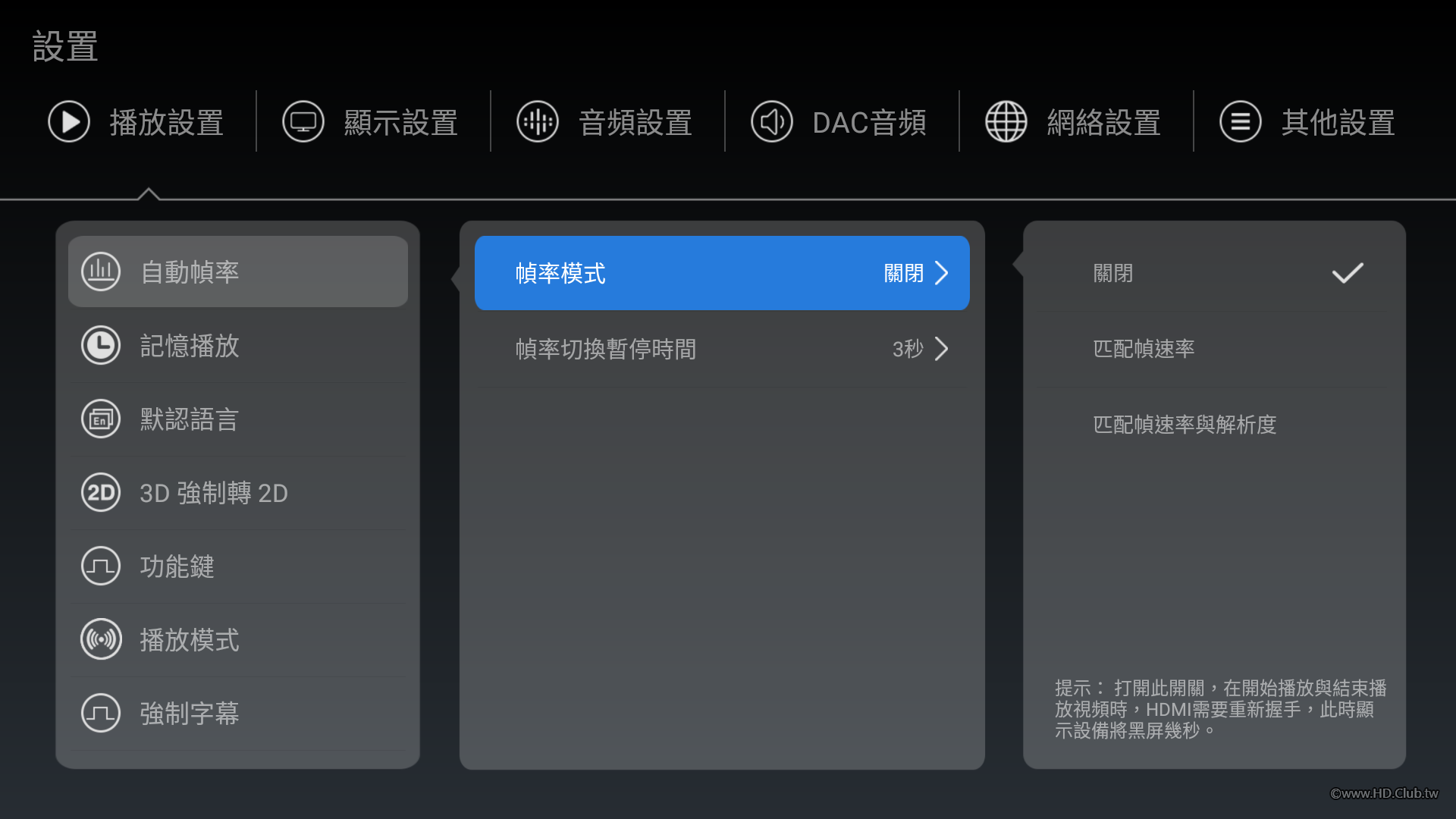

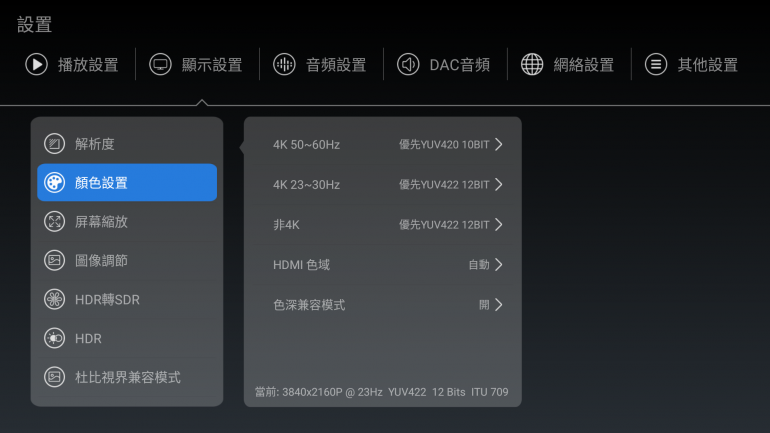

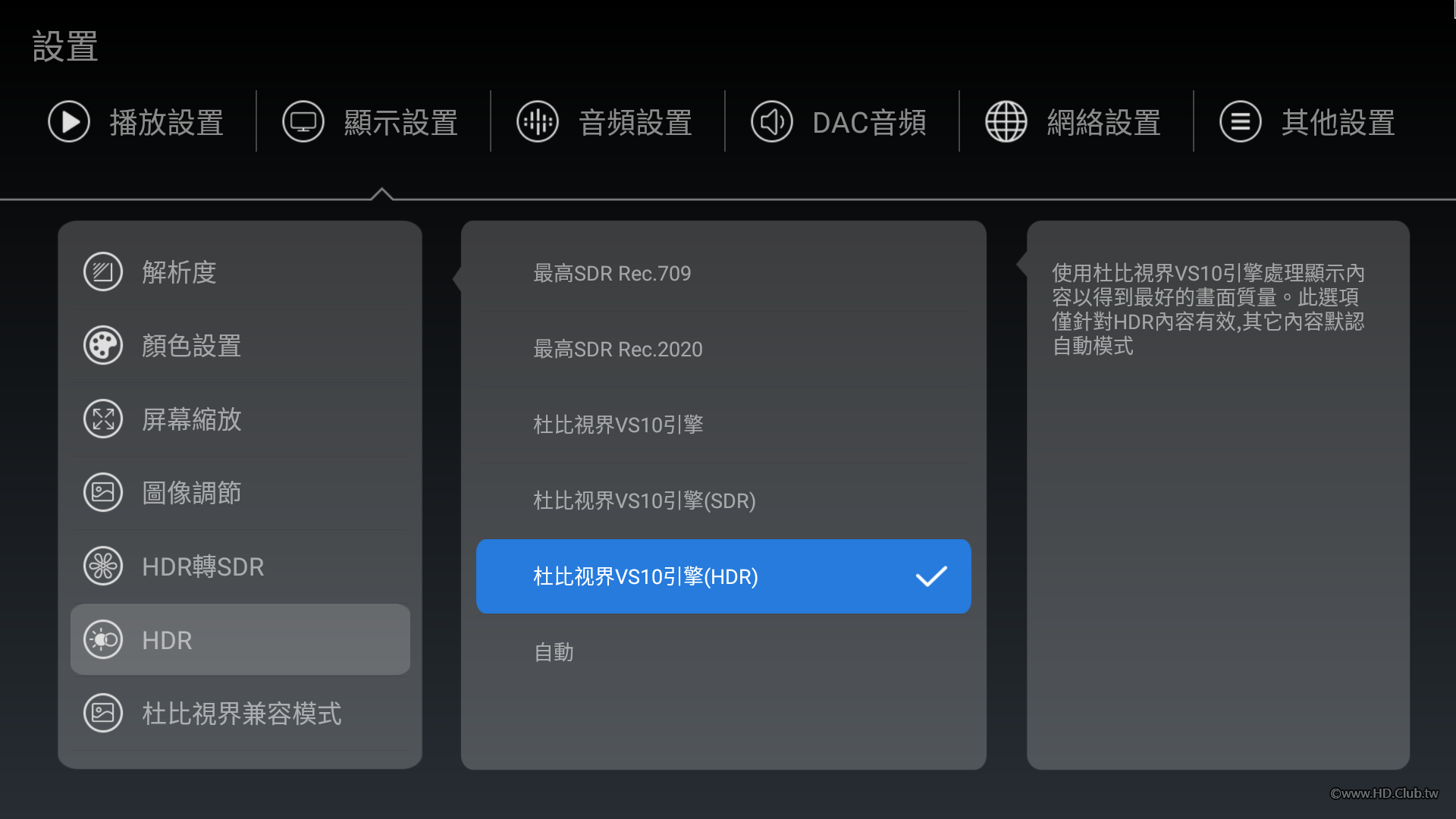

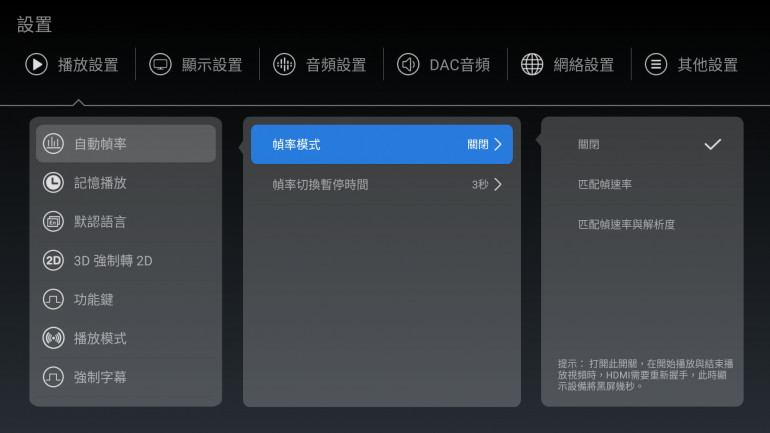

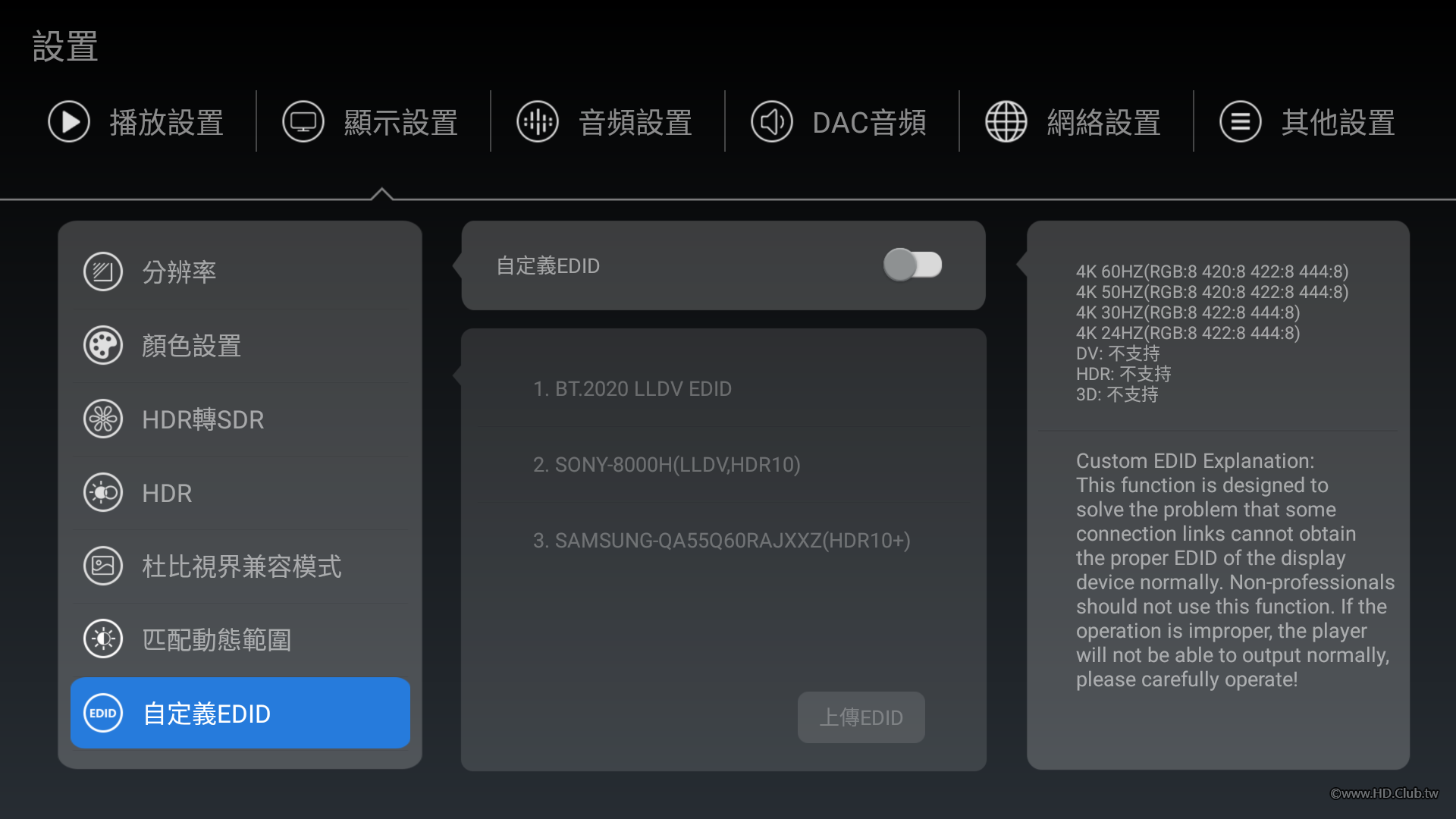

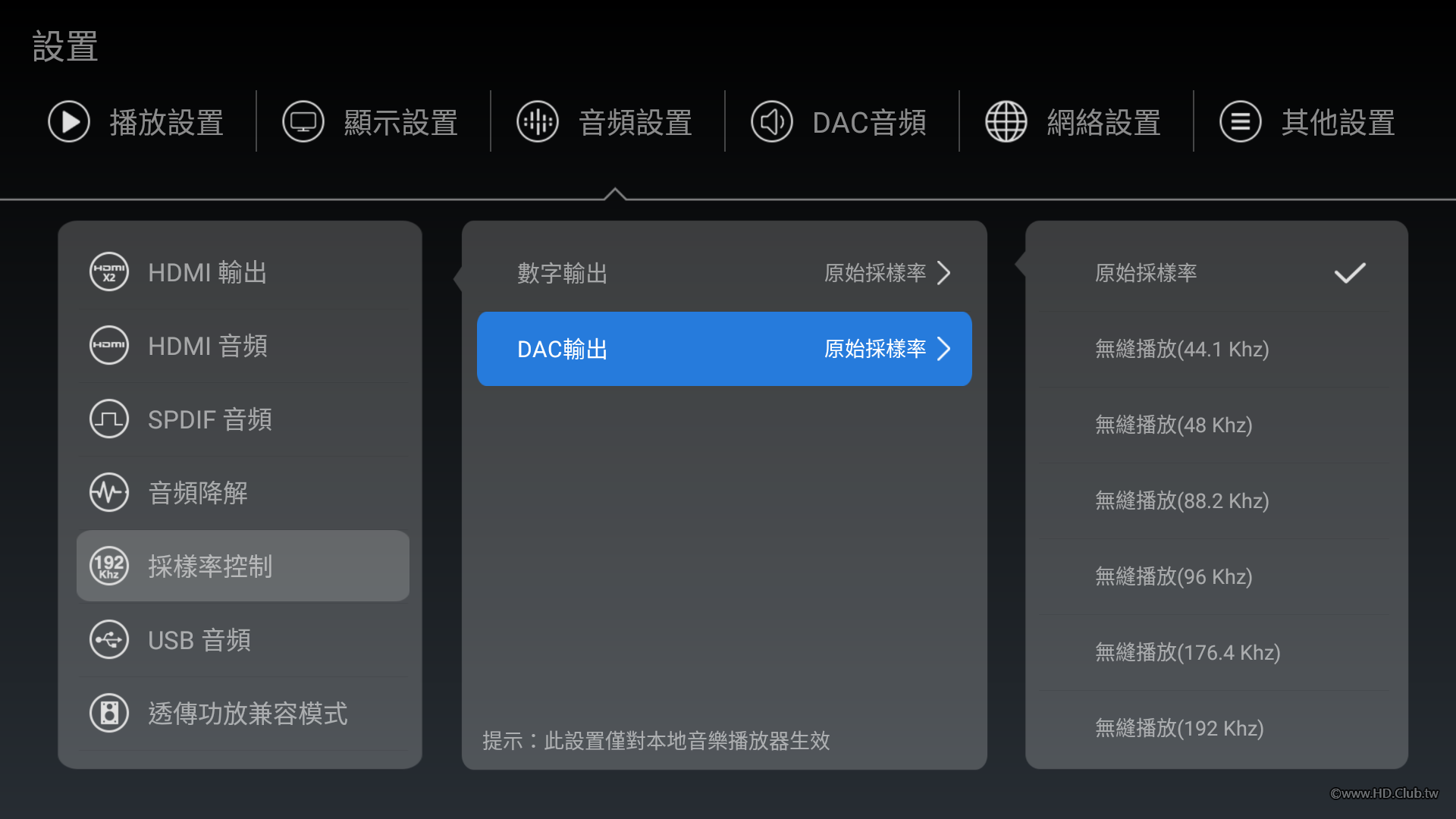

系 統 設 定



海報墻初次設定



音樂播放器初次設定



媒體中心

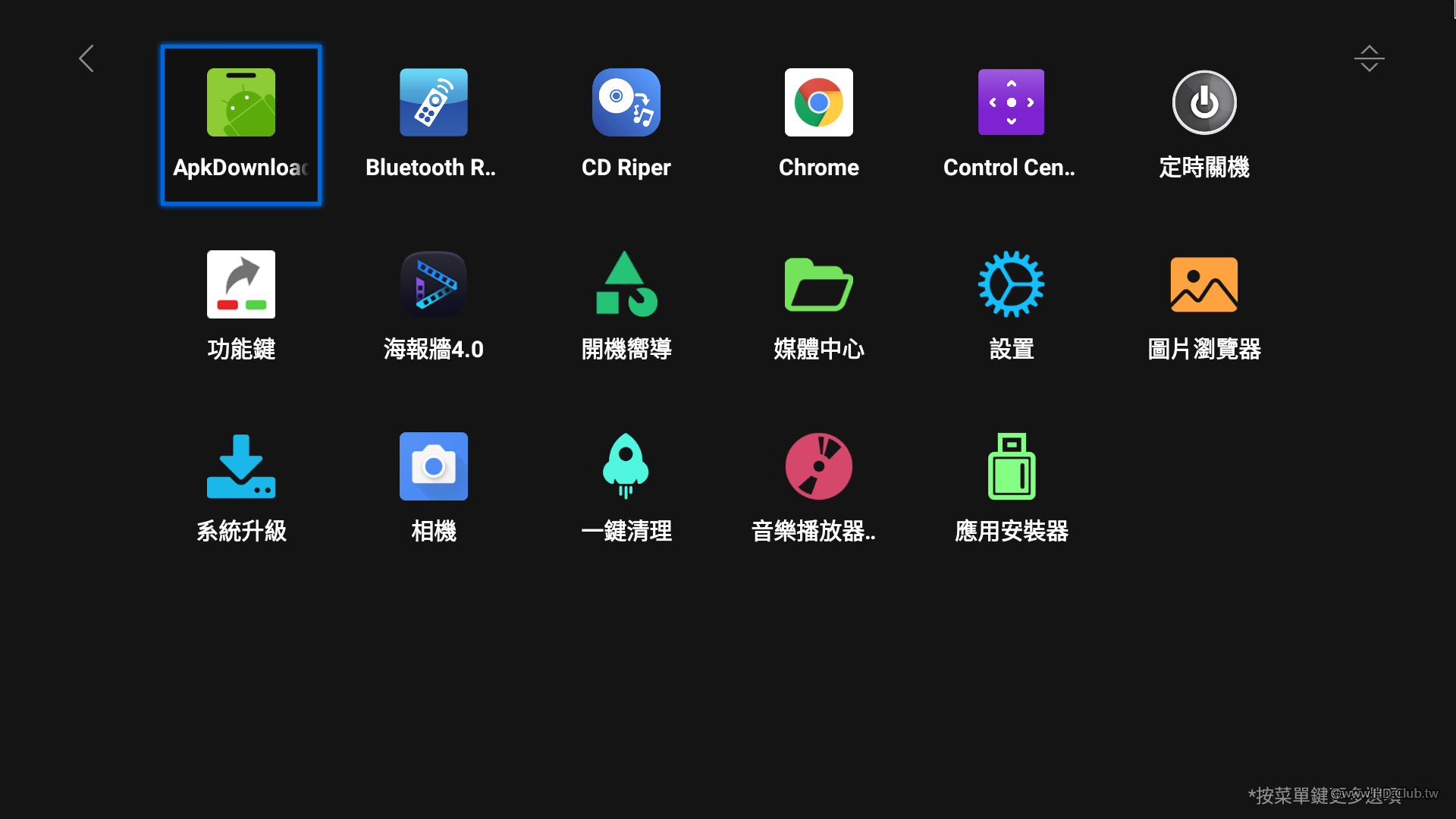

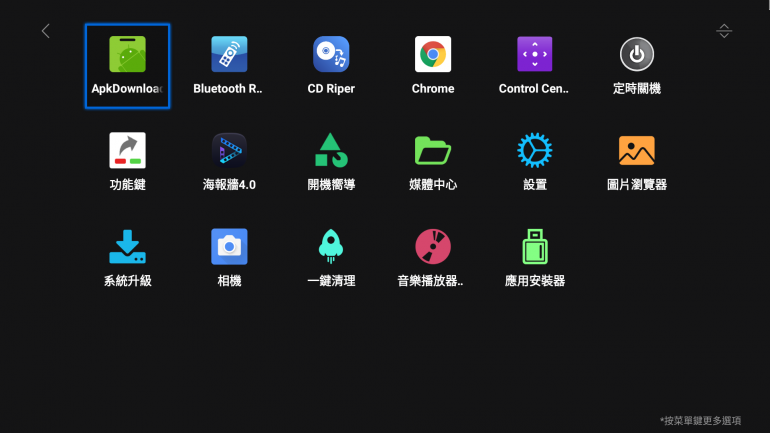

全部應用



回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2021-1-22 00:06:39 | 顯示全部樓層
體驗部份
環境設定(HDMI 影像採集使用zidoo X9S,因此DAC音樂播放只能採集影像部份):

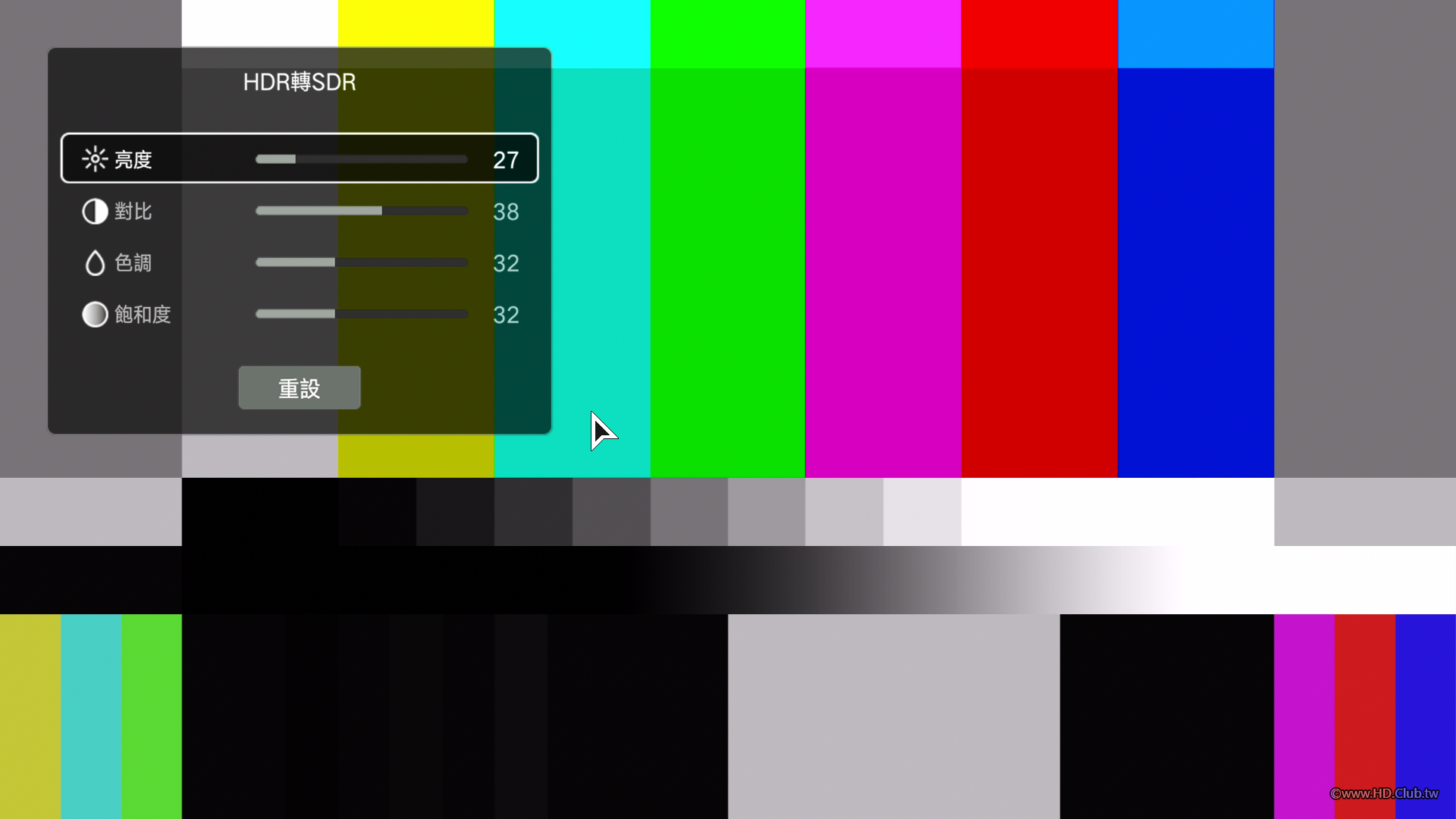

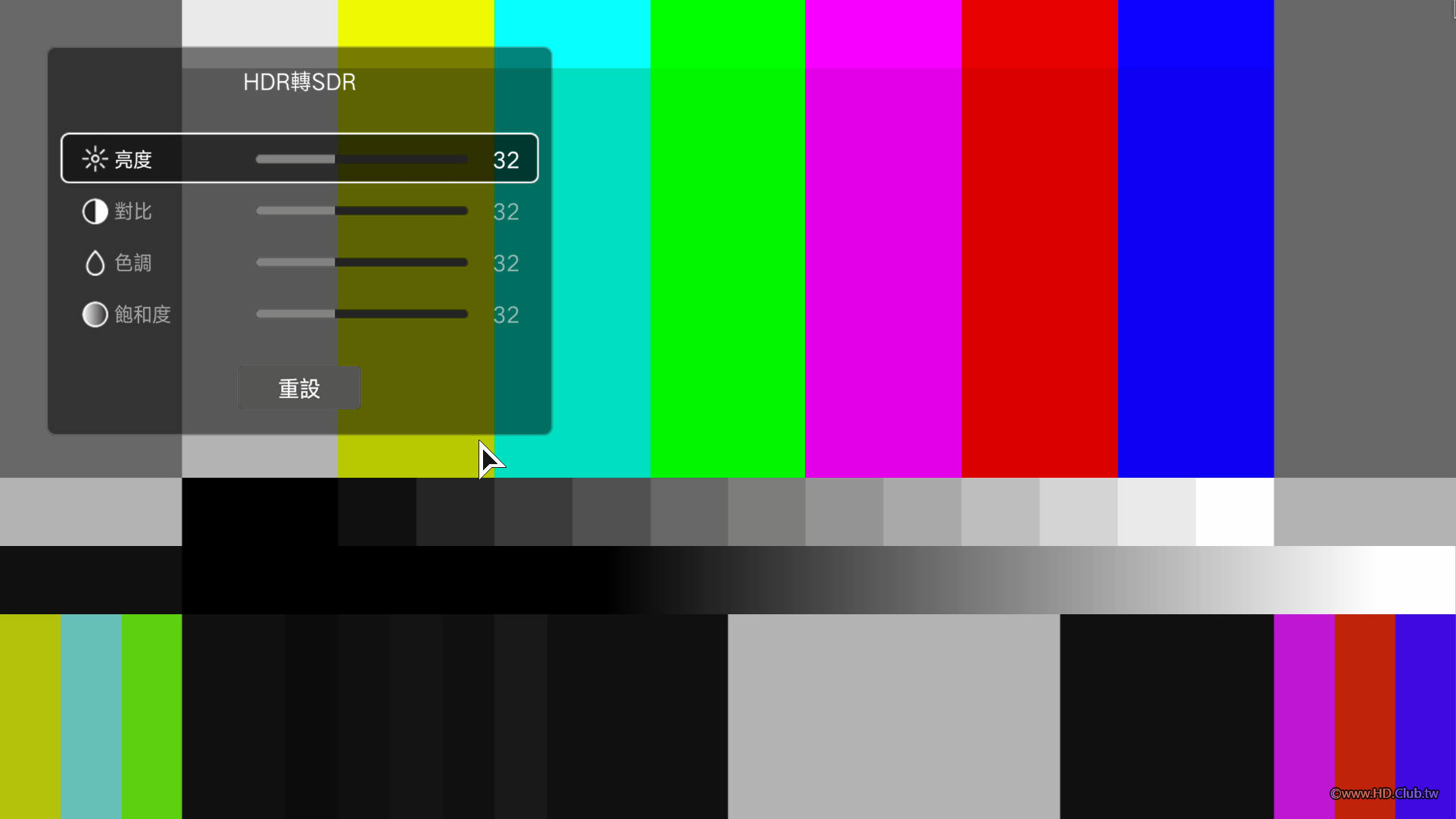

先上BT.2111彩條校一校黒位和白位
PQ narrow range

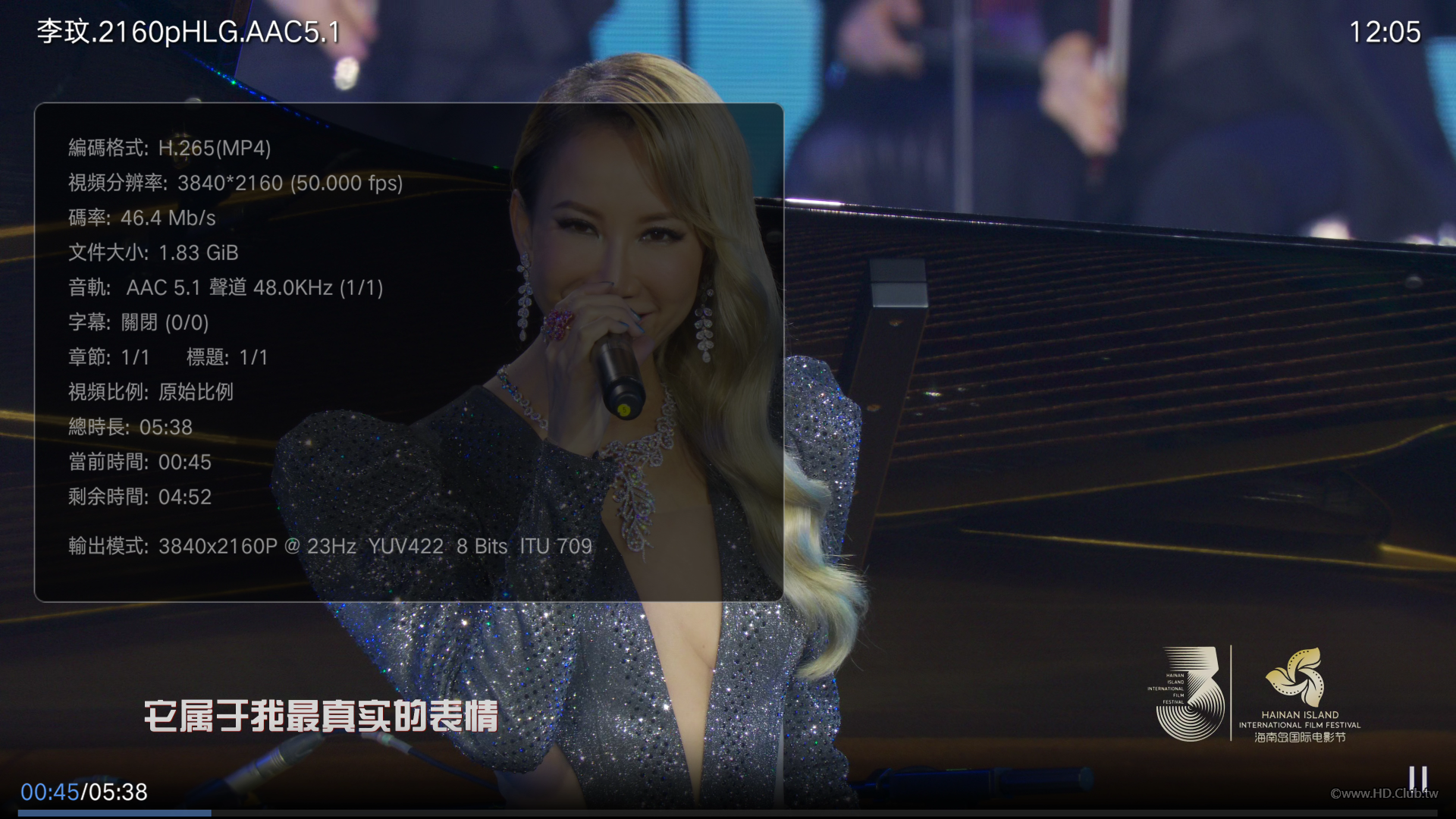

HLG narrow range(Stair完美)

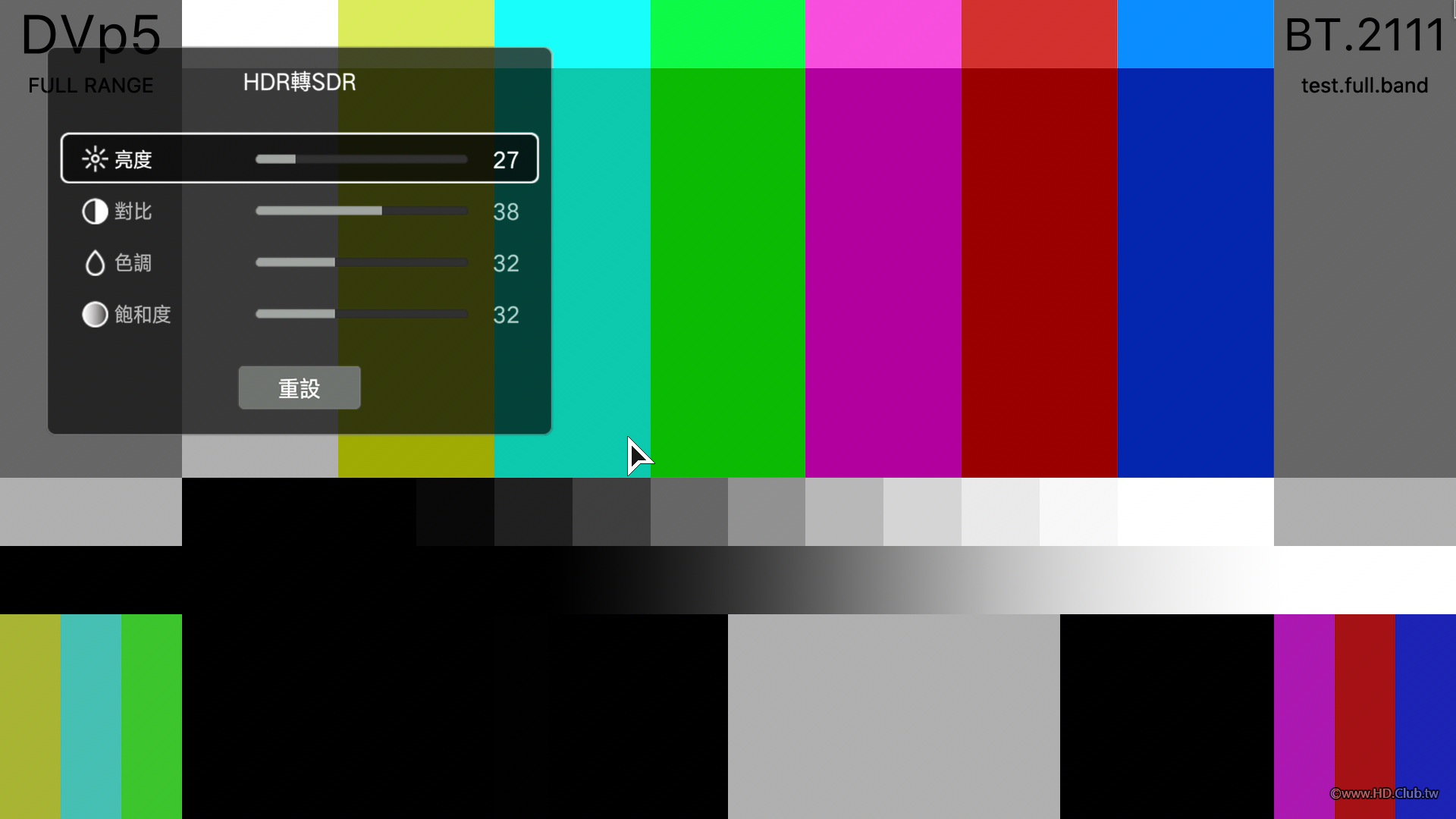

Dolby Vision Profile5 full range

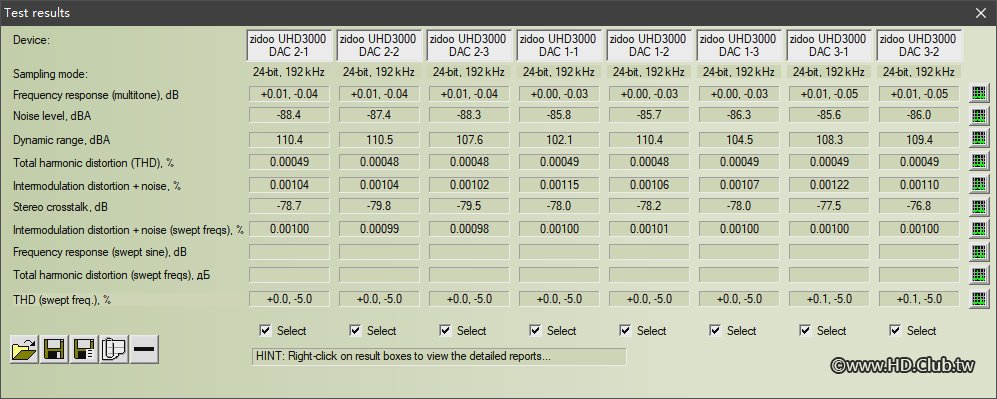

測量RCA輸出,僅供參考。

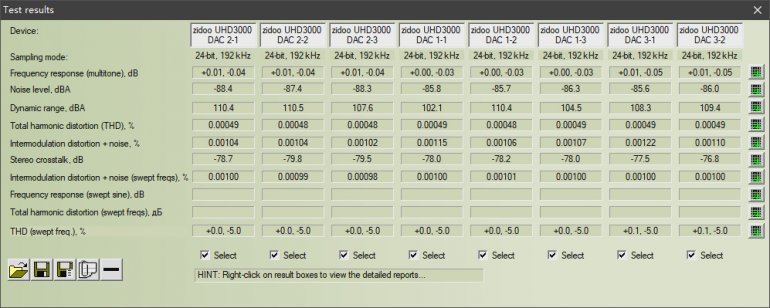

DAC RMAA.JPG
2-1、2-2、2-3:為慢滾最小相位三次測量值
1-1、1-2、1-3:為快速滾降三次測量值
3-1、3-2:  為最小相位校正兩次測量值

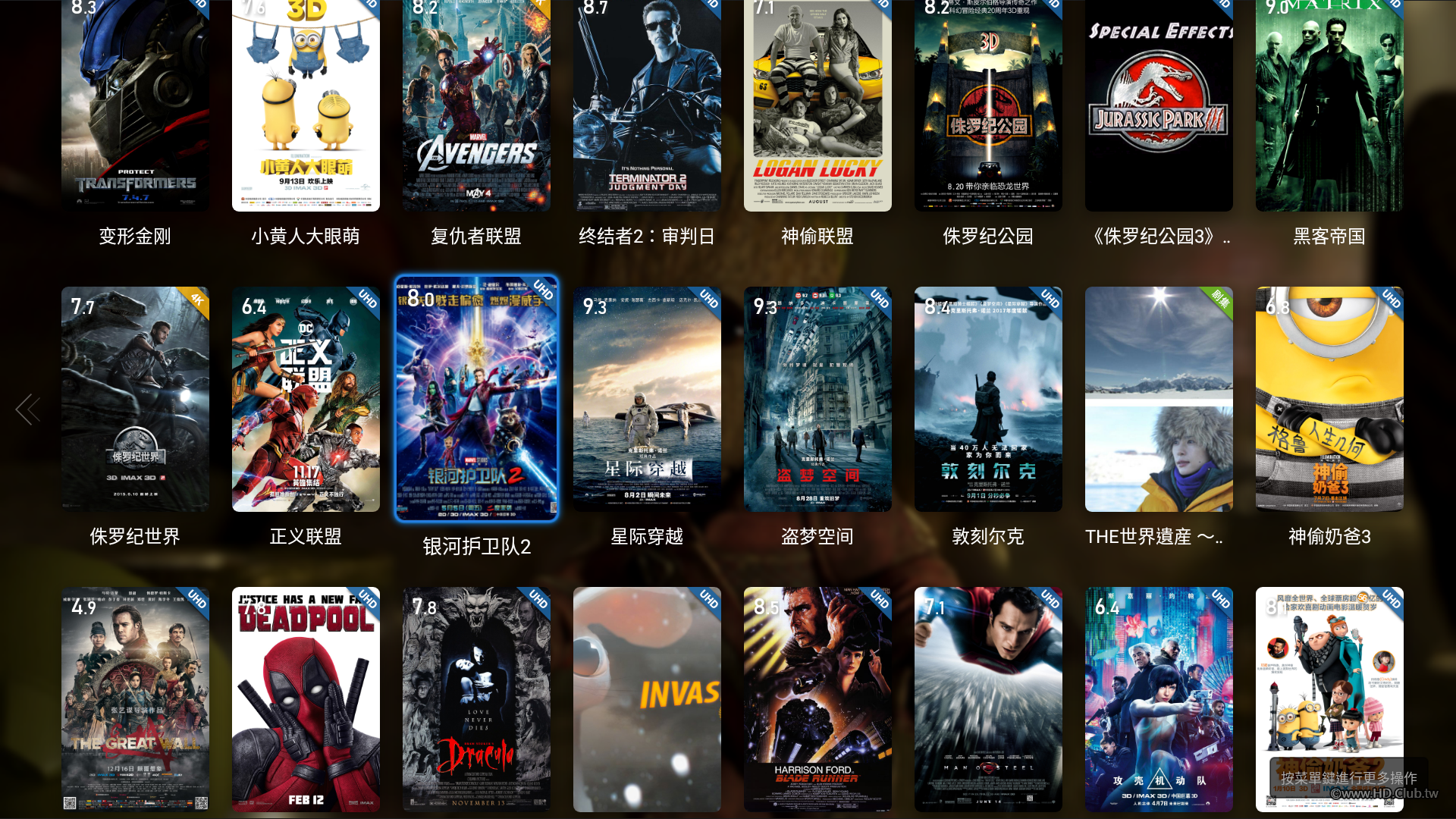

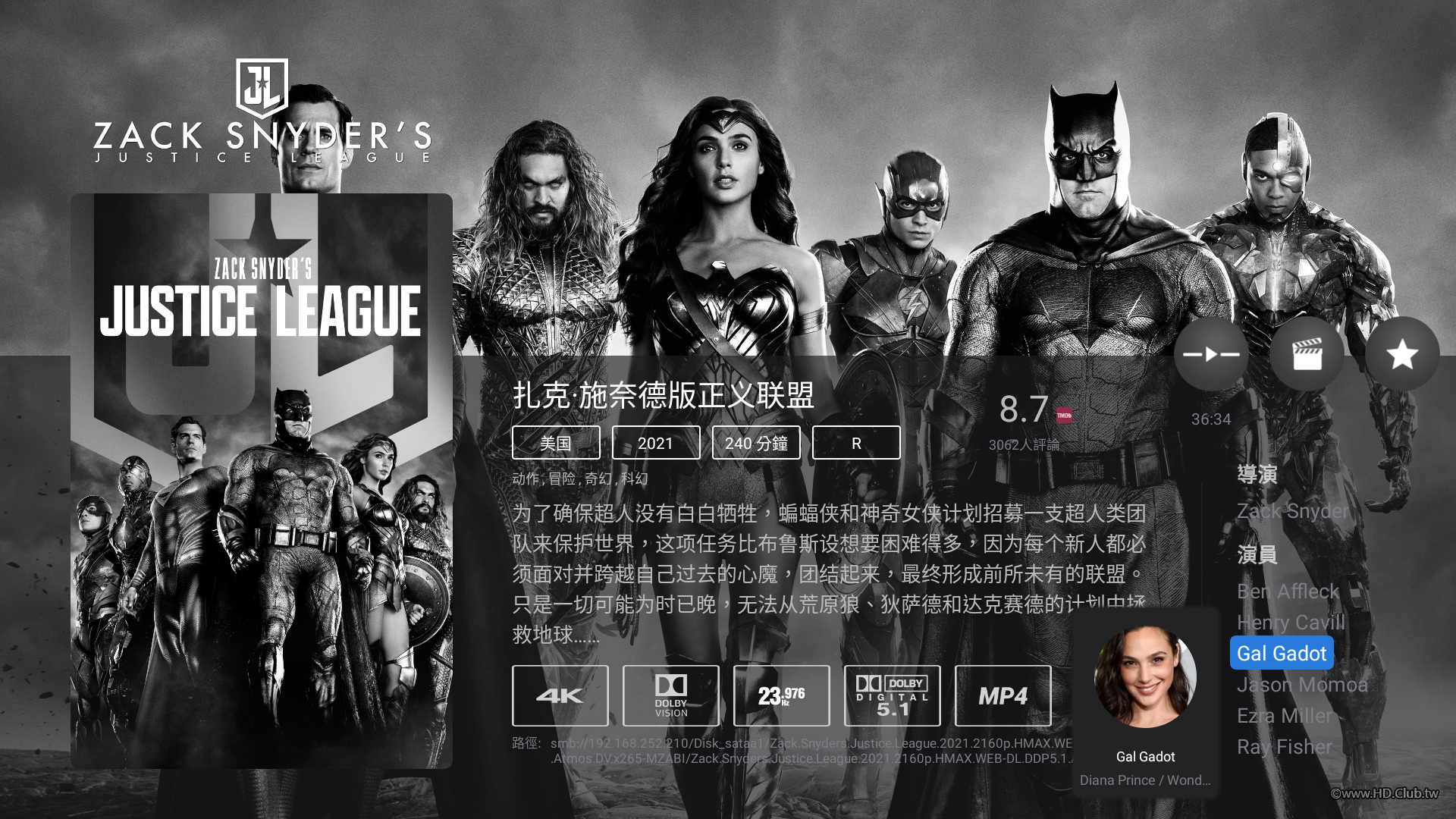

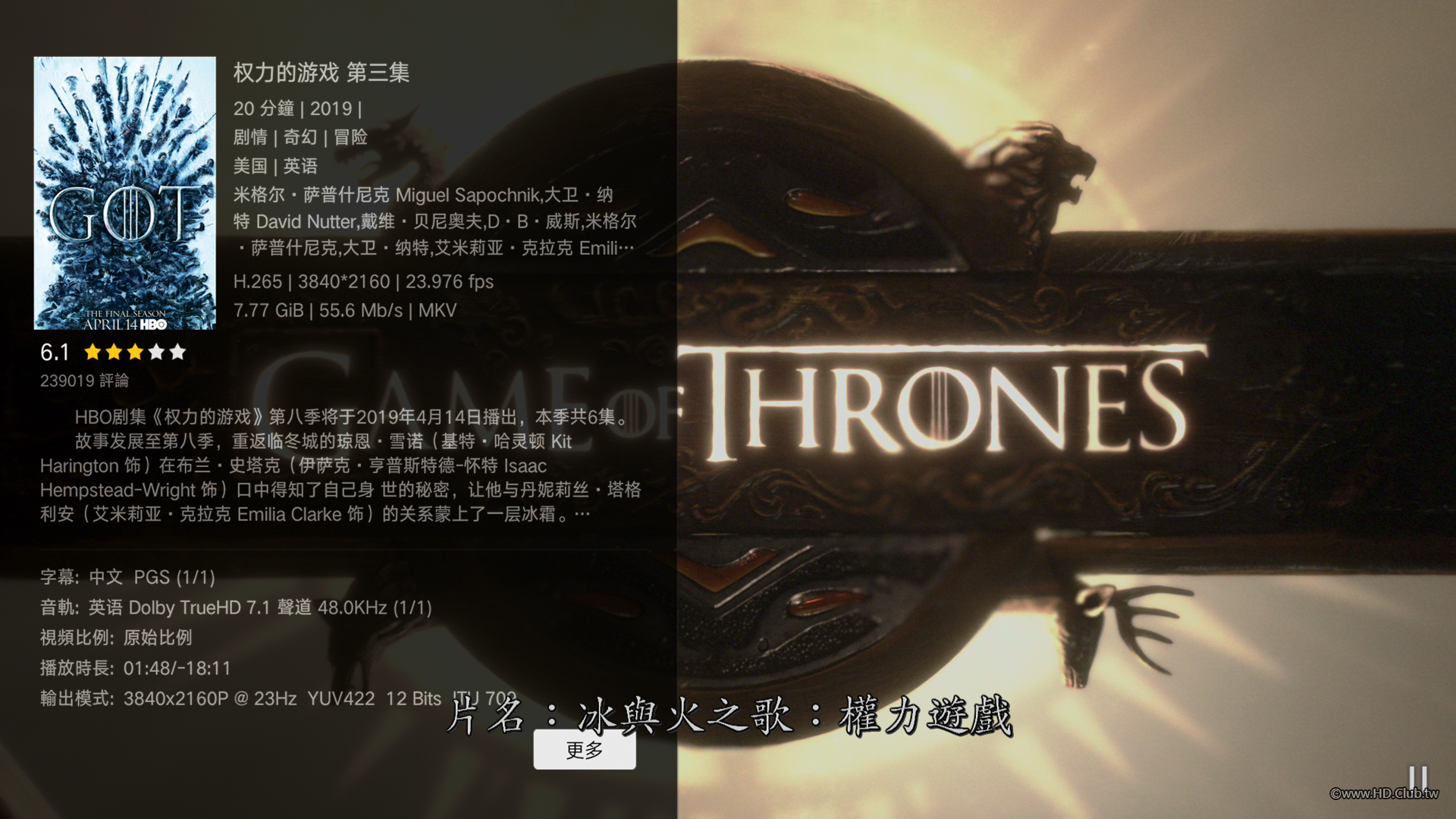

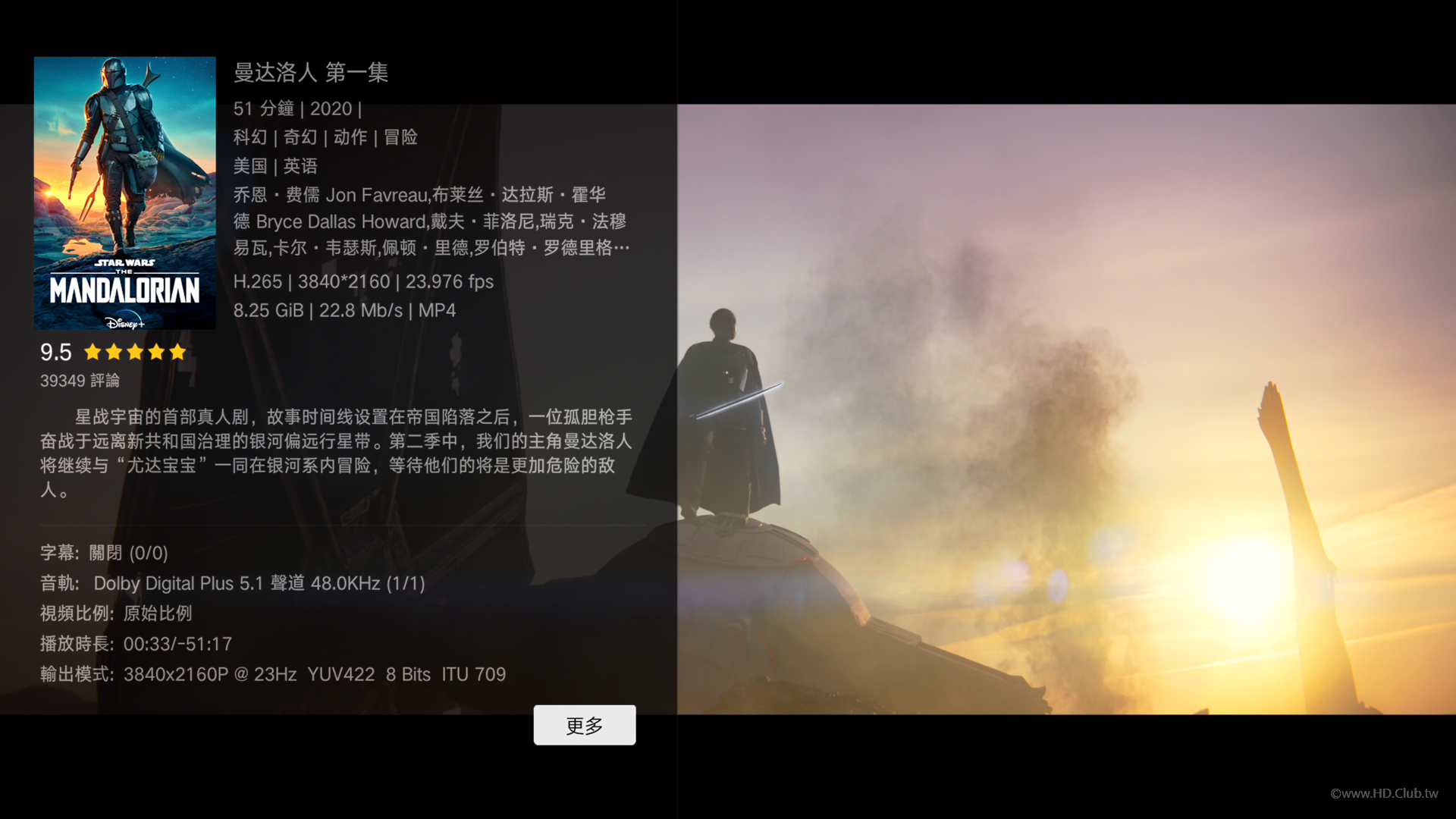

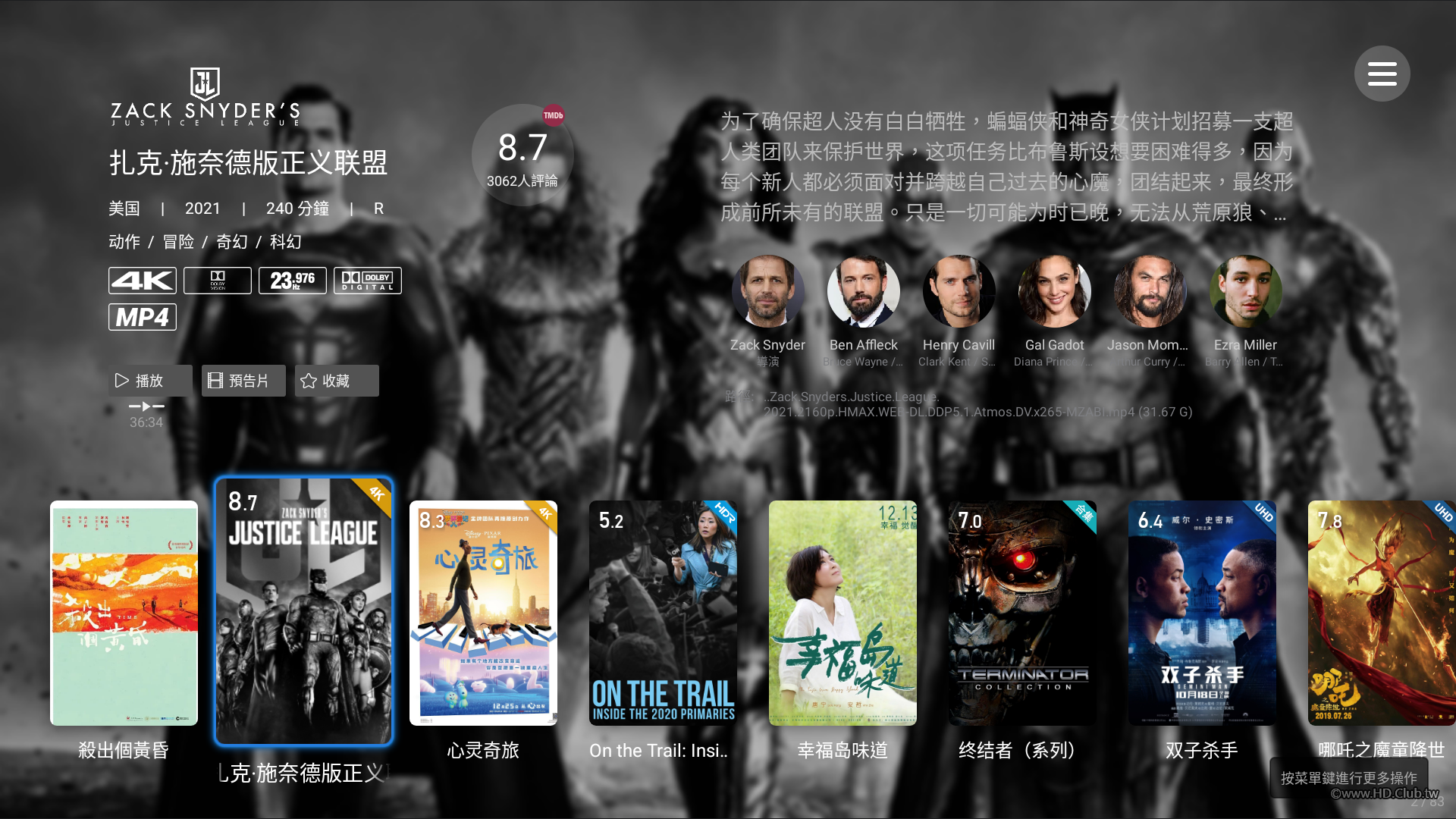

海報墻播放體驗

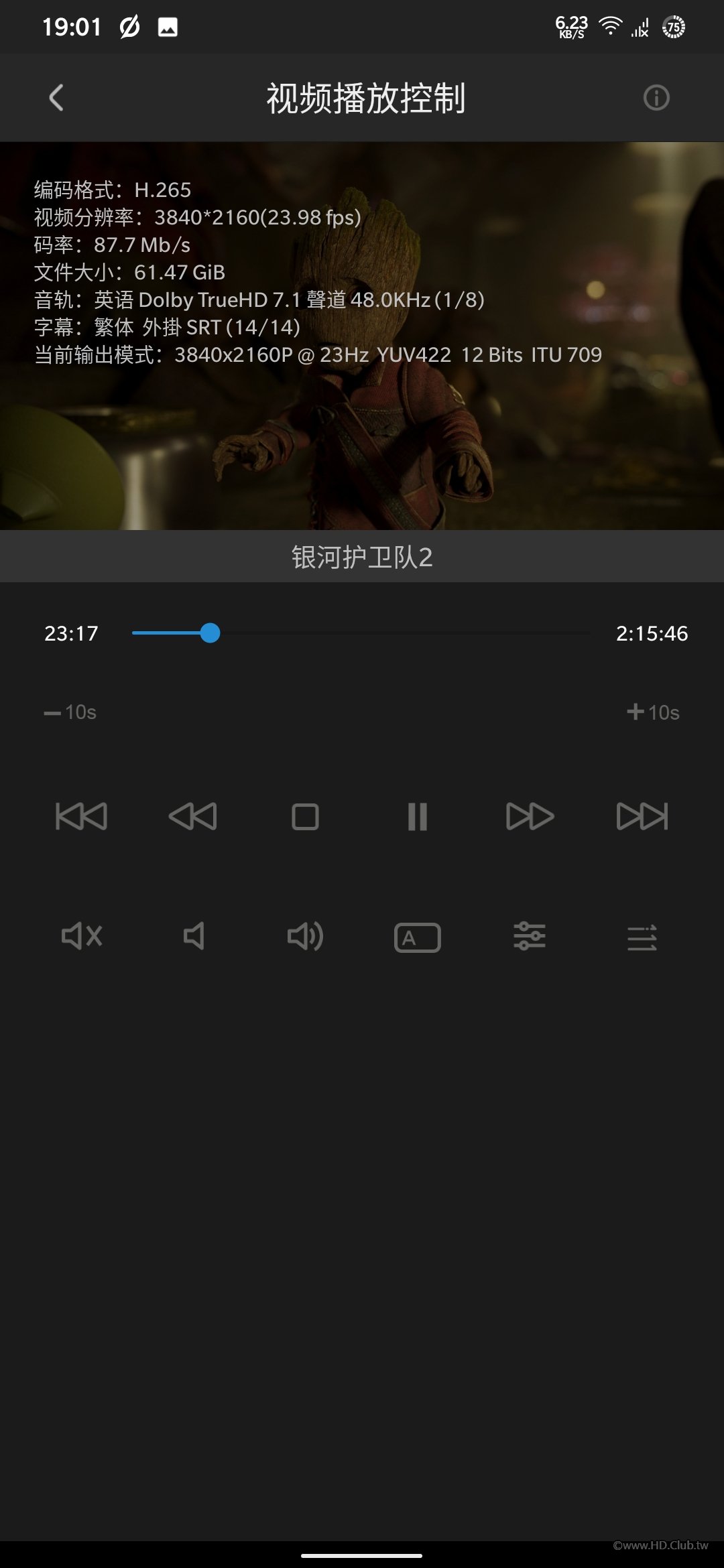

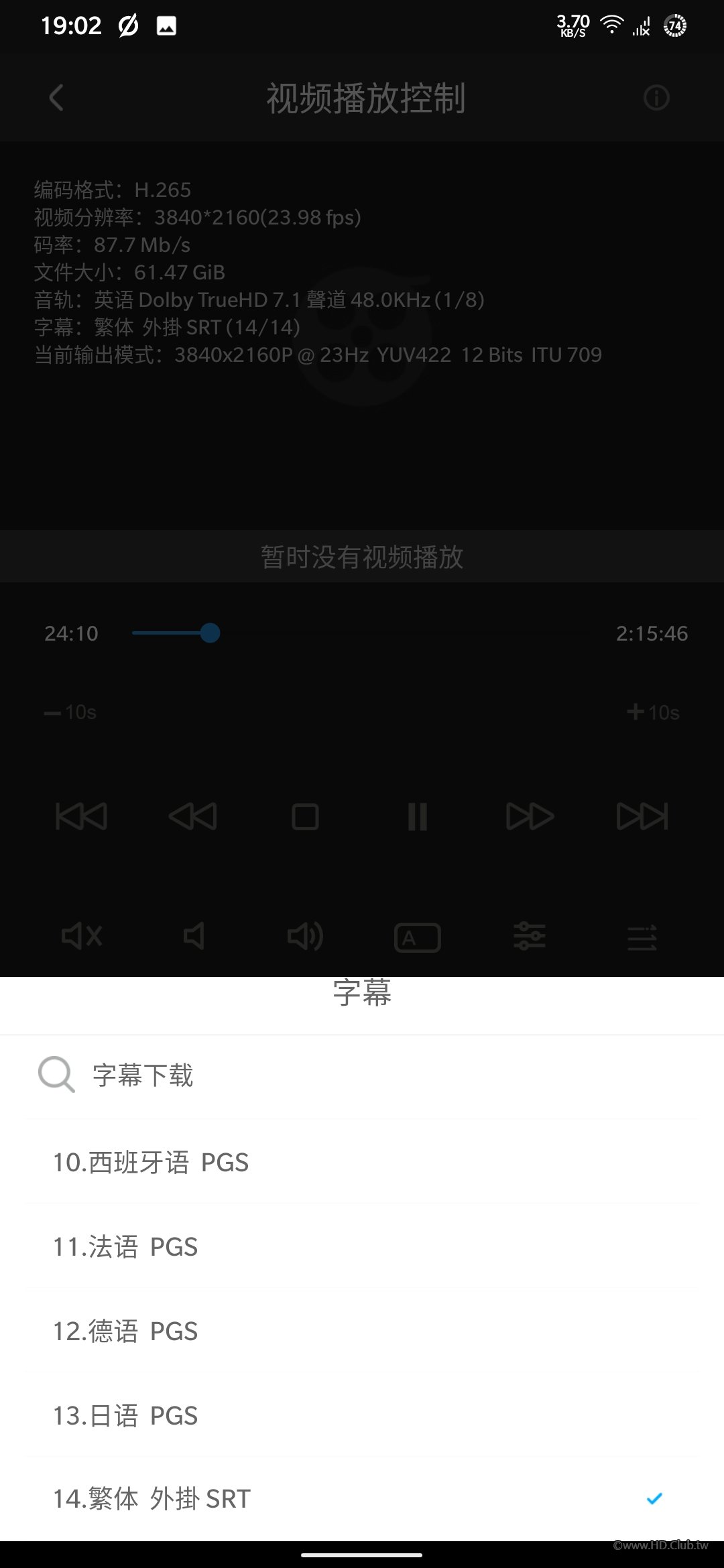

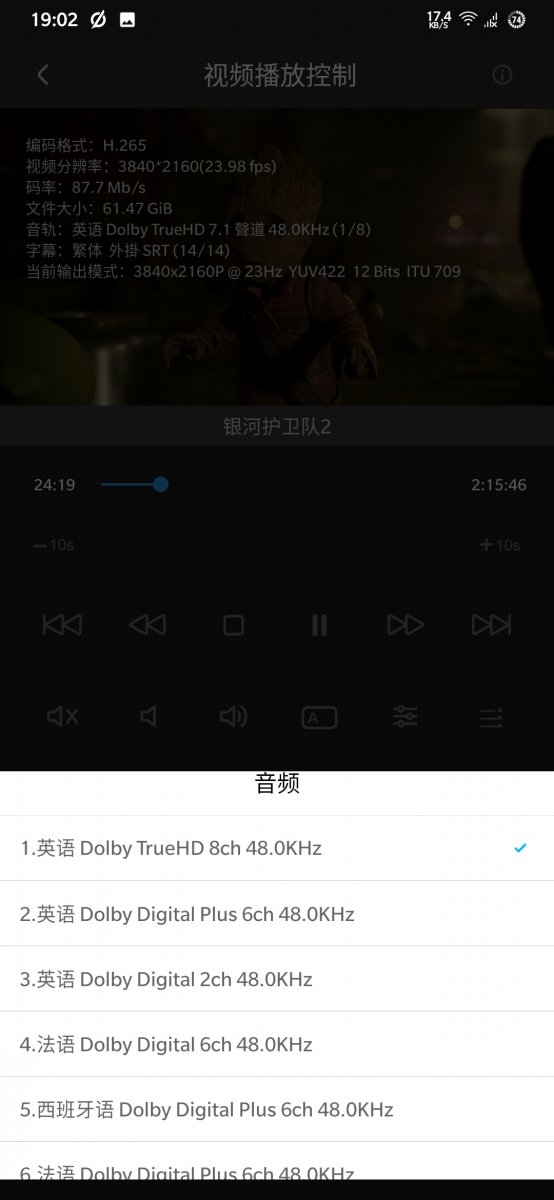

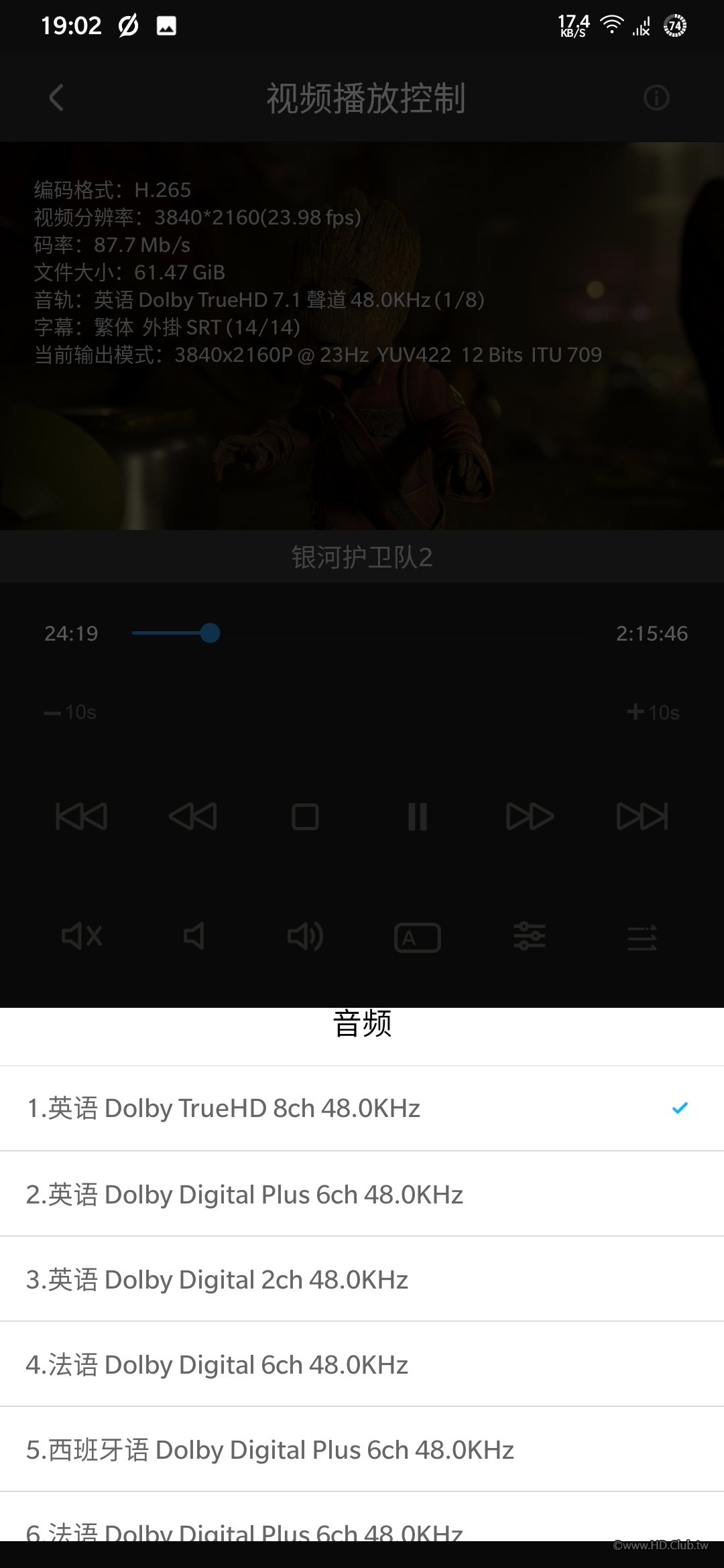

手機端操控



【使用海報墻相關技巧請閱此帖

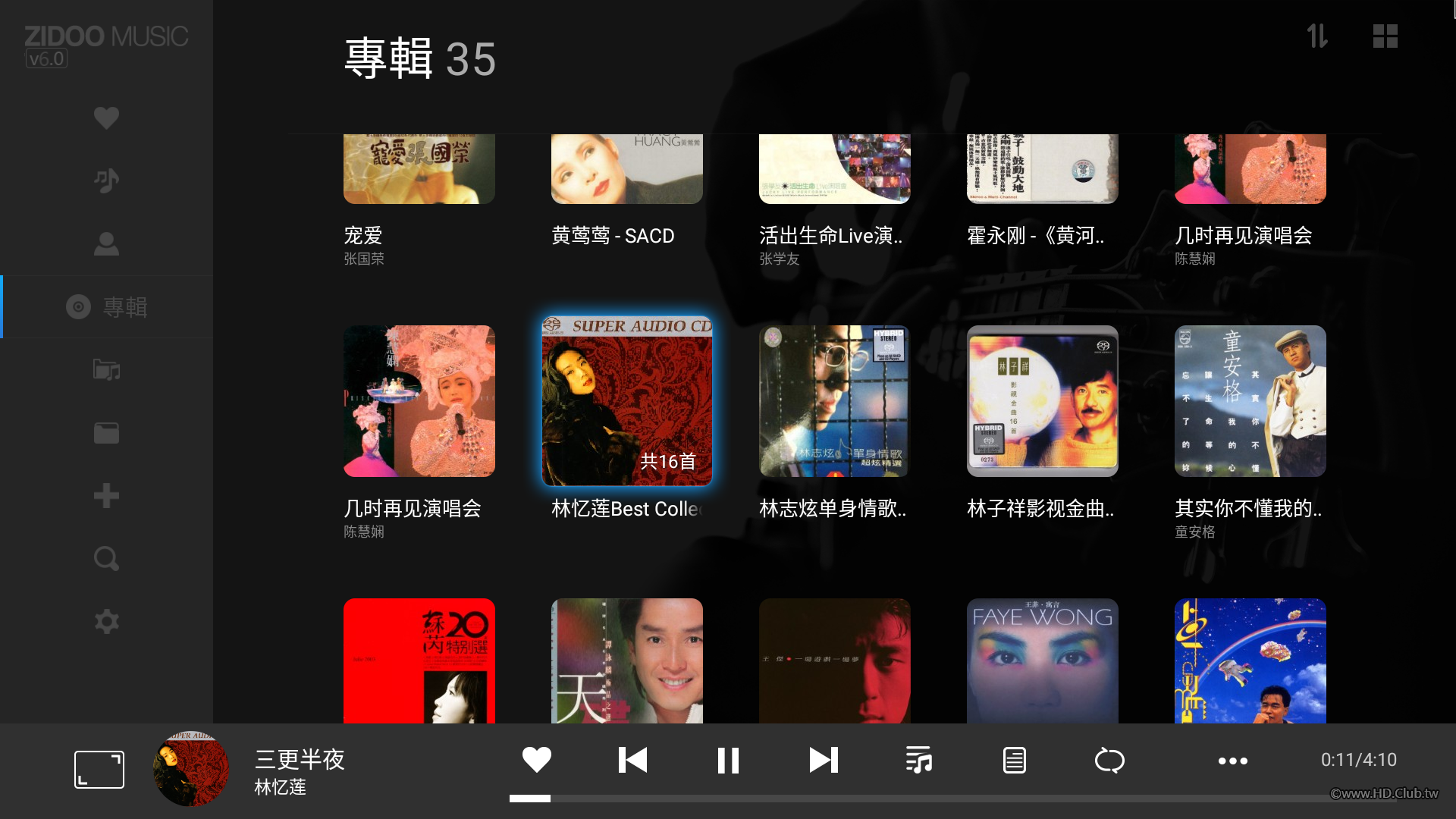

音樂播放器體驗

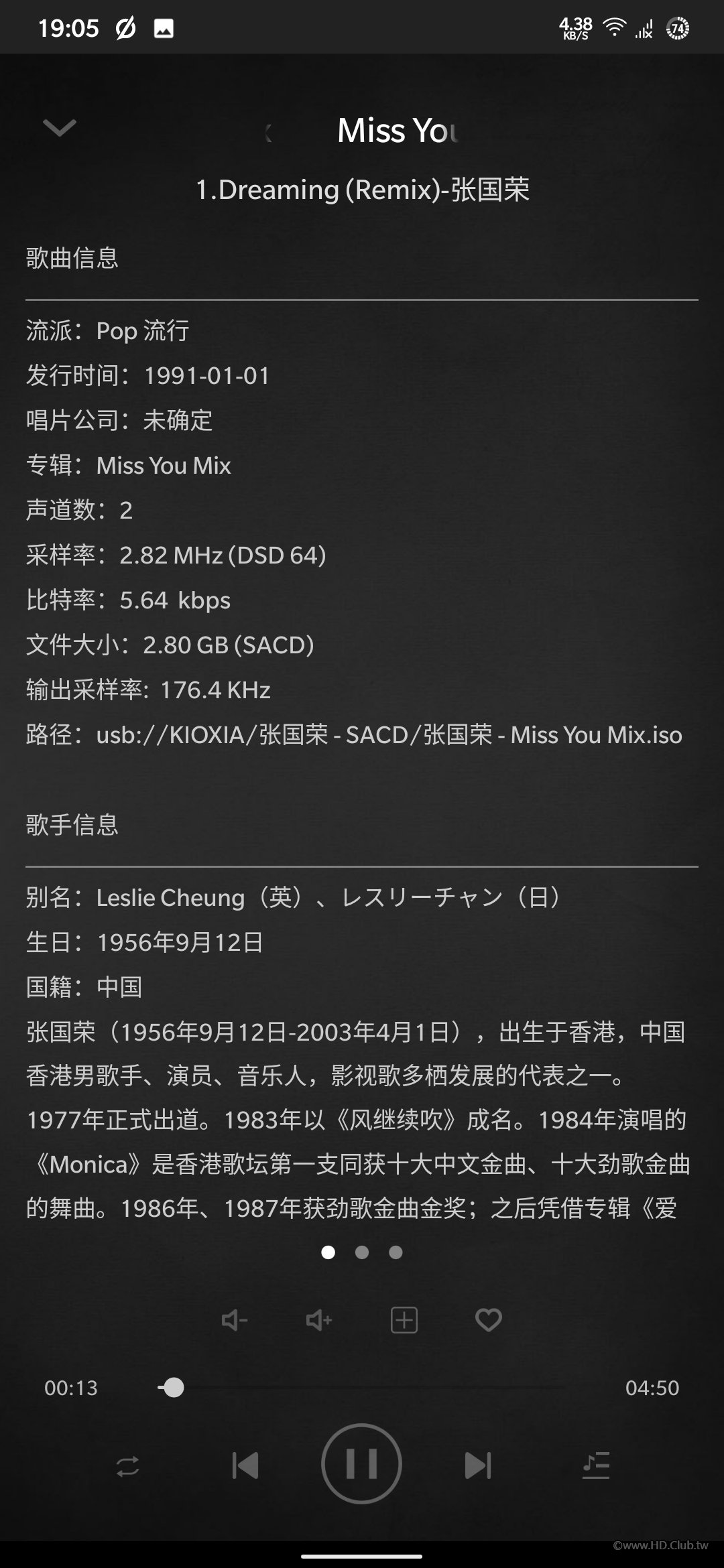

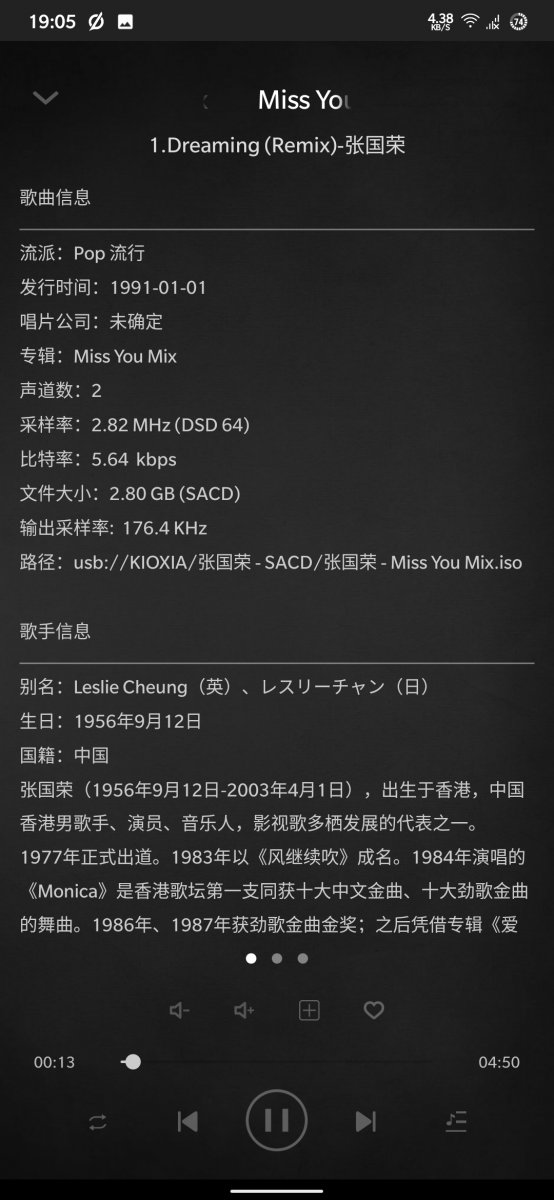

SACD DSD Native播放

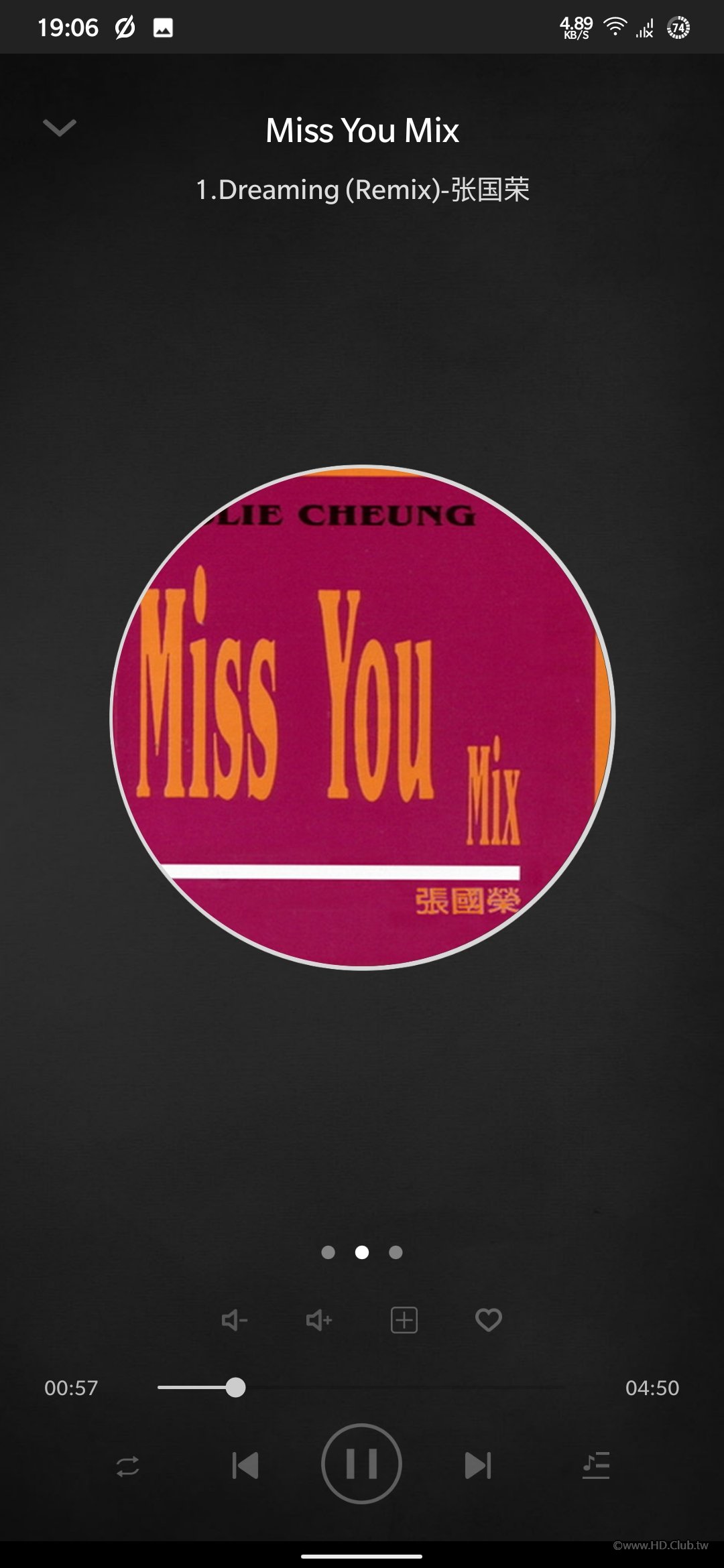

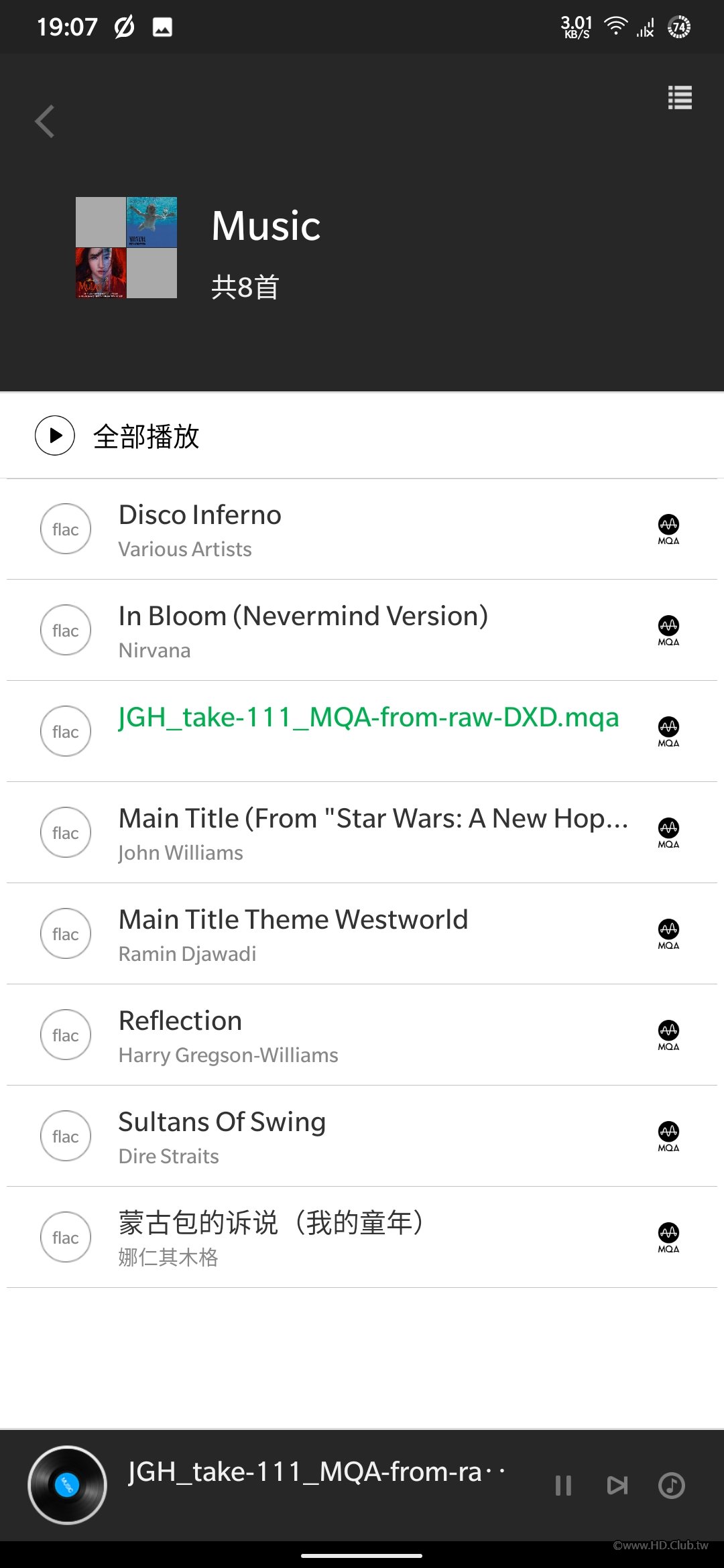

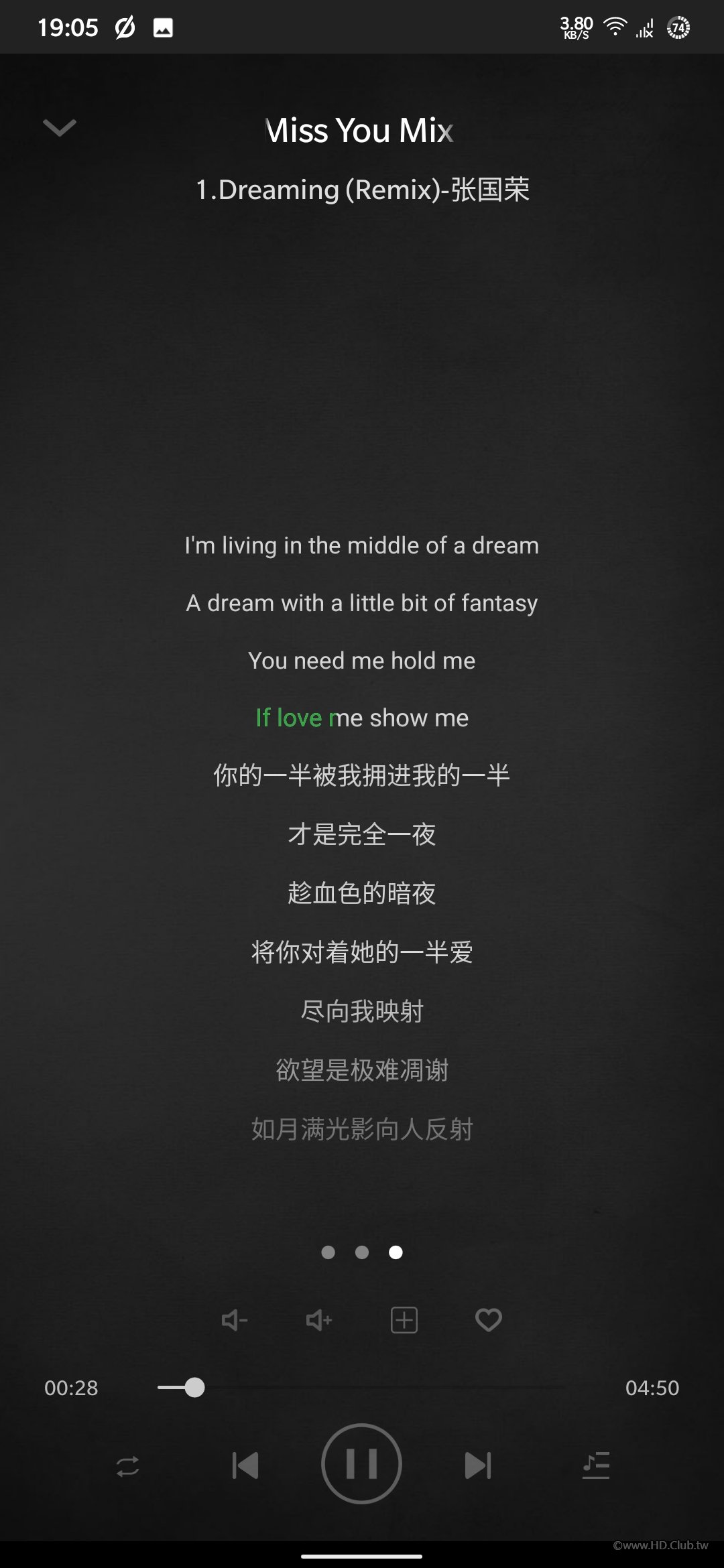

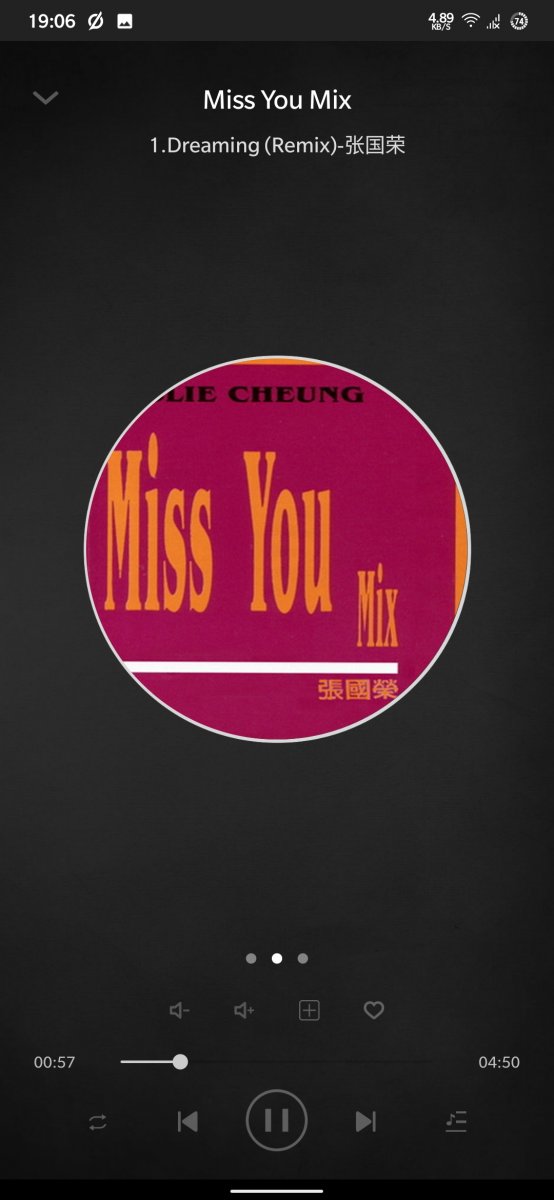

手機端操控



MQA硬體解碼播放

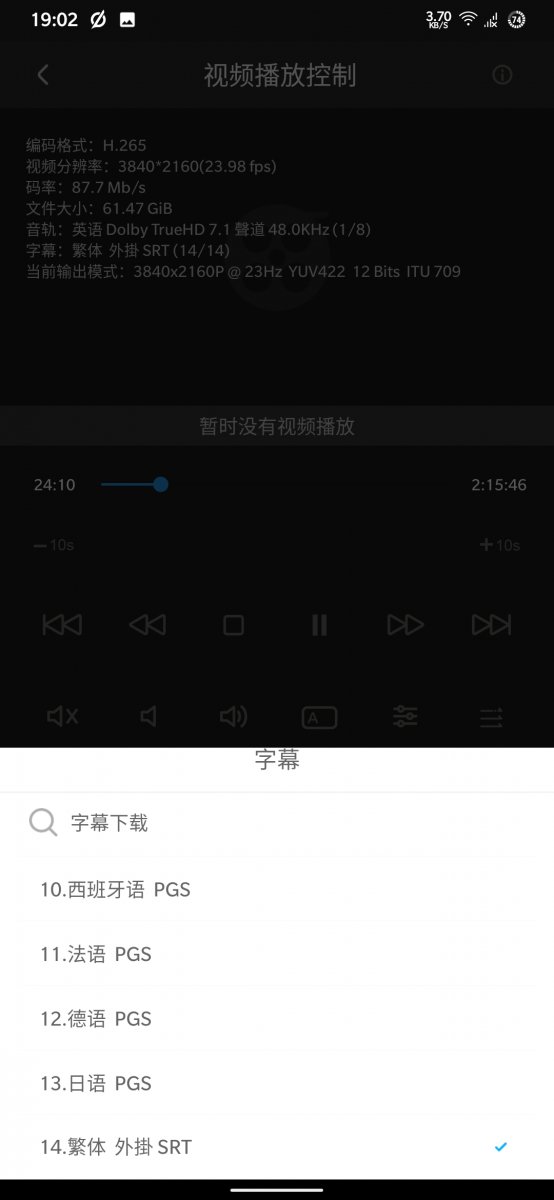

手機端操控


名場面GOTS08E03
之前海報墻演示了一小段HDR10 UHDBD原盤播放效果,想必不過癮,接下來演示播放單軌雙層杜比視界MKV的效果。之前在zidoo Z10PRO的報告中有講過,機器是不能直接播放雙軌原盤杜比視界的,必須通過工具把它轉成單軌雙層文檔(STDL MEL),而MKV是兼容性最佳的封裝格式,什麽ATMOS,DTS-X音軌,特效字幕統統皆支援。

UHDBD原盤杜比視界雙軌M2TS 轉 單軌雙層MKV播放
【欲知更多DOLBY VISION相關資訊,請閱此帖。】

UHDBD原盤杜比視界雙軌M2TS原檔:
  1. General
  2. ID                                       : 0 (0x0)
  3. Complete name                            : \\Share\80A9-6ED7\GOTS08E03.m2ts
  4. Format                                   : BDAV
  5. Format/Info                              : Blu-ray Video
  6. File size                                : 37.5 GiB
  7. Duration                                 : 1 h 21 min
  8. Overall bit rate mode                    : Variable
  9. Overall bit rate                         : 66.1 Mb/s
  10. Maximum Overall bit rate                 : 109 Mb/s

  11. Video #1
  12. ID                                       : 4113 (0x1011)
  13. Menu ID                                  : 1 (0x1)
  14. Format                                   : HEVC
  15. Format/Info                              : High Efficiency Video Coding
  16. Format profile                           : Main [email protected]@High
  17. HDR format                               : SMPTE ST 2086, HDR10 compatible
  18. Codec ID                                 : 36
  19. Duration                                 : 1 h 21 min
  20. Width                                    : 3 840 pixels
  21. Height                                   : 2 160 pixels
  22. Display aspect ratio                     : 16:9
  23. Frame rate                               : 23.976 (24000/1001) FPS
  24. Color space                              : YUV
  25. Chroma subsampling                       : 4:2:0 (Type 2)
  26. Bit depth                                : 10 bits
  27. Color range                              : Limited
  28. Color primaries                          : BT.2020
  29. Transfer characteristics                 : PQ
  30. Matrix coefficients                      : BT.2020 non-constant
  31. Mastering display color primaries        : BT.2020
  32. Mastering display luminance              : min: 0.0001 cd/m2, max: 1000 cd/m2

  33. Video #2
  34. ID                                       : 4117 (0x1015)
  35. Menu ID                                  : 1 (0x1)
  36. Format                                   : HEVC
  37. Format/Info                              : High Efficiency Video Coding
  38. Format profile                           : Main [email protected]@High
  39. HDR format                               : SMPTE ST 2086, HDR10 compatible
  40. Codec ID                                 : 36
  41. Duration                                 : 1 h 21 min
  42. Width                                    : 1 920 pixels
  43. Height                                   : 1 080 pixels
  44. Display aspect ratio                     : 16:9
  45. Frame rate                               : 23.976 (24000/1001) FPS
  46. Color space                              : YUV
  47. Chroma subsampling                       : 4:2:0 (Type 2)
  48. Bit depth                                : 10 bits
  49. Color range                              : Limited
  50. Color primaries                          : BT.2020
  51. Transfer characteristics                 : PQ
  52. Matrix coefficients                      : BT.2020 non-constant
  53. Mastering display color primaries        : BT.2020
  54. Mastering display luminance              : min: 0.0001 cd/m2, max: 1000 cd/m2

  55. Audio #1
  56. ID                                       : 4352 (0x1100)
  57. Menu ID                                  : 1 (0x1)
  58. Format                                   : AC-3
  59. Format/Info                              : Audio Coding 3
  60. Commercial name                          : Dolby Digital
  61. Codec ID                                 : 129
  62. Duration                                 : 1 h 21 min
  63. Bit rate mode                            : Constant
  64. Bit rate                                 : 640 kb/s
  65. Channel(s)                               : 6 channels
  66. Channel layout                           : L R C LFE Ls Rs
  67. Sampling rate                            : 48.0 kHz
  68. Frame rate                               : 31.250 FPS (1536 SPF)
  69. Compression mode                         : Lossy
  70. Delay relative to video                  : 2 s 2 ms
  71. Stream size                              : 372 MiB (1%)
  72. Service kind                             : Complete Main

  73. Audio #2
  74. ID                                       : 4353 (0x1101)
  75. Menu ID                                  : 1 (0x1)
  76. Format                                   : AC-3 MLP FBA 16-ch
  77. Format/Info                              : Audio Coding 3 + Meridian Lossless Packing FBA with 16-channel presentation
  78. Commercial name                          : Dolby TrueHD with Dolby Atmos
  79. Muxing mode                              : Stream extension
  80. Codec ID                                 : 131
  81. Duration                                 : 1 h 21 min
  82. Bit rate mode                            : Variable
  83. Bit rate                                 : 640 kb/s
  84. Maximum bit rate                         : 5 634 kb/s
  85. Channel(s)                               : 8 channels
  86. Channel layout                           : L R C LFE Ls Rs Lb Rb
  87. Sampling rate                            : 48.0 kHz
  88. Frame rate                               : 31.250 FPS (1536 SPF)
  89. Compression mode                         : Lossy
  90. Stream size                              : 372 MiB (1%)
  91. Service kind                             : Complete Main
  92. Number of dynamic objects                : 15
  93. Bed channel count                        : 1 channel
  94. Bed channel configuration                : LFE

  95. Audio #3
  96. ID                                       : 4354 (0x1102)
  97. Menu ID                                  : 1 (0x1)
  98. Format                                   : AC-3
  99. Format/Info                              : Audio Coding 3
  100. Commercial name                          : Dolby Digital
  101. Codec ID                                 : 129
  102. Duration                                 : 1 h 21 min
  103. Bit rate mode                            : Constant
  104. Bit rate                                 : 448 kb/s
  105. Channel(s)                               : 6 channels
  106. Channel layout                           : L R C LFE Ls Rs
  107. Sampling rate                            : 48.0 kHz
  108. Frame rate                               : 31.250 FPS (1536 SPF)
  109. Compression mode                         : Lossy
  110. Delay relative to video                  : 2 s 2 ms
  111. Stream size                              : 261 MiB (1%)
  112. Service kind                             : Complete Main

  113. Audio #4
  114. ID                                       : 4355 (0x1103)
  115. Menu ID                                  : 1 (0x1)
  116. Format                                   : AC-3
  117. Format/Info                              : Audio Coding 3
  118. Commercial name                          : Dolby Digital
  119. Codec ID                                 : 129
  120. Duration                                 : 1 h 21 min
  121. Bit rate mode                            : Constant
  122. Bit rate                                 : 256 kb/s
  123. Channel(s)                               : 2 channels
  124. Channel layout                           : L R
  125. Sampling rate                            : 48.0 kHz
  126. Frame rate                               : 31.250 FPS (1536 SPF)
  127. Compression mode                         : Lossy
  128. Delay relative to video                  : 2 s 2 ms
  129. Stream size                              : 149 MiB (0%)
  130. Service kind                             : Complete Main

  131. Audio #5
  132. ID                                       : 4356 (0x1104)
  133. Menu ID                                  : 1 (0x1)
  134. Format                                   : AC-3
  135. Format/Info                              : Audio Coding 3
  136. Commercial name                          : Dolby Digital
  137. Codec ID                                 : 129
  138. Duration                                 : 1 h 21 min
  139. Bit rate mode                            : Constant
  140. Bit rate                                 : 448 kb/s
  141. Channel(s)                               : 6 channels
  142. Channel layout                           : L R C LFE Ls Rs
  143. Sampling rate                            : 48.0 kHz
  144. Frame rate                               : 31.250 FPS (1536 SPF)
  145. Compression mode                         : Lossy
  146. Delay relative to video                  : 2 s 2 ms
  147. Stream size                              : 261 MiB (1%)
  148. Service kind                             : Complete Main

  149. Audio #6
  150. ID                                       : 4357 (0x1105)
  151. Menu ID                                  : 1 (0x1)
  152. Format                                   : AC-3
  153. Format/Info                              : Audio Coding 3
  154. Commercial name                          : Dolby Digital
  155. Codec ID                                 : 129
  156. Duration                                 : 1 h 21 min
  157. Bit rate mode                            : Constant
  158. Bit rate                                 : 448 kb/s
  159. Channel(s)                               : 6 channels
  160. Channel layout                           : L R C LFE Ls Rs
  161. Sampling rate                            : 48.0 kHz
  162. Frame rate                               : 31.250 FPS (1536 SPF)
  163. Compression mode                         : Lossy
  164. Delay relative to video                  : 2 s 2 ms
  165. Stream size                              : 261 MiB (1%)
  166. Service kind                             : Complete Main

  167. Audio #7
  168. ID                                       : 4358 (0x1106)
  169. Menu ID                                  : 1 (0x1)
  170. Format                                   : AC-3
  171. Format/Info                              : Audio Coding 3
  172. Commercial name                          : Dolby Digital
  173. Codec ID                                 : 129
  174. Duration                                 : 1 h 21 min
  175. Bit rate mode                            : Constant
  176. Bit rate                                 : 448 kb/s
  177. Channel(s)                               : 6 channels
  178. Channel layout                           : L R C LFE Ls Rs
  179. Sampling rate                            : 48.0 kHz
  180. Frame rate                               : 31.250 FPS (1536 SPF)
  181. Compression mode                         : Lossy
  182. Delay relative to video                  : 2 s 2 ms
  183. Stream size                              : 261 MiB (1%)
  184. Service kind                             : Complete Main

  185. Audio #8
  186. ID                                       : 4359 (0x1107)
  187. Menu ID                                  : 1 (0x1)
  188. Format                                   : AC-3
  189. Format/Info                              : Audio Coding 3
  190. Commercial name                          : Dolby Digital
  191. Codec ID                                 : 129
  192. Duration                                 : 1 h 21 min
  193. Bit rate mode                            : Constant
  194. Bit rate                                 : 256 kb/s
  195. Channel(s)                               : 2 channels
  196. Channel layout                           : L R
  197. Sampling rate                            : 48.0 kHz
  198. Frame rate                               : 31.250 FPS (1536 SPF)
  199. Compression mode                         : Lossy
  200. Delay relative to video                  : 2 s 2 ms
  201. Stream size                              : 149 MiB (0%)
  202. Service kind                             : Complete Main

  203. Audio #9
  204. ID                                       : 4360 (0x1108)
  205. Menu ID                                  : 1 (0x1)
  206. Format                                   : AC-3
  207. Format/Info                              : Audio Coding 3
  208. Commercial name                          : Dolby Digital
  209. Codec ID                                 : 129
  210. Duration                                 : 1 h 21 min
  211. Bit rate mode                            : Constant
  212. Bit rate                                 : 256 kb/s
  213. Channel(s)                               : 2 channels
  214. Channel layout                           : L R
  215. Sampling rate                            : 48.0 kHz
  216. Frame rate                               : 31.250 FPS (1536 SPF)
  217. Compression mode                         : Lossy
  218. Delay relative to video                  : 2 s 2 ms
  219. Stream size                              : 149 MiB (0%)
  220. Service kind                             : Complete Main

  221. Audio #10
  222. ID                                       : 4361 (0x1109)
  223. Menu ID                                  : 1 (0x1)
  224. Format                                   : AC-3
  225. Format/Info                              : Audio Coding 3
  226. Commercial name                          : Dolby Digital
  227. Codec ID                                 : 129
  228. Duration                                 : 1 h 21 min
  229. Bit rate mode                            : Constant
  230. Bit rate                                 : 256 kb/s
  231. Channel(s)                               : 2 channels
  232. Channel layout                           : L R
  233. Sampling rate                            : 48.0 kHz
  234. Frame rate                               : 31.250 FPS (1536 SPF)
  235. Compression mode                         : Lossy
  236. Delay relative to video                  : 2 s 2 ms
  237. Stream size                              : 149 MiB (0%)
  238. Service kind                             : Complete Main

  239. Audio #11
  240. ID                                       : 4362 (0x110A)
  241. Menu ID                                  : 1 (0x1)
  242. Format                                   : AC-3
  243. Format/Info                              : Audio Coding 3
  244. Commercial name                          : Dolby Digital
  245. Codec ID                                 : 129
  246. Duration                                 : 1 h 21 min
  247. Bit rate mode                            : Constant
  248. Bit rate                                 : 256 kb/s
  249. Channel(s)                               : 2 channels
  250. Channel layout                           : L R
  251. Sampling rate                            : 48.0 kHz
  252. Frame rate                               : 31.250 FPS (1536 SPF)
  253. Compression mode                         : Lossy
  254. Delay relative to video                  : 2 s 2 ms
  255. Stream size                              : 149 MiB (0%)
  256. Service kind                             : Complete Main

  257. Audio #12
  258. ID                                       : 4363 (0x110B)
  259. Menu ID                                  : 1 (0x1)
  260. Format                                   : AC-3
  261. Format/Info                              : Audio Coding 3
  262. Commercial name                          : Dolby Digital
  263. Codec ID                                 : 129
  264. Duration                                 : 1 h 21 min
  265. Bit rate mode                            : Constant
  266. Bit rate                                 : 448 kb/s
  267. Channel(s)                               : 6 channels
  268. Channel layout                           : L R C LFE Ls Rs
  269. Sampling rate                            : 48.0 kHz
  270. Frame rate                               : 31.250 FPS (1536 SPF)
  271. Compression mode                         : Lossy
  272. Delay relative to video                  : 2 s 2 ms
  273. Stream size                              : 261 MiB (1%)
  274. Service kind                             : Complete Main

  275. Audio #13
  276. ID                                       : 4364 (0x110C)
  277. Menu ID                                  : 1 (0x1)
  278. Format                                   : AC-3
  279. Format/Info                              : Audio Coding 3
  280. Commercial name                          : Dolby Digital
  281. Codec ID                                 : 129
  282. Duration                                 : 1 h 21 min
  283. Bit rate mode                            : Constant
  284. Bit rate                                 : 448 kb/s
  285. Channel(s)                               : 6 channels
  286. Channel layout                           : L R C LFE Ls Rs
  287. Sampling rate                            : 48.0 kHz
  288. Frame rate                               : 31.250 FPS (1536 SPF)
  289. Compression mode                         : Lossy
  290. Delay relative to video                  : 2 s 2 ms
  291. Stream size                              : 261 MiB (1%)
  292. Service kind                             : Complete Main

  293. Audio #14
  294. ID                                       : 4365 (0x110D)
  295. Menu ID                                  : 1 (0x1)
  296. Format                                   : AC-3
  297. Format/Info                              : Audio Coding 3
  298. Commercial name                          : Dolby Digital
  299. Codec ID                                 : 129
  300. Duration                                 : 1 h 21 min
  301. Bit rate mode                            : Constant
  302. Bit rate                                 : 448 kb/s
  303. Channel(s)                               : 6 channels
  304. Channel layout                           : L R C LFE Ls Rs
  305. Sampling rate                            : 48.0 kHz
  306. Frame rate                               : 31.250 FPS (1536 SPF)
  307. Compression mode                         : Lossy
  308. Delay relative to video                  : 2 s 2 ms
  309. Stream size                              : 261 MiB (1%)
  310. Service kind                             : Complete Main

  311. Audio #15
  312. ID                                       : 4366 (0x110E)
  313. Menu ID                                  : 1 (0x1)
  314. Format                                   : AC-3
  315. Format/Info                              : Audio Coding 3
  316. Commercial name                          : Dolby Digital
  317. Codec ID                                 : 129
  318. Duration                                 : 1 h 21 min
  319. Bit rate mode                            : Constant
  320. Bit rate                                 : 448 kb/s
  321. Channel(s)                               : 6 channels
  322. Channel layout                           : L R C LFE Ls Rs
  323. Sampling rate                            : 48.0 kHz
  324. Frame rate                               : 31.250 FPS (1536 SPF)
  325. Compression mode                         : Lossy
  326. Delay relative to video                  : 2 s 2 ms
  327. Stream size                              : 261 MiB (1%)
  328. Service kind                             : Complete Main

  329. Text #1
  330. ID                                       : 4768 (0x12A0)
  331. Menu ID                                  : 1 (0x1)
  332. Format                                   : PGS
  333. Codec ID                                 : 144

  334. Text #2
  335. ID                                       : 4769 (0x12A1)
  336. Menu ID                                  : 1 (0x1)
  337. Format                                   : PGS
  338. Codec ID                                 : 144

  339. Text #3
  340. ID                                       : 4770 (0x12A2)
  341. Menu ID                                  : 1 (0x1)
  342. Format                                   : PGS
  343. Codec ID                                 : 144

  344. Text #4
  345. ID                                       : 4771 (0x12A3)
  346. Menu ID                                  : 1 (0x1)
  347. Format                                   : PGS
  348. Codec ID                                 : 144

  349. Text #5
  350. ID                                       : 4772 (0x12A4)
  351. Menu ID                                  : 1 (0x1)
  352. Format                                   : PGS
  353. Codec ID                                 : 144

  354. Text #6
  355. ID                                       : 4773 (0x12A5)
  356. Menu ID                                  : 1 (0x1)
  357. Format                                   : PGS
  358. Codec ID                                 : 144
  359. Delay relative to video                  : 8 s 884 ms

  360. Text #7
  361. ID                                       : 4774 (0x12A6)
  362. Menu ID                                  : 1 (0x1)
  363. Format                                   : PGS
  364. Codec ID                                 : 144

  365. Text #8
  366. ID                                       : 4775 (0x12A7)
  367. Menu ID                                  : 1 (0x1)
  368. Format                                   : PGS
  369. Codec ID                                 : 144

  370. Text #9
  371. ID                                       : 4776 (0x12A8)
  372. Menu ID                                  : 1 (0x1)
  373. Format                                   : PGS
  374. Codec ID                                 : 144

  375. Text #10
  376. ID                                       : 4777 (0x12A9)
  377. Menu ID                                  : 1 (0x1)
  378. Format                                   : PGS
  379. Codec ID                                 : 144

  380. Text #11
  381. ID                                       : 4778 (0x12AA)
  382. Menu ID                                  : 1 (0x1)
  383. Format                                   : PGS
  384. Codec ID                                 : 144

  385. Text #12
  386. ID                                       : 4779 (0x12AB)
  387. Menu ID                                  : 1 (0x1)
  388. Format                                   : PGS
  389. Codec ID                                 : 144

  390. Text #13
  391. ID                                       : 4780 (0x12AC)
  392. Menu ID                                  : 1 (0x1)
  393. Format                                   : PGS
  394. Codec ID                                 : 144

  395. Text #14
  396. ID                                       : 4781 (0x12AD)
  397. Menu ID                                  : 1 (0x1)
  398. Format                                   : PGS
  399. Codec ID                                 : 144

  400. Text #15
  401. ID                                       : 4782 (0x12AE)
  402. Menu ID                                  : 1 (0x1)
  403. Format                                   : PGS
  404. Codec ID                                 : 144

  405. Text #16
  406. ID                                       : 4783 (0x12AF)
  407. Menu ID                                  : 1 (0x1)
  408. Format                                   : PGS
  409. Codec ID                                 : 144

  410. Text #17
  411. ID                                       : 4784 (0x12B0)
  412. Menu ID                                  : 1 (0x1)
  413. Format                                   : PGS
  414. Codec ID                                 : 144

  415. Text #18
  416. ID                                       : 4785 (0x12B1)
  417. Menu ID                                  : 1 (0x1)
  418. Format                                   : PGS
  419. Codec ID                                 : 144

  420. Text #19
  421. ID                                       : 4786 (0x12B2)
  422. Menu ID                                  : 1 (0x1)
  423. Format                                   : PGS
  424. Codec ID                                 : 144

  425. Text #20
  426. ID                                       : 4787 (0x12B3)
  427. Menu ID                                  : 1 (0x1)
  428. Format                                   : PGS
  429. Codec ID                                 : 144

  430. Text #21
  431. ID                                       : 4788 (0x12B4)
  432. Menu ID                                  : 1 (0x1)
  433. Format                                   : PGS
  434. Codec ID                                 : 144

  435. Text #22
  436. ID                                       : 4789 (0x12B5)
  437. Menu ID                                  : 1 (0x1)
  438. Format                                   : PGS
  439. Codec ID                                 : 144

  440. Text #23
  441. ID                                       : 4790 (0x12B6)
  442. Menu ID                                  : 1 (0x1)
  443. Format                                   : PGS
  444. Codec ID                                 : 144

  445. Text #24
  446. ID                                       : 4791 (0x12B7)
  447. Menu ID                                  : 1 (0x1)
  448. Format                                   : PGS
  449. Codec ID                                 : 144
複製代碼
經過轉換的單軌雙層MKV檔(截選前20分鐘):
  1. General
  2. Unique ID                                : 115776339415976230878083270537373873588 (0x5719B63EA3467605E665366F9524F5B4)
  3. Complete name                            : \\Share\Storage\Movies\GOTS08E03-STDL.dvhe.07.06.mkv
  4. Format                                   : Matroska
  5. Format version                           : Version 2
  6. File size                                : 7.77 GiB
  7. Duration                                 : 20 min 0 s
  8. Overall bit rate mode                    : Variable
  9. Overall bit rate                         : 55.6 Mb/s
  10. Movie name                               : GOTS08E03-001
  11. Encoded date                             : UTC 2021-01-16 16:17:58
  12. Writing application                      : MakeMKV v1.15.4 win(x64-release)
  13. Writing library                          : libmakemkv v1.15.4 (1.3.10/1.5.2) win(x64-release)

  14. Video
  15. ID                                       : 1
  16. Format                                   : HEVC
  17. Format/Info                              : High Efficiency Video Coding
  18. Format profile                           : Main [email protected]@High
  19. HDR format                               : Dolby Vision, Version 1.0, dvhe.07.06, BL+EL+RPU, Blu-ray compatible / SMPTE ST 2086, HDR10 compatible
  20. Codec ID                                 : V_MPEGH/ISO/HEVC
  21. Duration                                 : 20 min 0 s
  22. Bit rate                                 : 51.8 Mb/s
  23. Width                                    : 3 840 pixels
  24. Height                                   : 2 160 pixels
  25. Display aspect ratio                     : 16:9
  26. Frame rate mode                          : Constant
  27. Frame rate                               : 23.976 (24000/1001) FPS
  28. Color space                              : YUV
  29. Chroma subsampling                       : 4:2:0 (Type 2)
  30. Bit depth                                : 10 bits
  31. Bits/(Pixel*Frame)                       : 0.260
  32. Stream size                              : 7.23 GiB (93%)
  33. Language                                 : English
  34. Default                                  : No
  35. Forced                                   : No
  36. Color range                              : Limited
  37. Color primaries                          : BT.2020
  38. Transfer characteristics                 : PQ
  39. Matrix coefficients                      : BT.2020 non-constant
  40. Mastering display color primaries        : BT.2020
  41. Mastering display luminance              : min: 0.0001 cd/m2, max: 1000 cd/m2

  42. Audio
  43. ID                                       : 2
  44. Format                                   : MLP FBA 16-ch
  45. Format/Info                              : Meridian Lossless Packing FBA with 16-channel presentation
  46. Commercial name                          : Dolby TrueHD with Dolby Atmos
  47. Codec ID                                 : A_TRUEHD
  48. Duration                                 : 20 min 0 s
  49. Bit rate mode                            : Variable
  50. Bit rate                                 : 3 838 kb/s
  51. Maximum bit rate                         : 5 634 kb/s
  52. Channel(s)                               : 8 channels
  53. Channel layout                           : L R C LFE Ls Rs Lb Rb
  54. Sampling rate                            : 48.0 kHz
  55. Frame rate                               : 1 200.000 FPS (40 SPF)
  56. Bit depth                                : 24 bits
  57. Compression mode                         : Lossless
  58. Stream size                              : 549 MiB (7%)
  59. Title                                    : Surround 7.1
  60. Language                                 : English
  61. Default                                  : Yes
  62. Forced                                   : No
  63. Number of dynamic objects                : 15
  64. Bed channel count                        : 1 channel
  65. Bed channel configuration                : LFE

  66. Text
  67. ID                                       : 3
  68. Format                                   : PGS
  69. Codec ID                                 : S_HDMV/PGS
  70. Codec ID/Info                            : Picture based subtitle format used on BDs/HD-DVDs
  71. Duration                                 : 18 min 13 s
  72. Bit rate                                 : 2 722 b/s
  73. Count of elements                        : 73
  74. Stream size                              : 363 KiB (0%)
  75. Language                                 : Chinese
  76. Default                                  : Yes
  77. Forced                                   : No
複製代碼




被媒體評為2020最佳劇集的【The Mandalorian】自然不會錯過:(杜比視界Profile5版)
  1. General
  2. Complete name                            : \\Share\Storage\Movies\The.Mandalorian.S02E01.2160p.WEB-DL.DDP5.1.Atmos.DV.HEVC-MZABI.mp4
  3. Format                                   : MPEG-4
  4. Format profile                           : Base Media / Version 2
  5. Codec ID                                 : mp42 (mp42/dby1/isom)
  6. File size                                : 8.25 GiB
  7. Duration                                 : 51 min 51 s
  8. Overall bit rate                         : 22.8 Mb/s
  9. Encoded date                             : UTC 2020-11-02 16:16:57
  10. Tagged date                              : UTC 2020-11-02 16:16:57

  11. Video
  12. ID                                       : 1
  13. Format                                   : HEVC
  14. Format/Info                              : High Efficiency Video Coding
  15. Format profile                           : Main [email protected]@Main
  16. HDR format                               : Dolby Vision, Version 1.0, dvhe.05.06, BL+RPU
  17. Codec ID                                 : dvhe
  18. Codec ID/Info                            : High Efficiency Video Coding with Dolby Vision
  19. Duration                                 : 51 min 51 s
  20. Bit rate                                 : 22.0 Mb/s
  21. Width                                    : 3 840 pixels
  22. Height                                   : 2 160 pixels
  23. Display aspect ratio                     : 16:9
  24. Frame rate mode                          : Constant
  25. Frame rate                               : 23.976 (24000/1001) FPS
  26. Color space                              : YUV
  27. Chroma subsampling                       : 4:2:0 (Type 0)
  28. Bit depth                                : 10 bits
  29. Bits/(Pixel*Frame)                       : 0.111
  30. Stream size                              : 7.97 GiB (97%)
  31. Default                                  : Yes
  32. Alternate group                          : 1
  33. Encoded date                             : UTC 2020-11-02 16:16:57
  34. Tagged date                              : UTC 2020-11-02 16:16:57
  35. Color range                              : Full
  36. Codec configuration box                  : hvcC+dvcC

  37. Audio
  38. ID                                       : 2
  39. Format                                   : E-AC-3 JOC
  40. Format/Info                              : Enhanced AC-3 with Joint Object Coding
  41. Commercial name                          : Dolby Digital Plus with Dolby Atmos
  42. Codec ID                                 : ac-3
  43. Duration                                 : 51 min 51 s
  44. Bit rate mode                            : Constant
  45. Bit rate                                 : 768 kb/s
  46. Channel(s)                               : 6 channels
  47. Channel layout                           : L R C LFE Ls Rs
  48. Sampling rate                            : 48.0 kHz
  49. Frame rate                               : 31.250 FPS (1536 SPF)
  50. Compression mode                         : Lossy
  51. Stream size                              : 285 MiB (3%)
  52. Language                                 : English
  53. Service kind                             : Complete Main
  54. Default                                  : Yes
  55. Alternate group                          : 2
  56. Encoded date                             : UTC 2020-11-02 16:16:57
  57. Tagged date                              : UTC 2020-11-02 16:16:57
  58. Complexity index                         : Not present / 16
  59. Number of dynamic objects                : 15
  60. Bed channel count                        : 1 channel
  61. Bed channel configuration                : LFE
複製代碼



4K HLG AAC5.1 MP4檔:
  1. General
  2. Complete name                            : \\Share\Storage\Movies\李玟.2160pHLG.AAC5.1.mp4
  3. Format                                   : MPEG-4
  4. Format profile                           : Base Media
  5. Codec ID                                 : isom (isom/iso2/mp41)
  6. File size                                : 1.83 GiB
  7. Duration                                 : 5 min 38 s
  8. Overall bit rate mode                    : Variable
  9. Overall bit rate                         : 46.3 Mb/s
  10. Writing application                      : Lavf58.53.100

  11. Video
  12. ID                                       : 1
  13. Format                                   : HEVC
  14. Format/Info                              : High Efficiency Video Coding
  15. Format profile                           : Main [email protected]@High
  16. Codec ID                                 : hev1
  17. Codec ID/Info                            : High Efficiency Video Coding
  18. Duration                                 : 5 min 38 s
  19. Source duration                          : 5 min 38 s
  20. Bit rate                                 : 45.3 Mb/s
  21. Width                                    : 3 840 pixels
  22. Height                                   : 2 160 pixels
  23. Display aspect ratio                     : 16:9
  24. Frame rate mode                          : Constant
  25. Frame rate                               : 50.000 FPS
  26. Standard                                 : Component
  27. Color space                              : YUV
  28. Chroma subsampling                       : 4:2:0 (Type 0)
  29. Bit depth                                : 10 bits
  30. Bits/(Pixel*Frame)                       : 0.109
  31. Stream size                              : 1.79 GiB (98%)
  32. Source stream size                       : 1.79 GiB (98%)
  33. Color range                              : Limited
  34. Color primaries                          : BT.2020
  35. Transfer characteristics                 : HLG
  36. Matrix coefficients                      : BT.2020 non-constant
  37. mdhd_Duration                            : 338580
  38. Codec configuration box                  : hvcC

  39. Audio
  40. ID                                       : 2
  41. Format                                   : AAC LC
  42. Format/Info                              : Advanced Audio Codec Low Complexity
  43. Codec ID                                 : mp4a-40-2
  44. Duration                                 : 5 min 38 s
  45. Duration_LastFrame                       : -11 ms
  46. Bit rate mode                            : Variable
  47. Bit rate                                 : 1 005 kb/s
  48. Maximum bit rate                         : 1 024 kb/s
  49. Channel(s)                               : 6 channels
  50. Channel layout                           : C L R Ls Rs LFE
  51. Sampling rate                            : 48.0 kHz
  52. Frame rate                               : 46.875 FPS (1024 SPF)
  53. Compression mode                         : Lossy
  54. Stream size                              : 40.6 MiB (2%)
  55. Default                                  : Yes
  56. Alternate group                          : 1
複製代碼


回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2021-1-23 13:48:02 | 顯示全部樓層
本文最後由 6hzzz 於 2021-1-26 01:29 AM 編輯

不完全總結

經過一週時間的親密接觸,我越發愛上這部UHD3000了,實際的觀賞效果比用HDMI採集轉碼后的效果,要高出無量倍,溫暖豔麗的畫風著實養眼。尤其杜比視界片源,RTD1619DR的Dolby Vision VS10處理引擎功不可沒,就算轉成了SDR輸出,不失真的高飽和度和高對比度,換句話說該亮的地方亮,該暗的地方暗,色彩出得來。就拿流媒體杜比視界版的【The Mandalorian】來說,觀賞體驗就比很多HDR10的UHDBD原盤要來得爽,來得更過癮!而另一個讓我感到驚喜的地方,就是BT.2111的HLG轉SDR,灰度階梯表現非常完美,是目前見到最精准的,沒有之一。

聲音方面,有了ESS9068以及補品元件,再加上環牛線性和開關電源的獨立供電,使得UHD3000的聲音表現,比前輩UHD2000要高出不少,解析力,結像力,音場的營造都有提升。而且,最重要的是,就算長時間聆聽也絕對不會感到厭倦,非常的耐聽。這種體驗是無法通過雲體驗感受到的!所以,各位如果有機會一定要親臨現場,親自聆聽來感受UHD3000的魔力吧!


回覆 支持 1 反對 0

使用道具 舉報


發表於 2021-2-2 13:00:46 | 顯示全部樓層
6hzzz 發表於 2021-1-23 01:48 PM
不完全總結

經過一週時間的親密接觸,我越發愛上這部UHD3000了,實際的觀賞效果比用HDMI採集轉碼后的效果 ...

這總結結得好,完全同意。聲音真的是讚。另外很感謝樓主對於色準的測試,很受用。感激!
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2021-3-23 17:32:32 | 顯示全部樓層
本文最後由 6hzzz 於 2021-4-9 10:47 PM 編輯

UHD3000 v6.1.15|v6.1.15G公測版固件實測










回覆 支持 1 反對 0

使用道具 舉報


發表於 2021-4-10 20:09:55 | 顯示全部樓層
請問有GOOGLE商店嗎?能不能使用TIDAL
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2021-4-10 20:33:14 | 顯示全部樓層
ilss0902 發表於 2021-4-10 08:09 PM
請問有GOOGLE商店嗎?能不能使用TIDAL

回答都是YES!

第一個問題答案在此帖:
芝杜發佈Z9X&Z10PRO&Z1000PRO&UHD3000 v6.2.0|v6.2.0G公測版固件
https://hd.club.tw/thread-271777-1-1.html



第二個問題答案在此帖:
ZIDOO UHD3000 - 芝杜2021影音雙棲Dolby Vision+MQA文武雙全的旗艦之作!
https://hd.club.tw/thread-270308-1-1.html



回覆 支持 反對

使用道具 舉報


發表於 2021-4-11 22:05:46 | 顯示全部樓層
6hzzz 發表於 2021-4-10 08:33 PM
回答都是YES!

第一個問題答案在此帖:

謝謝回覆
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2021-6-18 00:18:28 | 顯示全部樓層
芝杜UHD3000 v6.3.12|v6.3.12G 公测版固件

型号:UHD3000
版本号:v6.3.12
链接:http://apidl.zidoo.tv/uhd3000/v6 ... 554_ota-package.zip
MD5: 7EF09B29D1D8F1322856B7E34C20C75F
升级方式:OTA
版本类型:公测版本

版本号:v6.3.12_G
链接:http://apidl.zidoo.tv/uhd3000/v6 ... 621_ota-package.zip
MD5: F55088EABD10C1EC84C287F695547EDB
升级方式:OTA
版本类型:公测版本

OTA升级教程:https://docs.qq.com/doc/DSkxoZEZmT1dBQ3Rt
更新日志:https://docs.qq.com/doc/DSnRaVXJyalpxY1pN

回覆 支持 反對

使用道具 舉報


發表於 2021-7-2 07:28:12 | 顯示全部樓層
詳盡的測試報告~
用數字說明了,UHD3000強大的性能
除了畫質跟聲音很滿意之外
自己最愛UHD3000的操控性!
回覆 支持 反對

使用道具 舉報


發表於 2021-8-29 13:00:58 | 顯示全部樓層
哇喔好想試試看
可惜我電視只有HDR 10+沒有DV
回覆 支持 反對

使用道具 舉報

您需要登錄後才可以回文 登入 | 註冊

本版積分規則

熱門推薦

Les Années Laser器評Storm Audio風暴ISR Fusion 20 :「一款令人震驚的 20聲道環繞綜合擴大機!」
Les Années Laser器評Sto
Les Années Laser器評Storm Audio風暴ISR Fusion 20 :「一款令
台音/享映台中總部荷蘭Final Audio靜電揚聲器暨Musical Style電源優化處理器媒體發表會參訪實錄
台音/享映台中總部荷蘭Fin
台音/享映台中總部荷蘭Final Audio靜電揚聲器暨Musical Style電
家用投影幕选购一站式指南
家用投影幕选购一站式指南
多少价位以上效果好于白墙?照我的看法,是只要平整度高于白墙
JMGO U2 超短焦投影機入坑
JMGO U2 超短焦投影機入坑
原本只是想汰換客廳的電視,從75吋換到86吋,但網上看著前輩的分
台音、享映、香港Carver與呂文元導演精研影音巨頭高峰會
台音、享映、香港Carver與
台音、享映、香港Carver與呂文元導演精研影音巨頭高峰會 日前由

聯絡我們| 問題反映| 小黑屋| 手機版| Archiver|  本網站特別聘請 蔡家豪律師 為本站法律顧問

快速回覆 返回頂部 返回列表
