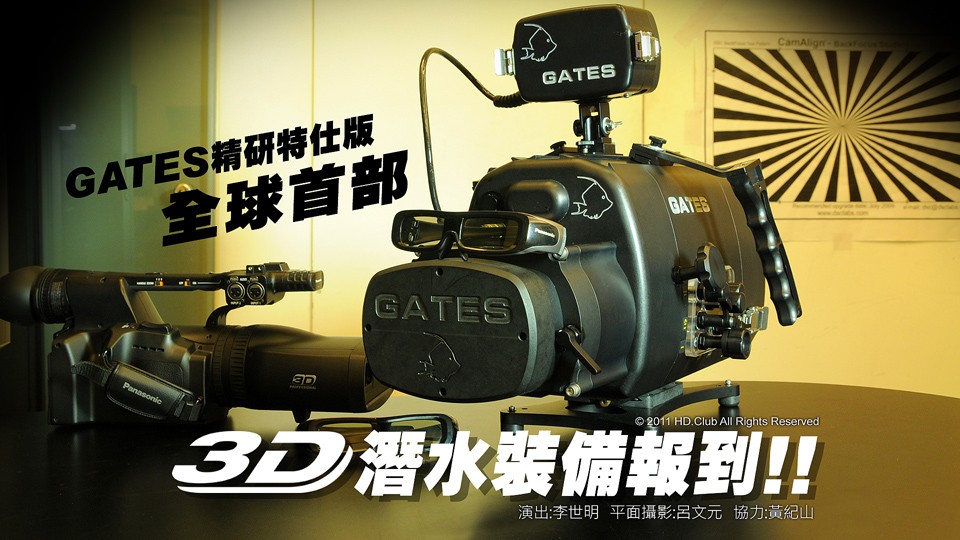

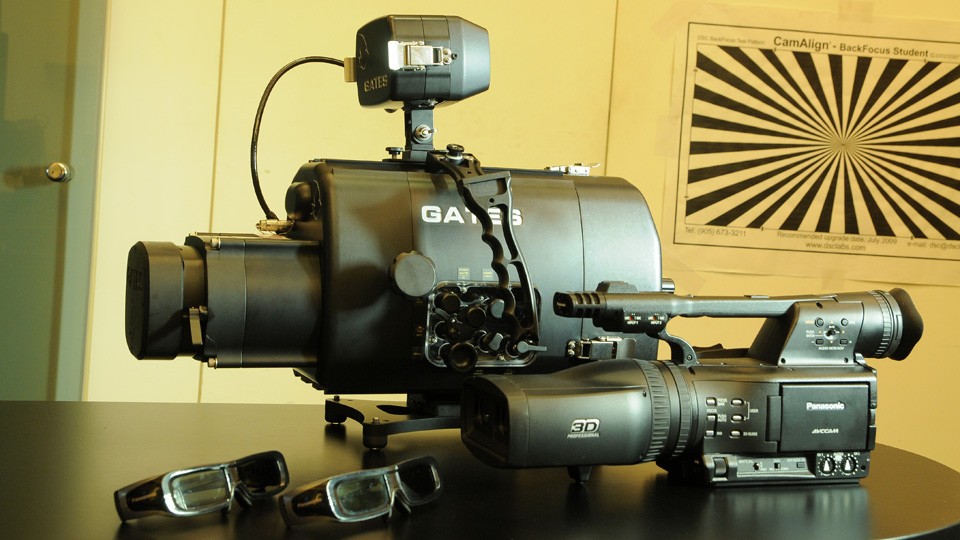

Gates 專為精研打造全球首部3D潛水箱報到

west

自從精研總部入手3DA1之後，一直想著如何拍攝海底3D畫面，經Gates 台灣總代理(海底玩家-明哥)努力下，請Gates 原廠打造了精研專屬3DA1的Housing。
整個過程經過半年來的反覆溝通，不斷的協調、修改，終於於日前完成!!
3D海底拍攝，已付諸行動實現!!

Housing能順利歸來，這部分要特別感謝sam。
重達20多公斤的Housing，sam一個人從香港扛回來。
回到工作室後，整個人已經累癱了!!


終於等到你了!!你也讓我等太久了吧。


Gates的老闆很細心，整個像是保護嬰兒般的層層防護著Housing。

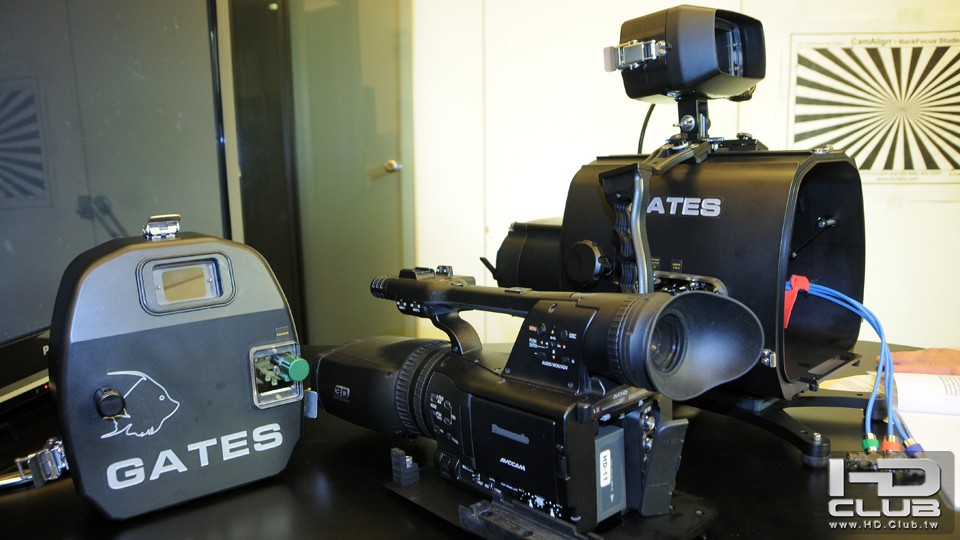

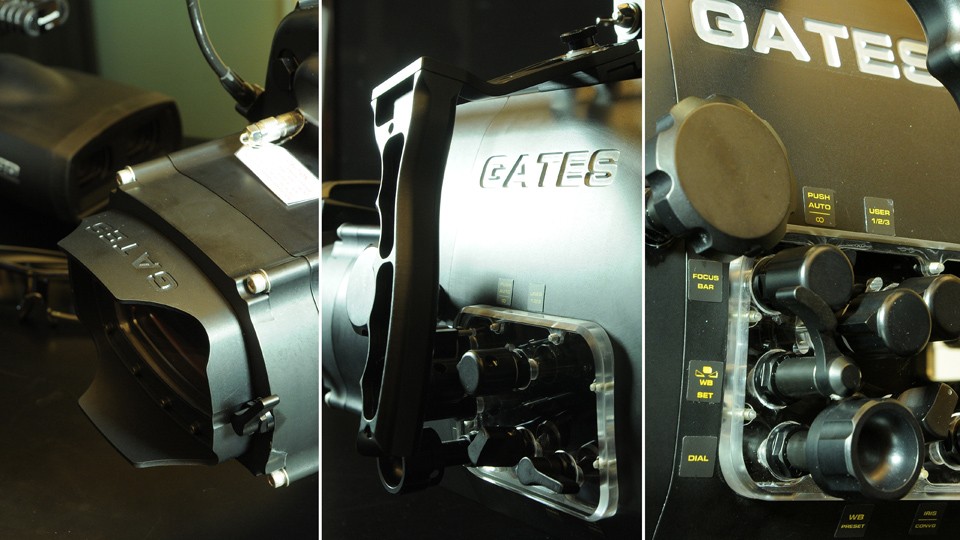

看到了Housing，所有人的辛苦一掃而光!!




















3D海底拍攝，已付諸行動實現!!
未來我跟幾位一樣是海底攝影同好，將會繼續努力記錄台灣海域的海底美景讓各位欣賞。
如果還沒看過精研原創海底影片的朋友，可參考以下連結:
[精研原創]台灣自然生態三部曲之-綺麗海世界(A Gorgeous Ocean World)精華篇

west

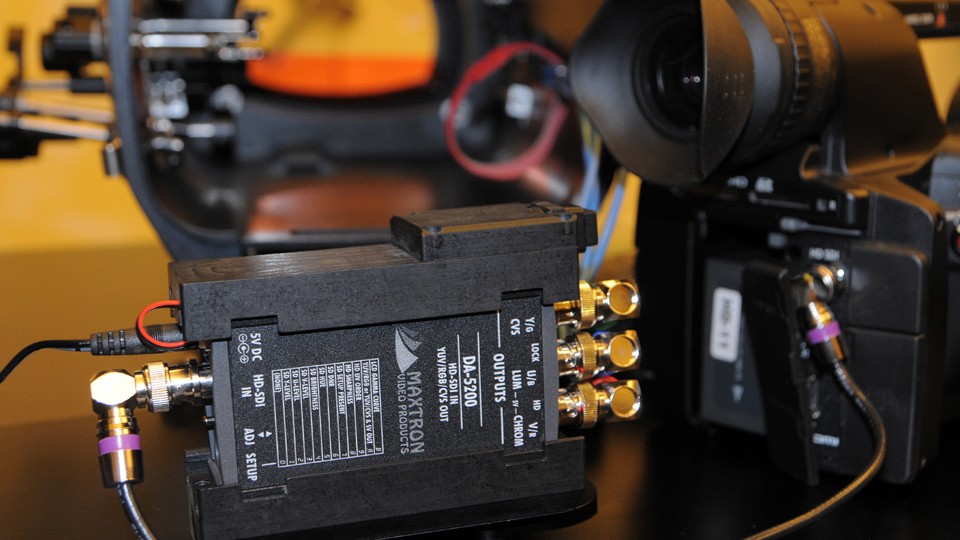

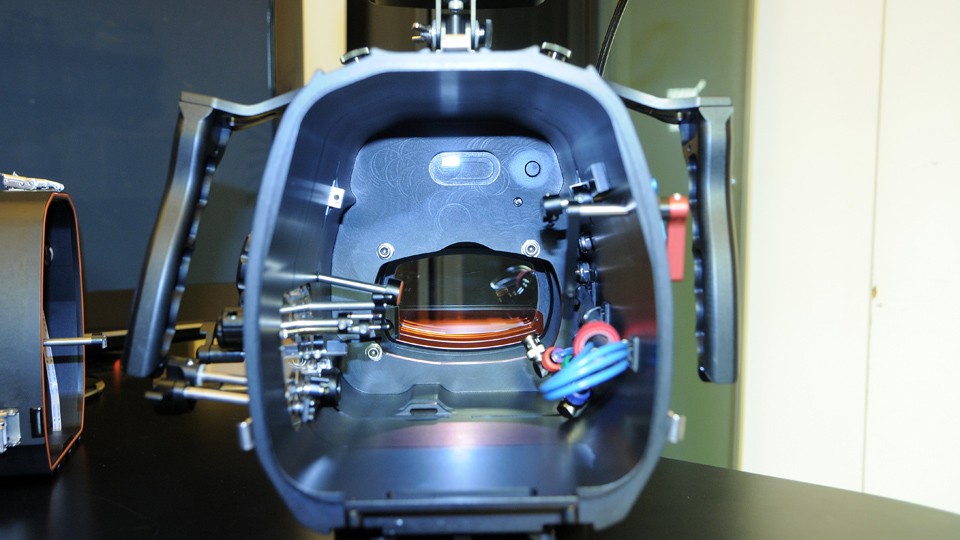

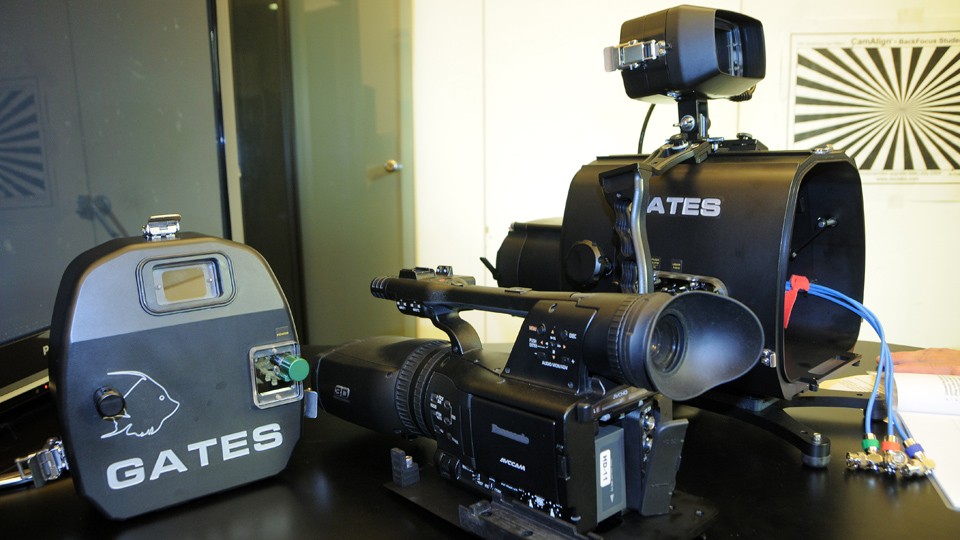

3D High Definition ImagingNew to the Gates family of ‘bulletproof’ housings is the 3DA1, specifically designed for the Panasonic AG-3DA1 3D camera.Professional features include access to all controls including White Balance and Convergence, nano3D support, HD-SDI surface feed, and adjustable trim weights for perfect buoyancy / trim. And the 3DA1 is classic Gates heritage: durable machined aluminum, 100% reliable mechanical controls and 2 year renewable warranty.

Reaching the far corners of the globe, Gates housings are tasked with critical projects extending from marine research and military to television and cinema productions. Experts know that failure is not an option, so they never take a chance…. they take a Gates!

Compatible cameras: Panasonic AG-3DA1


Key Features

Durable "Bulletproof" machined aluminum, black type III 'hard' anodize finish and sealed with a nickel-acetate process.


External Monitor With the EM43 hi-res color monitor, HD framing and focus are easy. (Optional)


Professional Controls Controls such as manual focus, iris and white balance are standard.


Adjustable Buoyancy and Trim Add or remove trim weights for ideal balance -- just the way you like it.

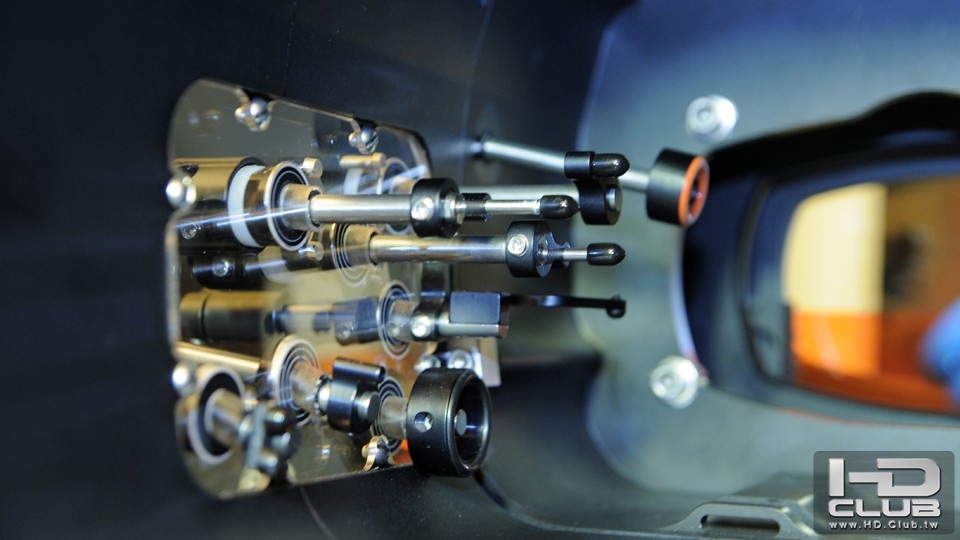

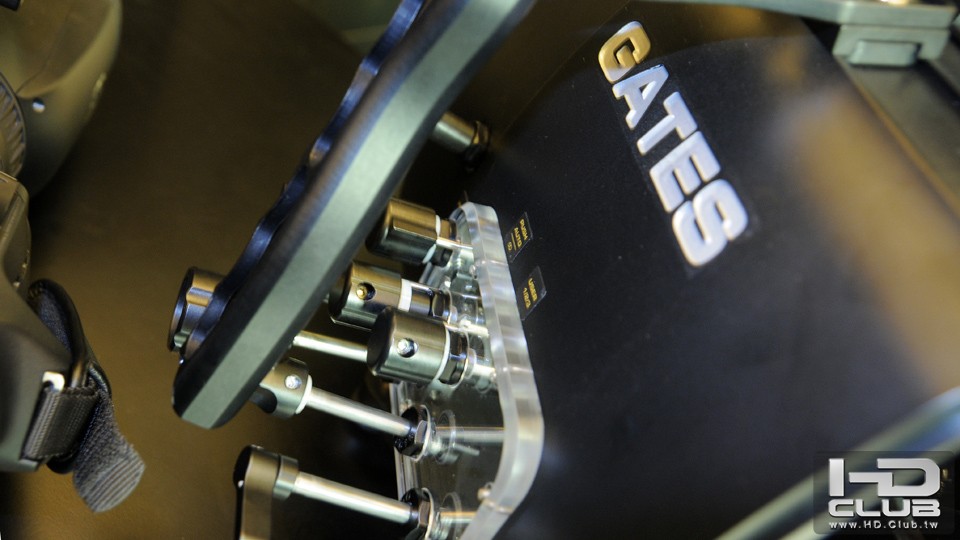

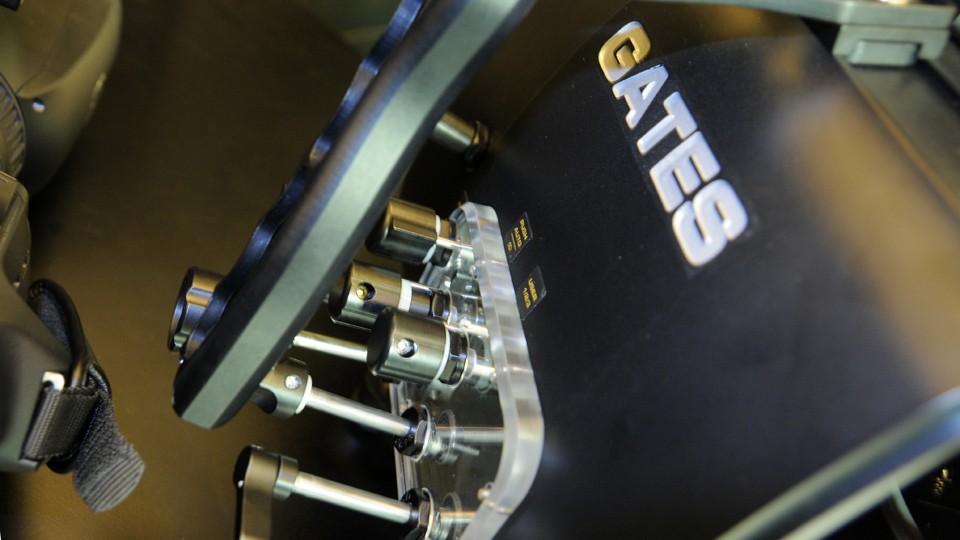

Reliable Controls Fingertip controls are 100% Mechanical -- no sticky buttons, faulty electronics or dead batteries.

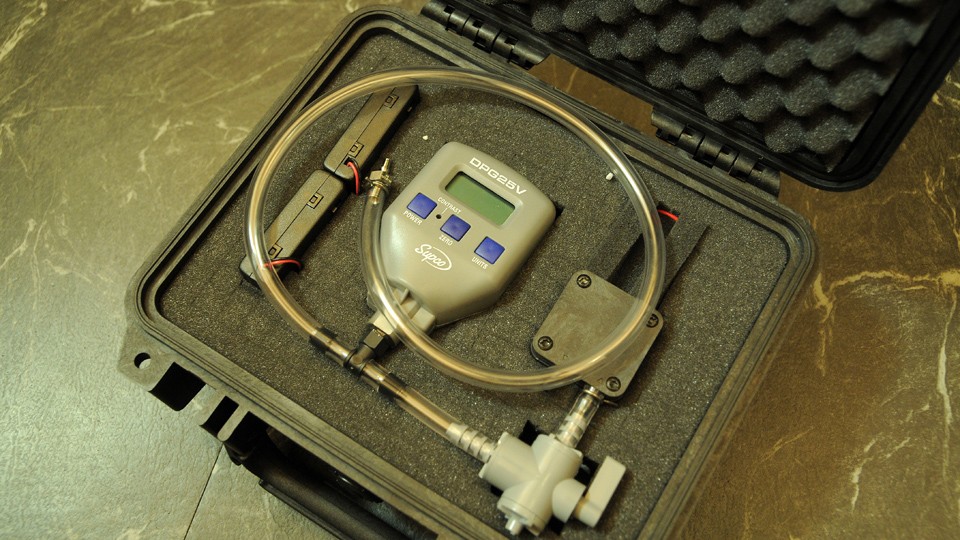

Seal Check Seal Check is included with every 3DA1 and assures housing integrity before entering the water.


2-Year Warranty Only Gates offers a 2-year, renewable warranty on all housings.


Nano 3D Support Hardware and cable accessory available to mount nanoFlash inside of housing

Specifications

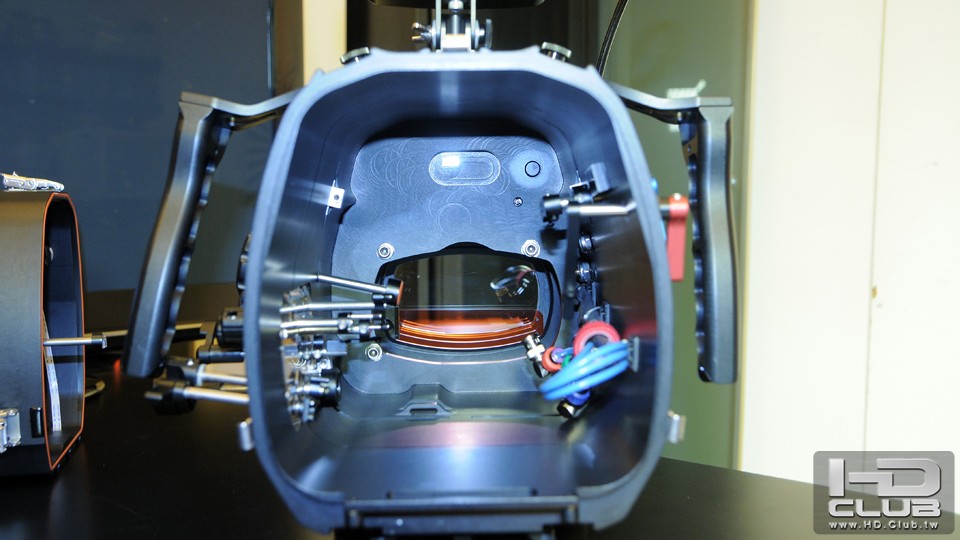

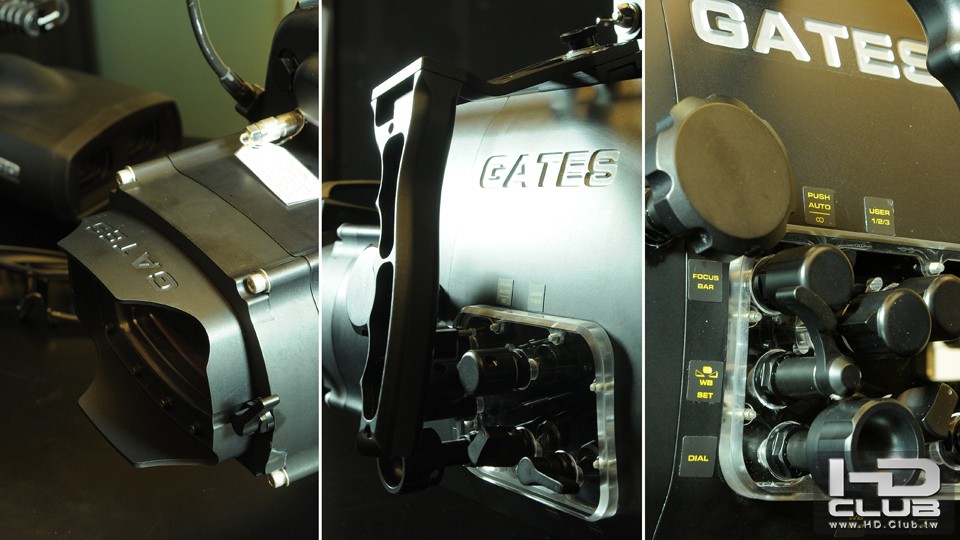

Controls(All Mechanical)
• Power On/Off
• Record / Standby
• Iris / Convergence
• Iris / Conv Dial
• Auto Focus / Infinity
• Internal Flip Color Correction Filter
• User 1/2/3D Guide
• Aoom
• Focus Bar-
• WB Set
• WB Presets
• Manual Focus

Dimensions
• 23" L x 11.5" H x 10.5" W (16" w/handles)
• 58 cm L x 30 cm H x 27 cm W (40 cm w/handles)

Construction
• Machined Aluminum, Type III ‘Hard’ Anodize finish.
• Stainless steel hardware.

Weight
• Dry: 25lbs / 11.3kg (without camera)
• In Water: Slightly negative and adjustable

Depth Rating
• 450 feet / 137 meters

Batteries
• Accepts Panasonic Battery sizes

Warranty
• 2 Years Renewable

Compatible Ports

Flat Port FP55-R Basic Flat Port for shooting 3D.

Learn More

GP55-R Wide Angle Port TBDs.

Video Lights

Gates VL24 LED Powerful, 7000+ Lumens LED Light designed by SubAqua Imaging for Gates. 1hr/2hr burn at full/half power, respectively. Tungsten (3200K) or Daylight (5500K) color available.

alex

佩服佩服，光是在陸地上拍攝3D就已經有一定難度了，還要在水下工作...

為了能增加水下操作的熟練度，接下來是不是該把工作室注滿水，進行實機測驗...

...對不起，去游泳池好了...

asa00322

相信很快就有海底3D影片問世了，真讓人期待啊，

Nano3D support.
Hardware and cables
optionally available to mount
inside the housing.
如果這個也有的話，更讓人驚喜了。

popo

重裝設備到了!! 第二張照片太經典了
應該拍張，帶上防毒面具，手上拿著3DA1Housing拍張照才是阿

alex

相信很快就有海底3D影片問世了，真讓人期待啊，
Nano3D support.
asa00322 發表於 2011-3-24 10:26

我想老大現在應該更希望內部空間能塞的下 Gemini 吧

LibraC

真是佩服到五體投地! ^O^!

好想回HD的老窩喔~~~~~! Orz....

tuyhl

台灣之光啊!!!
3D海底攝影首發就靠你們了!!!
加油黑。

然後防水箱很漂亮，
真的很漂亮。

mingo

不止西楓期待！我也期待很久了!!!!!

從昨天看到Housing防水盒後，不僅比EX1 Housing大且又更長更重.....
看來我不多加練體力都不行啦!

等西楓阿里山陸拍回來，我將帶他下海測試了!!!!!

west

海底3D音樂會又邁入一大步了

johnson_choa

本文章最後由 johnson_choa 於 2011-3-25 11:36 編輯

千呼萬喚始出來，有了這般好武器，精研又邁入了另一個領域。
台灣的好山好水日漸凋零中，再不快加緊腳步紀錄，可能就只能當個傳說中的神話...
加油囉---各位

markleetw

哇！真是有夠高級及夢幻的機器呀！期待能夠看到國人自製的3D海底影片！讚啦！

joewang2003

不僅是精研首發, 更可能是3D Hi-def 海底攝影世界首發, 太期待了!!!

ducati_an

這特別訂製的潛水套件真是～～～～讚
台灣的好山好水～好風景真的就靠精研的各位長輩了～～～

west

難得天氣慢轉好了，這星期就會安排第一次下水試拍了。
希望一切都順利!!

TheSinker

窩  好強悍的感覺,期待海底的大作出現!!

johnson0930

非常期待,真想能夠盡快看到海底的3D,期待程度100分.....
精研!加油加油加油!!.....

mantosu

有欠腳手嗎?
手有點癢.....(雖然我是旱鴨子@@")

west

7月5日。3DA1第五次綠島下海拍攝大成功!!

WEI

上次看到西楓大的劉真3D與台灣風景名勝3D片段, 其效果已經超越國際, 期待這次的海底3D啊
