Mini HTPC MB.....(補開箱)

szyuan · 發表於 2008-8-6 09:37:31

馬上註冊，結交更多好友，享用更多功能，讓你輕鬆玩轉社區。

您需要登錄才可以下載或查看，沒有賬號？註冊

x

用AMD 780G的mini-ITX MB(onboard 128MB VGA memory)
J&W MINIX™ 780G-SP128MB
http://www.jwele.com/motherboard_detail.php?419#_view
已有討論區要開團購了..(神蹟兄)
未避免廣告嫌疑......有需要但不知門路請PM......

Specification

Processor	Socket AM2+/AM2 for AMD Phenom™FX / AMD Phenom™* / AMD Athlon™ 64 FX / AMD Athlon™ 64 X2 / AMD Athlon™ 64 / AMD Sempron™ processors *(Please note: Although this motherboard may support processors up to maximum 95W TDP**, we STRONGLY recommend users to use processor of 65W or less for HTPC application since most mini-ITX/ HTPC casing and low-profile coolers have limited heat dissipation capability which would affect stability of the whole system under long-term usage.)
Chipset	AMD® 780G + SB700 (Built in Radeon™ HD 3200 Graphics, DirectX® 10 Ready, with 128MB side-port DDR2 memory onboard) Marvell® 10/100/1000 Mbps Ethernet Controller Super I/O: Winbond W83627EHG chip Realtek ALC 885 HD Audio Codec (Please check with your local distributor) 8Mbit flash ROM
HyperTransport™	HyperTransport™ 3.0/1.0, 5200/2000 MT/s
Memory	2 SODIMMs, Dual Channel DDR2 1066/800/667/533 support (DDR2 1066 support is dependent on CPU and market supply of DDR2 1066 SODIMMs) Max capacity: 4 GB DIMM slots: 2
Internal I/O Connectors	1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 1 x IDE connector (for 2 PATA devices) 4 x SATA 3Gb/s connectors (Support RAID 0,1,0+1) 1 x CPU fan connector 1 x chipset fan connector 1 x system fan connector 1 x front panel connector 1 x front audio connector 2 x USB 2.0 header for additional 4 USB 2.0 ports (by cables) 1 x buzzer connector 1 x COM header 1 x IR connector 1 x iPartner™ Control Centre header
Expansion Slot	1 x PCI-E x16 slot (support up to x4)
Rear Panel I/O	1 x PS/2 Keyboard port 1 x HDMI port 1 x DVI port 1 x VGA port 1 x eSATA port 2 x S/PDIF ports (Coaxial In, Optical Out) 6 x USB 2.0 ports 1 x RJ45 GigaLAN port 6 x Audio ports (Line In / Line Out / MIC In/ Rear Speaker Out / Center-Subwoofer Speaker Out / Side Speaker Out)
Form Factor	Mini-ITX 170 x 170mm
H/W Monitoring	Winbond W83627EHG System health status auto-detect and reported by BIOS
BIOS	8 Mbit flash ROM, AMI BIOS
Bundle Software	Driver and Utility disc
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. This product does not support Win9X/ME. 100% Solid Capacitors This board does not support the 125W TDP Phenom™ Quad Core/ Athlon™ X2 Processors.

szyuan · 發表於 2008-8-30 00:41:10

終於等到板子飄洋過海來了....

1.外盒的包裝與一般主機板不同,走的是精品路線!!

2.抽拉式的內盒!!

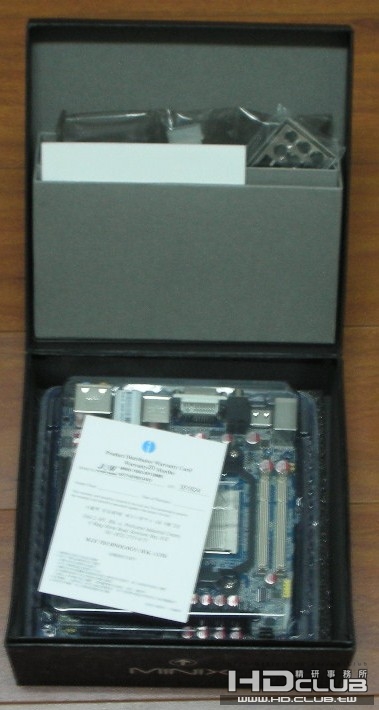

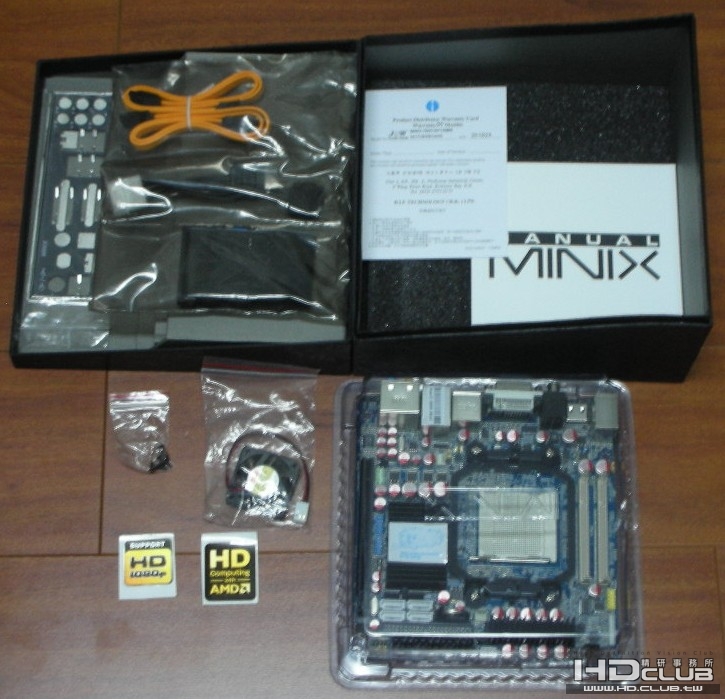

3.掀起上蓋來,配件擺上層還有隔間,主板一掀開..一目了然!!

4.高裝檢陳列式,還附上一小風扇.

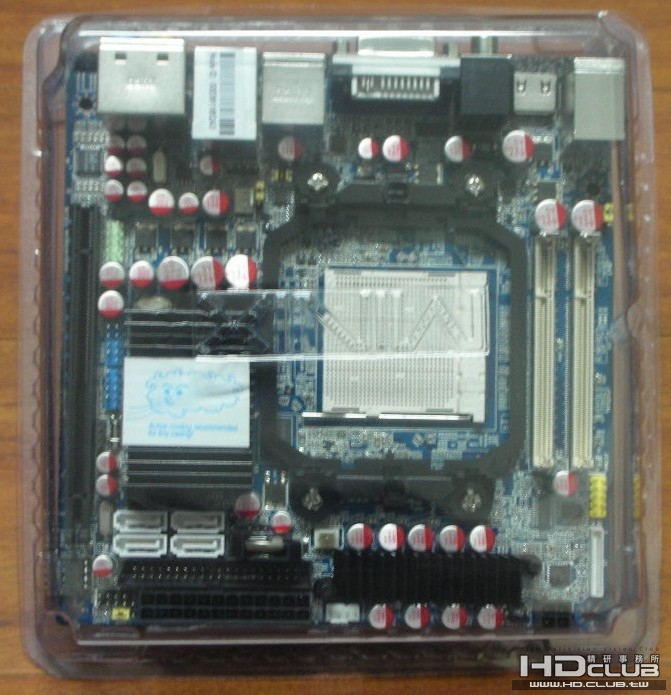

5.主板還有帶套......一整個有精緻的Feel~~~~

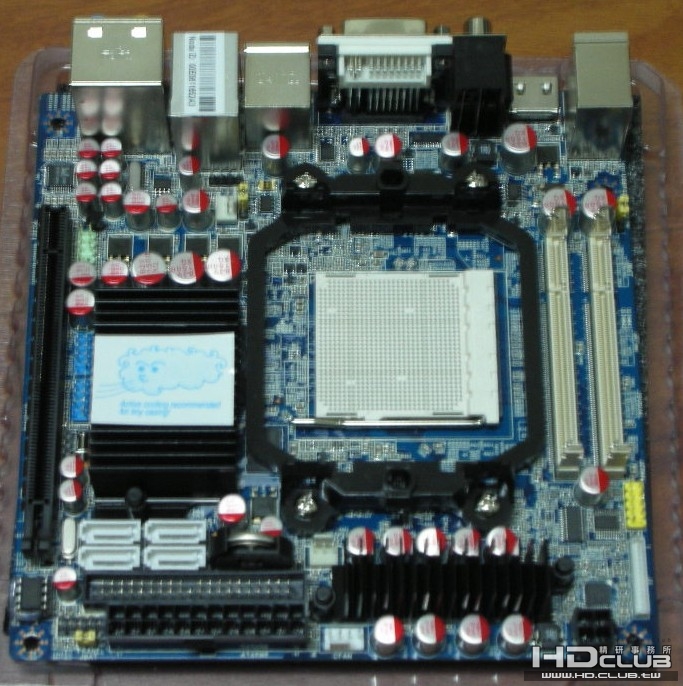

6.開包~正視圖!!

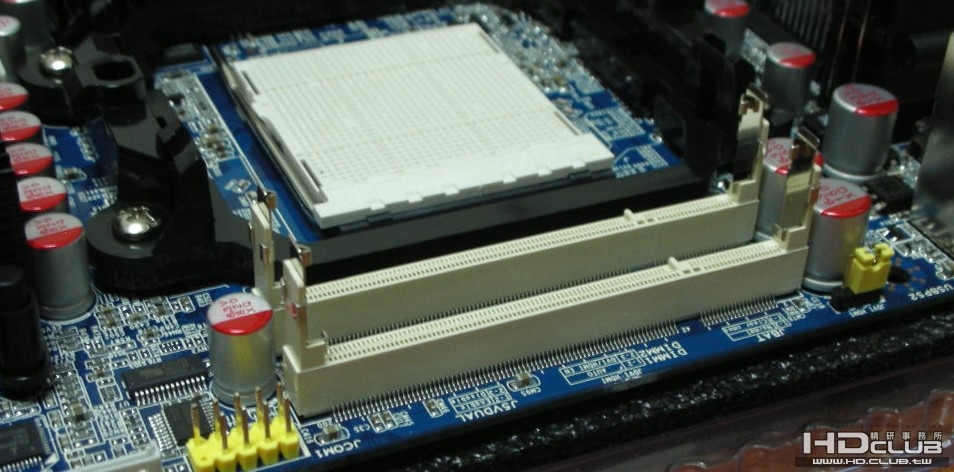

7.SO-DIMM的DDRII~

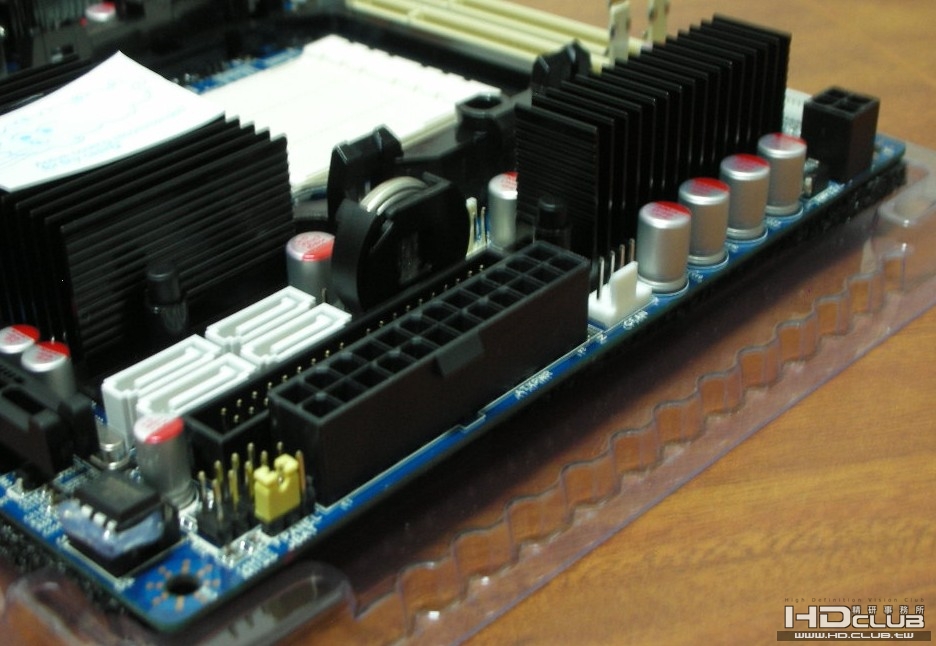

8.電源屁屁~電池是採直立的,BIOS用熱溶膠固定....

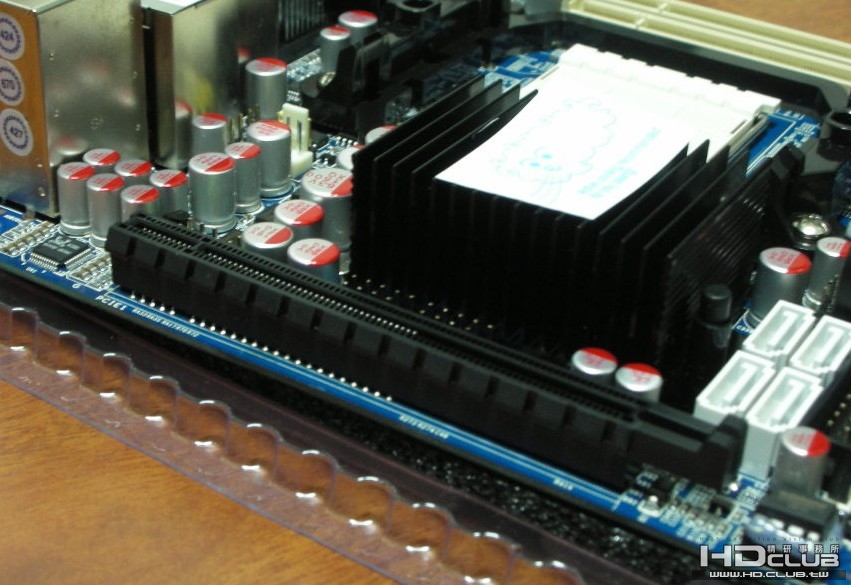

9.PCI-E x16 Slot,SPEC上是寫support x4而已,但注意看Pin腳.....好像是x8的????

szyuan · 發表於 2008-8-30 00:41:46

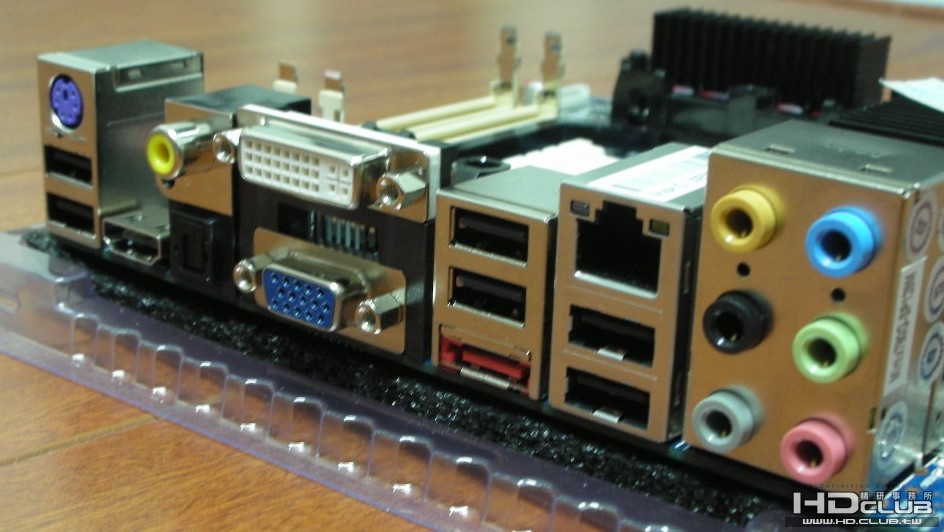

10.I/O Port....該有的都有,一樣也沒少!!

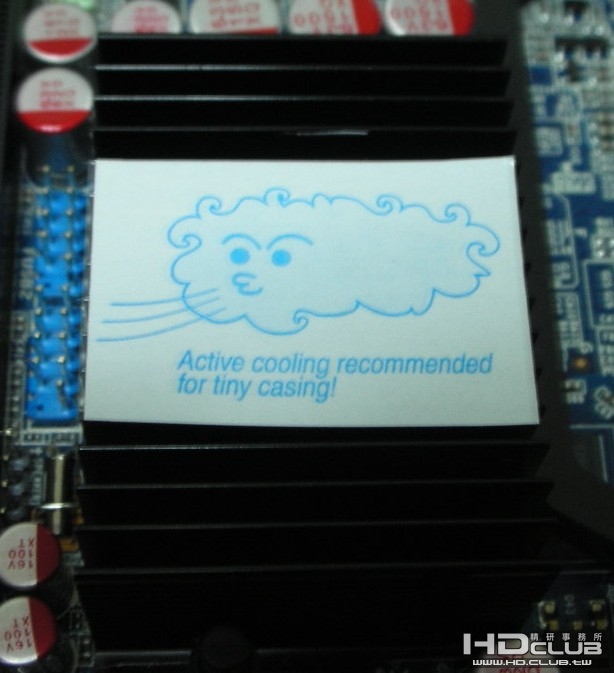

11.南北橋的散熱片.....細心的提醒你不要忘記吹它幫它散熱..(應該不會有人直接想用嘴巴來吹吧???)

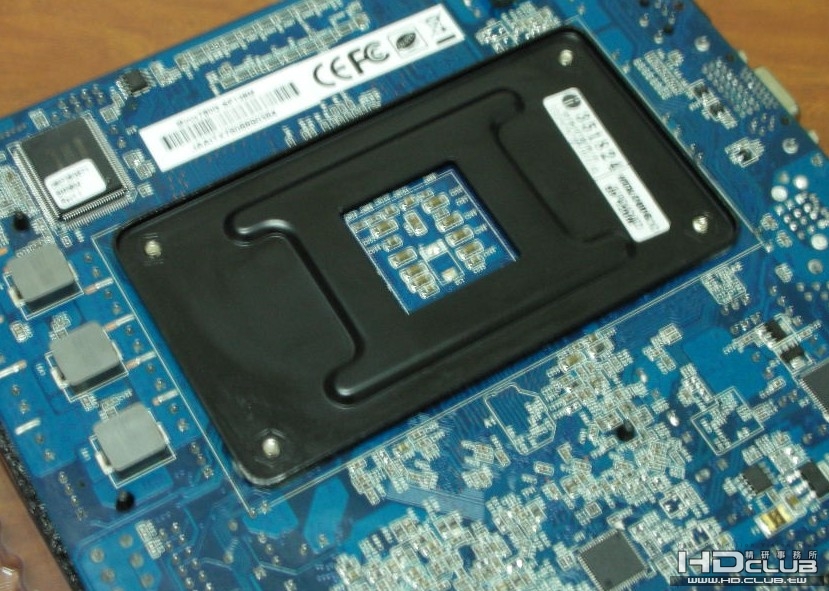

12.CPU背板底座是用鐵片,不是廉價的塑膠材質!!減低長時間使用造成板彎的現象!!

不知這家捷威是否為台商??!!
如果不是........那國內的一線大廠真的是.............
這樣的規格與包裝,在國內會沒市場嗎??!!
那些PM、業務真應該好好想想!!

[ 本帖最後由 szyuan 於 2008-8-30 01:01 編輯 ]

jango · 發表於 2008-8-30 03:24:46

呃，總部在廣東省深圳，叫杰微，台灣的譯名應該不一樣。97年成立的小公司，現在業務做到全球鳥，也擁有屬於自己的加工廠。

darrenwang · 發表於 2008-8-30 10:22:21

請問, 3/4核的CPU支援嗎?

chanp · 發表於 2008-8-30 10:58:20

原帖由 darrenwang 於 2008-8-30 10:22 發表
請問, 3/4核的CPU支援嗎?

1樓:
Please note: Although this motherboard may support processors up to maximum 95W TDP, we STRONGLY recommend users to use processor of 65W or less for HTPC application since most mini-ITX/ HTPC casing and low-profile coolers have limited heat dissipation capability which would affect stability of the whole system under long-term usage.)

不要超過95W TDP，就可以上機
