今天有幸參觀了一下這台神器, 從 HDMI 的 EDID 資訊來看, 發現了幾個有趣的地方
Model name............... VPL-VW1000ES
Manufacturer............. Sony
Plug and Play ID......... SNYB4F3
Serial number............ n/a
Manufacture date......... 2011, ISO week 49
Filter driver............ None
-------------------------
EDID revision............ 1.3
Input signal type........ Digital
Color bit depth.......... Undefined
Display type............. RGB color
Screen size.............. 2240 x 1190 mm
Power management......... Not supported
Extension blocs.......... 1 (CEA-EXT)
-------------------------
DDC/CI................... Not supported
Color characteristics
Default color space...... Non-sRGB
Display gamma............ 2.20
Red chromaticity......... Rx 0.682 - Ry 0.317
Green chromaticity....... Gx 0.287 - Gy 0.696
Blue chromaticity........ Bx 0.142 - By 0.052
White point (default).... Wx 0.313 - Wy 0.329
Additional descriptors... None
Timing characteristics
Horizontal scan range.... 15-68kHz
Vertical scan range...... 23-64Hz
Video bandwidth.......... 150MHz
CVT standard............. Not supported
GTF standard............. Not supported
Additional descriptors... None
Preferred timing......... Yes
Native/preferred timing.. 1920x1080p at 60Hz
Modeline............... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync
Detailed timing #1....... 1280x768p at 60Hz
Modeline............... "1280x768" 79.500 1280 1344 1472 1664 768 771 778 798 -hsync +vsync
Standard timings supported
720 x 400p at 70Hz - IBM VGA
640 x 480p at 60Hz - IBM VGA
800 x 600p at 60Hz - VESA
1024 x 768p at 60Hz - VESA
1400 x 1050p at 60Hz - VESA STD
1280 x 1024p at 60Hz - VESA STD
1280 x 960p at 60Hz - VESA STD
EIA/CEA-861 Information
Revision number.......... 3
IT underscan............. Supported
Basic audio.............. Not supported
YCbCr 4:4:4.............. Supported
YCbCr 4:2:2.............. Supported
Native formats........... 0
Detailed timing #1....... 1920x1080p at 50Hz
Modeline............... "1920x1080" 148.500 1920 2448 2492 2640 1080 1084 1089 1125 +hsync +vsync
Detailed timing #2....... 1920x1080i at 60Hz
Modeline............... "1920x1080" 74.250 1920 2008 2052 2200 1080 1084 1094 1124 interlace +hsync +vsync
Detailed timing #3....... 720x480p at 60Hz
Modeline............... "720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync
Detailed timing #4....... 720x576p at 50Hz
Modeline............... "720x576" 27.000 720 732 796 864 576 581 586 625 -hsync -vsync
CE video identifiers (VICs) - timing/formats supported
1920 x 1080p at 60Hz - HDTV (16:9, 1:1)
1920 x 1080p at 50Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080i at 60Hz - HDTV (16:9, 1:1)
1920 x 1080i at 50Hz - HDTV (16:9, 1:1)
1280 x 720p at 60Hz - HDTV (16:9, 1:1)
1280 x 720p at 50Hz - HDTV (16:9, 1:1)
720 x 480p at 60Hz - EDTV (16:9, 32:27)
720 x 576p at 50Hz - EDTV (16:9, 64:45)
720 x 480i at 60Hz - Doublescan (16:9, 32:27)
720 x 576i at 50Hz - Doublescan (16:9, 64:45)
640 x 480p at 60Hz - Default (4:3, 1:1)
NB: NTSC refresh rate = (Hz*1000)/1001
CE vendor specific data (VSDB)
IEEE registration number. 0x000C03
CEC physical address..... 1.0.0.0
Supports AI (ACP, ISRC).. Yes
Supports 48bpp........... No
Supports 36bpp........... Yes
Supports 30bpp........... Yes
Supports YCbCr 4:4:4..... Yes
Supports dual-link DVI... No
Maximum TMDS clock....... 300MHz
Video latency (p)........ 55ms
Audio latency (p)........ n/a
Video latency (i)........ 55ms
Audio latency (i)........ n/a
HDMI video capabilities.. Yes
EDID screen size......... Correct aspect ratio, but approximate size
3D formats supported..... Mandatory formats only
Data payload............. 030C001000B83CE01CFF1CFFC888010203040140006338104810
CE colorimetry data
xvYCC709 support......... Yes
xvYCC601 support......... Yes
sYCC601 support.......... No
AdobeYCC601 support...... No
AdobeRGB support......... Yes
Metadata profile flags... 0x01
CE video capability data
CE scan behavior......... Supports overscan and underscan
IT scan behavior......... Always underscanned
PT scan behavior......... Supports overscan and underscan
RGB quantization range... Selectable (via AVI YQ)
YCC quantization range... Not supported
Report information
Date generated........... 2012/2/25
Software revision........ 2.60.0.962
Data source.............. Real-time 0x0041
Operating system......... 6.1.7601.2.Service Pack 1
Raw data
00,FF,FF,FF,FF,FF,FF,00,4D,D9,F3,B4,01,01,01,01,31,15,01,03,80,E0,77,78,0A,99,55,AE,51,49,B2,24,
0D,50,54,A1,08,00,90,40,81,80,81,40,01,01,01,01,01,01,01,01,01,01,02,3A,80,18,71,38,2D,40,58,2C,
45,00,00,00,00,00,00,1E,0E,1F,00,80,51,00,1E,30,40,80,37,00,00,00,00,00,00,1C,00,00,00,FD,00,17,
40,0F,44,0F,00,0A,20,20,20,20,20,20,00,00,00,FC,00,56,50,4C,2D,56,57,31,30,30,30,45,53,0A,01,B4,
02,03,33,B0,4C,10,1F,20,05,14,04,13,03,12,07,16,01,7A,03,0C,00,10,00,B8,3C,E0,1C,FF,1C,FF,C8,88,
01,02,03,04,01,40,00,63,38,10,48,10,E3,05,13,01,E2,00,7B,02,3A,80,D0,72,38,2D,40,10,2C,45,80,00,
00,00,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,00,00,00,00,00,9E,8C,0A,D0,8A,20,E0,2D,10,10,
3E,96,00,00,00,00,00,00,18,8C,0A,D0,90,20,40,31,20,0C,40,55,00,00,00,00,00,00,18,00,00,00,00,75
---------------------------
Hardware data
BUS_SLOT = PCI00000.PCI00004.PCI00008.PCI0000C.PCI00010.PCI00014.PCI00018.PCI0001C
00000000 = 01048086.20900006.06000009.00000000.00000000.00000000.00000000.00000000
00000008 = 01018086.00100007.06040009.00810010.00000000.00000000.00010100.20002020
00000010 = 01168086.00900407.03000009.00000000.F1400004.00000000.E000000C.00000000
000000B0 = 1C3A8086.00100006.07800004.00800000.F1B05004.00000000.00000000.00000000
000000D0 = 1C2D8086.02900006.0C032004.00000000.F1B0A000.00000000.00000000.00000000
000000D8 = 1C208086.00100006.04030004.00000010.F1B00004.00000000.00000000.00000000
000000E0 = 1C108086.00100004.060400B4.00810010.00000000.00000000.00020200.200000F0
000000E8 = 1C268086.02900006.0C032004.00000000.F1B09000.00000000.00000000.00000000
000000F8 = 1C498086.02100007.06010004.00800000.00000000.00000000.00000000.00000000
000000FA = 1C038086.02B00007.01060104.00000000.00003089.00003095.00003081.00003091
000000FB = 1C228086.02800003.0C050004.00000000.F1B04004.00000000.00000000.00000000
00000300 = 002E168C.00100400.02800001.00000010.F1A00004.00000000.00000000.00000000
00000400 = 16B514E4.00100406.02000010.00800010.F180000C.00000000.F181000C.00000000
00000401 = 16BC14E4.00100006.08050110.00800010.F182000C.00000000.00000000.00000000
00000402 = 16BE14E4.00100006.08800010.00800010.F183000C.00000000.00000000.00000000
00000403 = 16BF14E4.00100006.08800010.00800010.F184000C.00000000.00000000.00000000
00000500 = 01941033.00100406.0C033004.00000010.F1900004.00000000.00000000.00000000
--------
01040000 = 00FFFFFF.FFFFFF00.4DD9F3B4.01010101.31150103.80E07778.0A9955AE.5149B224
00000020 = 0D5054A1.08009040.81808140.01010101.01010101.0101023A.80187138.2D40582C
00000040 = 45000000.0000001E.0E1F0080.51001E30.40803700.00000000.001C0000.00FD0017
00000060 = 400F440F.000A2020.20202020.000000FC.0056504C.2D565731.30303045.530A01B4
01040100 = 020333B0.4C101F20.05140413.03120716.017A030C.001000B8.3CE01CFF.1CFFC888
00000020 = 01020304.01400063.38104810.E3051301.E2007B02.3A80D072.382D4010.2C458000
00000040 = 00000000.1E011D80.18711C16.20582C25.00000000.00009E8C.0AD08A20.E02D1010
00000060 = 3E960000.00000000.188C0AD0.90204031.200C4055.00000000.00001800.00000075
Serial number............ n/a
續號雖然不是必備項目, 但是很少出現有宣告但卻標示n/a, 或許是樣機, 所以不便標示?
Native/preferred timing.. 1920x1080p at 60Hz
原生竟然沒標示 4K, 還是設定在 1080p60
Maximum TMDS clock....... 300MHz
TMDS clock 如果只需要 1920 x 1080 at 60Hz, 165MHz 就夠了, 如果加上 x.v.Color 廣色域, 225MHz 也就足夠
這台支援能到 300MHz , 確實有到 4K 等級的部分
3D formats supported..... Mandatory formats only
沒有支援額外的 3D 解析度, 只有強制性支援項目. 這台應該沒有支援 Side by Side / Top-and-Bottom 的 3D 格式吧?

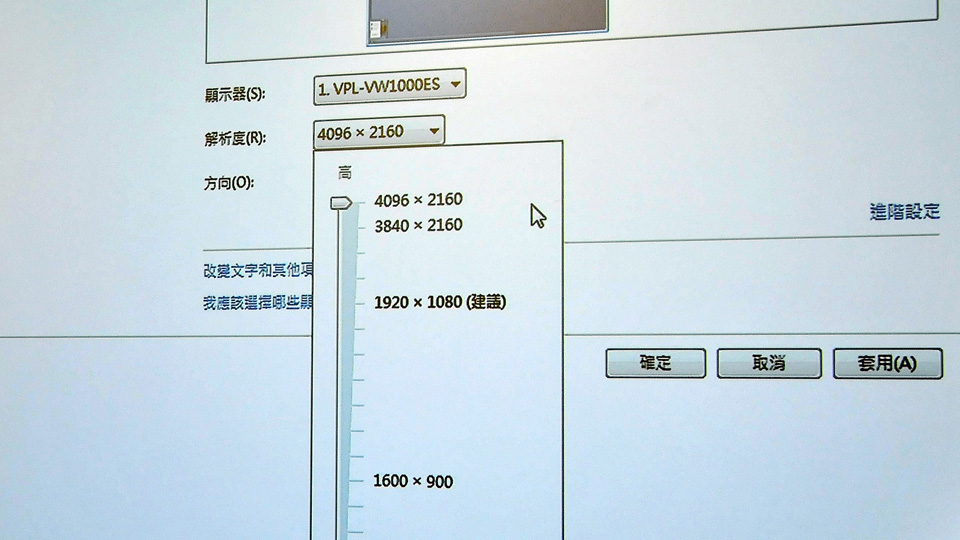

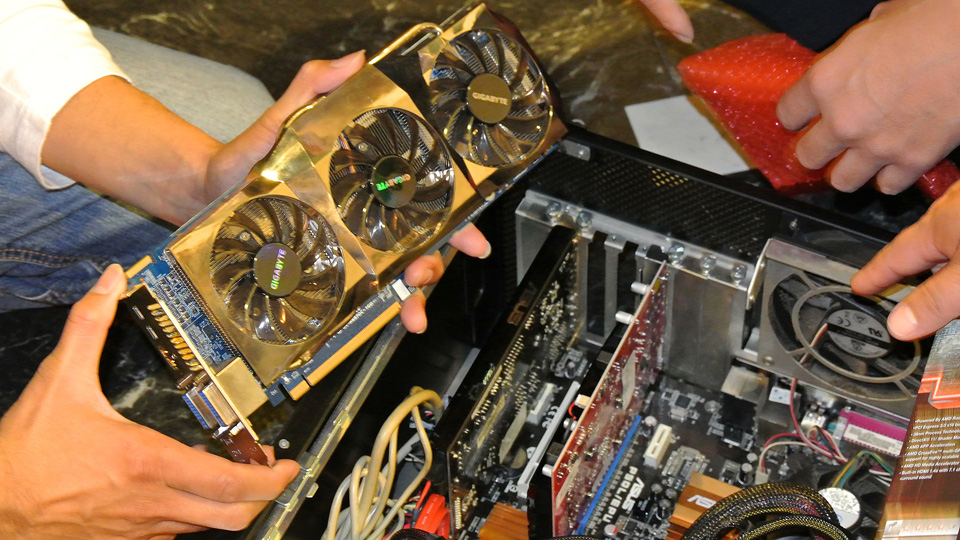

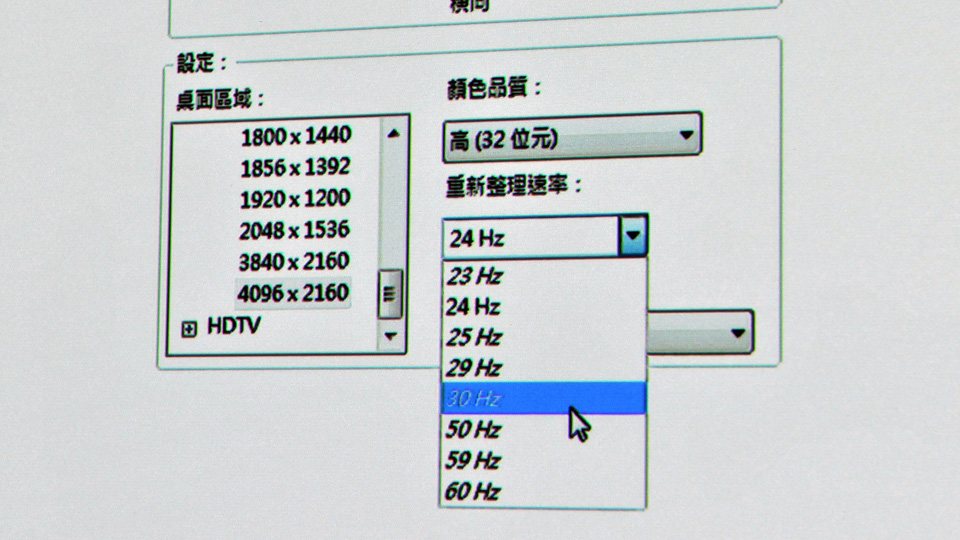

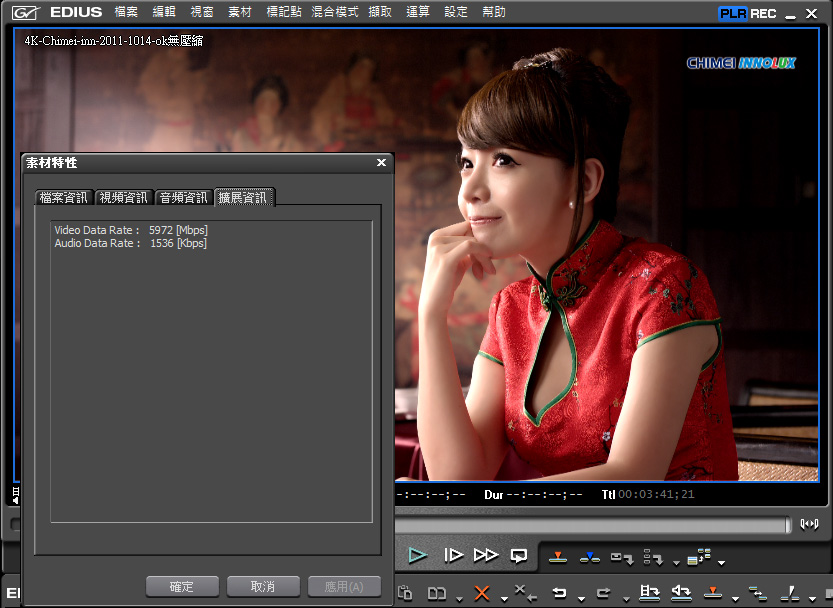

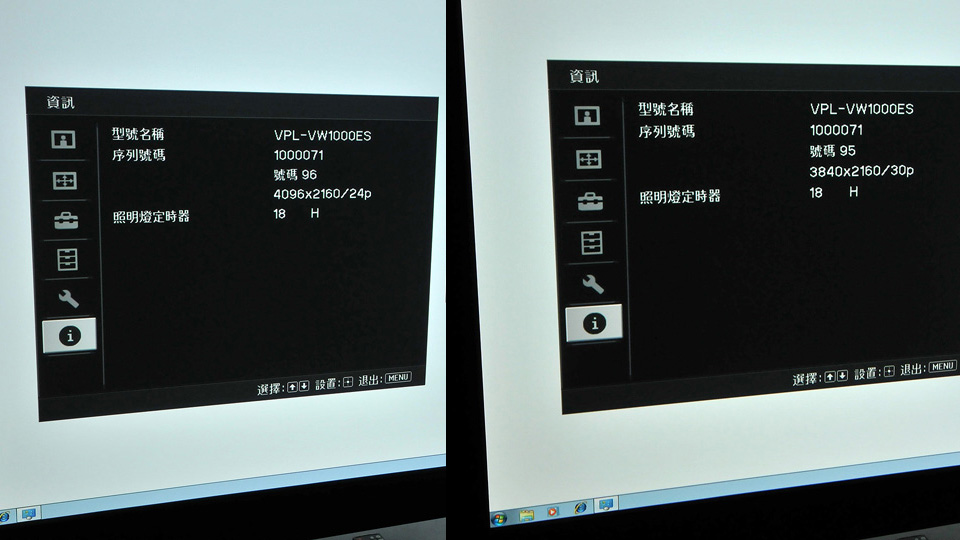

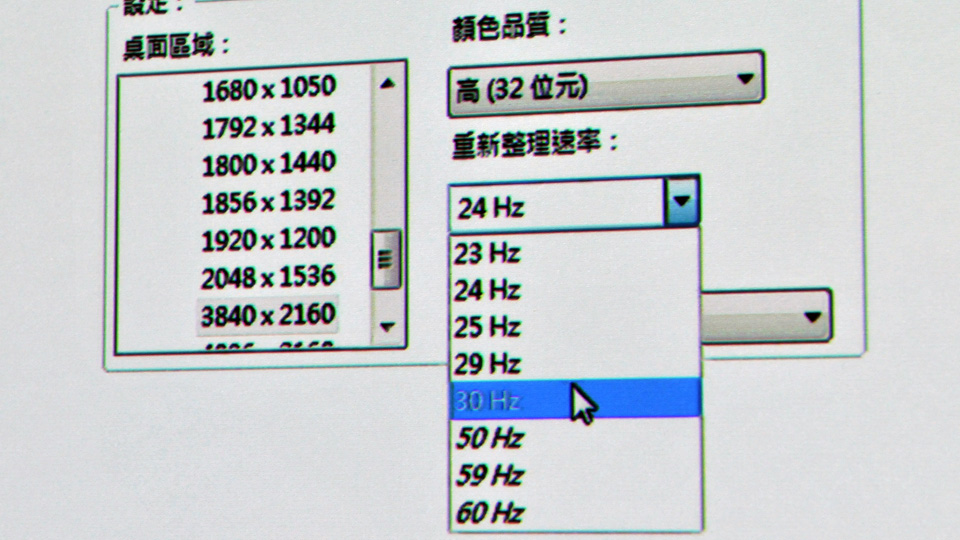

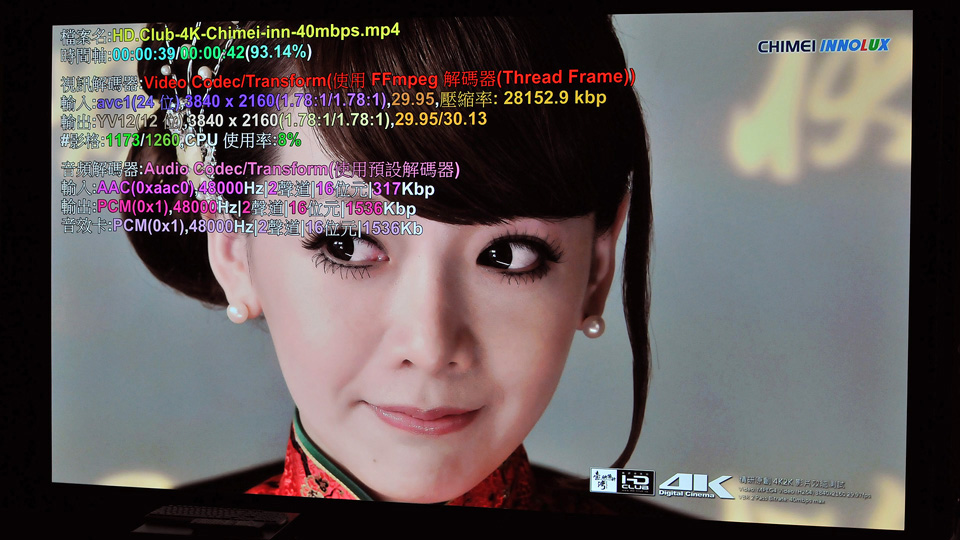

比較令人疑惑的是, EDID 並沒有說它可以支援 3840 x 2160 或是 4096 x 2160 解析度, 即使顯卡 HDMI 有支援, 解析度應該也調不上去吧?
|
|
