HEVC 編碼測試下載
影片格式: HEVC 1920x1080 59.94 FPS Main @ L5.1
音效格式: Dolby Digital 5.1CH, FLAC 24bit 5.1CH, LPCM 24bit 7.1CH
Metal Gear Solid V - Ground Zeroes - Opening (繁中字幕)

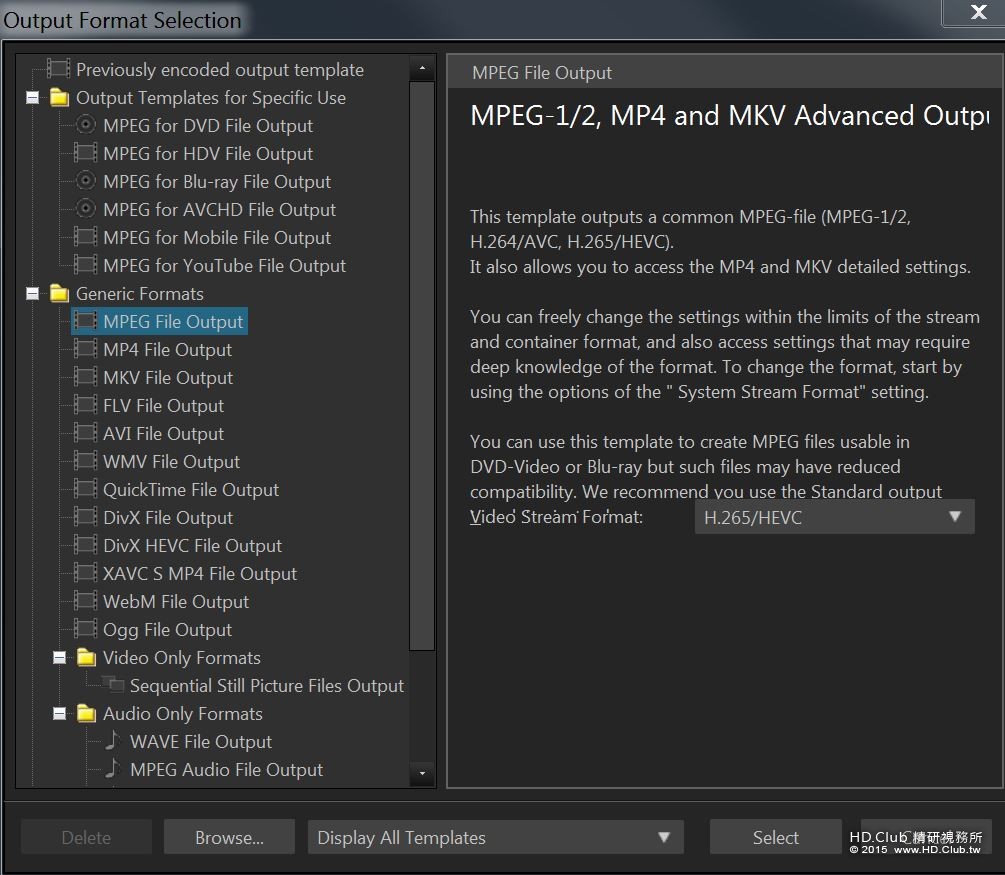

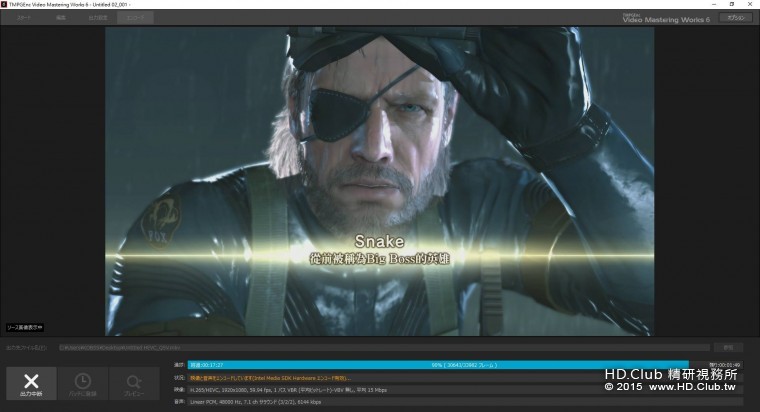

原始檔案 Uncompressed 16bpp. YUV 4:2:2, 以 TMPGEnc Vidoe Mastering Works 6 軟體 bitrate 設在 15Mbps 以 1 PASS 方式比較純軟體與兩種硬體加速

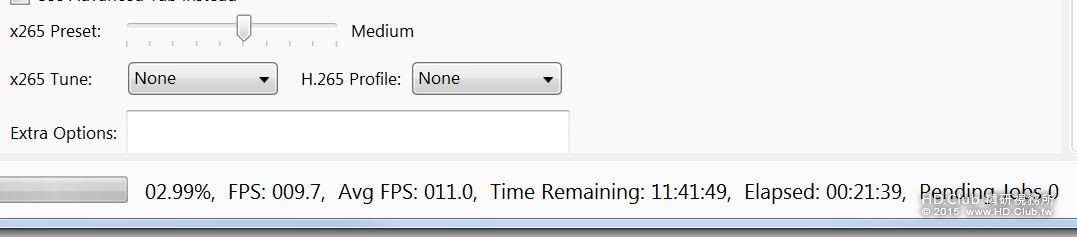

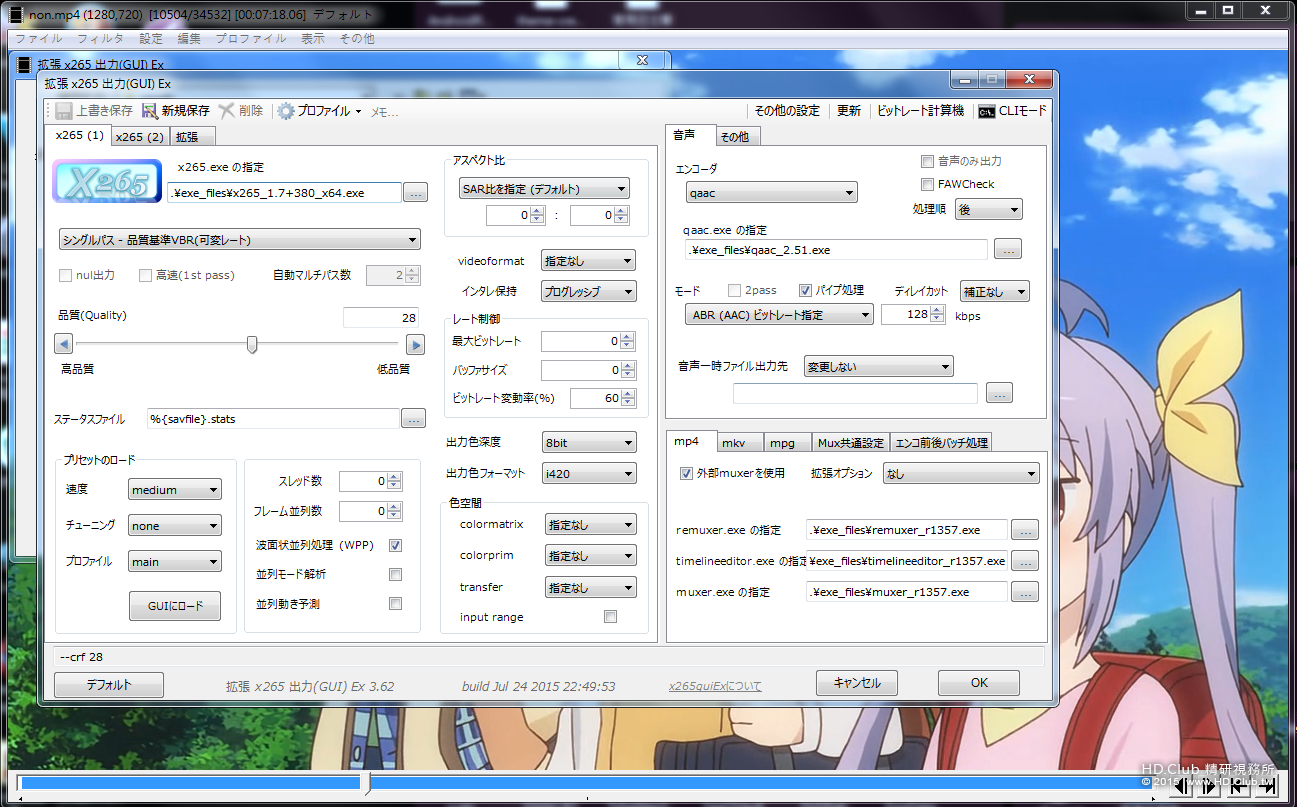

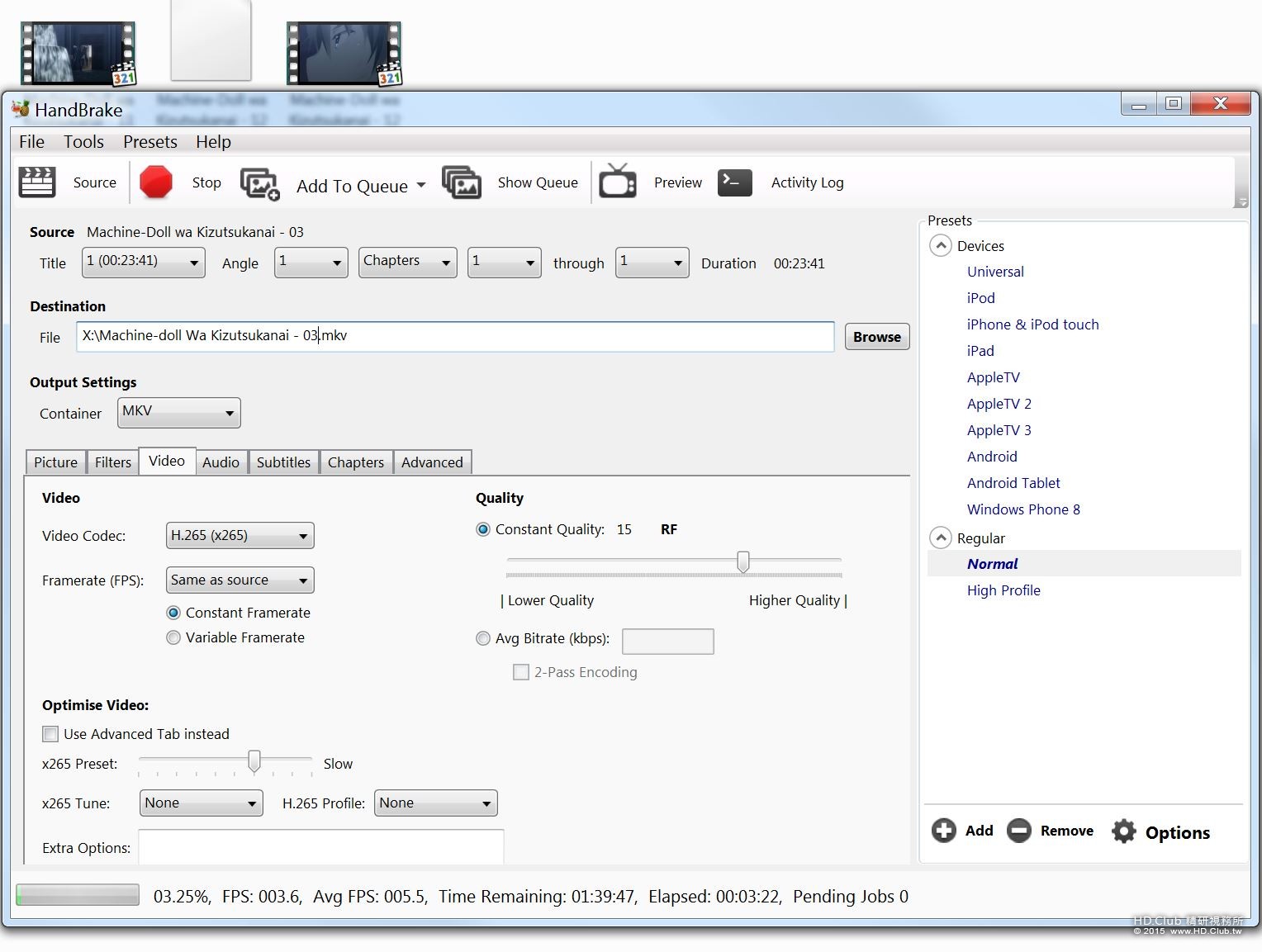

x265
https://drive.google.com/file/d/ ... 1k/view?usp=sharing

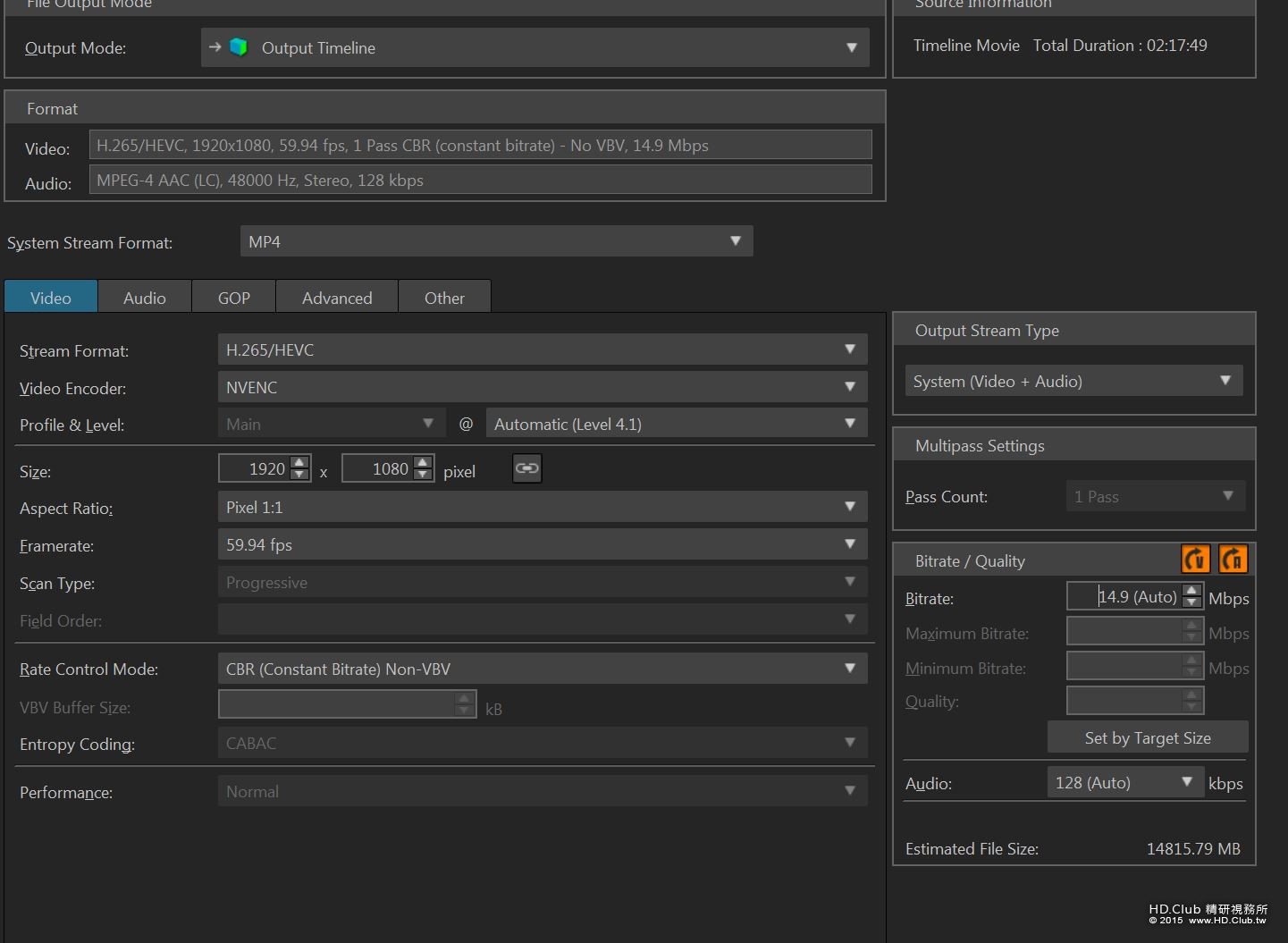

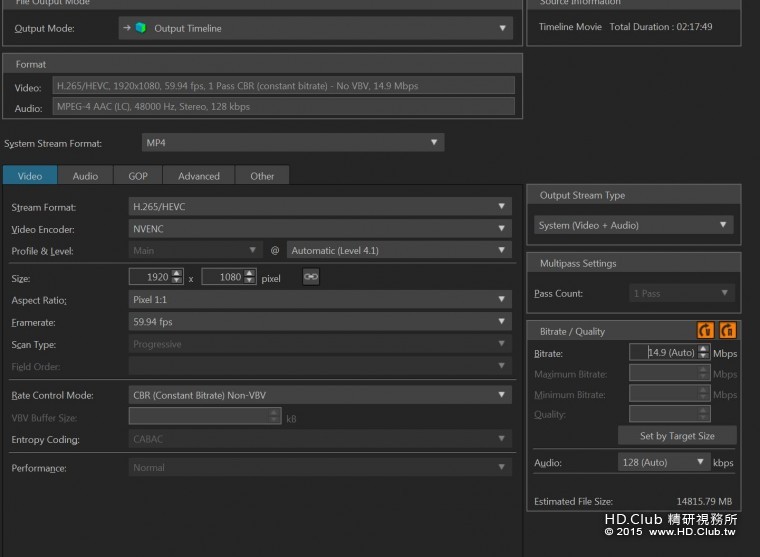

NVENC
https://drive.google.com/file/d/ ... EE/view?usp=sharing

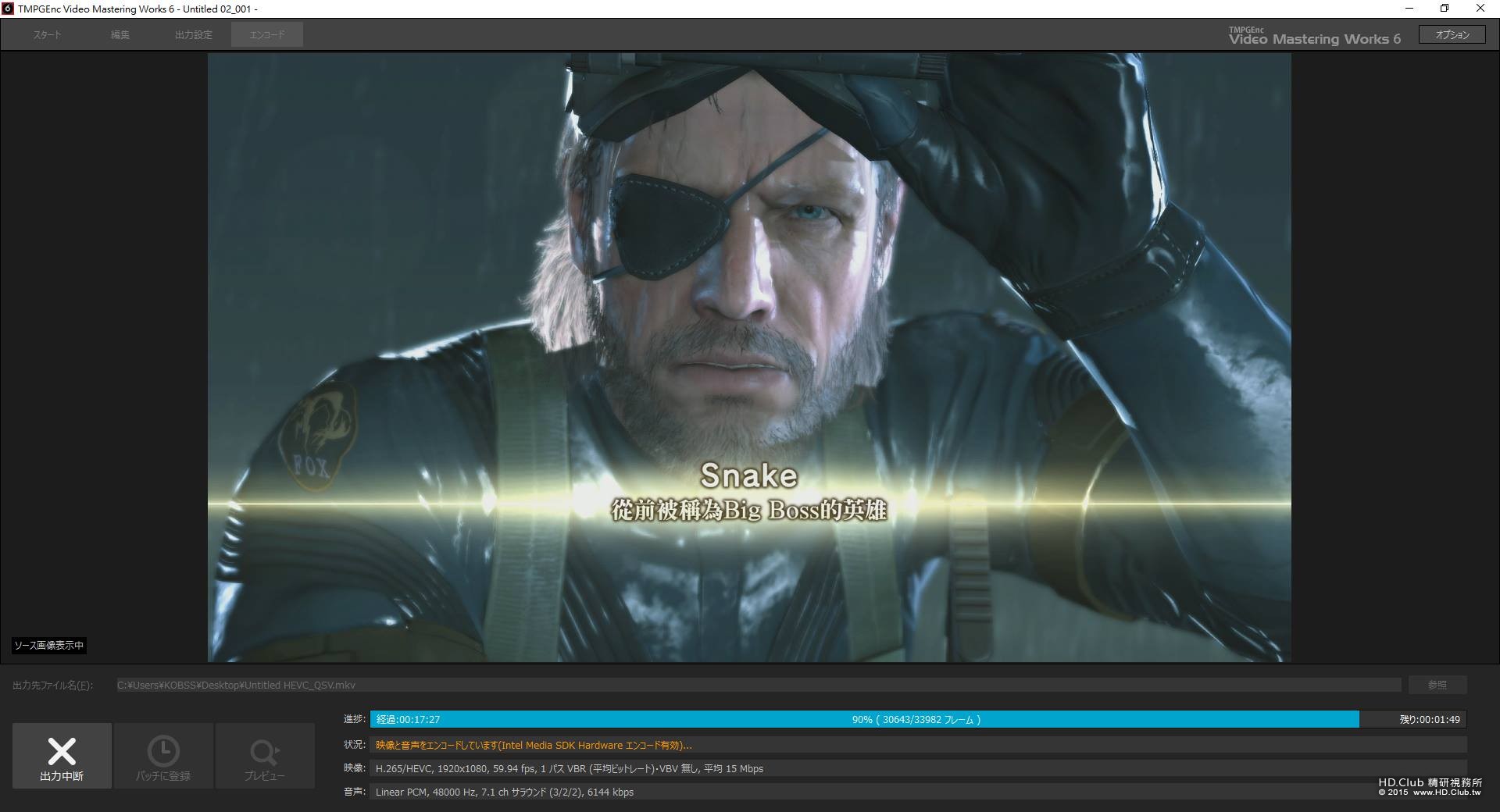

QSV
https://drive.google.com/file/d/ ... ms/view?usp=sharing
分析:
x265 採用很標準的 IBBBPBBBP ... GOP
NVENC 則是很投機取巧的 IPPPPPP ...
Intel QSV 卻是 IBBBBBBBBB 完全沒有 P , 難怪畫質最慘烈...
x265 會動態插入 I 或 P frame, 所以檔案大小在三者當中最大, 表現的畫質也最好, 如果改為 2 PASS 容量應該可以再縮小一些
NVENC 只有 I 與 P frame, 編碼快速, 畫質也不差, 只是我不怎麼喜歡這種沒有 B frame 的作法
QSV 沒有 P frame, 畫質比不過上面兩者, 但是全部都是 B frame 可以有效降低 bitrate, 但是畫面變動大的場景, 畫質就會更慘 |
|
