DENON新一代高階AV環擴 AVR 4520登場

[複製連結]

發表於 2012-9-25 00:42:43 | 顯示全部樓層 |閱讀模式

馬上註冊,結交更多好友,享用更多功能,讓你輕鬆玩轉社區。

您需要 登錄 才可以下載或查看,沒有賬號?註冊

x
本文章最後由 Fred 於 2012-9-25 00:50 編輯

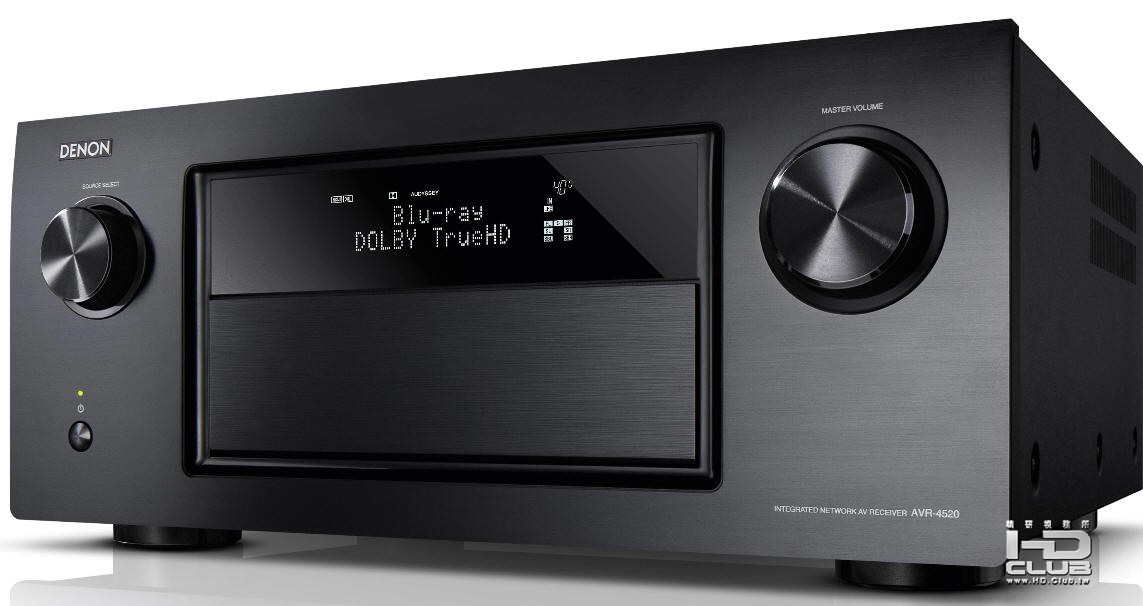

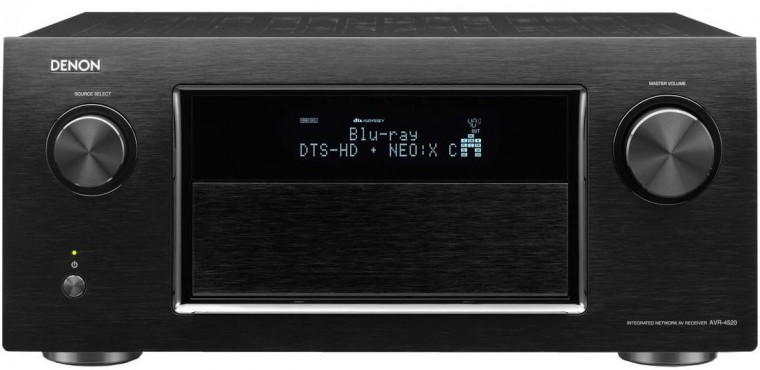

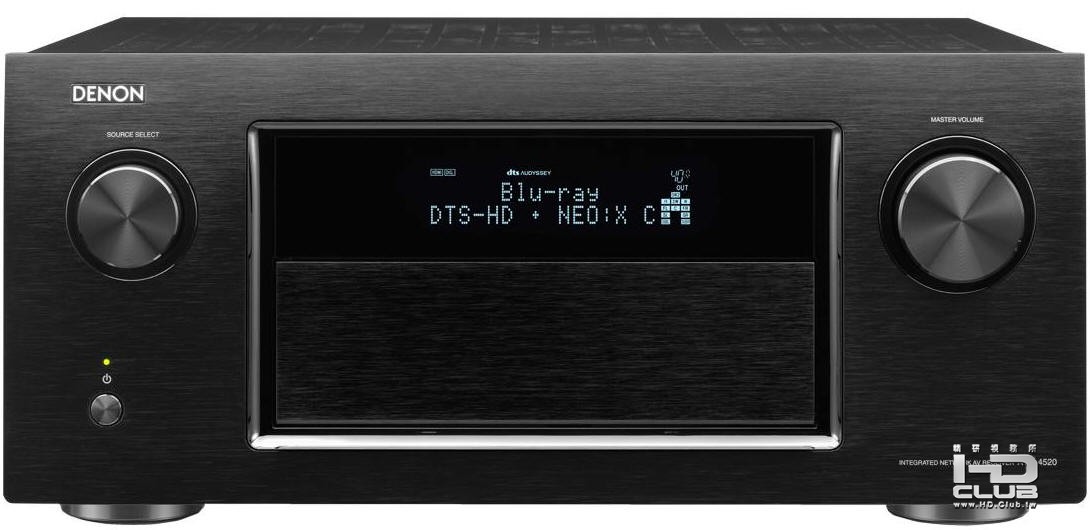

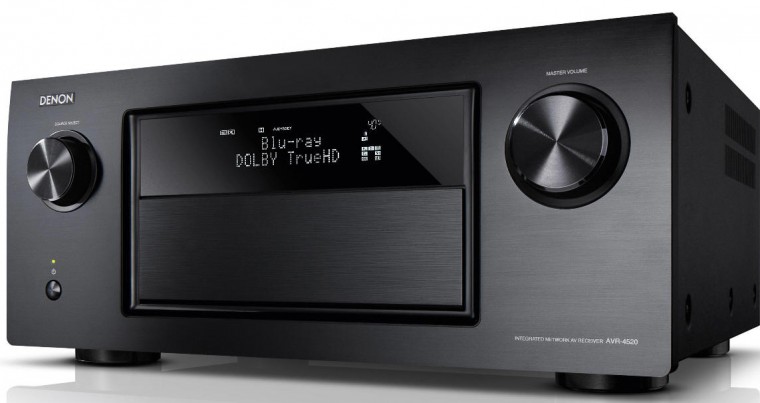

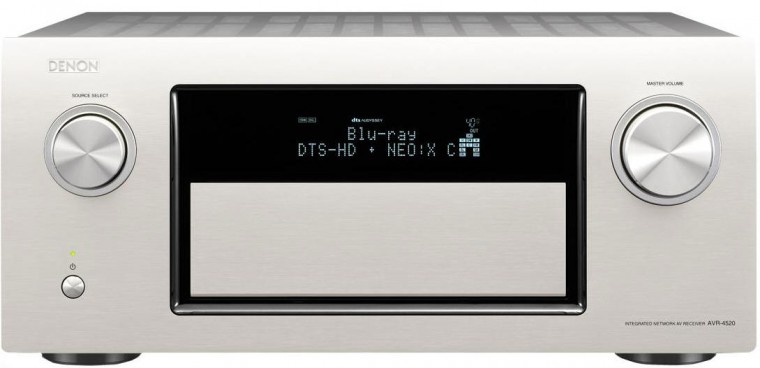

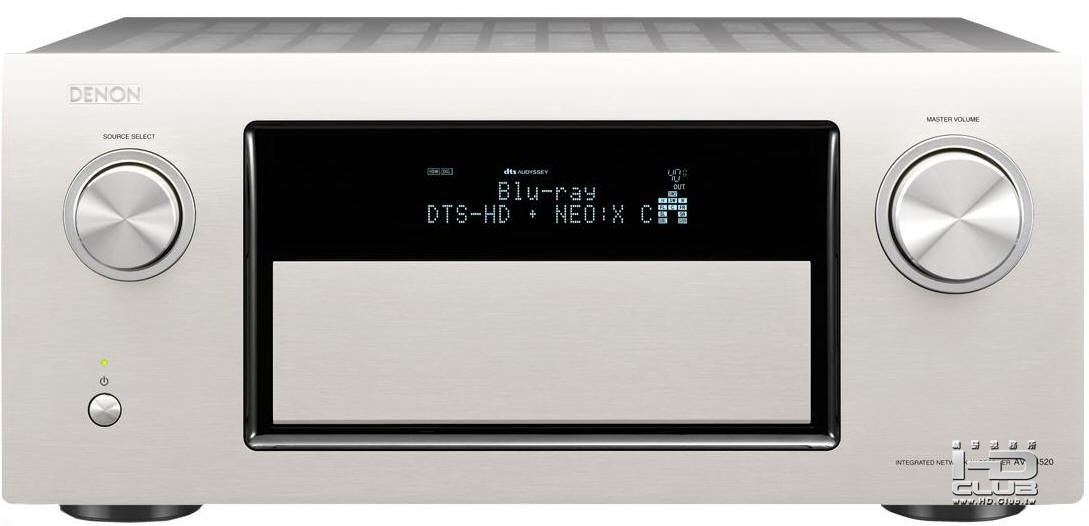

DENON新一代高階環擴 AVR 4520登場



4520的編號好奇怪喔 , 看它的規格跟外表應該是排二哥4810的後續機種




190wpc 9.1 A/V Receiver
HDMI v1.4 allowing for compatibility with 4K, 1080p 3D content and displays More Info...
HDMI v1.4 allowing for compatibility with 4K, 1080p 3D content and displays▲

High Definition Multimedia Interface (HDMI) v1.4
The HDMI v1.4 connections on the DENON AVR-4520 allows for the transmission of 1080p 3D content between a 3D-compatible Blu-Ray Disc player and a 3D HD display. It also brings in an audio return channel allowing for two-way transmission of audio. This allows your television, for example, to send audio back from its integrated tuner to the receiver, solving the problem of having to run more than one cable between your A/V receiver and TV.

MHL Connection More Info...
MHL Connection▲

MHL (Mobile High-Definition Link) allows high definition audio and video to be streamed with up to 1080p video and 8 channels of audio. This is ideal for sending video from MHL equipped mobile devices.

Audio return channel over HDMI More Info...
Audio return channel over HDMI▲

Audio Return Channel
Included in the specifications of HDMI v1.4, ARC (Audio Return Channel) allows an audio signal to be sent from the TV as well a video signal is sent towards it. In short, this eliminates the need to connect any extra cables (SPDIF or analogue) to carry audio from your TV tuner to your receiver. In order for this feature to work, both the AV receiver and television must be v1.4 compatible.

Dolby True HD and DTS HD decoding More Info...
Dolby True HD and DTS HD decoding▲

Dolby TrueHD
The DENON AVR4520 has Dolby TrueHD which is a next-generation lossless technology developed for high-definition disc-based media. It delivers sound that is bit-for-bit identical to the studio master at a bit rate of up to 18 Mbps. It also supports up to 8 full-range channels of 24-bit/96 kHz audio (although TrueHD can support more than 8 channels, HD-DVD and Blu-Ray standards limit it to 8) and extensive metadata including dialogue normalization and dynamic range control all through an HDMI connection. Dolby TrueHD is compatible with existing and future AV amplifiers/receivers.

DTS-HD
The DENON AVR-4520 has DTS-HD which has been selected as an optional audio technology for Blu-Ray Disc and HD-DVD. DTS-HD is a set of extensions to DTS' Coherent Acoustics audio coding system which encompasses DTS Digital Surround, DTS-ES 6.1 discrete, DTS Neo:6 and DTS 96/24. As a mandatory technology in the next generation standards, a DTS decoder will be built into every HD-DVD or Blu-ray Disc player. A single DTS-HD data stream on a disc can carry everything from standard DTS 5.1 playable on virtually all existing 280 million plus DTS decoders, all the way to lossless for next-generation systems.

Support for Dolby Pro-Logic IIz More Info...
Support for Dolby Pro-Logic IIz▲

Dolby Pro-Logic IIz
Taking a 5.1 or 7.1 mix, Dolby ProLogic IIz is able to expand it by creating four new (non-discrete) channels for up to 9.1 surround sound. The system is flexible so you can add new speakers where you want. For example, if you currently have a 5.1 set-up then you can add height channels above your current left and right speakers or you can have them behind you for a more traditional set-up. Of course, you can always have both and take full advantage of what ProLogic IIz has to offer, with 9.1 surround sound.

A standard 5.1 with newly created height speakers as a 7.1 system.

This new 7.1 set-up can then be expanded by adding two further channels as surround sides for 9.1 channels.

Support for DTS Neo:X More Info...
Support for DTS Neo:X▲

DTS Neo:X
Audyssey DSX can add up to four new (non-discrete) channels to your home cinema. It does this by using an algorithm to find the relevant information in the pre-existing soundstage and then distributing it amongst the new channels. These channels are processed and checked simultaneously for any inconsistencies or potential clashes with the discrete channels. A number of different combinations are possible. Audyssey DSX allows for up to an 11.2 system by adding front width and height speakers to a 7.1 mix.

7x HDMI v1.4 inputs
Standby HDMI Pass-through
Analogue video up-conversion to HDMI More Info...
Analogue video up-conversion to HDMI▲

Give the AVR-4520 an analog signal and it will convert it to HDMI, it will also upscale it to 720p / 1080i / 1080p / 4k

Upscaling to 1080p & 4k More Info...
Upscaling to 1080p & 4k▲

From either an analogue or HDMI the AVR4520 will upscale to 720p / 1080i / 1080p / 4k
4k pass through

Zone 2 HDMI output More Info...
Zone 2 HDMI output▲

Zone2 HDMI Allows you to run a HDMI cable to another room and view a separate input to the one being view in the main room.

4 Port Ethernet switch for streaming audio More Info...
4 Port Ethernet switch for streaming audio▲

Stream audio with the 4520 across your home network and internet radio functionality with Last.fm and Flickr support. The built-in 4 port switch allows you to connect other ethernet-enabled devices and share the connectivity with the AVR4520.

Apple Airplay certified for streaming audio from your iPad/Pod/Phone or iTunes More Info...
Apple Airplay certified for streaming audio from your iPad/Pod/Phone or iTunes▲

Apple Airplay
Airplay allows you to use your A/V receiver as a client for iTunes, allowing you to stream all your music from your iTunes library. Using Airplay effectively identifies your system or receiver as a set of computer speakers, though through iTunes you can allow basic control from the system (usually skip back/forward, play and pause). You do not get the same search functions you would get with DLNA, but provided your iPod, iPhone or iPad is on the same network, you can control the playback of iTunes from your iOS device to your receiver.

Gapless playback and Apple Lossless support

Denon Link HD More Info...
Denon Link HD ▲

Reduces jitter between a compatible Denon Blu-Ray player and the receiver. Only the clock timing information is sent down one phono lead, the audio signal is still sent down HDMI.

Aluminium front panel

Denon Remote App for iPhone/Pod/Pad allows you to change source, adjust volume or power on/off your AVR-4520

DLNA 1.5 certified and compatible with Windows 7 More Info...
DLNA 1.5 certified and compatible with Windows 7▲

Digital Living Network Alliance (DLNA)
DLNA is an agreed standard for sharing media from your computer across your home network to devices like this. This can be digital photos, music and videos. Not all devices are capable of playing back all media, some only playback audio.

USB input with iPod Digital More Info...
USB input with iPod Digital▲

iPod Digital
iPod Digital allows you to connect in most modern iPods via USB and playback audio from your iPod, using the interface of the receiver to browse playlists and tracks. You can also normally view album artwork GUI during playback when connected to a unit with a video output, like an A/V receiver. However, you can often navigate using the front panel display, removing the need to turn on your television to enjoy music from your iPod.

Audyssey MultEQ XT32 room acoustic correction More Info...
Audyssey MultEQ XT32 room acoustic correction▲

Audyssey MultEQ XT32
MultEQ XT aims to calibrate your system to perform as best as possible given the often less-than-ideal room shaped and undesirable materials that could be used (such as glass) in your home cinema. All this is done in a matter of minutes with the included microphone and the results may range from sharper vocals to a better spatiality to the soundstage. The XT32 utilises the most advanced and highest resolution filters ever used in MultEQ. This means the system can operate with exceptional clarity even in the most angular and oddly shaped rooms.

Audyssey Dynamic EQ and Dynamic Volume More Info...
Audyssey Dynamic EQ and Dynamic Volume▲

Audyssey Dynamic EQ
Dynamic EQ ensures that when you turn down your surround sound, channels don't drop out completely. It calculates the difference between reference and playback level to keep the surround channels in check when the volume is turned down. Using the information collected by MultEQ/XT/XT32, the volume is corrected according to the particular acoustic properties of your room.

Audyssey Dynamic Volume
Soundtracks are often recorded with volume spikes, and switching between sources can lead to big differences in volume; setting the volume at any given time does not take these differences into account. Having Audyssey Dynamic Volume on will set the volume at a steady constant and will increase or decrease depending on the content, ensuring you are not troubled by spiking volume late at night.

  Four Quick-Select buttons

  Overlaid on-screen display GUI and setup menus over HDMI

  AV Sync function (up to 200ms)

  Pure Direct mode

  Powered Zone 2 option More Info...
Powered Zone 2 option▲

If you only use 7.1 in the main zone you can opt to use the extra amplification on the AVR4520 for a second set of stereo speakers that can select a different source from the main zone. Additionally you can use the zone 2 pre-outs to feed a power amp or active speakers and still have 9.1 in the main zone.

  RS232, 12v Trigger output & IR in & out

  FM/AM Radio Tuner built in

Denon Network Party Mode More Info...
Denon Network Party Mode▲

Allows you to play the same music stored on your network simultaneously around your house with up to 5 other compatible Denon products. Ideal if you are working around the house or having a party.

Remote control

Search for packages/bundle deals with the AVR4520

發表於 2012-9-25 07:10:58 | 顯示全部樓層
期待後續報導....
回覆 支持 反對

使用道具 舉報


發表於 2012-9-25 09:16:27 | 顯示全部樓層
本文章最後由 雷奧 於 2012-9-25 09:18 編輯

應該就是AVR-4311的後繼機種了
看歐洲官網的背板端子
和紀念機種A100很相似
鍍金端子 透明喇叭端子
輸入端都改到上面了
這樣接線就好接的多了

回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2012-9-25 12:19:48 | 顯示全部樓層
本文章最後由 Fred 於 2012-10-1 16:24 編輯
雷奧 發表於 2012-9-25 09:16
應該就是AVR-4311的後繼機種了
看歐洲官網的背板端子
和紀念機種A100很相似

雷奧兄:

   我覺得這台應該不是 AVR-4311的後續機吧看起來比較有老二的架勢應該跟PIONEER的LX86同級數吧
回覆 支持 反對

使用道具 舉報


發表於 2012-9-25 15:14:01 | 顯示全部樓層
外型看來還蠻酷的不知力道如何期待後續報導!
回覆 支持 反對

使用道具 舉報


發表於 2012-9-25 15:26:41 | 顯示全部樓層
本文章最後由 雷奧 於 2012-9-25 18:02 編輯

FRED 版主
小弟是以DENON 的命名方式和架構來判斷
小弟做的DENON 中高階型號編年史  大約8-9月就有隔年機種的發表消息
08年 5308  XXXX  4308  3808 2808
09年 5308  XXXX  4310  3809 2809
10年 5308   4810  4311 XXXX 3310
11年 5308   4810  4311 XXXX 3311
12年 5308   4810  4311 XXXX 3312
13年 XXXX  XXXX XXXX XXXX 3313
高階機種 必備
Audyssey MultEQ XT32
Denon link
7聲道以上放大模組(4311起)
加上今年DENON 擴大機的驅動瓦數標示皆比上一代高一些
因背板和百年紀念機種A100很像鍍金+透明喇叭端子(A100 是以4311為基礎的改良機種)
輸入端排列方式卻和4810相同全在上方擴大模組在下方
而4520 的命名 DENON 通常把數字頭2碼往上加來命名
如2809 後繼機命名為 3310
4810後繼機命名方式 頭2碼數字降下來機率因該不高
或許又是 低於4810高於4311的新級距機種
因各家 產品級距 設定不同 常有 P牌 三當家高於D牌三當家 卻 遜於D牌二當家 之情形
這是小弟拙見  FRED 版主  請勿掛心



回覆 支持 反對

使用道具 舉報


發表於 2012-9-26 00:38:36 | 顯示全部樓層
1.好好的 乙太 denon link

  改成  廉價版單向迴路 ,真能省,  這樣又讓數位線材廠喘一口氣.

2.前級貌似不錯,可以充分擔綱大任。

  這次強調功率晶體向 KENWOOD TRAITR 技術看齊的

  不曉得是買下來還是抄襲。


3. "九"聲道才 ""16.5"" 公斤,真要拿來當一體機,而不把他拿來當前級就好

   我把它定位在比他重的兄弟姊妹機種之後,這辦法很簡單吧........ ,


    完全不遵照系譜的演進了
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2012-9-26 11:21:18 | 顯示全部樓層
本文章最後由 Fred 於 2012-9-26 11:24 編輯

價格與發售時間
型番:AVR-4520
希望小売価格(税込):346,500円
発売時期:10月中旬予定


其中的重點
配備新的Denon Link HD
可以讓外部所有音源,包括USB,利用Denon Link HD啟動4520內部的時脈產生器,可以提升精度並降低jitter數位抖動
當然還有4K升頻

本機在電源、供電、類比放大元件、OP都貫徹Denon高階兩聲道的設計
共有九聲道的各聲道獨立、推力相同的放大器
所有音訊處理都是32 bit, 包括DAC, 音場處理校對的32 bit浮點運算DSP
DSP也是搭載3枚
與A1SE, A1SR, A1HD一樣


回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2012-9-26 12:17:01 | 顯示全部樓層

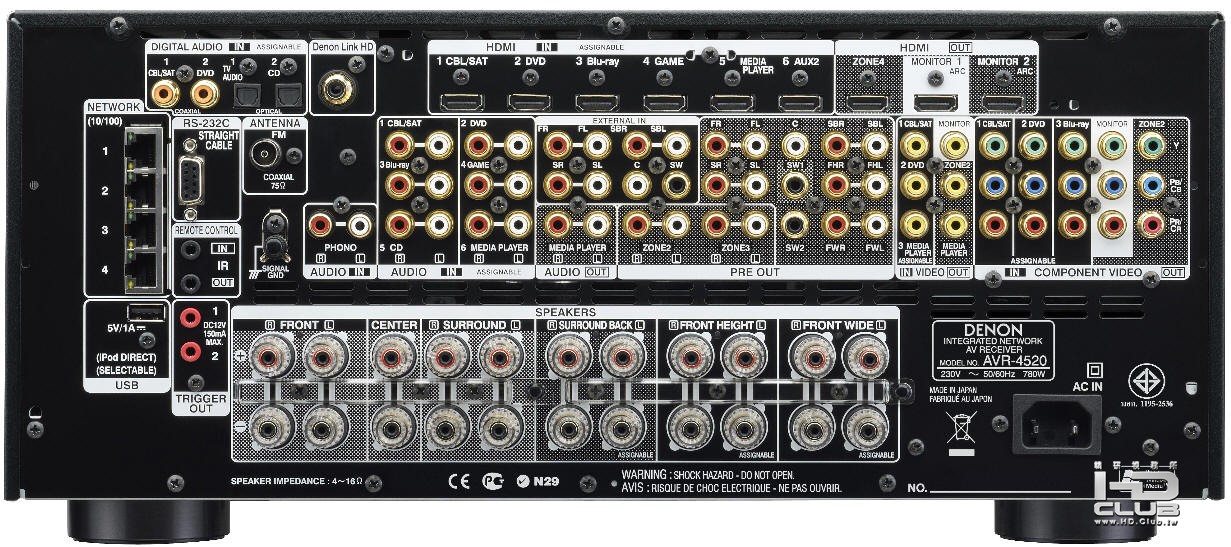

背板美圖分享

MADE IN JAPAN , 對產地注重的發燒友來說 , 這三個字還是有一定的吸引力
回覆 支持 反對

使用道具 舉報


發表於 2012-9-27 22:39:13 | 顯示全部樓層
以訂價來看真的是二當家跟LX86同級
只是重量怎才16.5kg
回覆 支持 反對

使用道具 舉報


 樓主| 發表於 2012-9-28 00:17:49 | 顯示全部樓層
本文章最後由 Fred 於 2012-10-1 16:25 編輯
kevinhsu888 發表於 2012-9-27 22:39
以訂價來看真的是二當家跟LX86同級
只是重量怎才16.5kg

原物料上漲的壓力下日系環擴的體重有逐年羽量化的驅勢要如當年全盛時期 , 旗鑑機至少30kg起跳次旗鑑25kg上下已經不太可能 , (看當年A1SR & A11SR)

至於聲音的品質是否相對打折扣呢? 反正規格一直推陳出新也很難放在一起比較我的經驗是新規格的處理晶片聲音細膩度會有所精進不過重視機身重量的老玩家要的是全面性的提升如質感音樂性等等但等到想換機的時候也只能緬懷過往吧
回覆 支持 反對

使用道具 舉報


發表於 2012-9-28 11:45:08 | 顯示全部樓層
只希望這台能夠在台正式引進
補DENON高階的空缺
液晶遙控器不知是否有搭載
回覆 支持 反對

使用道具 舉報


發表於 2012-9-28 15:34:03 | 顯示全部樓層
Fred 發表於 2012-9-26 11:21
價格與發售時間
型番:AVR-4520
希望小売価格(税込):346,500円

看價位似乎與pioneer 的旗艦差不多,那應該是二當家吧!
回覆 支持 反對

使用道具 舉報


發表於 2012-10-11 22:02:01 | 顯示全部樓層
最近在找擴大機~發現為何D家討論真的很少很少
害小弟想下手都怕怕的
回覆 支持 反對

使用道具 舉報


發表於 2012-10-15 14:52:34 | 顯示全部樓層
不知道一般家用預算兩萬內~能不能有好的家庭劇院環擴呢
回覆 支持 反對

使用道具 舉報


發表於 2012-10-17 04:30:17 | 顯示全部樓層
johnny07110306 發表於 2012-10-11 22:02
最近在找擴大機~發現為何D家討論真的很少很少
害小弟想下手都怕怕的

原則上Denon與您先前熟悉的Pioneer在聲音的調性上有相當程度的不同。

如果有熟悉的店家,建議您到店裡實際用同一對喇叭換接聆聽,這樣可以知道聲音的 Tone 調是不是可以接受。

身邊不乏友人換了Amp以後聽不習慣認賠脫手的。一點小小心得供您參考。


回覆 支持 反對

使用道具 舉報


發表於 2012-10-17 23:29:59 | 顯示全部樓層
PCHTW 發表於 2012-10-17 04:30
原則上Denon與您先前熟悉的Pioneer在聲音的調性上有相當程度的不同。

如果有熟悉的店家,建議您到店裡實 ...

感謝P大~~小弟最後還是保險點~~買了SC-55~呵
回覆 支持 反對

使用道具 舉報


發表於 2012-10-17 23:59:52 | 顯示全部樓層
本文章最後由 PCHTW 於 2012-10-18 00:00 編輯
johnny07110306 發表於 2012-10-17 23:29
感謝P大~~小弟最後還是保險點~~買了SC-55~呵


哇,恭喜啦,恭喜Johnny兄新機入駐,也敬祝您更換Amp以後環繞音效與整體音場品質更上一層樓。
回覆 支持 反對

使用道具 舉報


發表於 2012-11-1 17:43:39 | 顯示全部樓層
本文章最後由 泡泡 於 2012-11-2 11:27 編輯

日本官網...AVR-4520   .
.
DENON JP


3313 官方影片介紹
Denon AVR-3313: AV-ART created by Denon


回覆 支持 反對

使用道具 舉報


發表於 2012-11-1 20:51:46 | 顯示全部樓層
期待后续报导....
